Installation Procedure

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

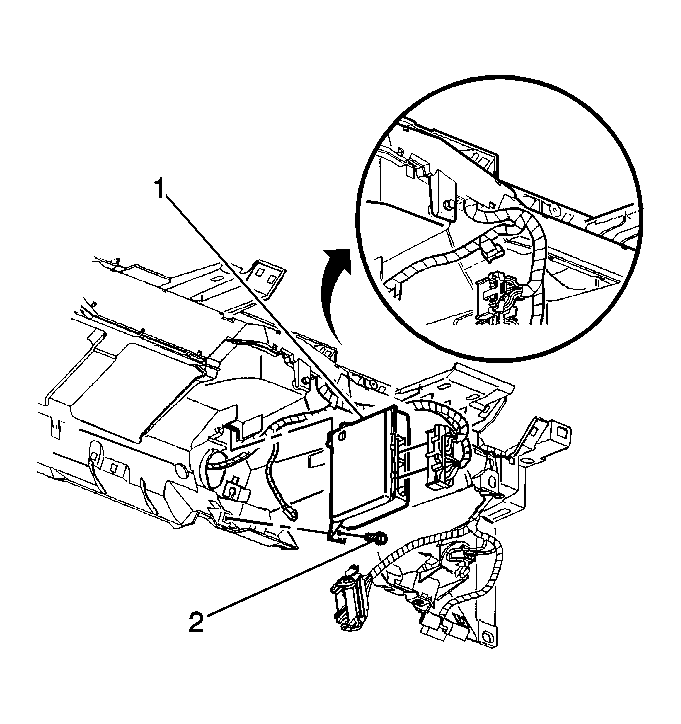

    Fig 1: View of Instrument Panel Module Fasteners and Electrical Connectors
    GM428511Courtesy of GENERAL MOTORS CORP.
  1. Install the IPM (1) to the vehicle.
  2. Connect the electrical connectors to the IPM (1).
  3. Install the IPM (1) to the IP retainer by inserting the top tab of the module into the slot on the IP retainer and rotating down.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the fastener.

    Tighten:  Tighten fastener to 2 N.m (18 lb in).

  5. Install the left closeout/insulator panel. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages and Console.
  6. Program the instrument panel module. Refer to Body Control Module (BCM) Programming/RPO Configuration (IPM)  or Body Control Module (BCM) Programming/RPO Configuration (DIM)  or Body Control Module (BCM) Programming/RPO Configuration (RIM) .
