Cruise Control Component Views
WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

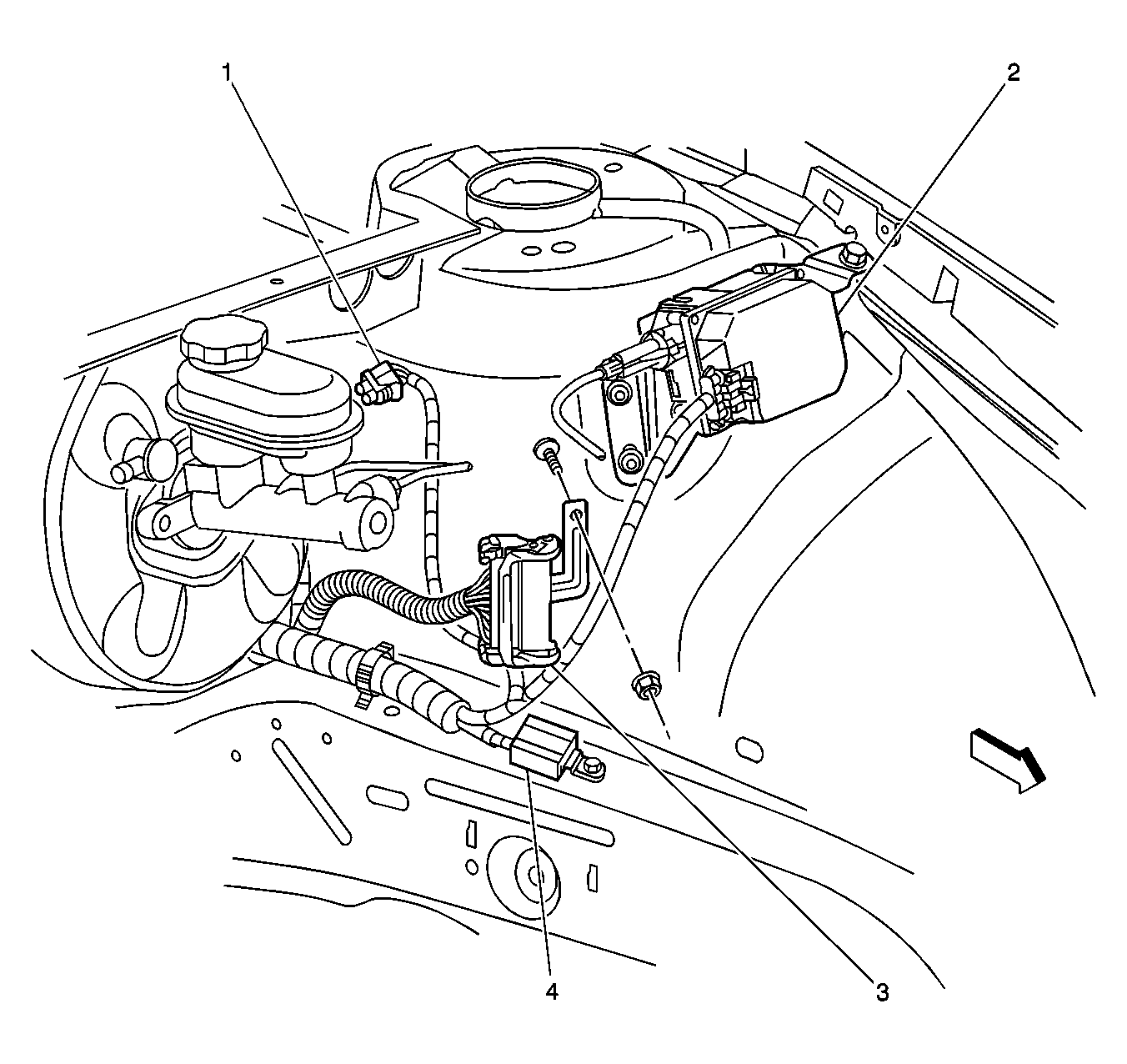

| Callout |
Component Name |
| 1 |
Brake Fluid Level Switch |
| 2 |
Cruise Control Module (CCM) |
| 3 |
C101 |
| 4 |
G106 |
Courtesy of GENERAL MOTORS CORP.

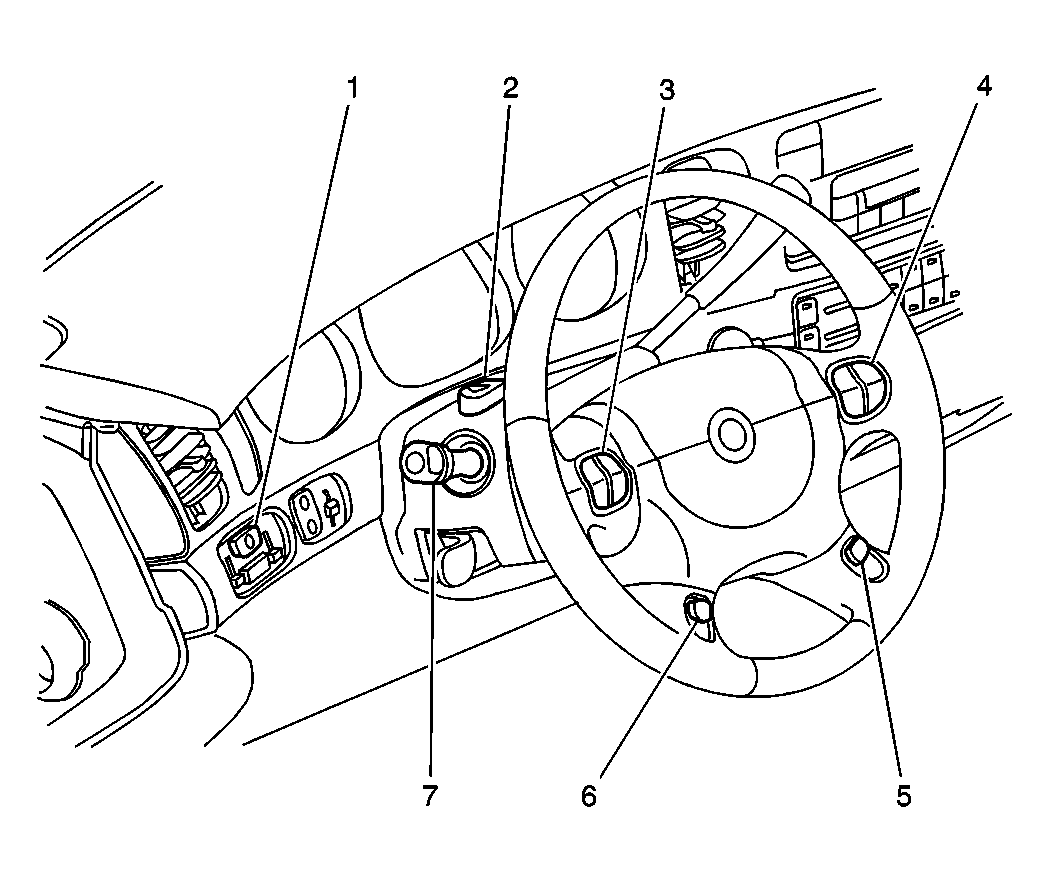

| Callout |
Component Name |
| 1 |
Headlamp Switch |
| 2 |
Hazard Switch |
| 3 |
Steering Wheel Controls -Left |
| 4 |
Right Steering Wheel Controls - Right |
| 5 |
Cruise Control Switch - Right |
| 6 |
Cruise Control Switch - Left |
| 7 |
Turn Signal/Multifunction Switch |
