Installation Procedure

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View of Cruise Control Cable Ball Stud & Actuator Strip

Courtesy of GENERAL MOTORS CORP.

Install the cruise control cable ball stud (1) into the slot in the cruise control module actuator strip (2).
Insert the cruise control cable housing into the cruise control module and twist clockwise to secure.

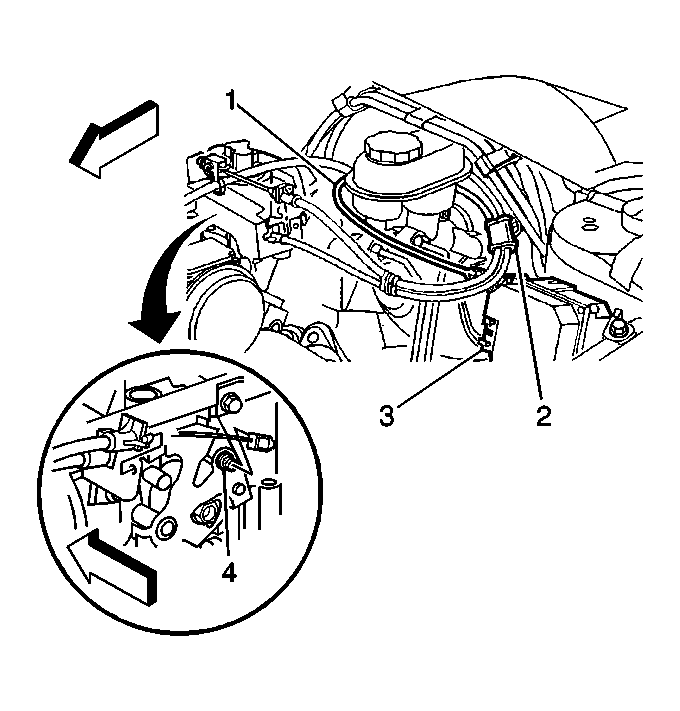

Fig 2: View of Cruise Control Cable & Throttle Body Fuel Injection Cam

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to Cruise Control Description and Operation for the complete operational details.

Connect the cruise control cable to the throttle body injection cam (4).
Snap the cable bracket into the throttle body bracket.
Install the cable into the retainers (2).
