Removal Procedure

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the cruise control cable. Refer to Cruise Control Cable Replacement .

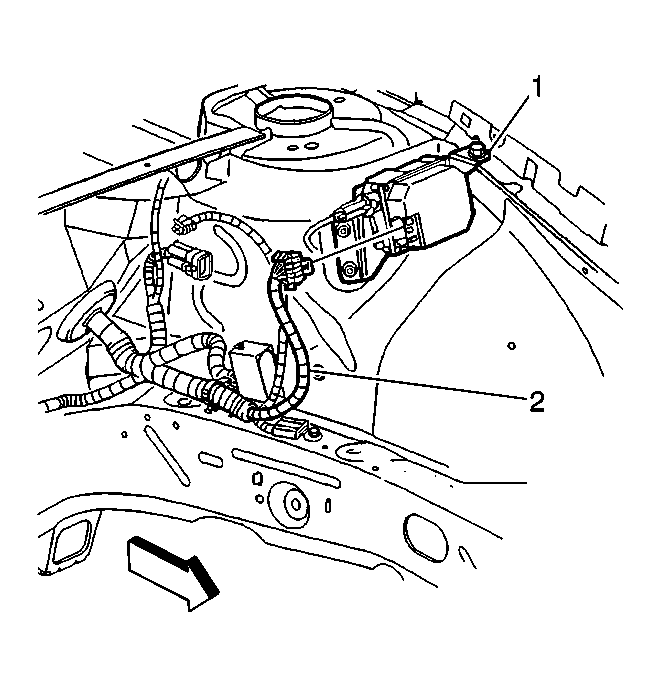

Fig 1: View of Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connector (2).

Fig 2: View of Cruise Control Module & Bracket Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the cruise control module bracket retaining fasteners (1, 3).
Remove the cruise control module and bracket assembly (2) from the vehicle.
Remove the module to bracket fasteners.
Remove the cruise control module from the bracket.
