Body Control Module Connector End Views

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

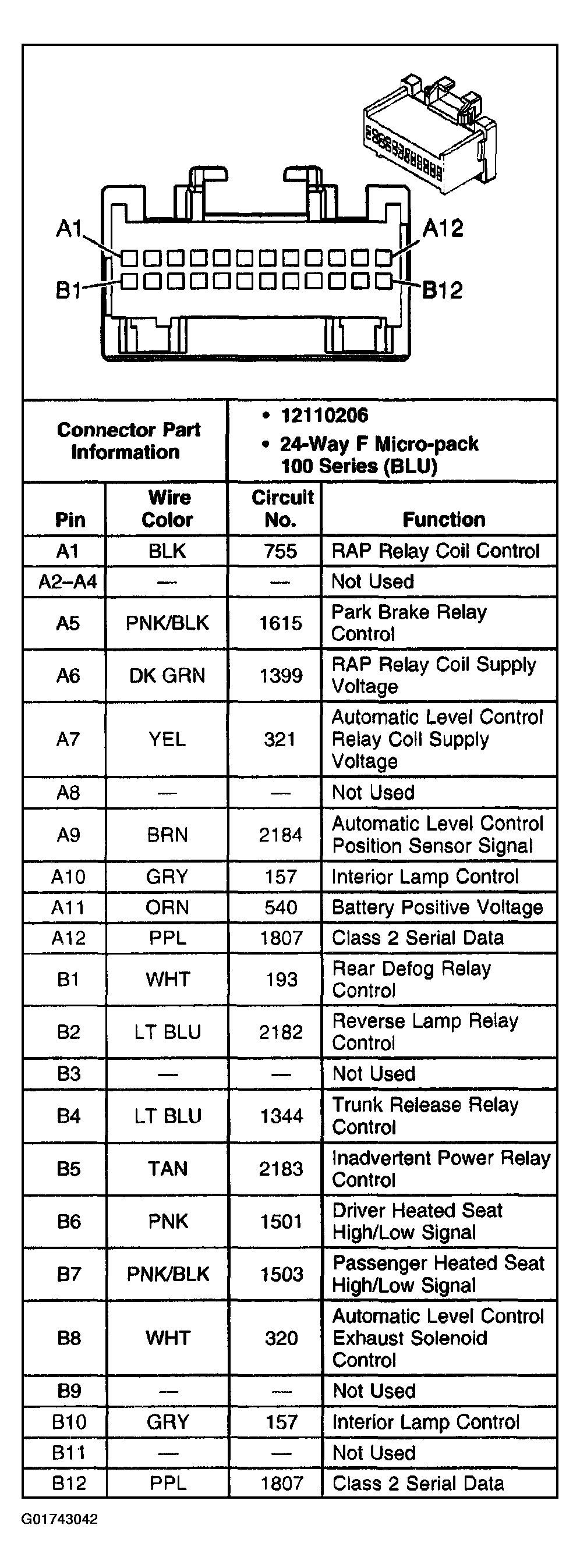

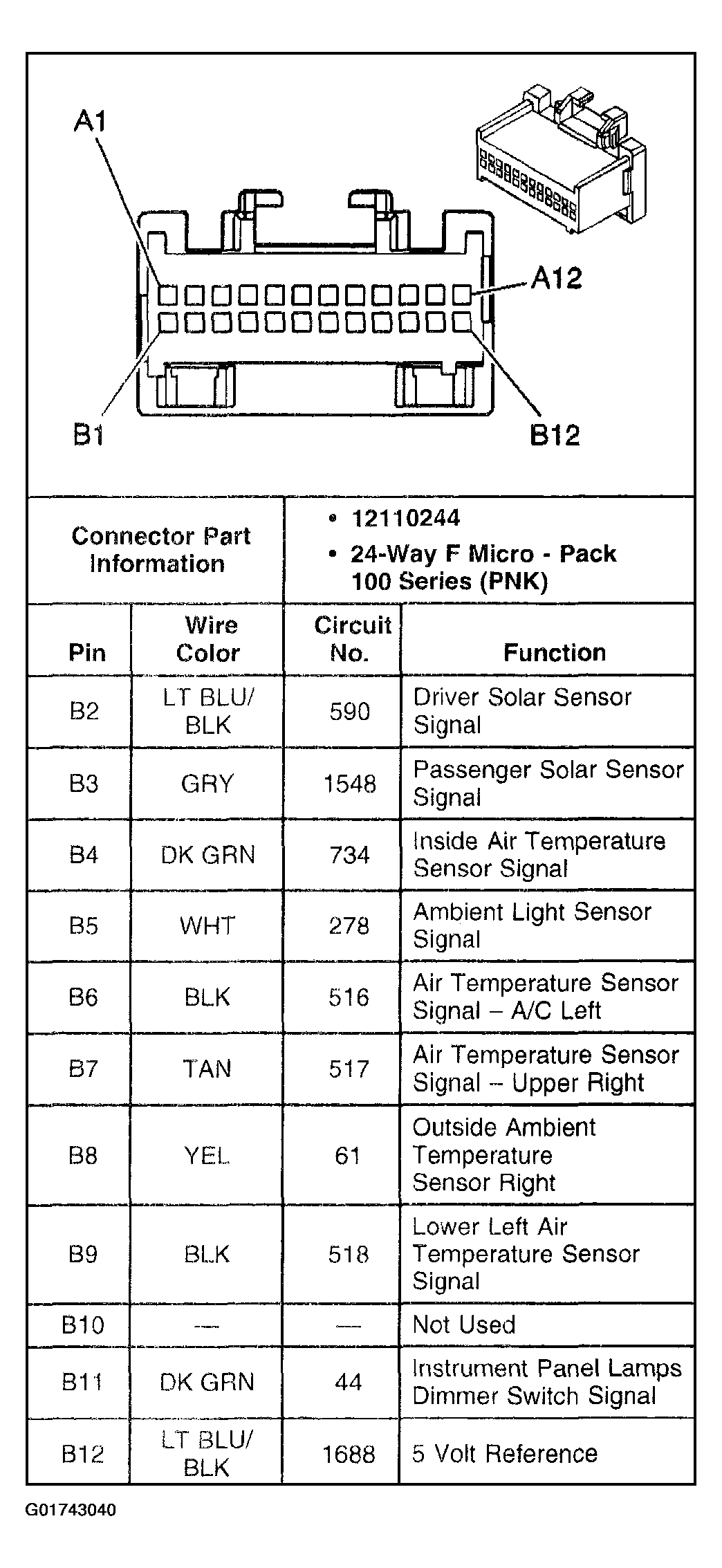

Fig 1: Dash Integration Module (DIM) C1

Courtesy of GENERAL MOTORS CORP.

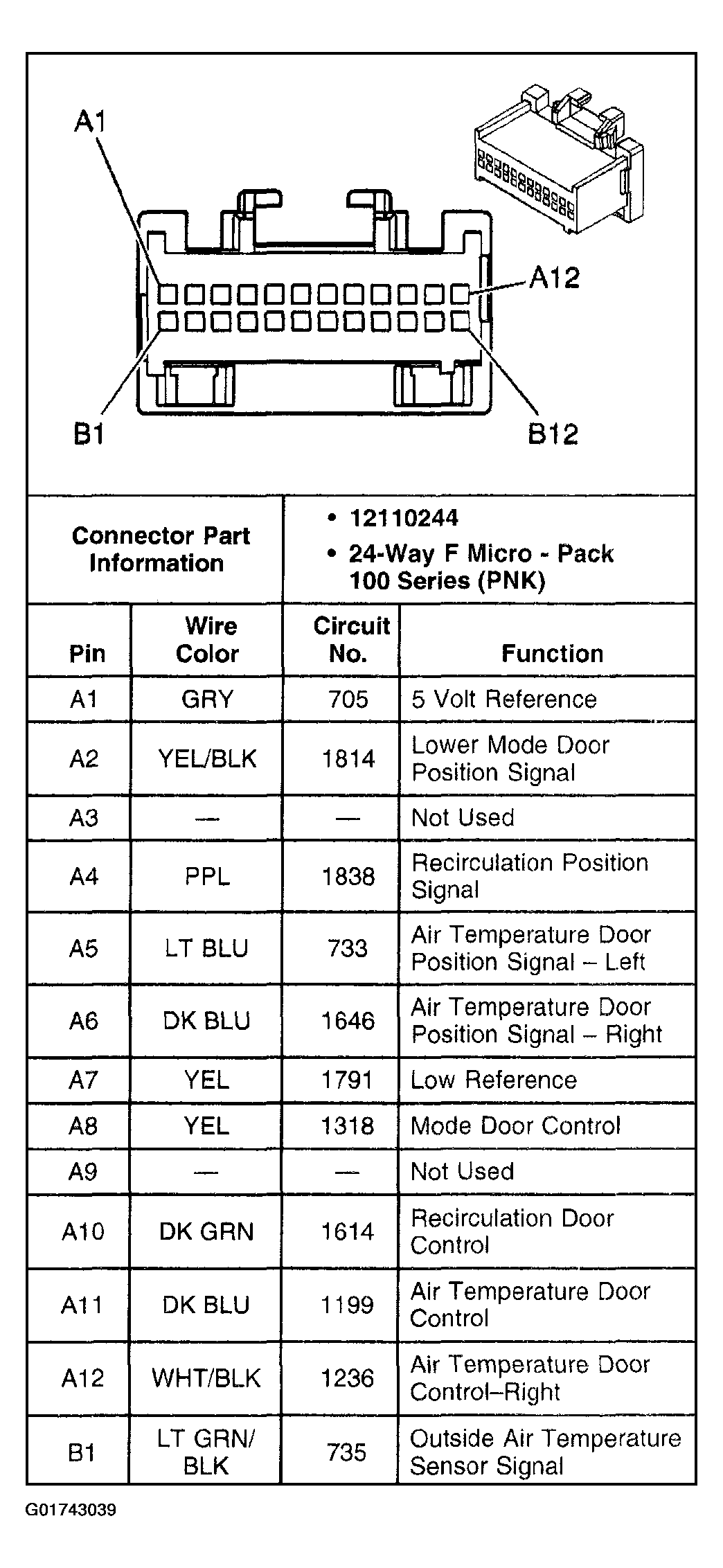

Fig 2: Dash Integration Module (DIM) C2 (1 of 2)

Courtesy of GENERAL MOTORS CORP.

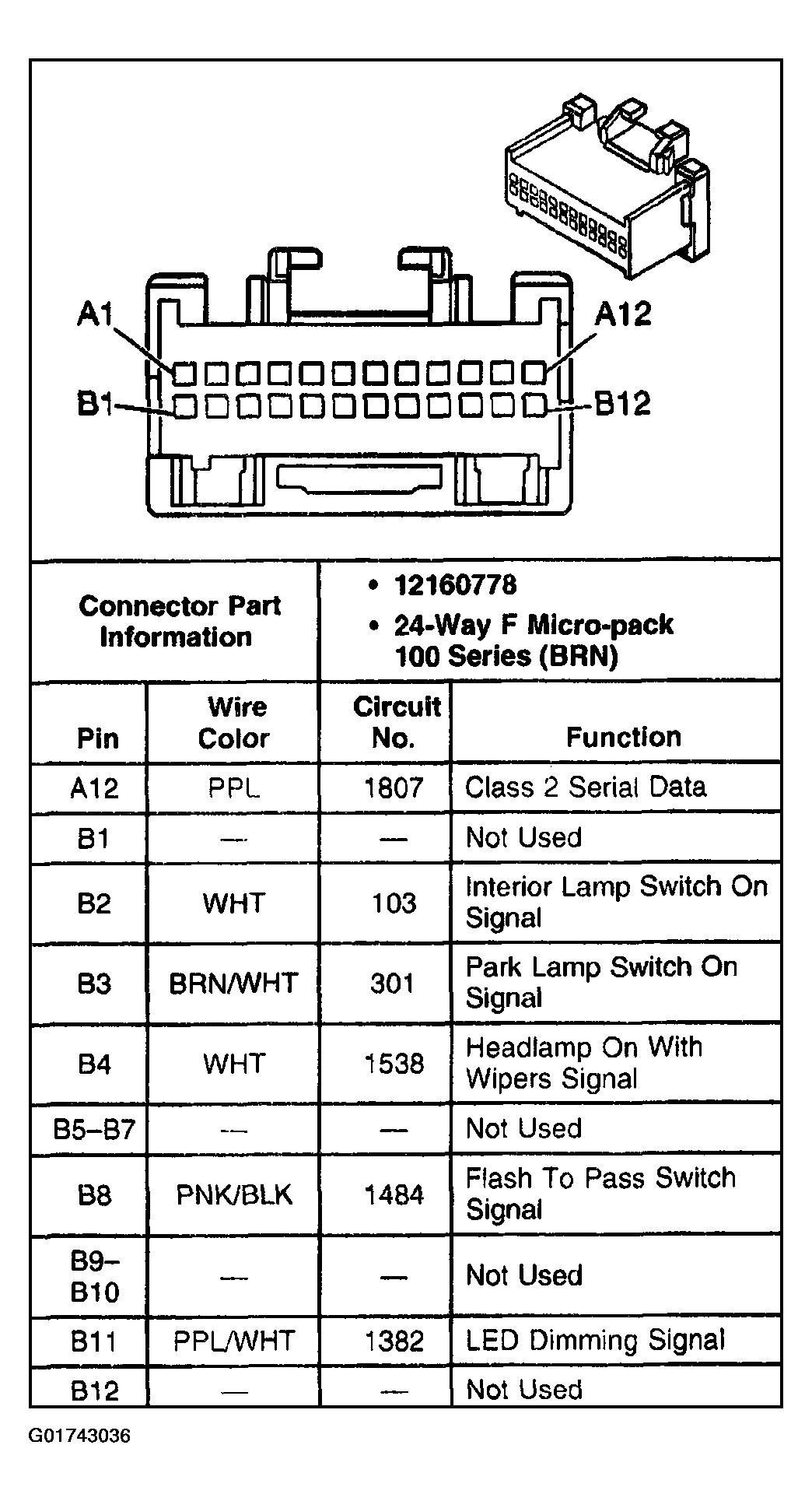

Fig 3: Dash Integration Module (DIM) C2 (2 of 2)

Courtesy of GENERAL MOTORS CORP.

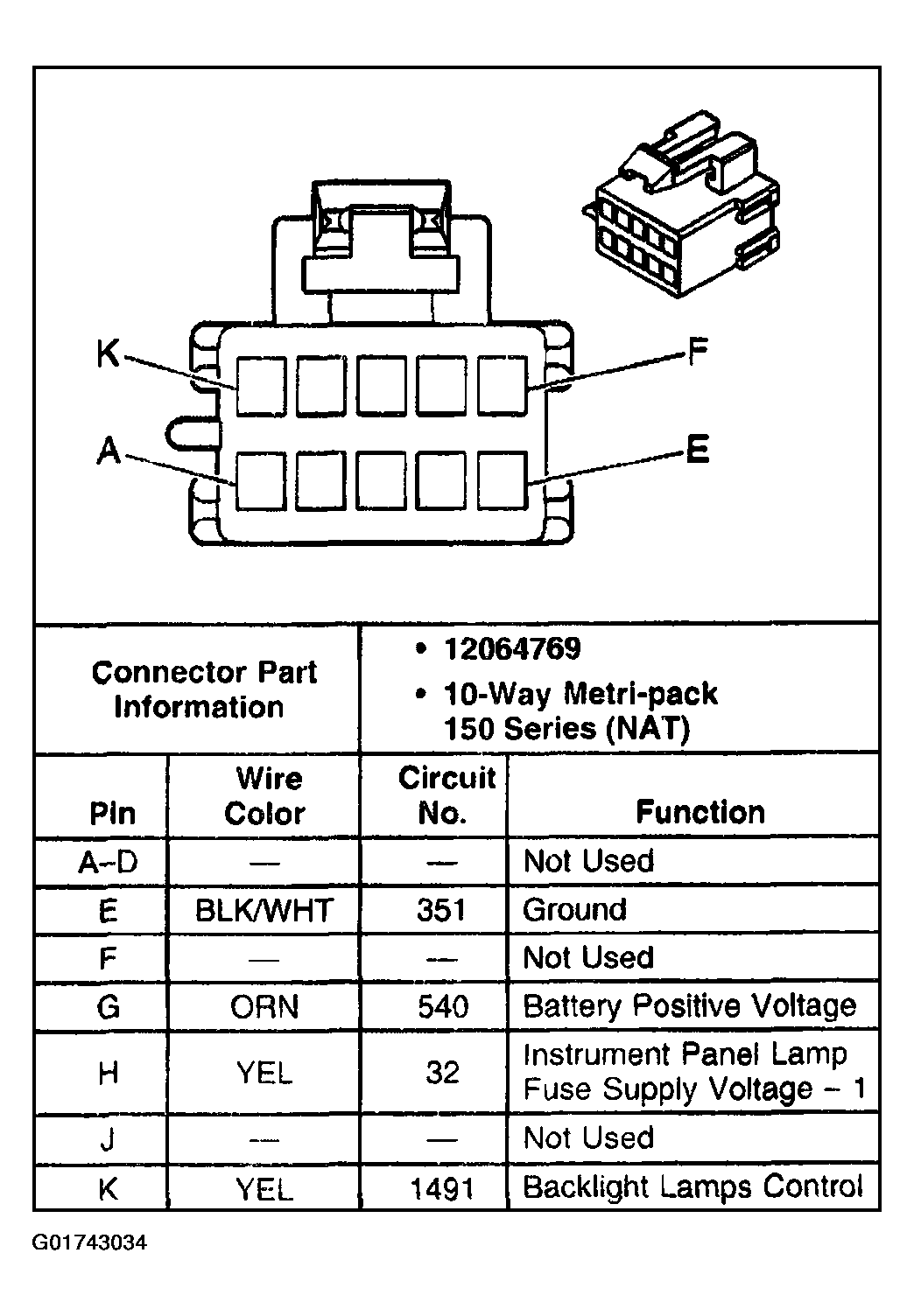

Fig 4: Dash Integration Module (DIM) C3

Courtesy of GENERAL MOTORS CORP.

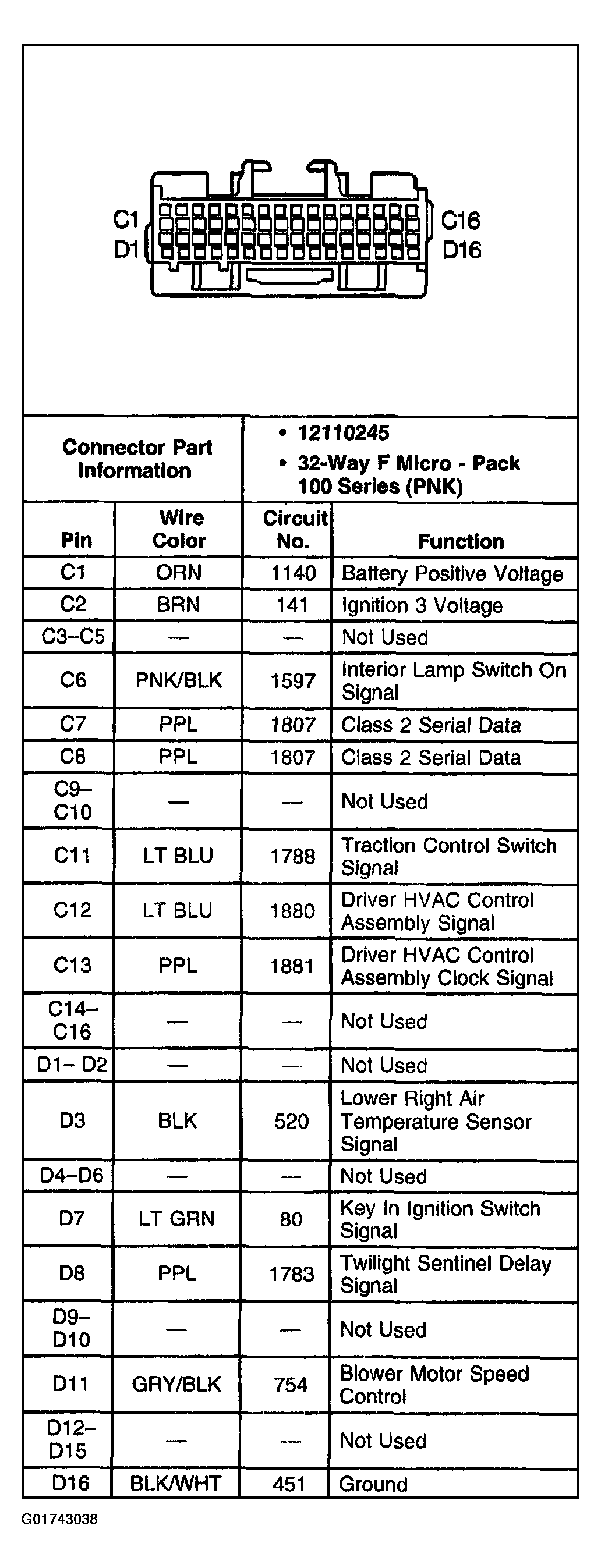

Fig 5: Instrument Panel Integration Module (IPM) C1

Courtesy of GENERAL MOTORS CORP.

Fig 6: Instrument Panel Integration Module (IPM) C2 (1 of 2)

Courtesy of GENERAL MOTORS CORP.

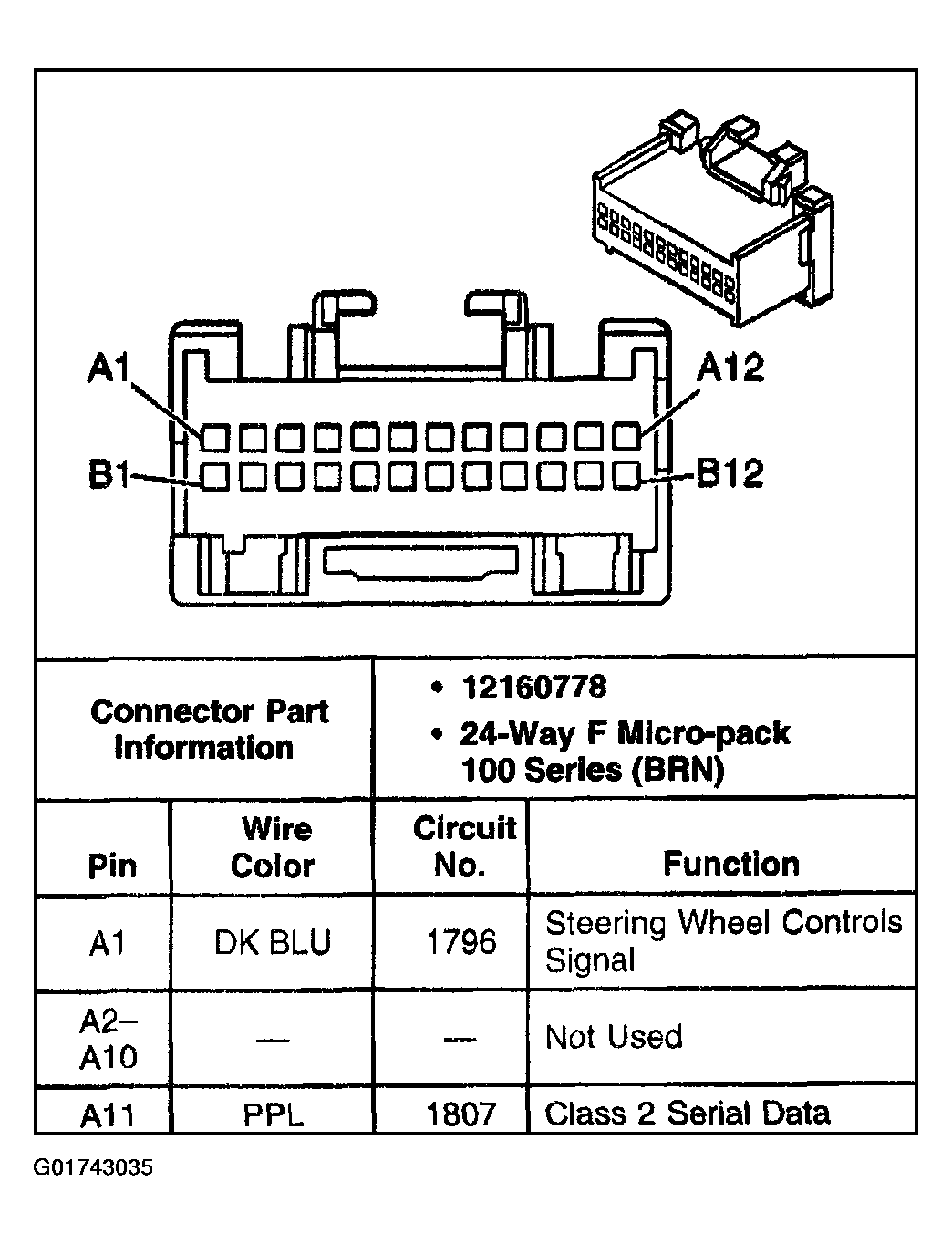

Fig 7: Instrument Panel Integration Module (IPM) C2 (2 of 2)

Courtesy of GENERAL MOTORS CORP.

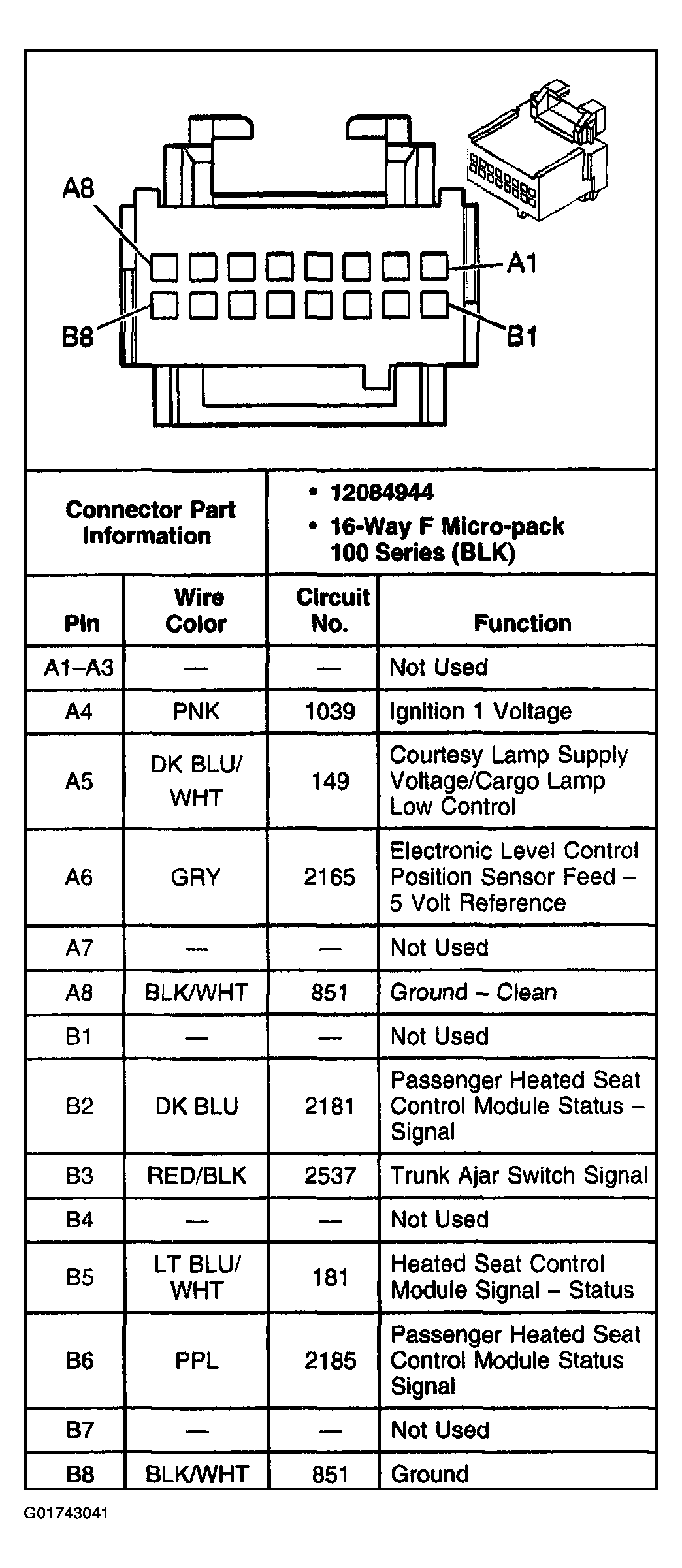

Fig 8: Rear Integration Module (RIM) C1

Courtesy of GENERAL MOTORS CORP.

Fig 9: Rear Integration Module (RIM) C2

Courtesy of GENERAL MOTORS CORP.
