Installation Procedure

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors (1).
  2. Install the DIM into the bracket.

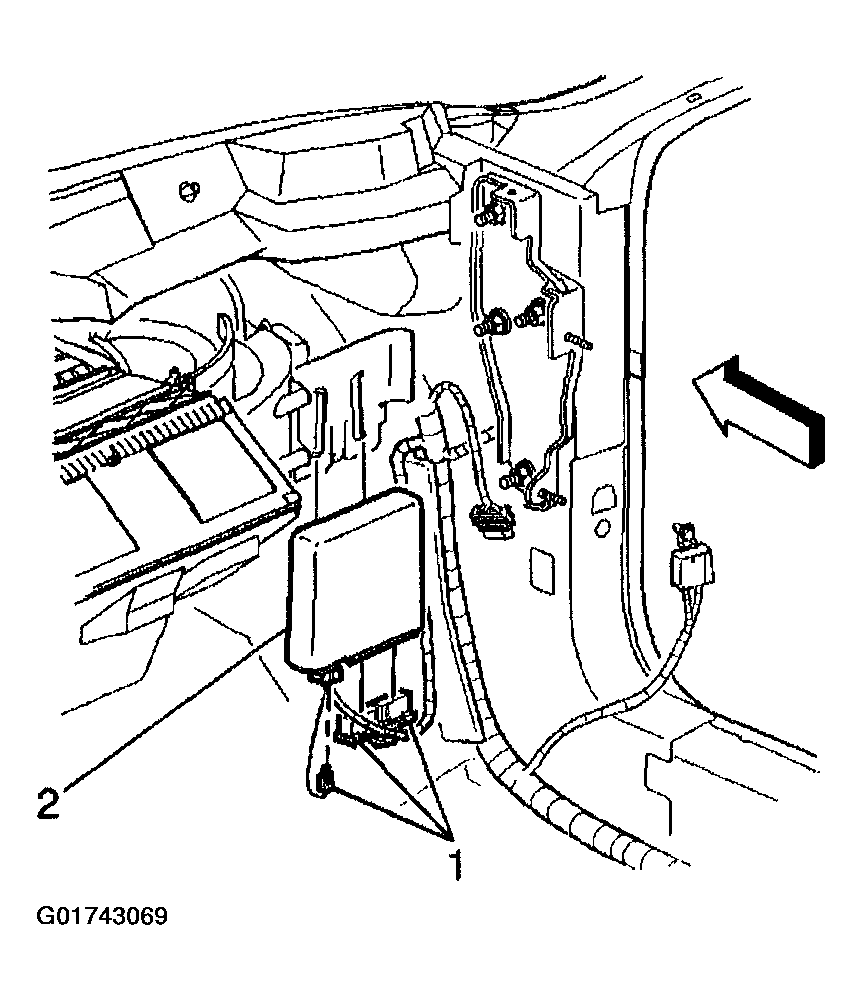

    Fig 1: DIM And Electrical Connectors
    G01743069Courtesy of GENERAL MOTORS CORP.
  3. Install the right sound insulator.
  4. Reprogram the DIM. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM) , Body Control Module (BCM) Programming/RPO Configuration (IPM)  or Body Control Module (BCM) Programming/RPO Configuration (RIM)  .
