Removal Procedure

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before replacement, record the personalization settings to transfer to the new module (if they are available). Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM) , Body Control Module (BCM) Programming/RPO Configuration (IPM)  or Body Control Module (BCM) Programming/RPO Configuration (RIM)  .
  2. Remove the right sound insulator.
  3. Remove the Dash Integration Module (DIM) from the bracket by releasing the tab behind the module and pulling downward.
  4. Disconnect the electrical connectors (1).

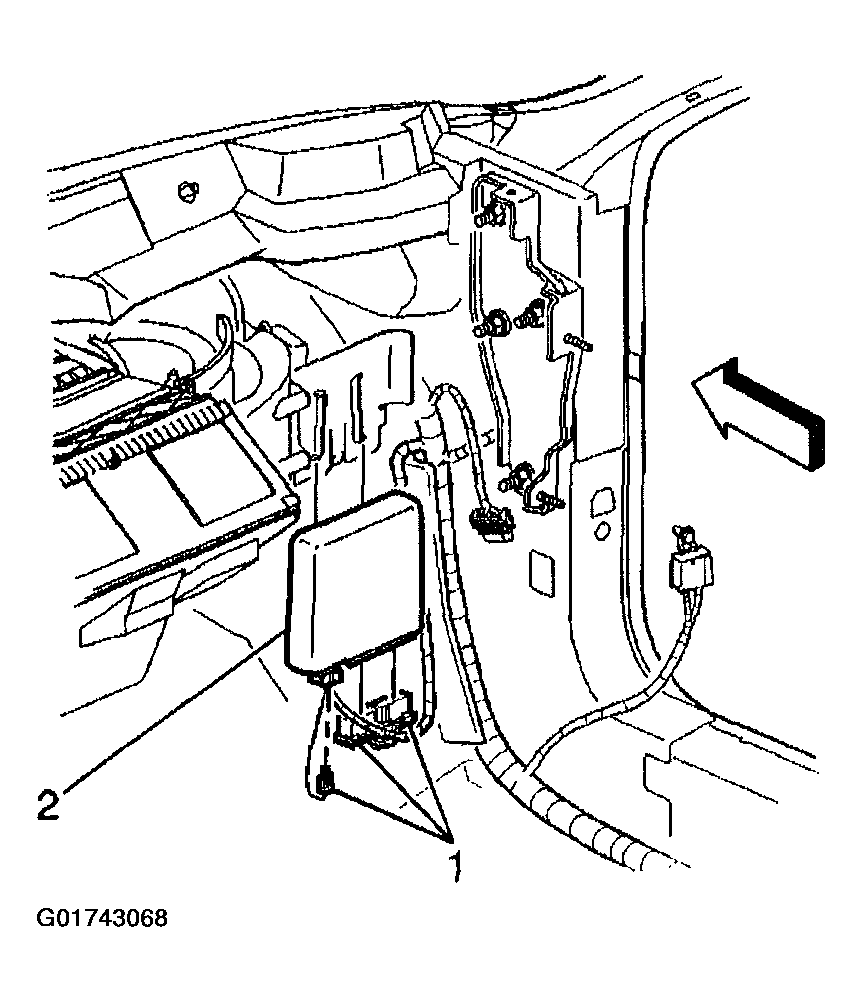

    Fig 1: Dash Integration Module (DIM) And Electrical Connectors
    G01743068Courtesy of GENERAL MOTORS CORP.
