Removal Procedure

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left sound insulator.
  2. Remove the fastener (2) from the instrument panel module (IPM).
  3. Rotate the IPM up and off of the IP retainer.
  4. Disconnect the electrical connectors from the IPM (1).
  5. Remove the IPM (1) from the vehicle.

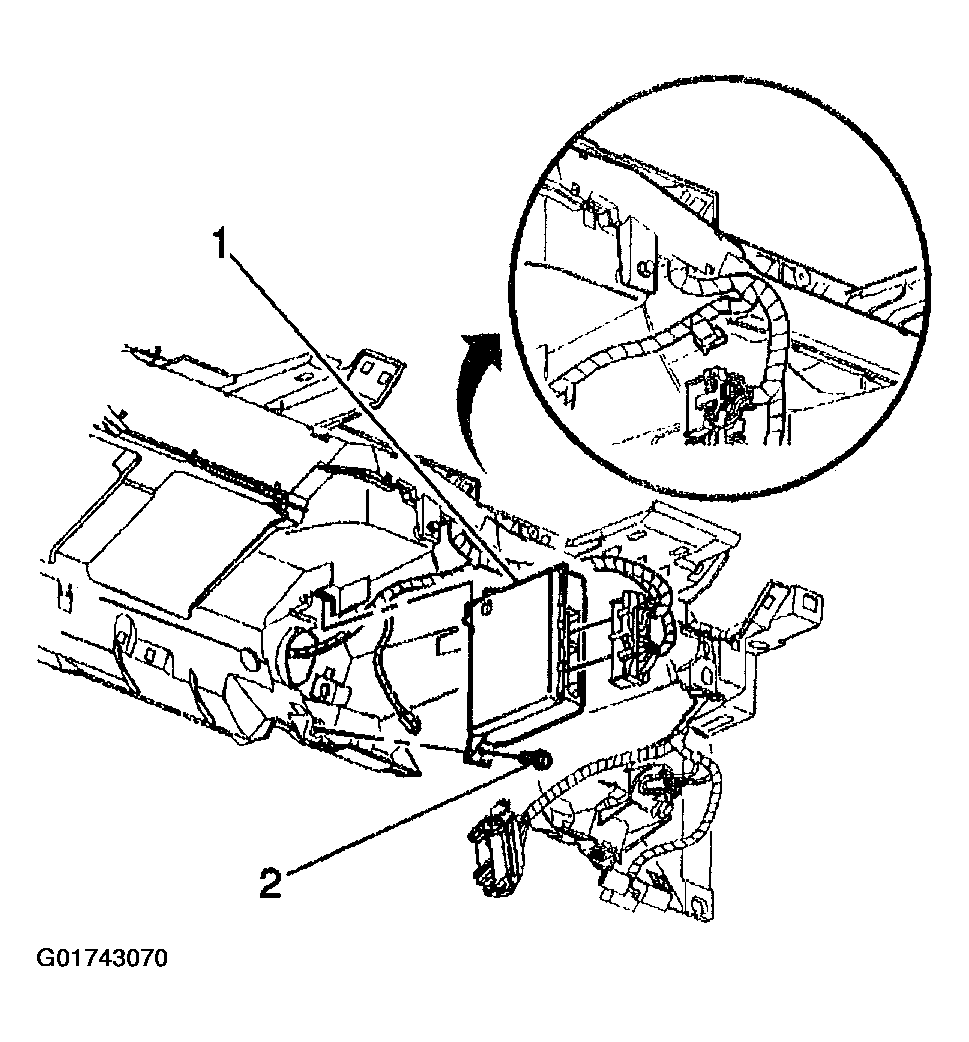

    Fig 1: IPM And Electrical Connectors
    G01743070Courtesy of GENERAL MOTORS CORP.
