Installation Procedure

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

Install the RIM (2).
Connect the RIM electrical connectors (3).
Install the RIM (2) with the push pin retainers (1).

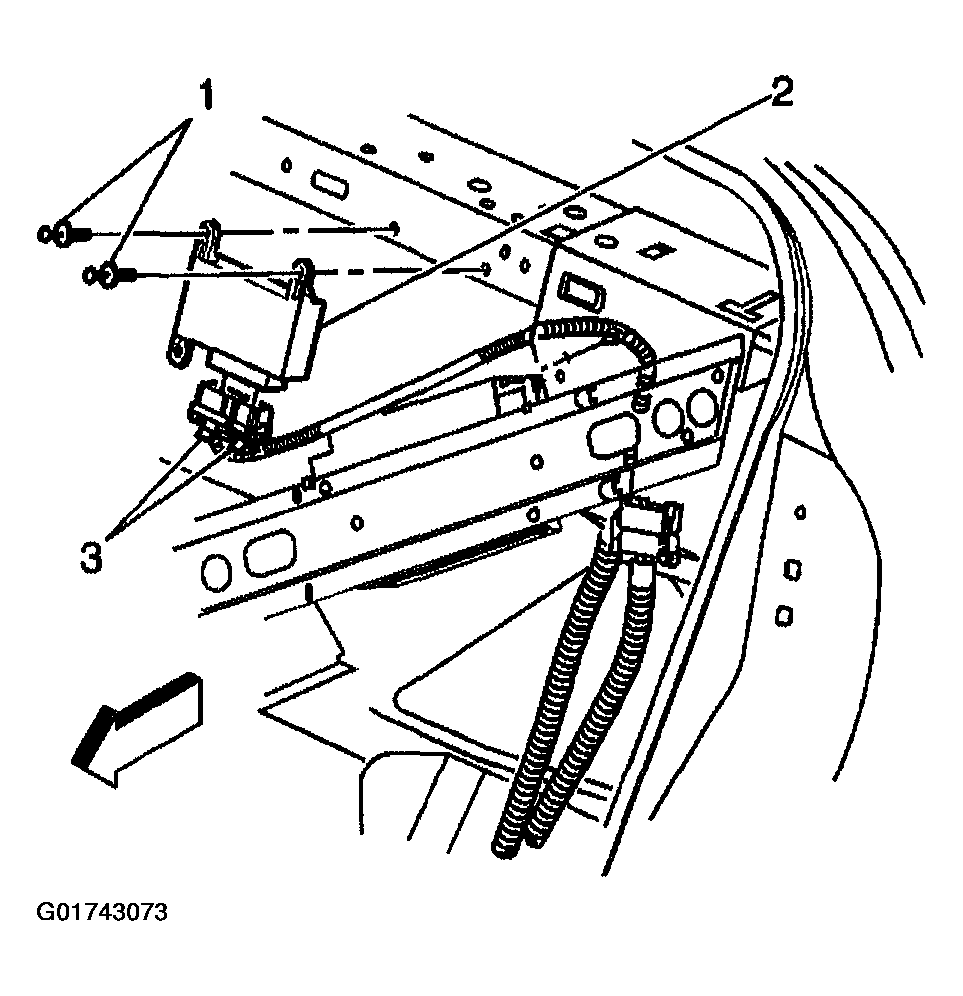

Fig 1: RIM And Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Reposition the rear seat back insulator.
Install the rear seat back.
Install the rear seat cushion.
Reprogram, the RIM. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM) , Body Control Module (BCM) Programming/RPO Configuration (IPM) or Body Control Module (BCM) Programming/RPO Configuration (RIM) .
