Removal Procedure

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before replacing the RIM, record the personalization settings to transfer to the new module (if they are available). Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM) , Body Control Module (BCM) Programming/RPO Configuration (IPM)  or Body Control Module (BCM) Programming/RPO Configuration (RIM)  .
  2. Remove the rear seat cushion.
  3. Remove the rear seat back.
  4. Move the rear seat back insulator aside.
  5. Remove the push pin retainers (1).
  6. Disconnect the Rear Integration Module (RIM) electrical connectors (3).
  7. Remove the RIM (2).

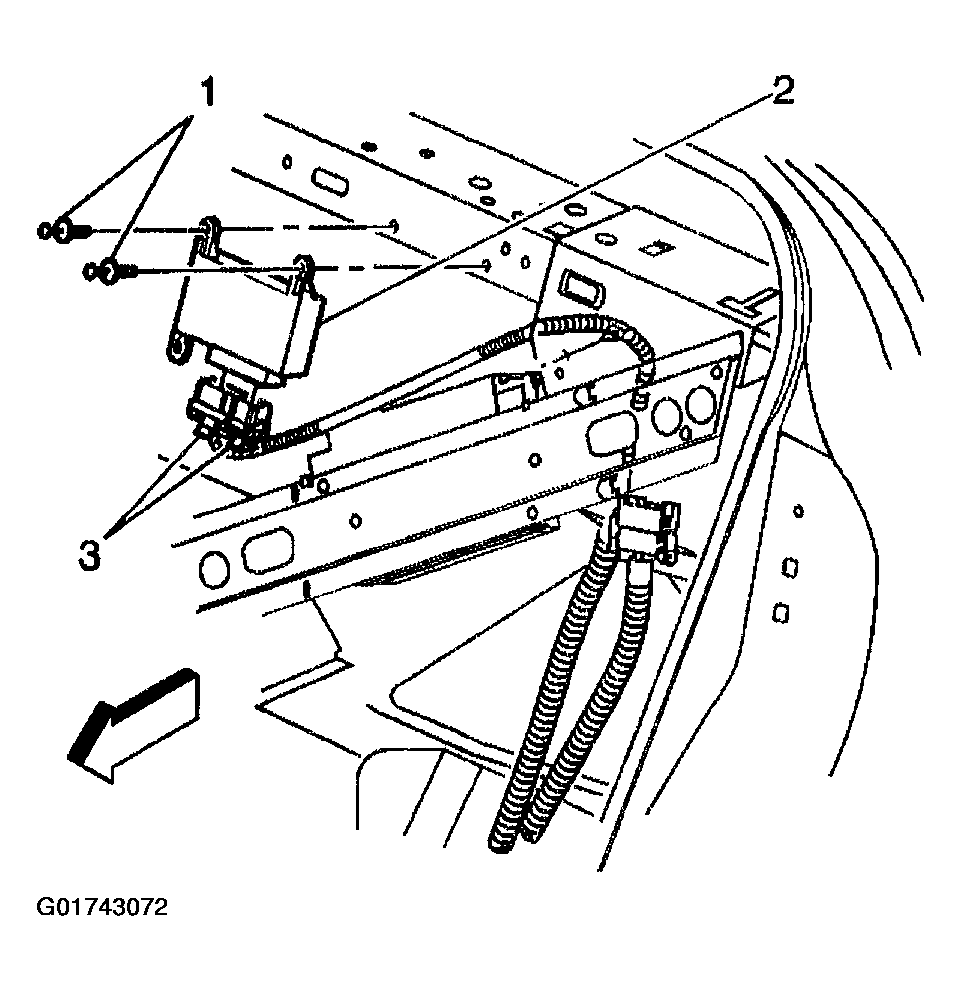

    Fig 1: Rear Integration Module (RIM) And Electrical Connectors
    G01743072Courtesy of GENERAL MOTORS CORP.
