Scan Tool Output Controls

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

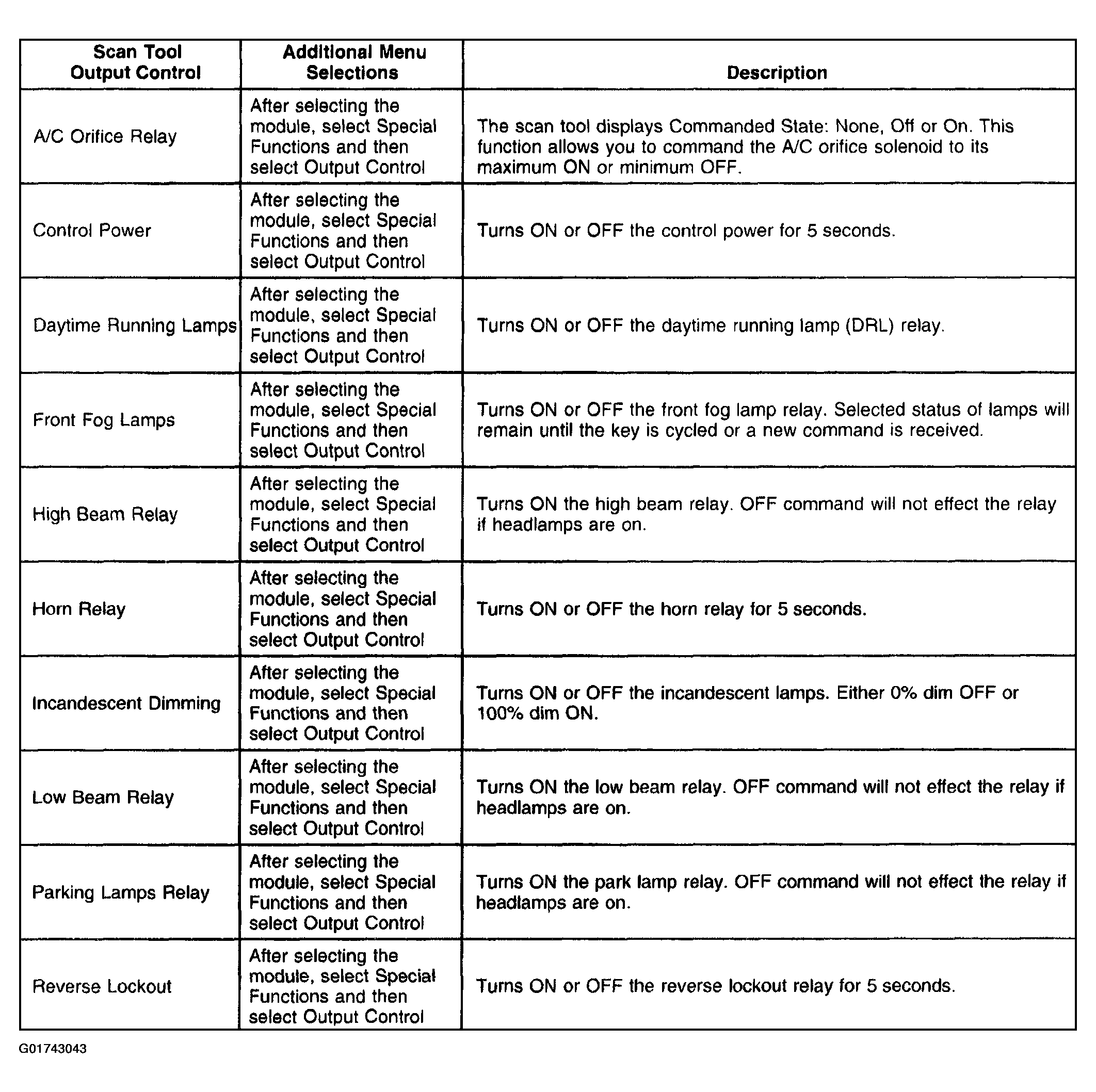

Fig 1: Dash Integration Module (DIM) Output Controls

Courtesy of GENERAL MOTORS CORP.

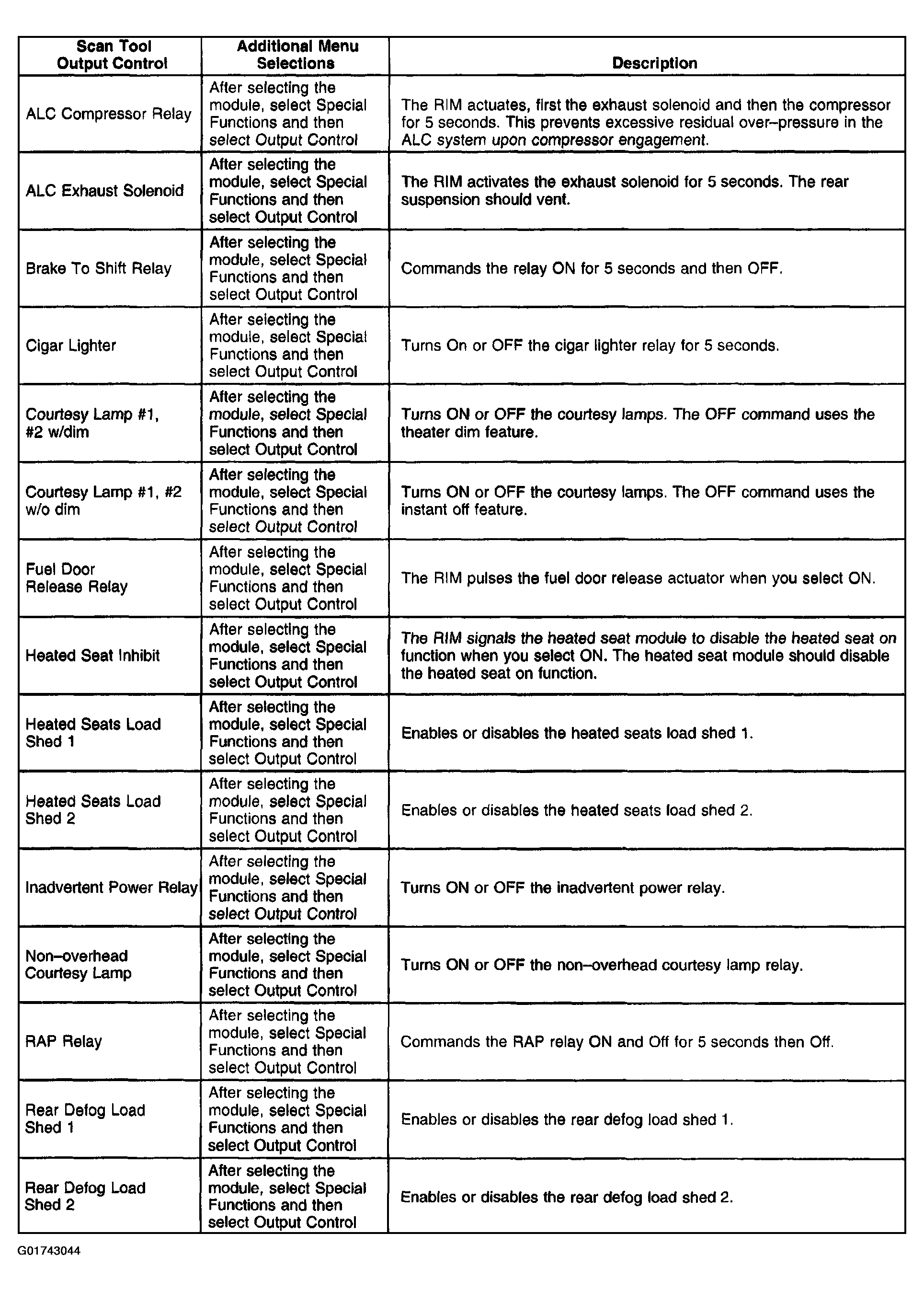

Fig 2: Rear Integration Module (RIM) Output Controls (1 of 2)

Courtesy of GENERAL MOTORS CORP.

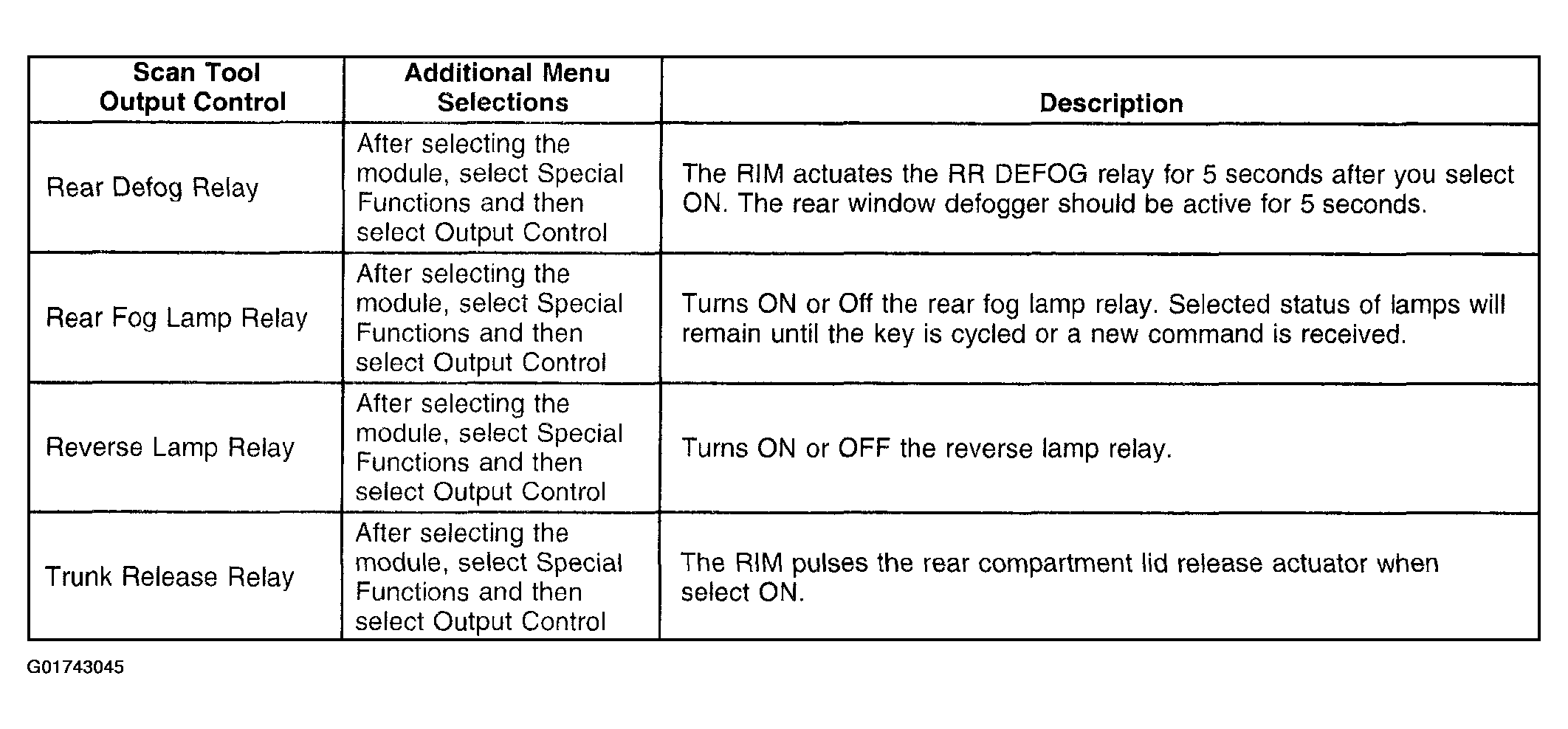

Fig 3: Rear Integration Module (RIM) Output Controls (2 of 2)

Courtesy of GENERAL MOTORS CORP.
