Application Table

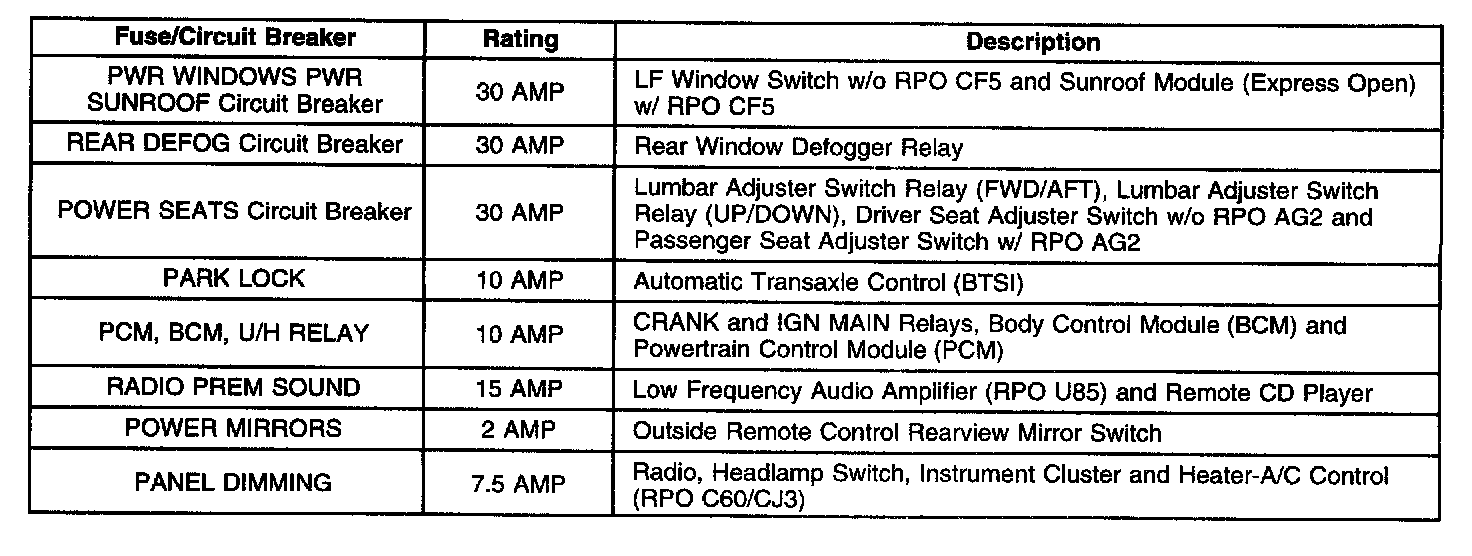

Instrument Panel Fuse Block, Fuse Application Table (Part 1 Of 2):

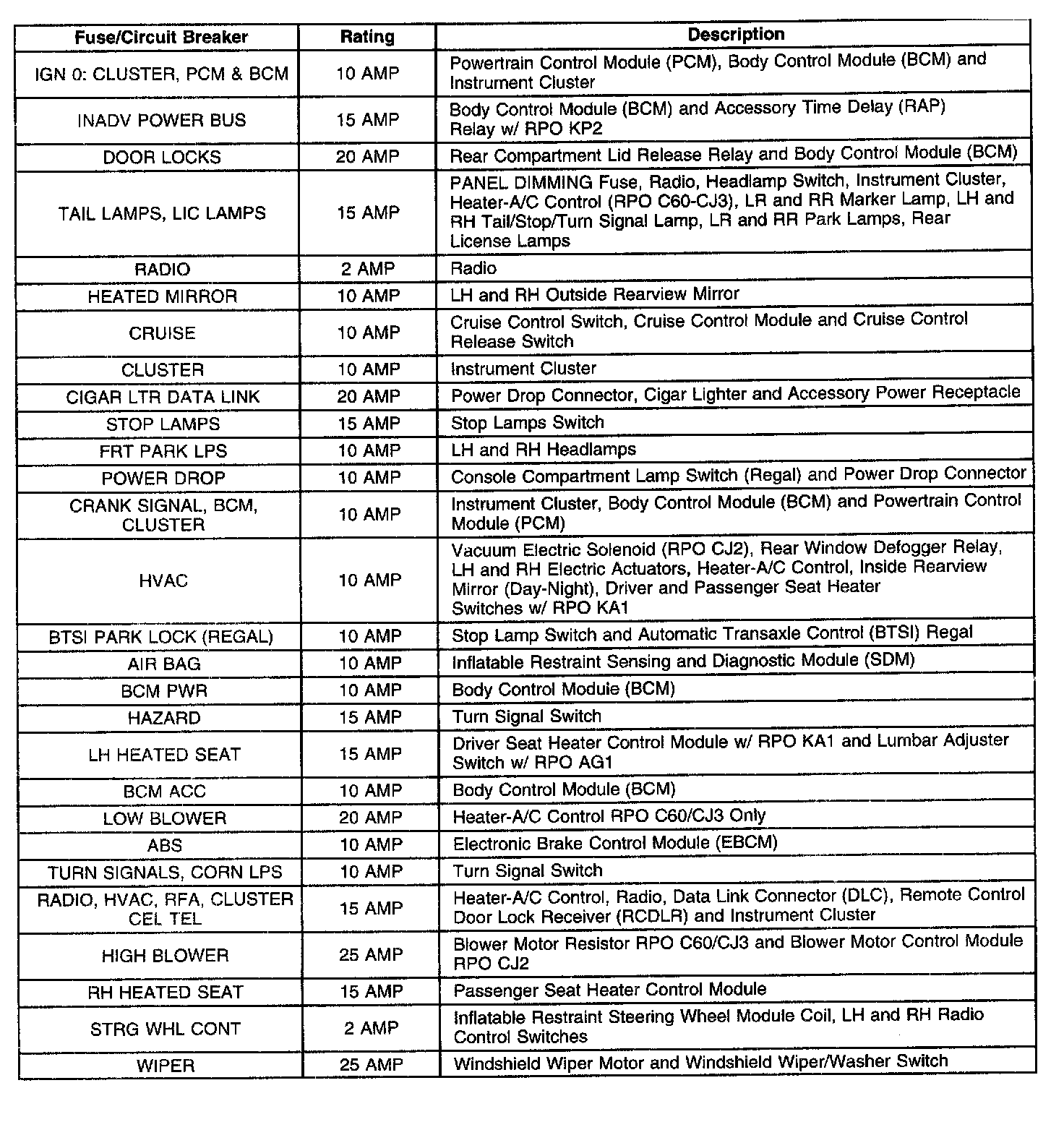

Instrument Panel Fuse Block, Fuse Application Table (Part 2 Of 2):
