Engine

Component Locator
Disassembled Views

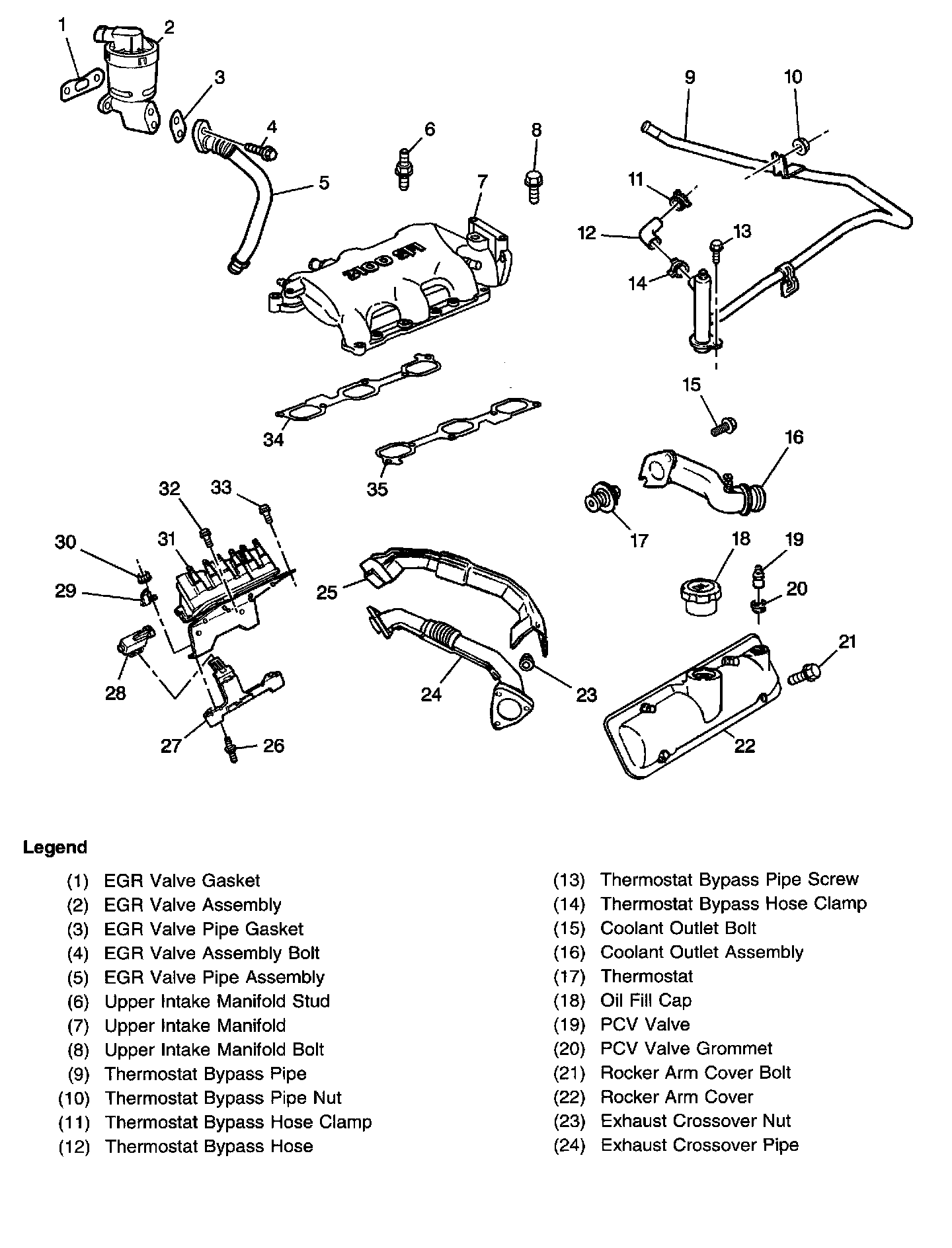

Upper Intake Manifold and Components





Part 1 of 2





Part 2 of 2

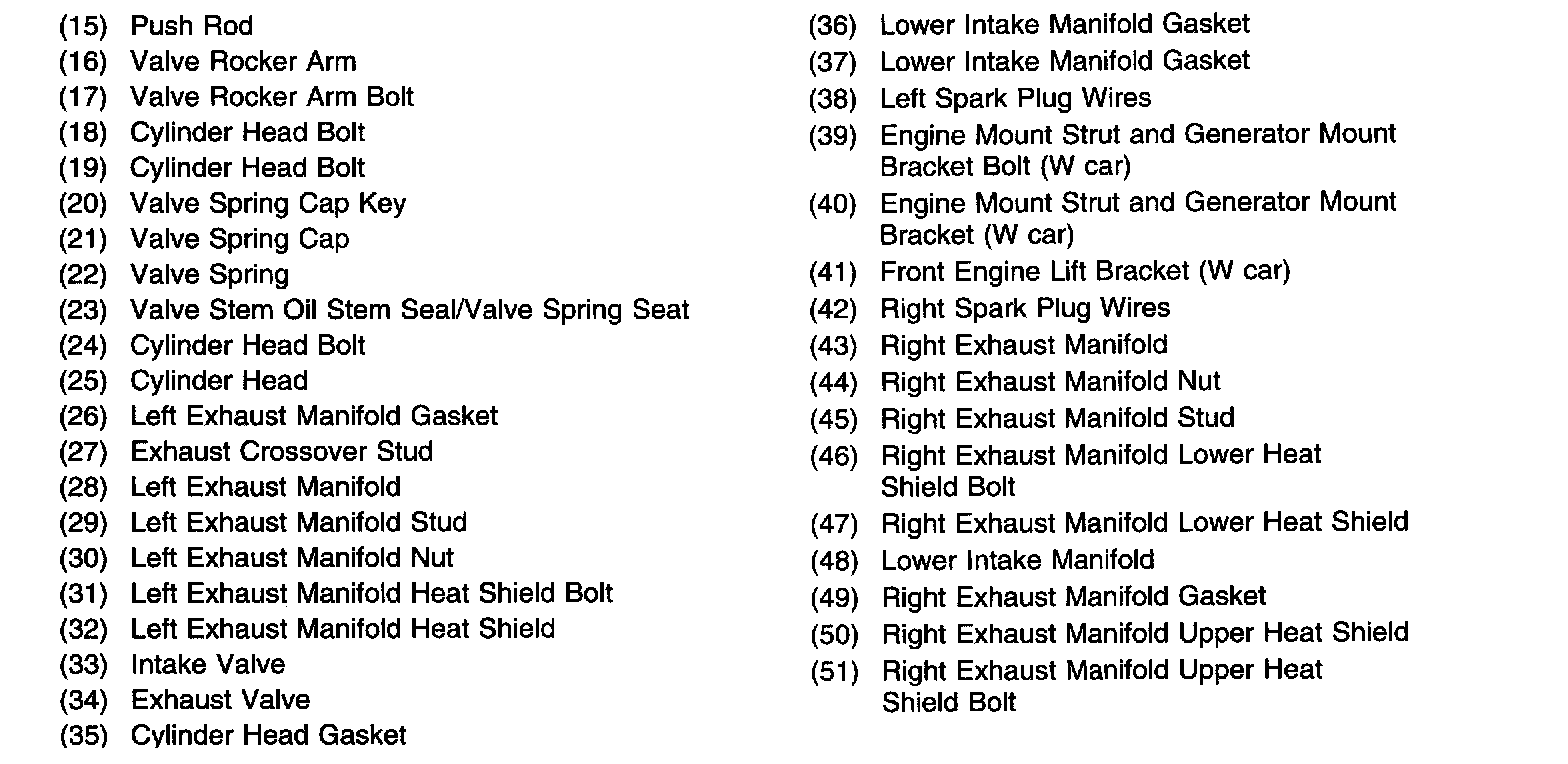

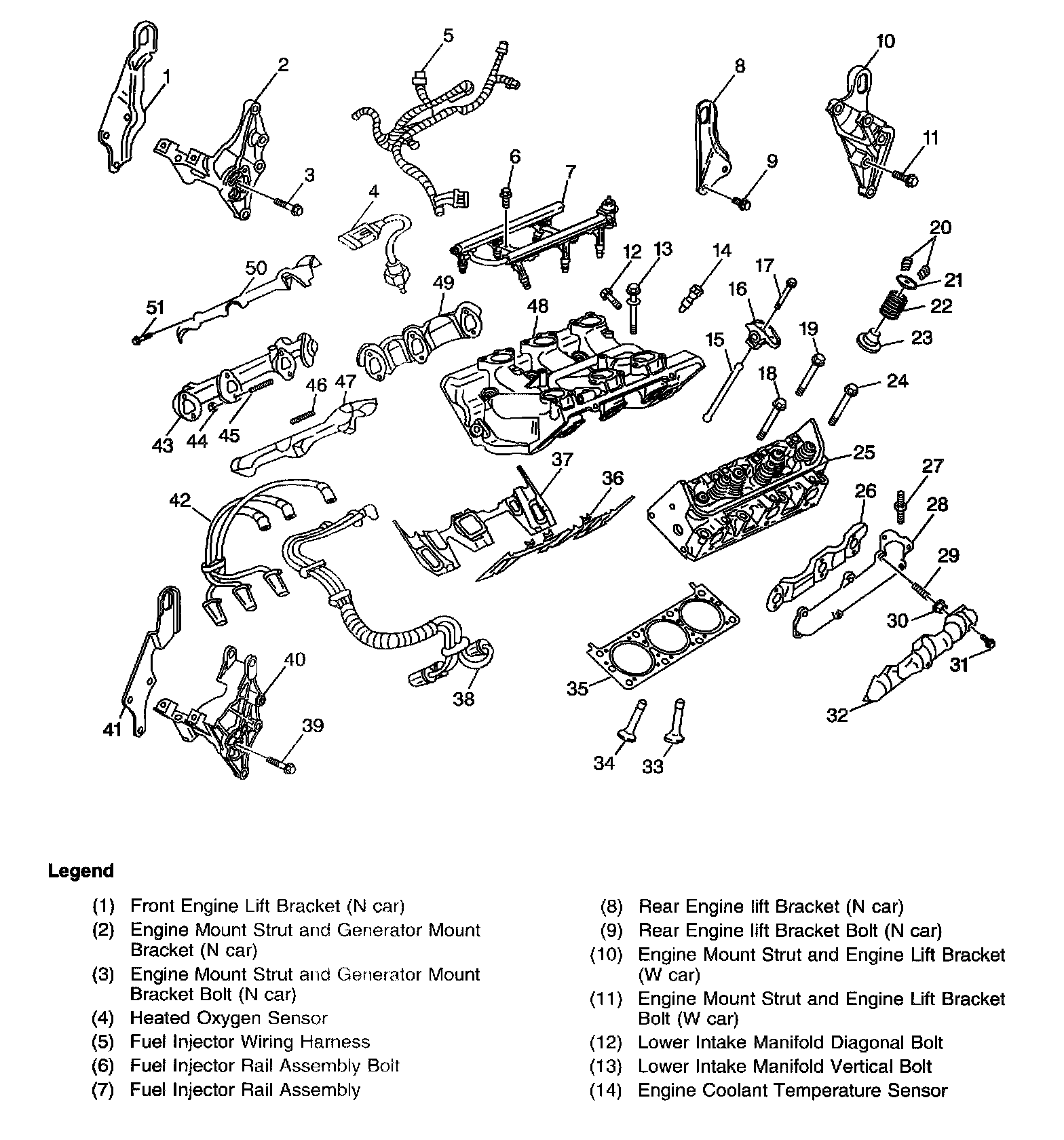

Lower Intake Manifold, Cylinder Head, and Components





Part 1 of 2





Part 2 of 2

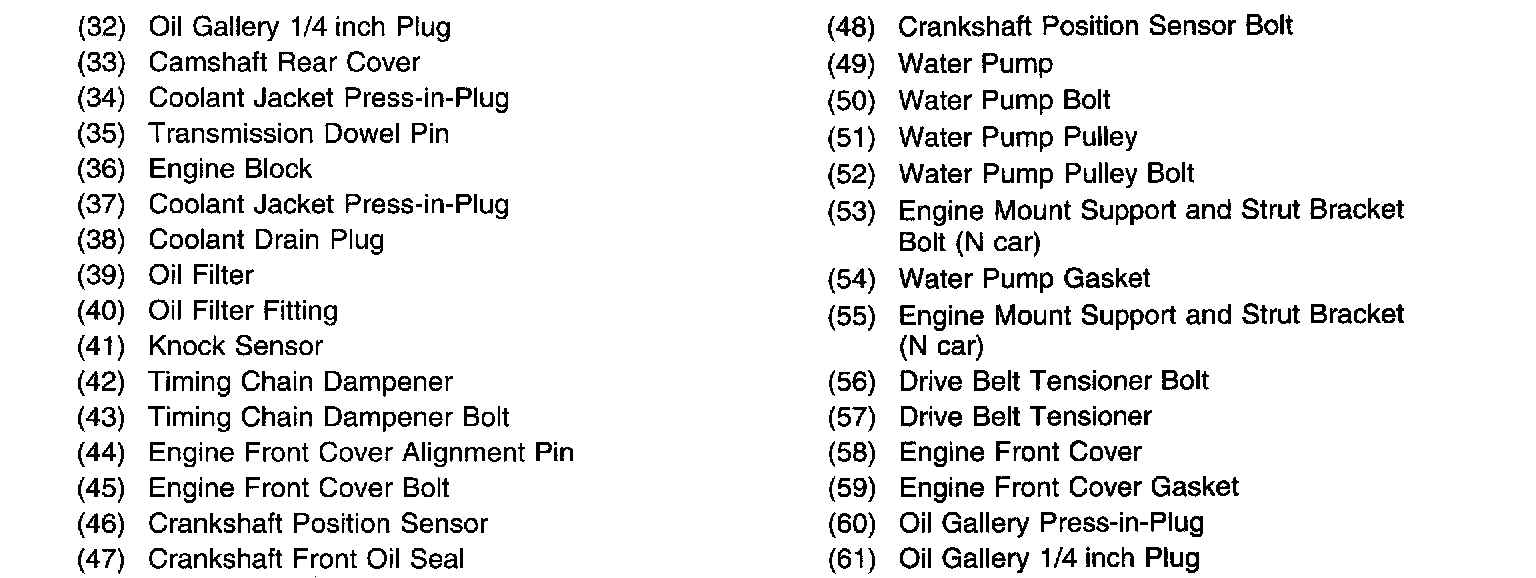

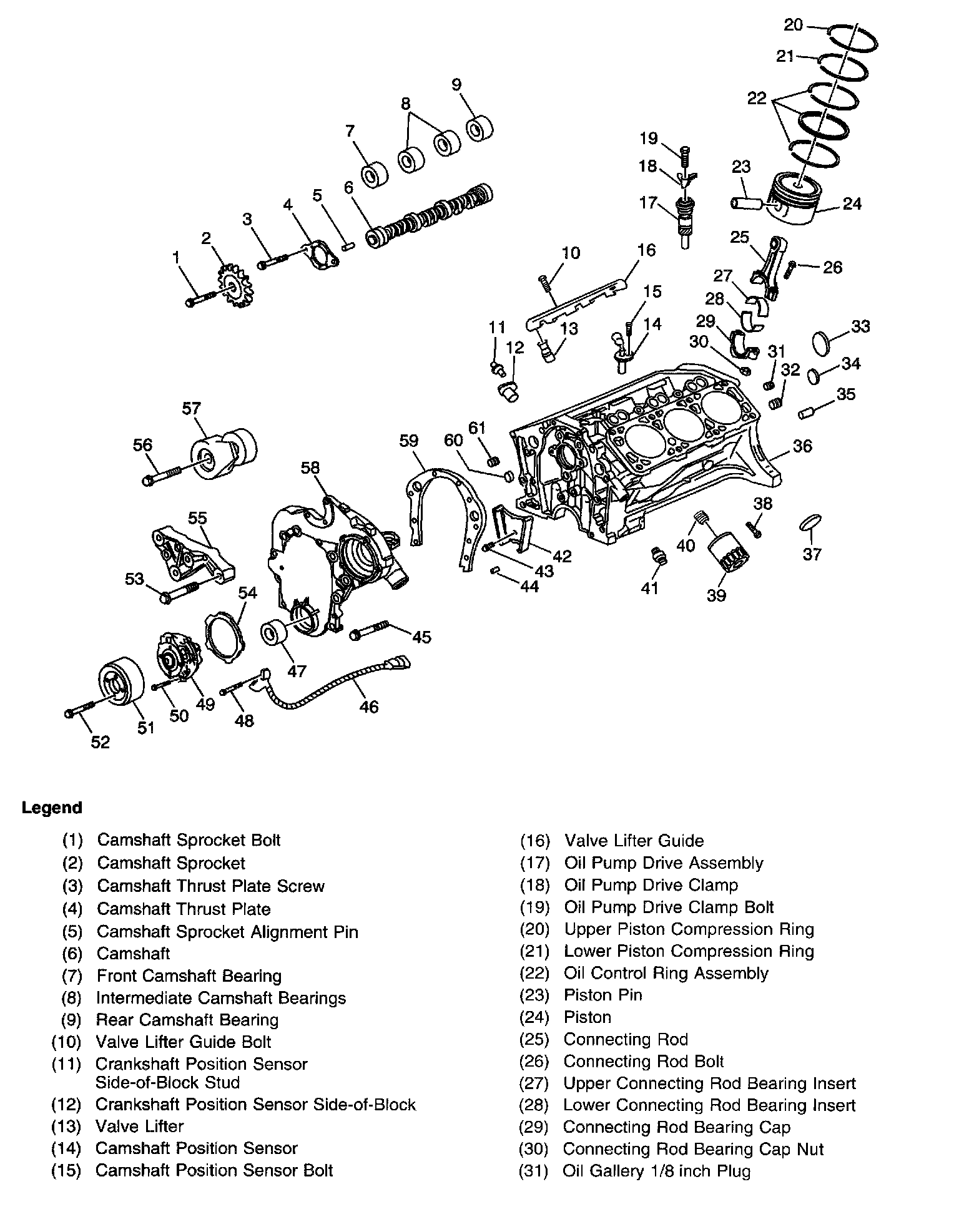

Engine Block and Components





Part 1 of 2





Part 2 of 2

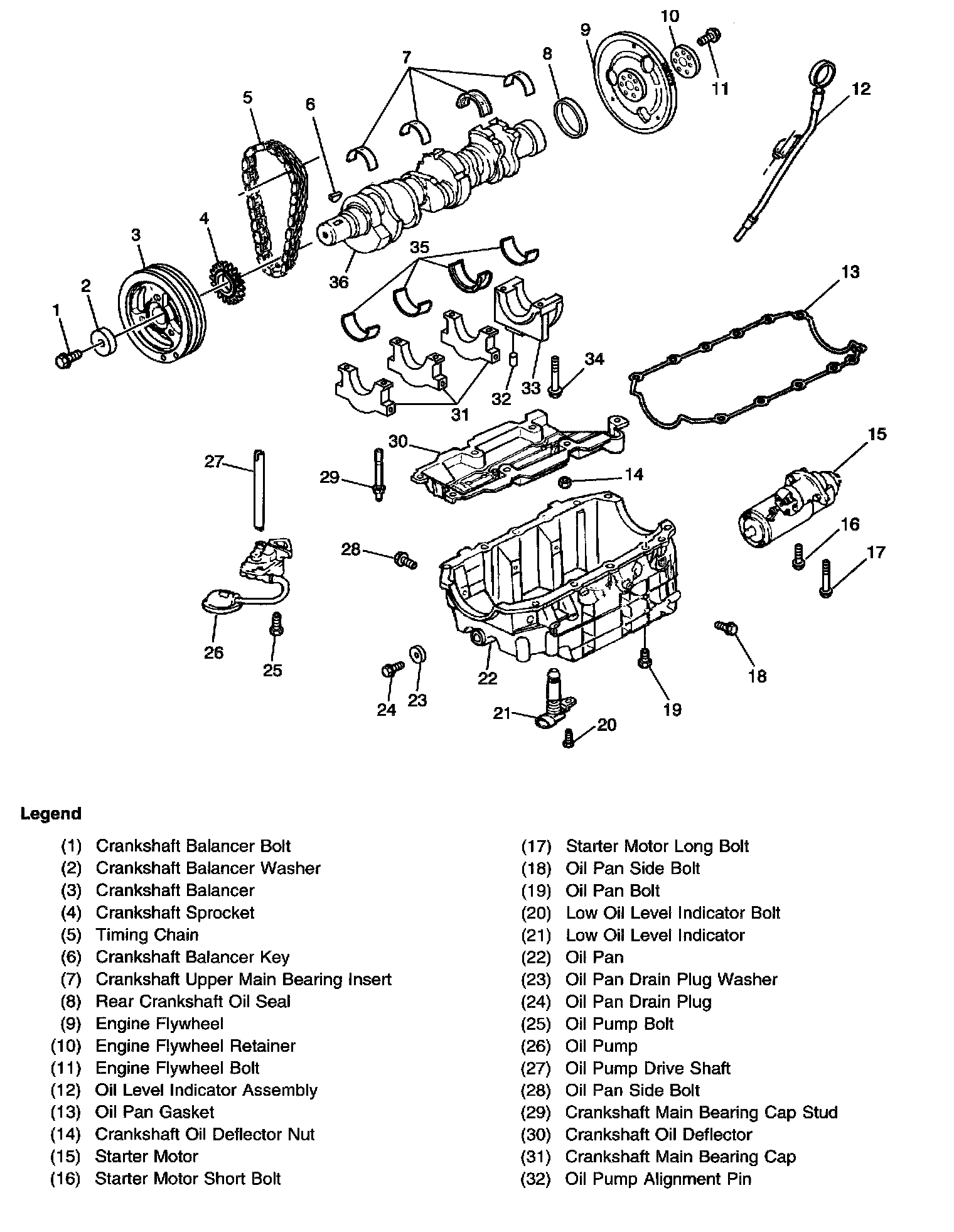

Crankshaft and Components





Part 1 of 2





Part 2 of 2
