Connector Identification

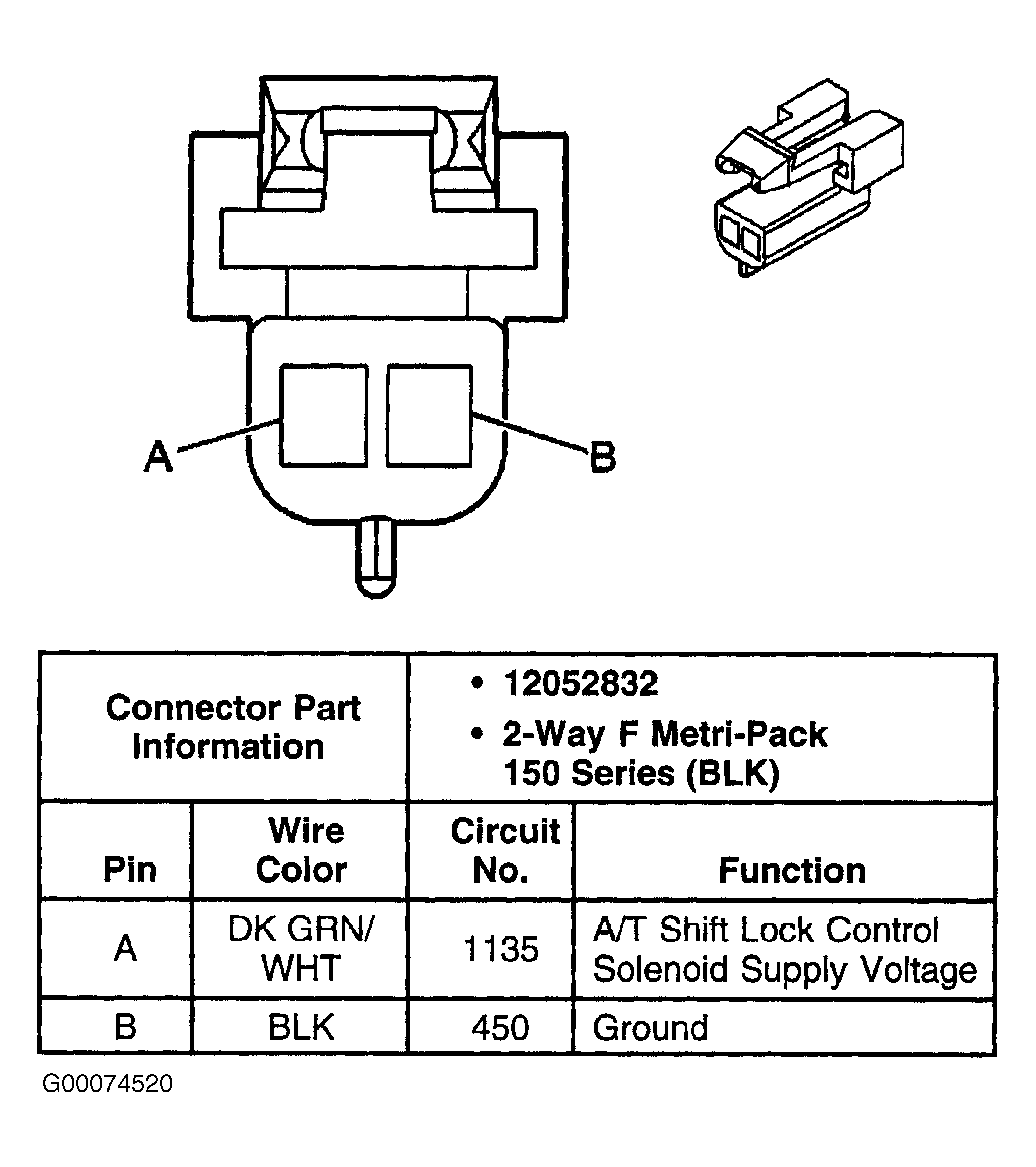

Fig 1: Identifying A/T Shift Lock Control Solenoid Connector Terminals (Column Shift)

Courtesy of GENERAL MOTORS CORP.

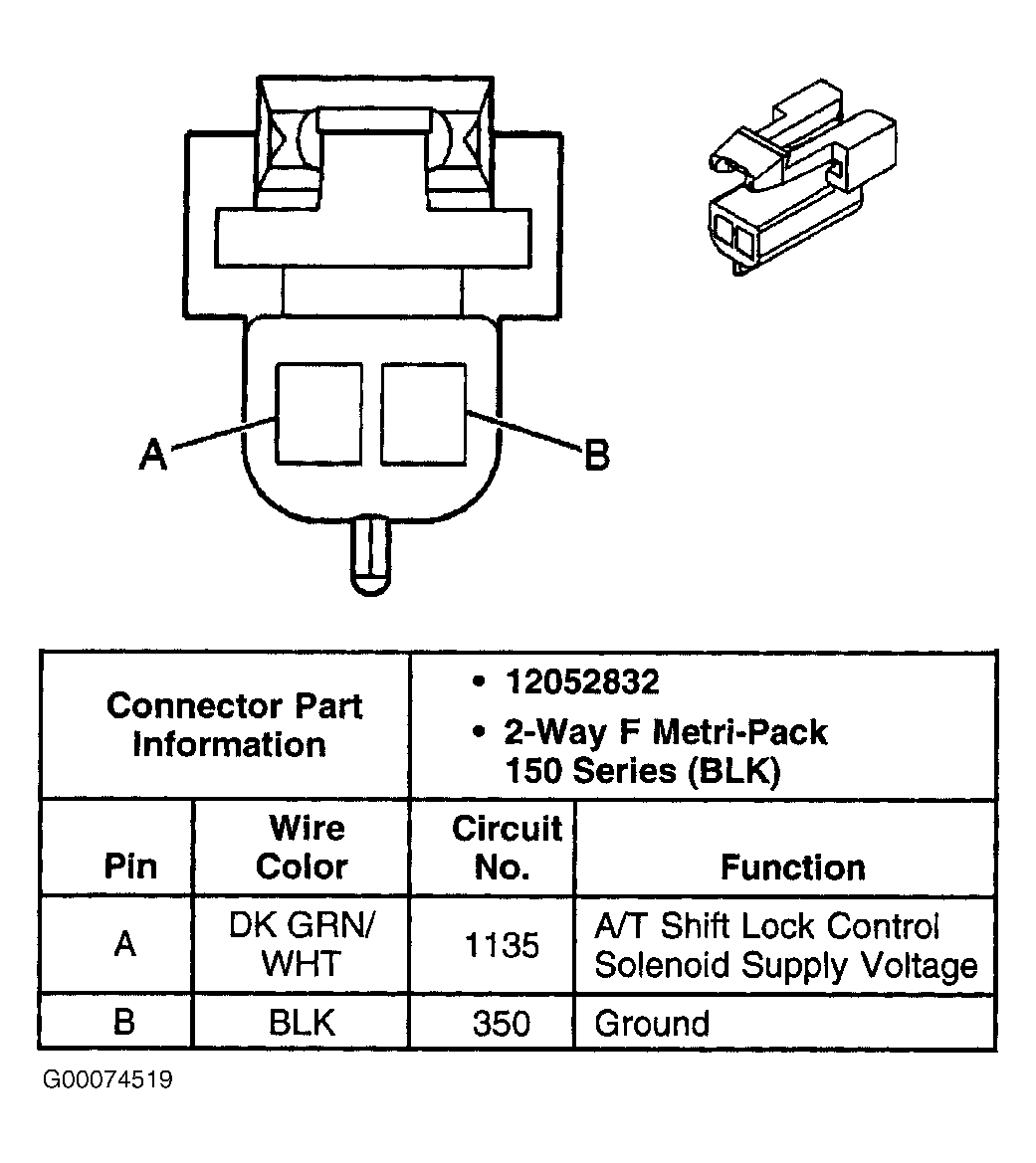

Fig 2: Identifying A/T Shift Lock Control Solenoid Connector Terminals (Floor Shift)

Courtesy of GENERAL MOTORS CORP.

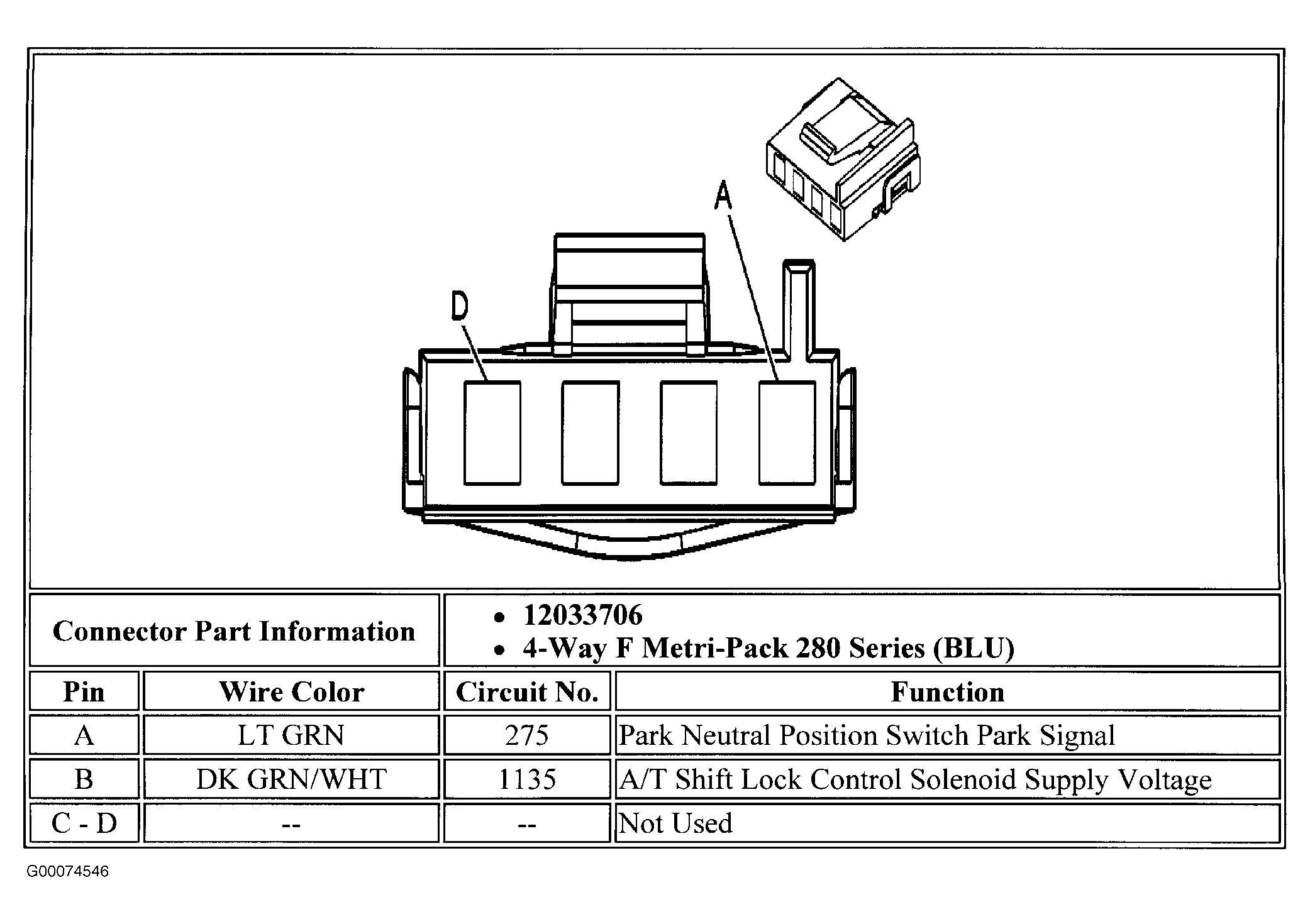

Fig 3: Identifying A/T Shift Lock Control Solenoid Connector Terminals

Courtesy of GENERAL MOTORS CORP.
