Console Trim Plate: Installation

  1. Connect the electrical connectors, if equipped
  2. Install the console trim plate by pushing downward on the console trim plate in order to engage the clips. See Fig 2 .
  3. Install the console storage tray insert. See CONSOLE TRAY INSERT  .
  4. Install the console shift knob. See Fig 1 .

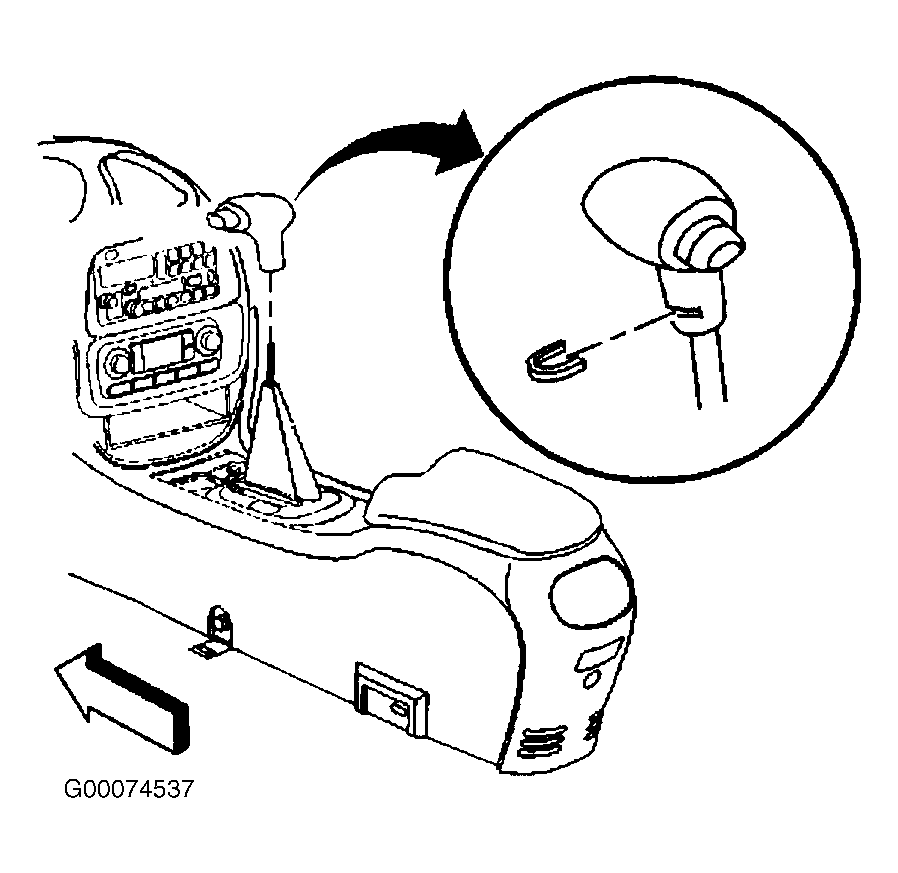

Fig 1: Removing & Installing Shift Knob
G00074537Courtesy of GENERAL MOTORS CORP.

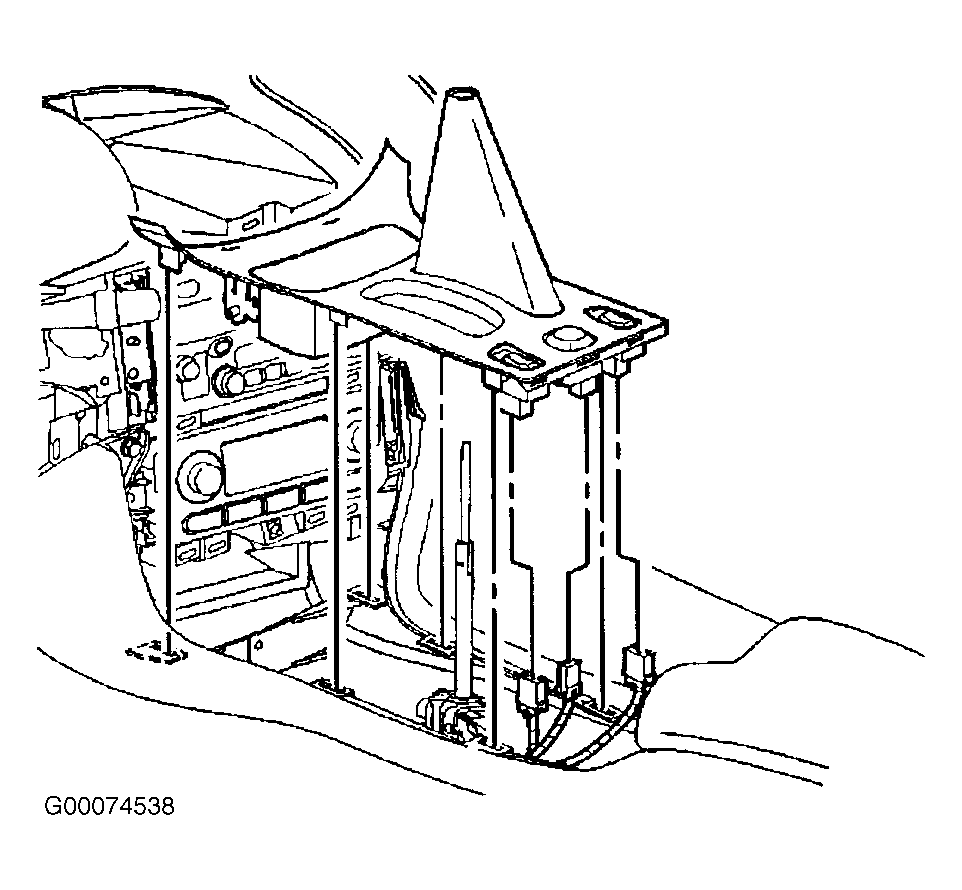

Fig 2: Removing & Installing Console Trim Plate
G00074538Courtesy of GENERAL MOTORS CORP.
