Home >> Buick >> 2001 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Door Module - LR C1

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

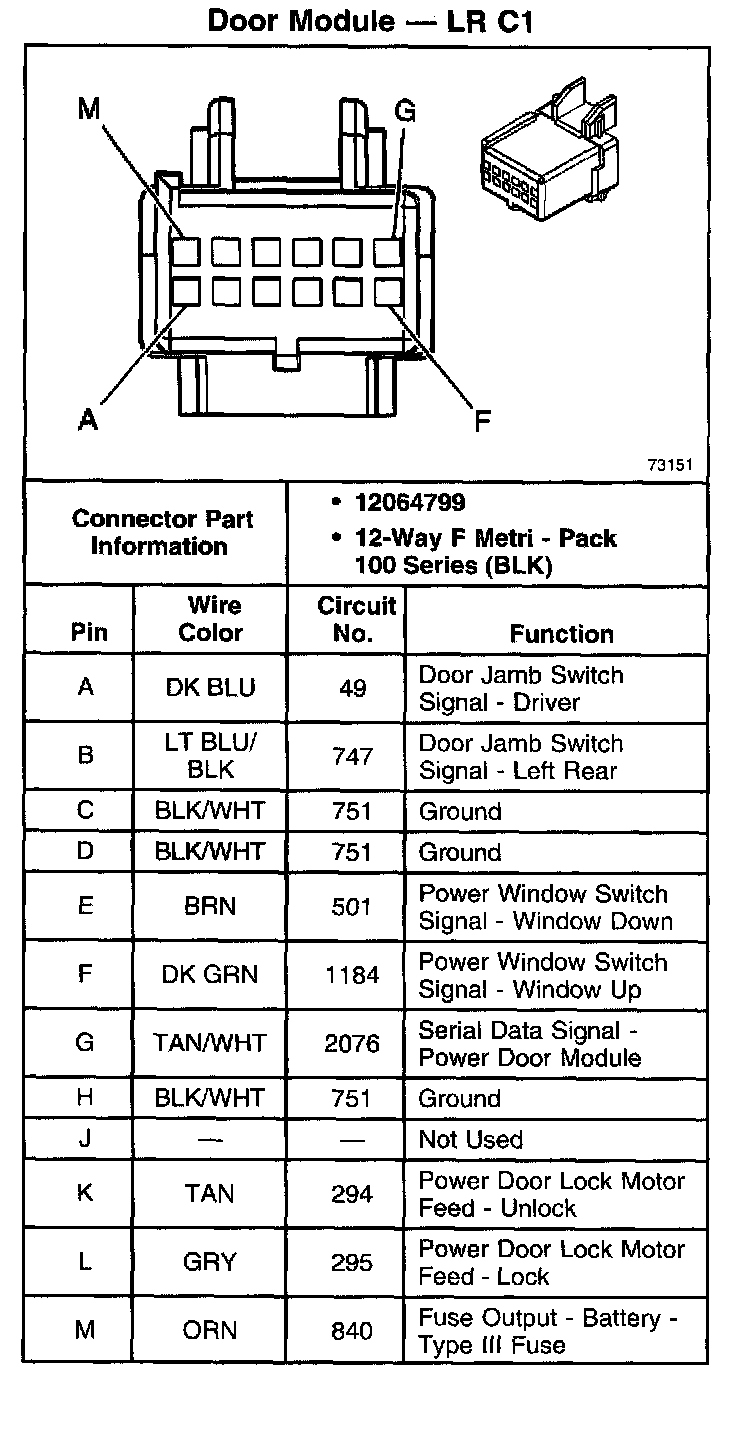

Door Module - LR C1

Door Module - LR C1:
