Driver Door Module (DDM) Power and Ground
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Driver Door Module (DDM) Power and Ground

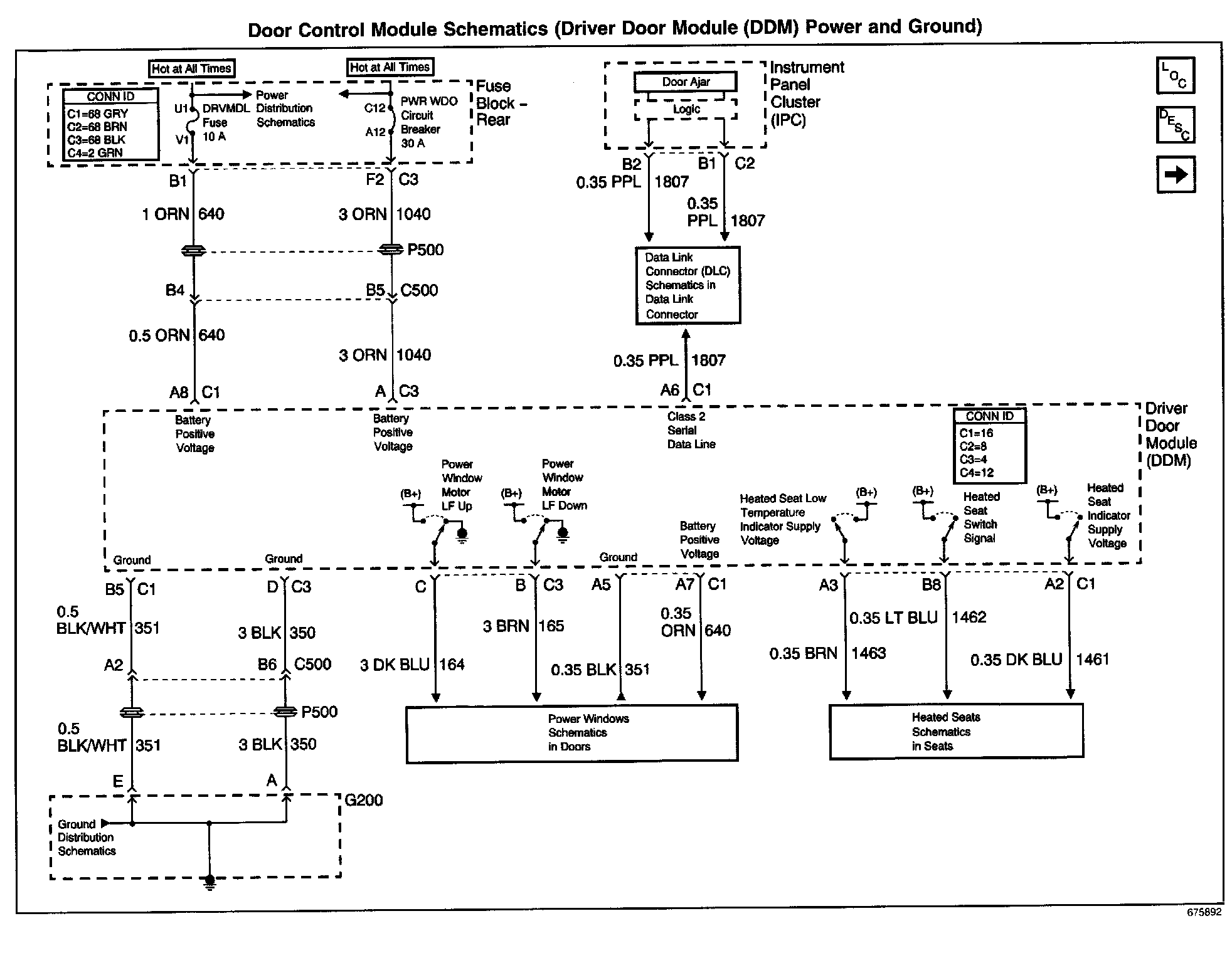

Door Control Module Schematics: Driver Door Module (DDM) Power And Ground:
