Horns Connector End Views

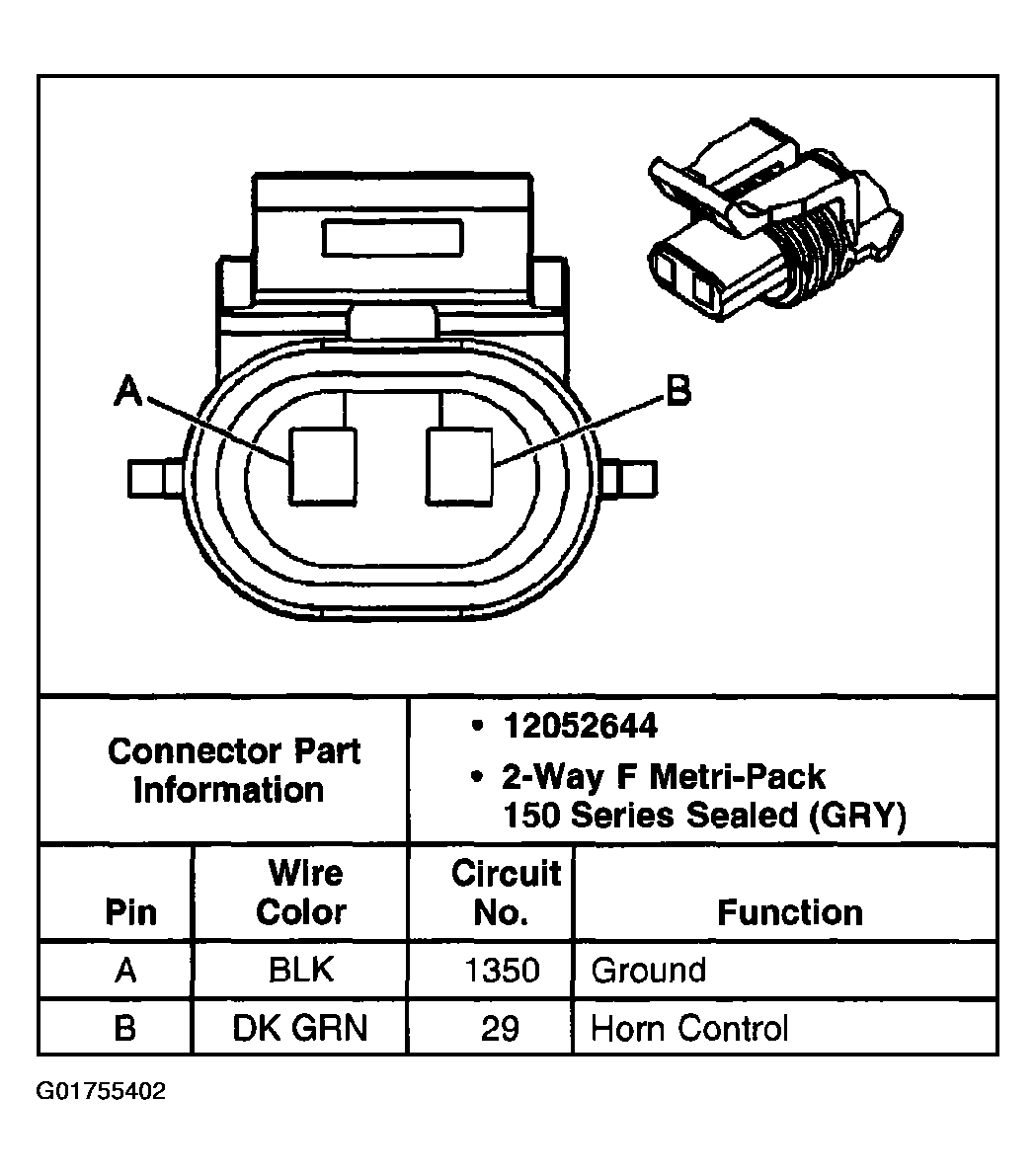

Fig 1: Identifying Horn Connector End View
G01755402Courtesy of GENERAL MOTORS CORP.
