HVAC Control Module Connector End View (C2)

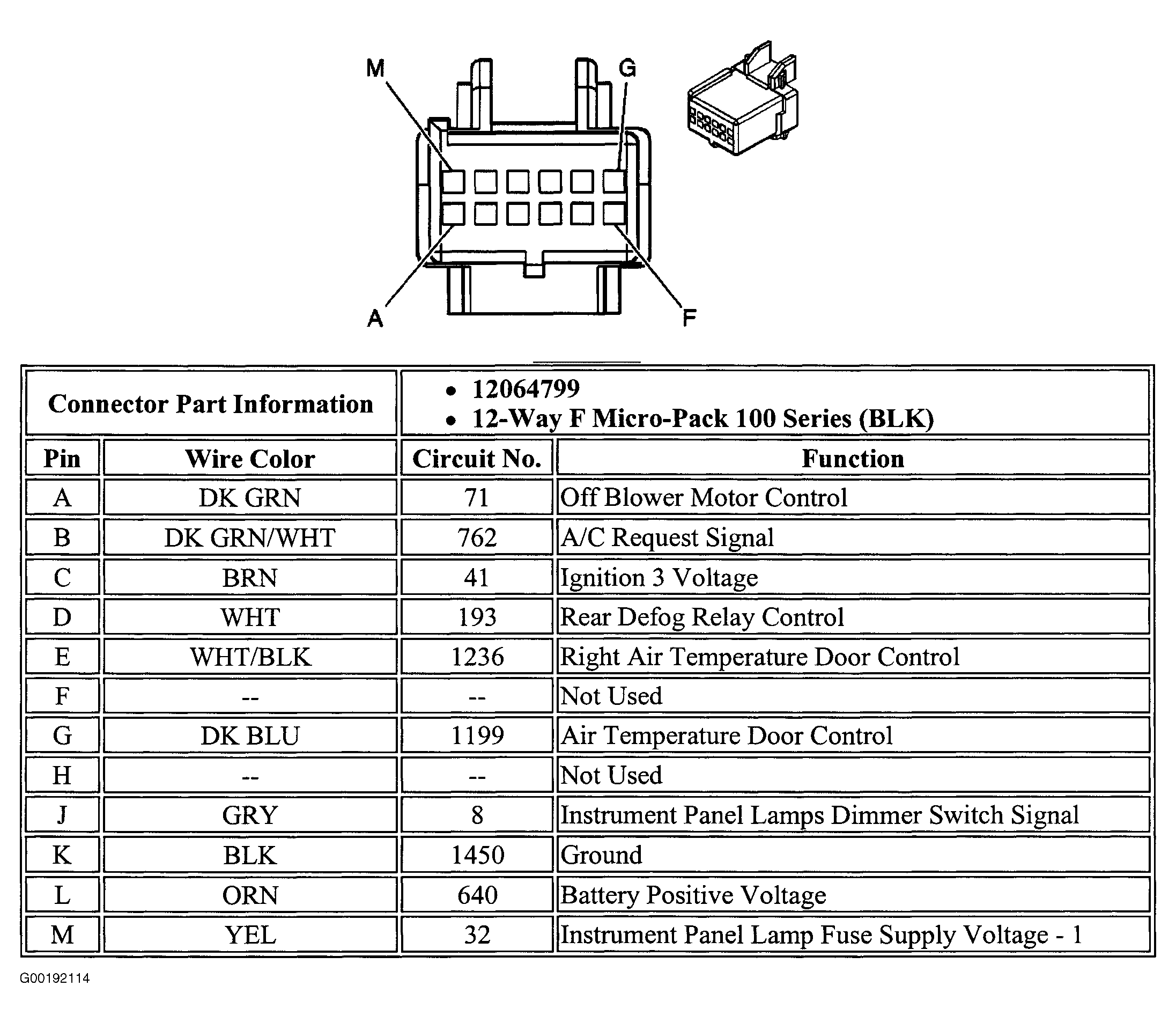

Fig 1: HVAC Control Module (C2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
