Installation Procedure

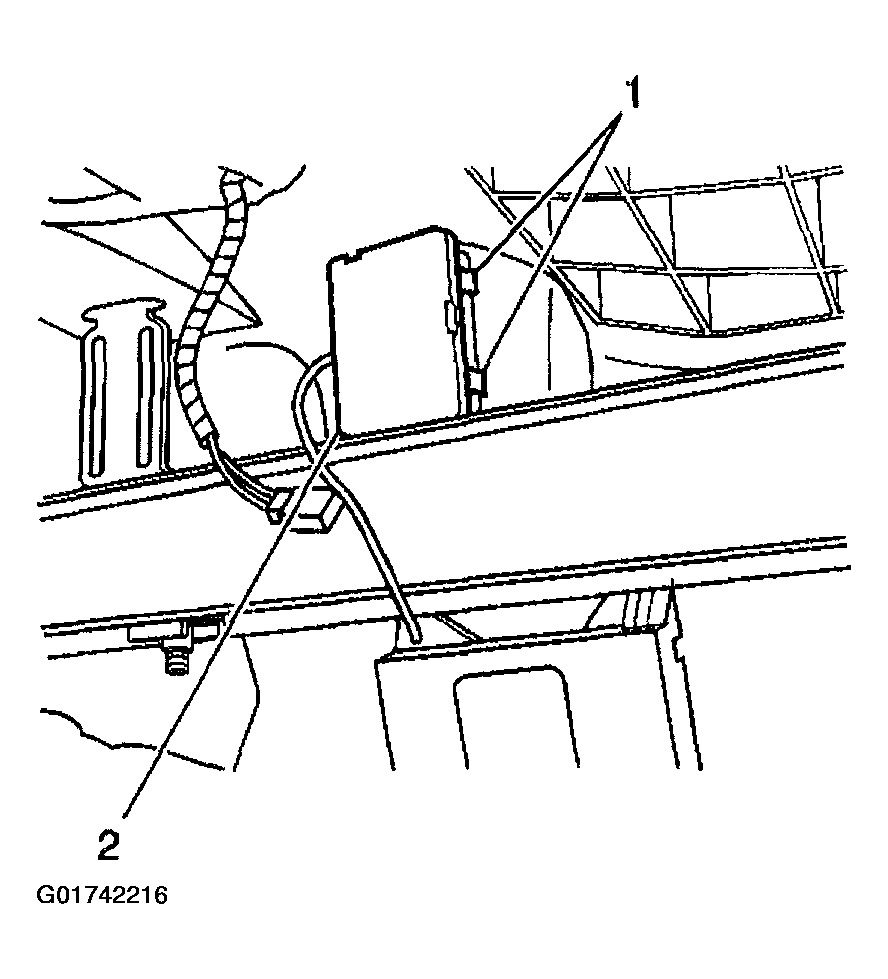

- Snap the remote control door lock receiver module (2) into the slots in the rear compartment. See Figure .
- Connect the electrical connector.

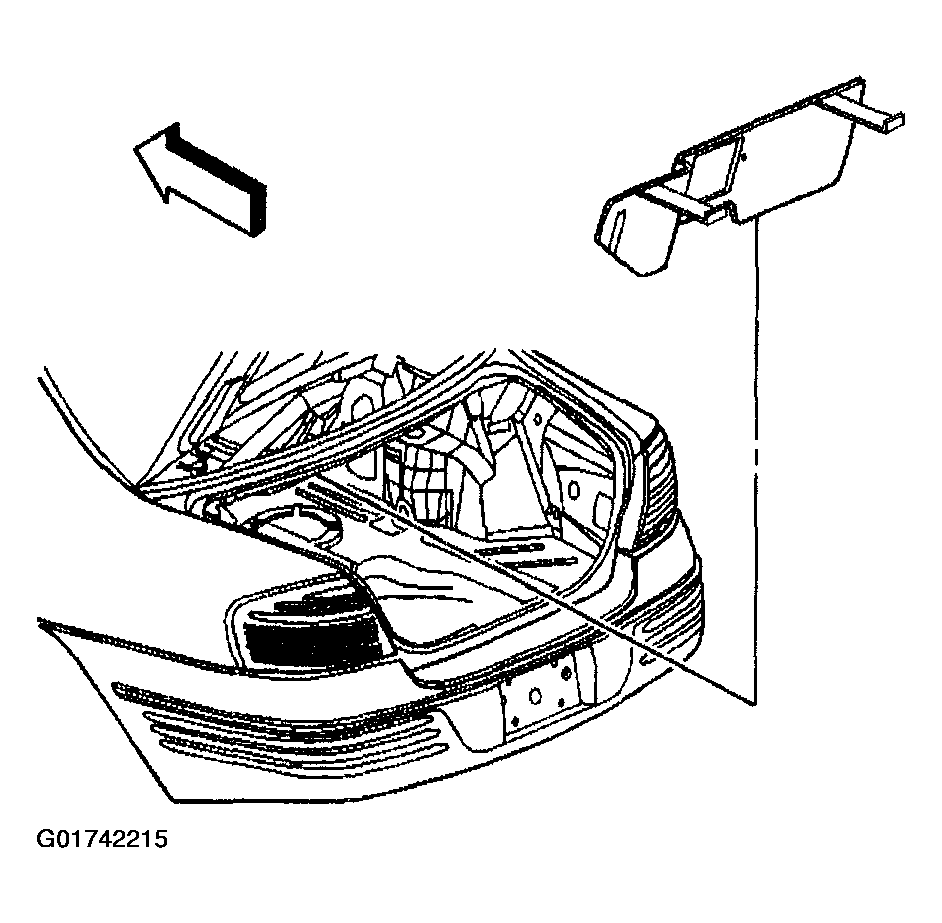

- Install the rear compartment trim. See Figure . Refer to COMPARTMENT TRIM PANEL REPLACEMENT-REAR in Body Rear End.
- Program the remote control door lock receiver module. Refer to TRANSMITTER PROGRAMMING .
