Power Seat Systems Component Views

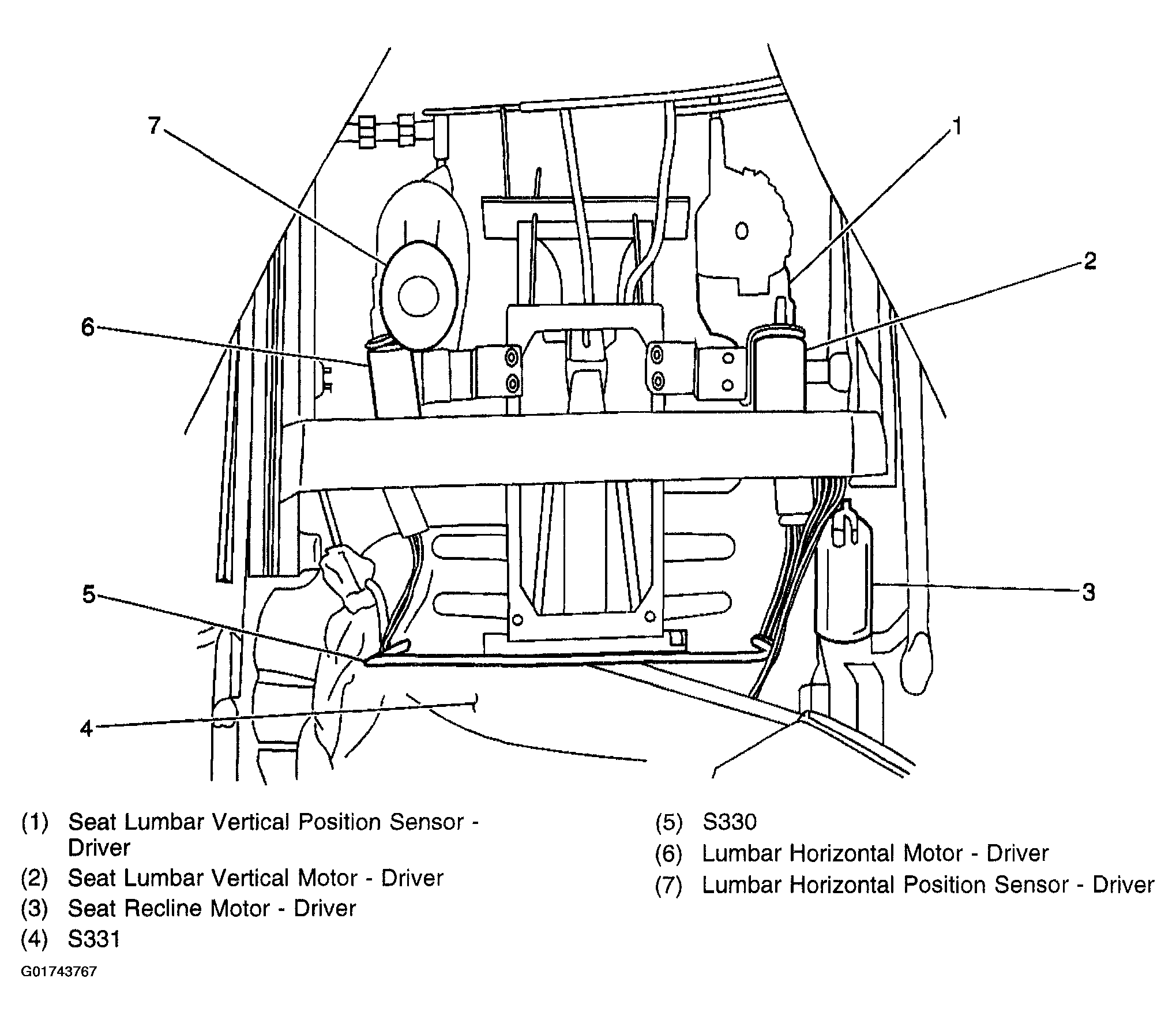

Fig 1: Left Front Seat Back
G01743767Courtesy of GENERAL MOTORS CORP.

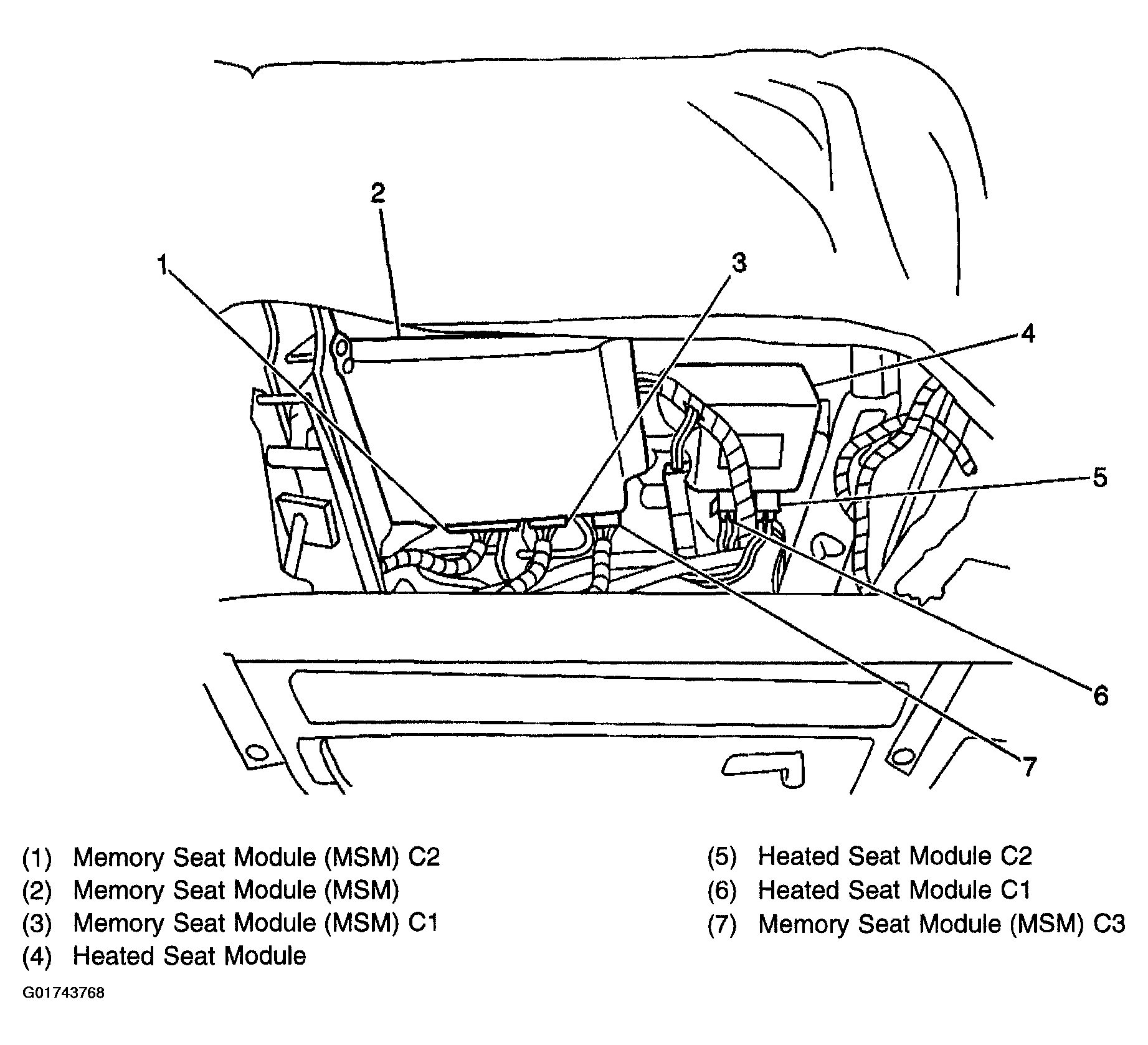

Fig 2: MSM & Heated Seat Module
G01743768Courtesy of GENERAL MOTORS CORP.

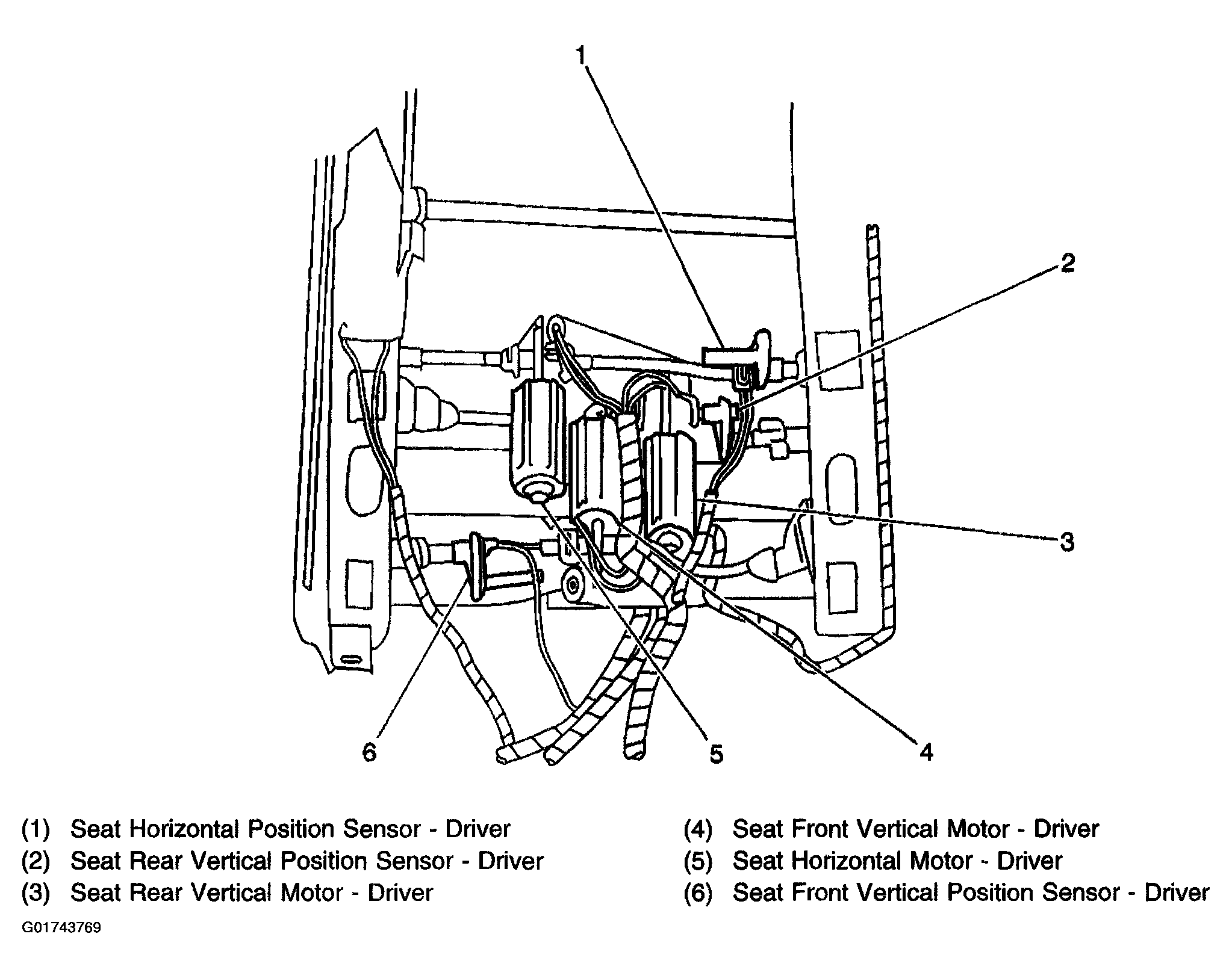

Fig 3: Left Front Seat Horizontal & Vertical Motors & Sensors
G01743769Courtesy of GENERAL MOTORS CORP.

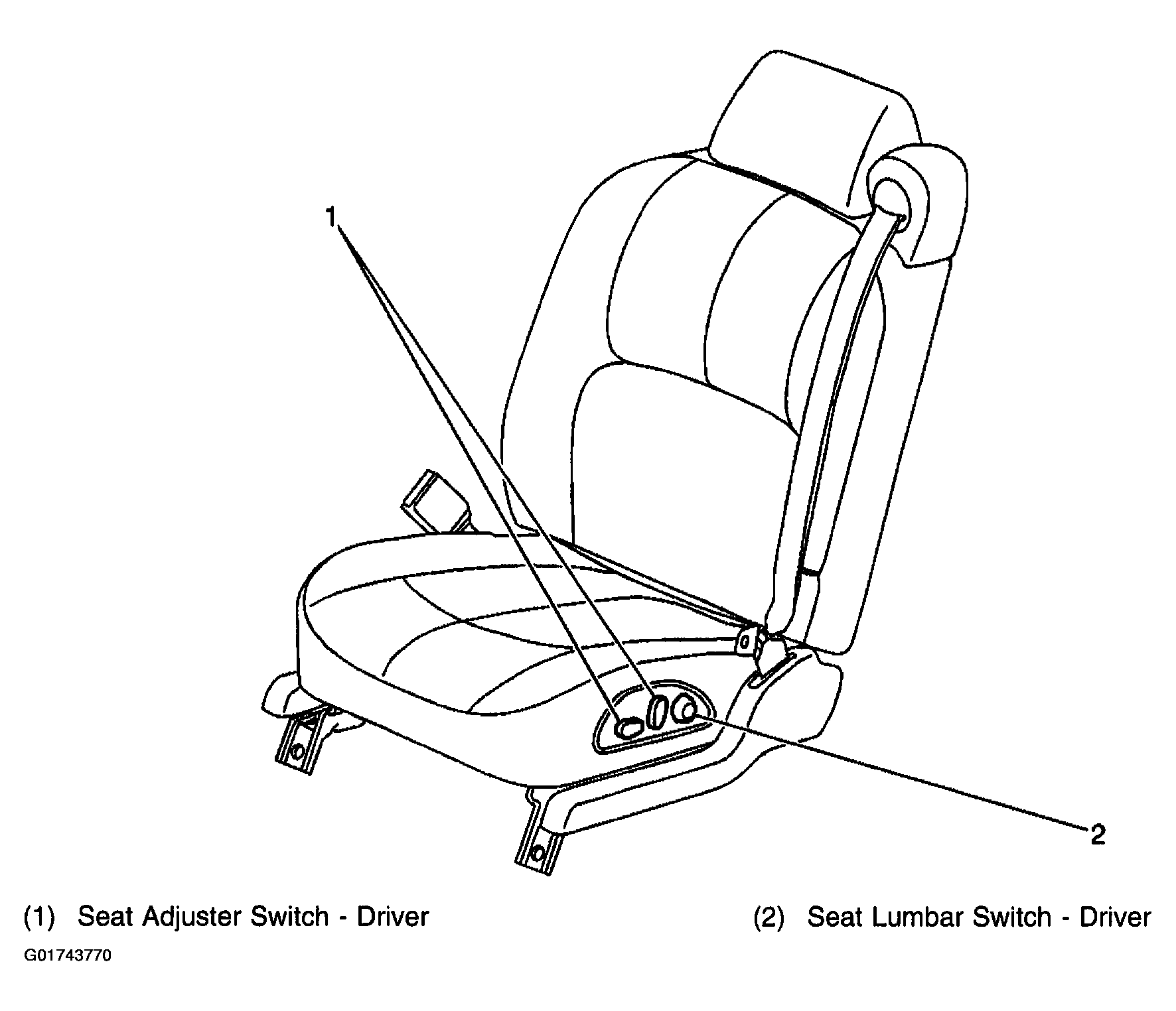

Fig 4: Left Lumbar & Seat Switch
G01743770Courtesy of GENERAL MOTORS CORP.

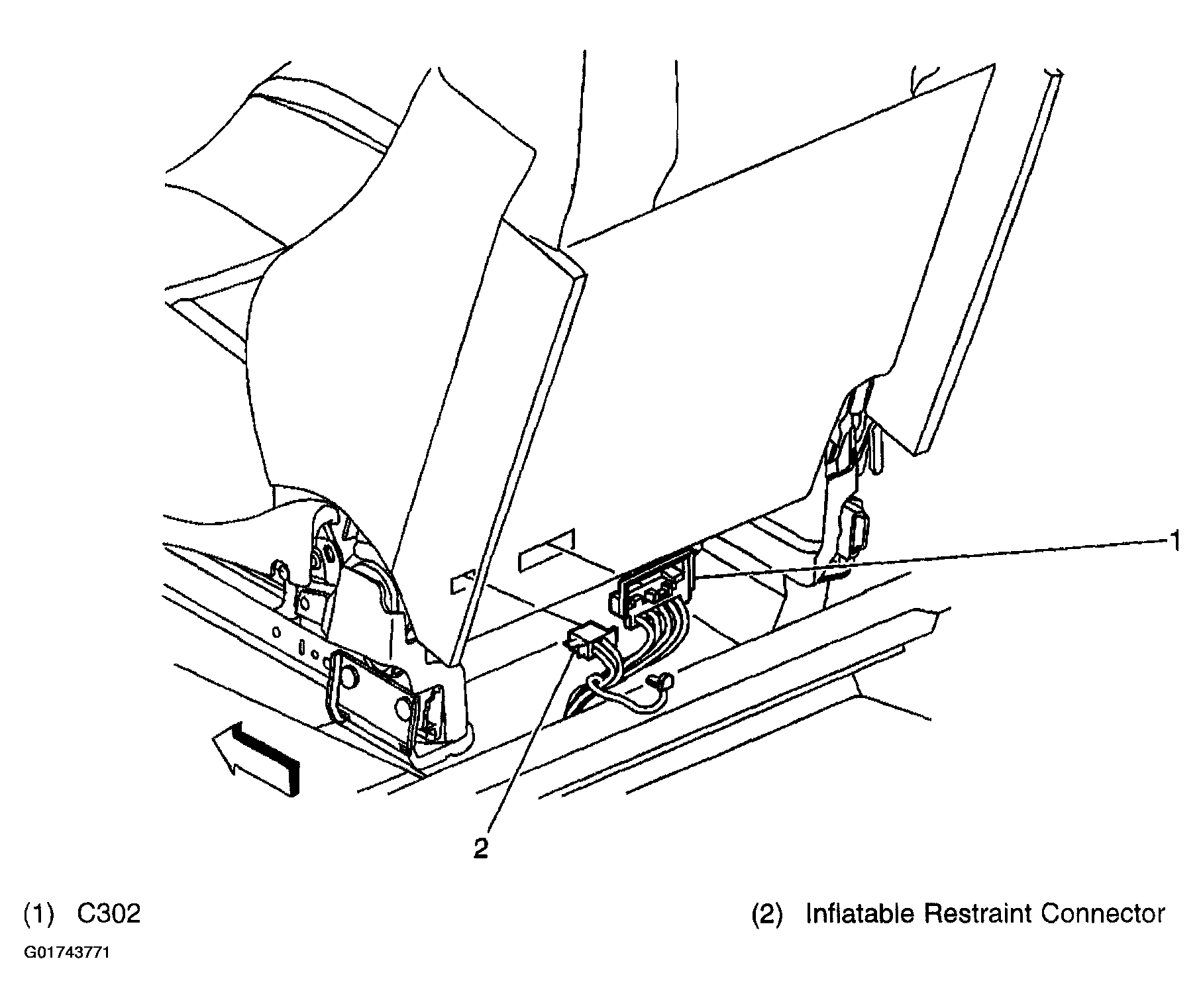

Fig 5: LH Seat Connectors
G01743771Courtesy of GENERAL MOTORS CORP.
