Power Door Systems Component Views

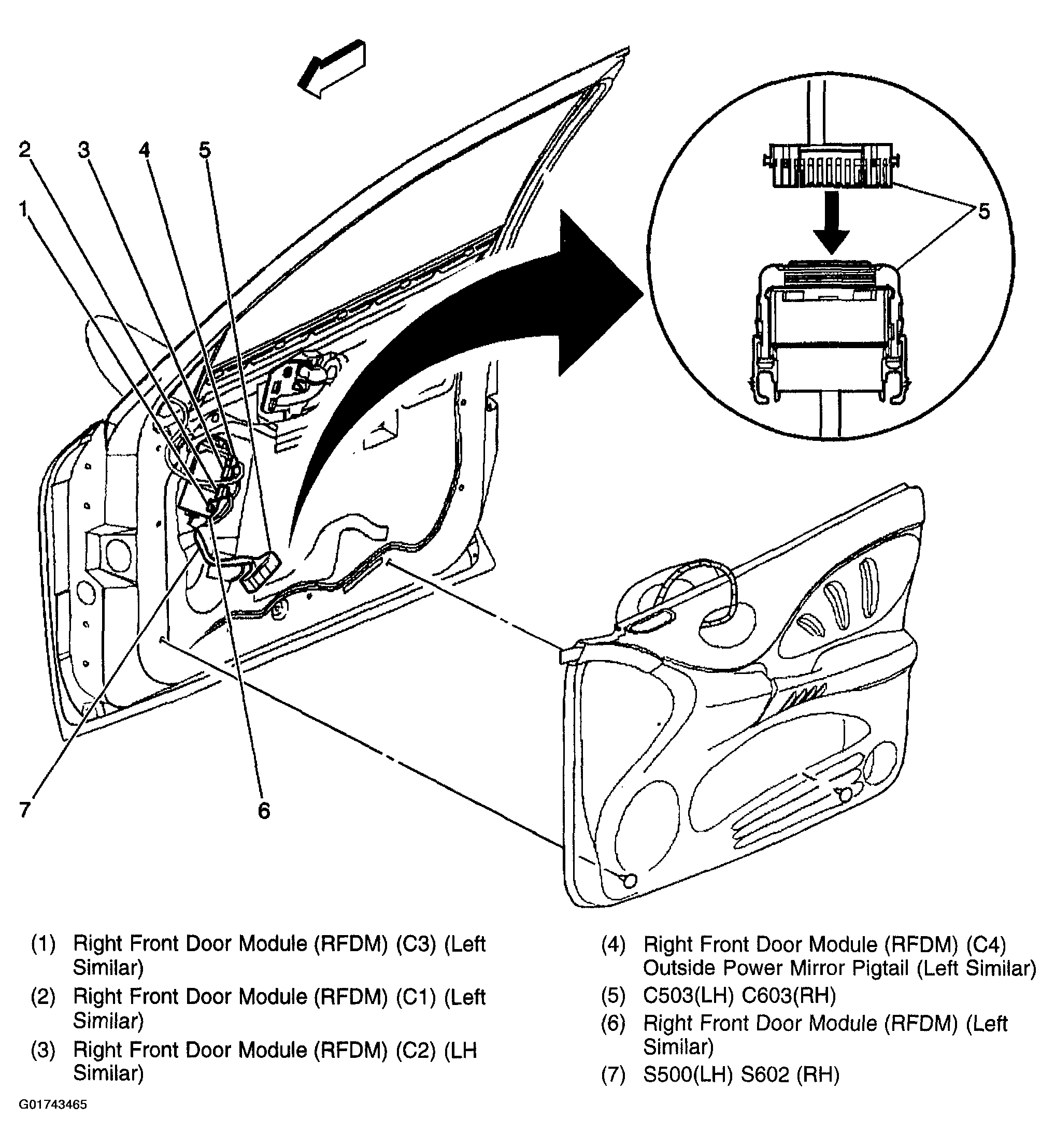

Fig 1: Right Front Door Module

G01743465

Courtesy of GENERAL MOTORS CORP.

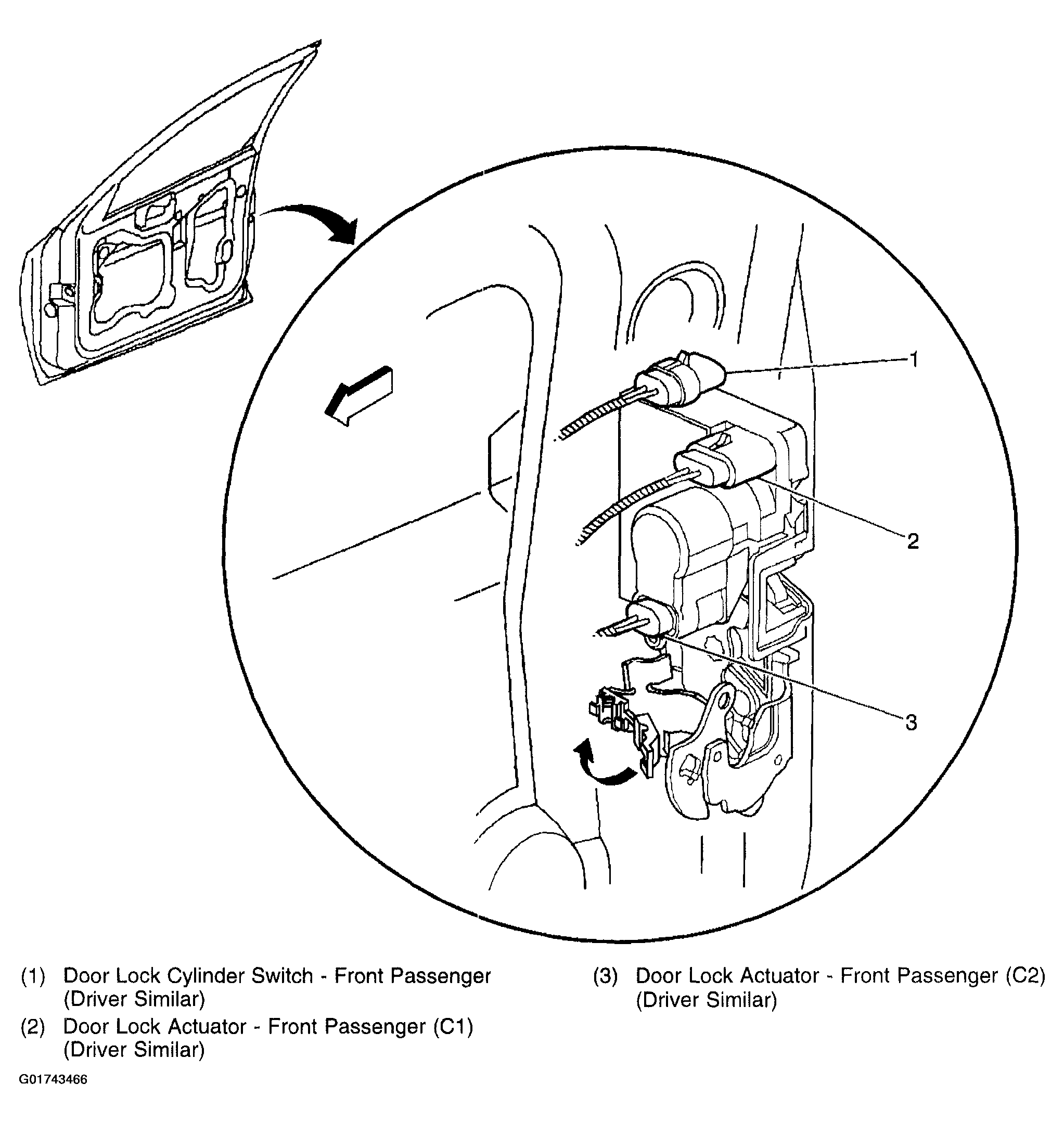

Fig 2: Right Front Door Latch Assembly

G01743466

Courtesy of GENERAL MOTORS CORP.

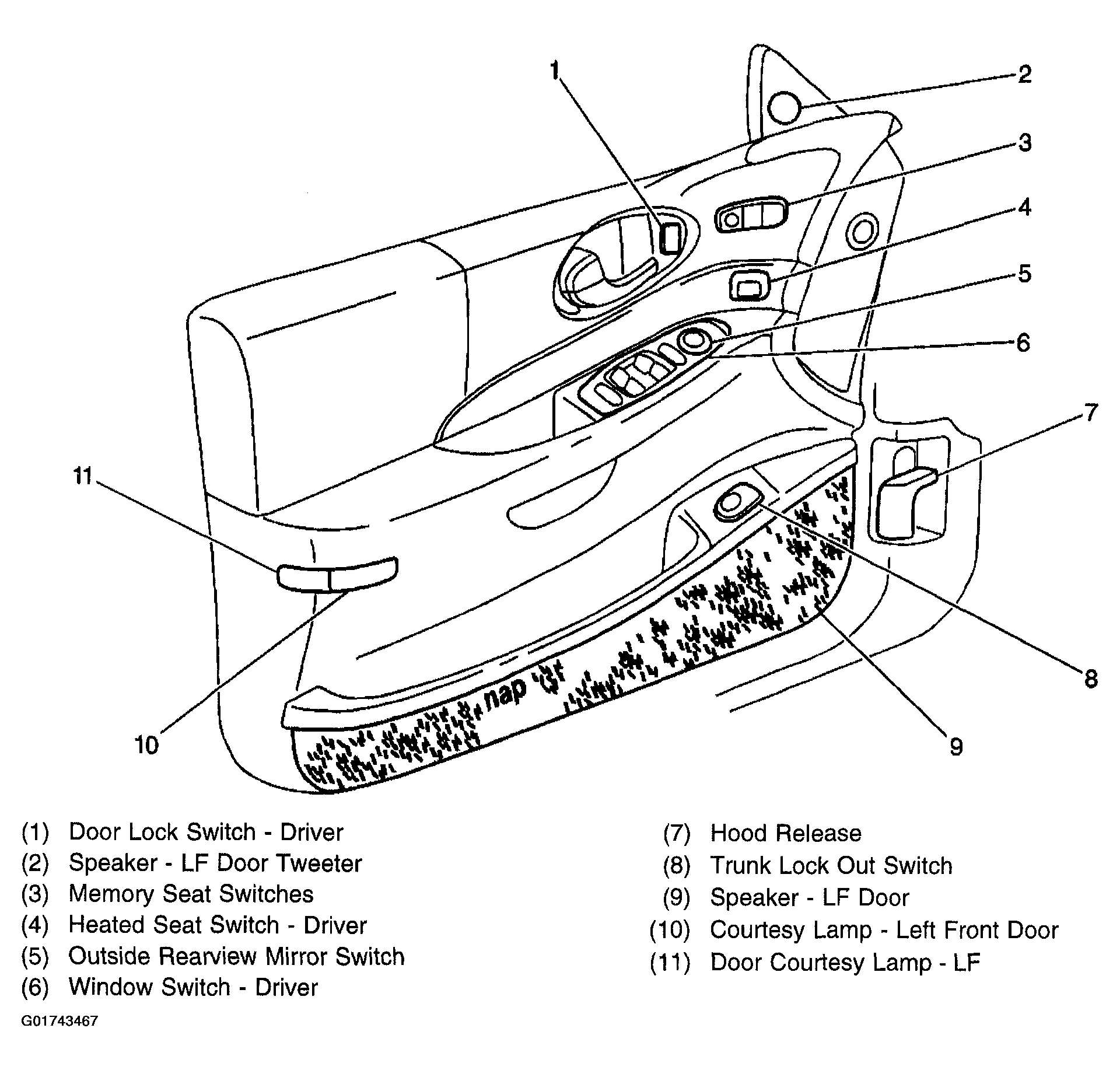

Fig 3: Left Front Door Trim Panel

G01743467

Courtesy of GENERAL MOTORS CORP.

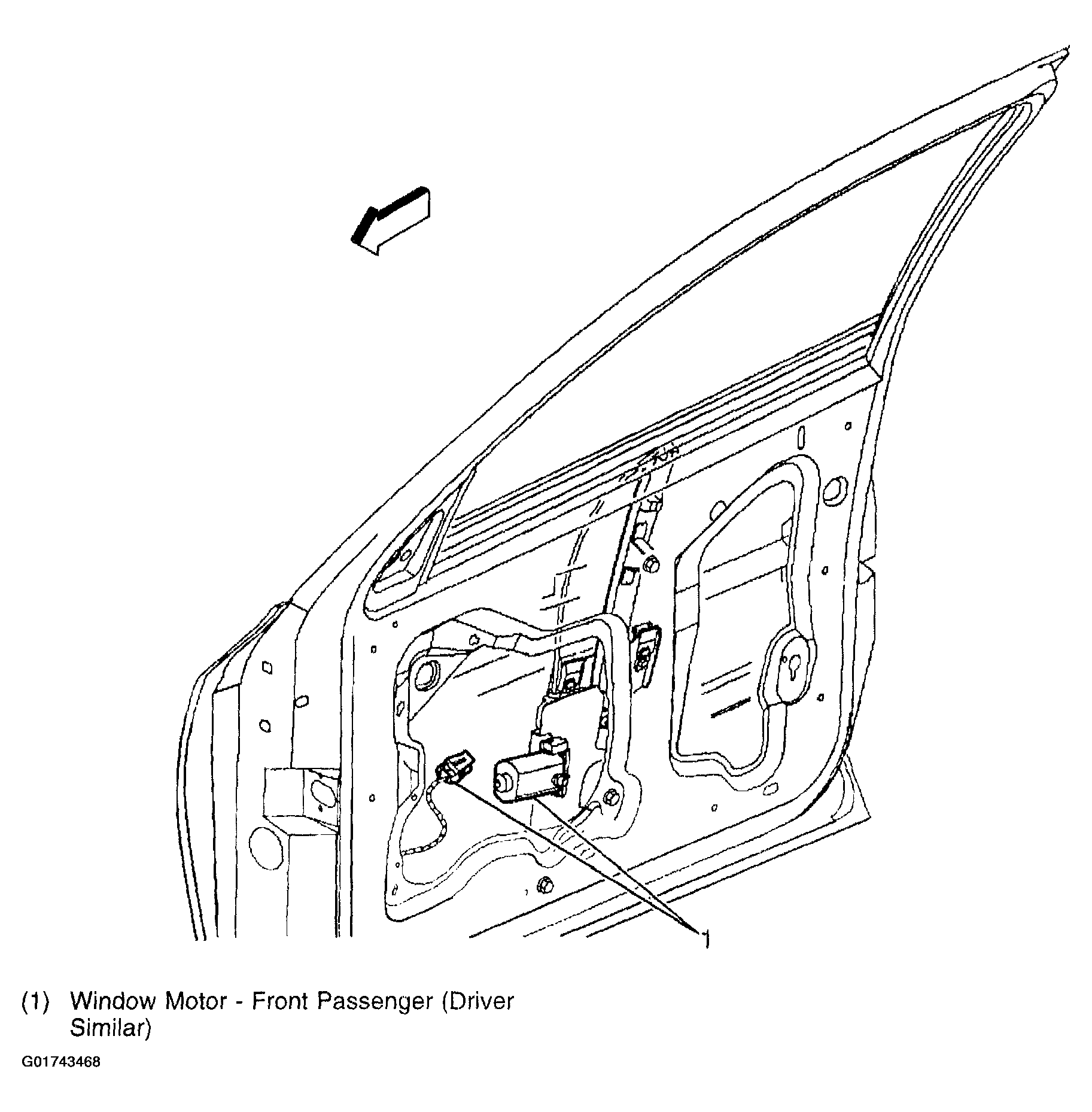

Fig 4: Right Front Door Window Motor

G01743468

Courtesy of GENERAL MOTORS CORP.

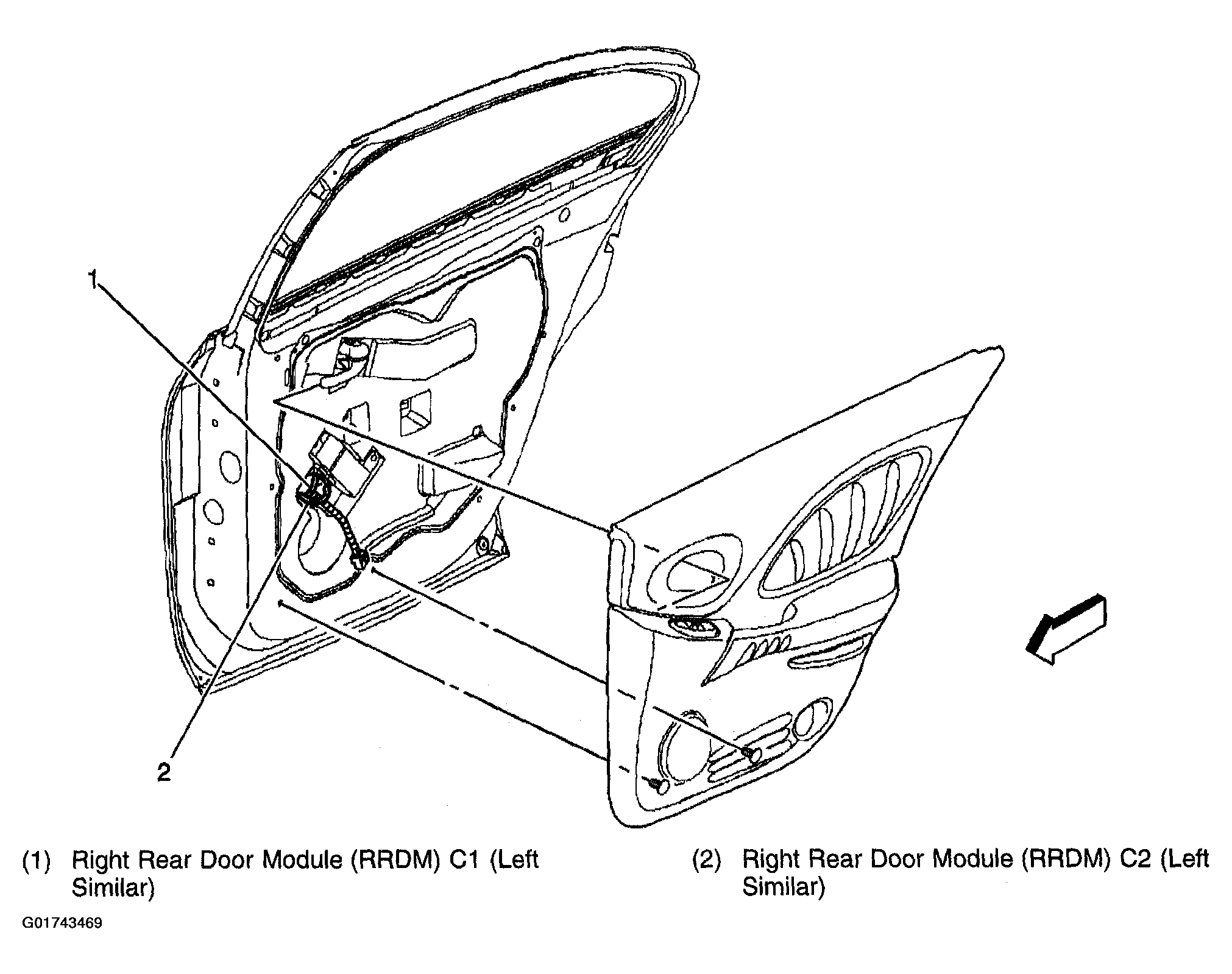

Fig 5: Right Rear Door Module (RRDM)

G01743469

Courtesy of GENERAL MOTORS CORP.

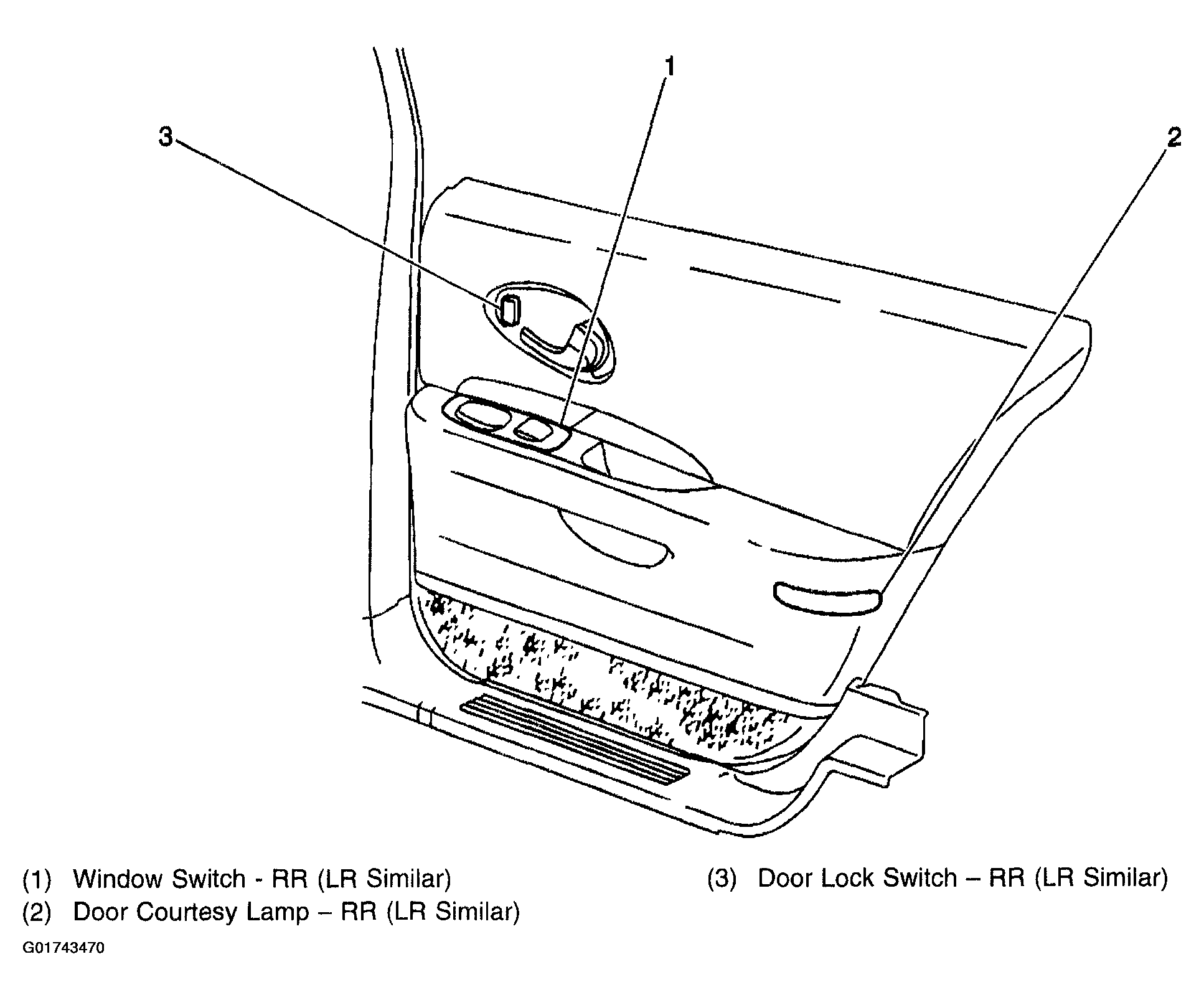

Fig 6: Right Rear Door Trim Panel

G01743470

Courtesy of GENERAL MOTORS CORP.

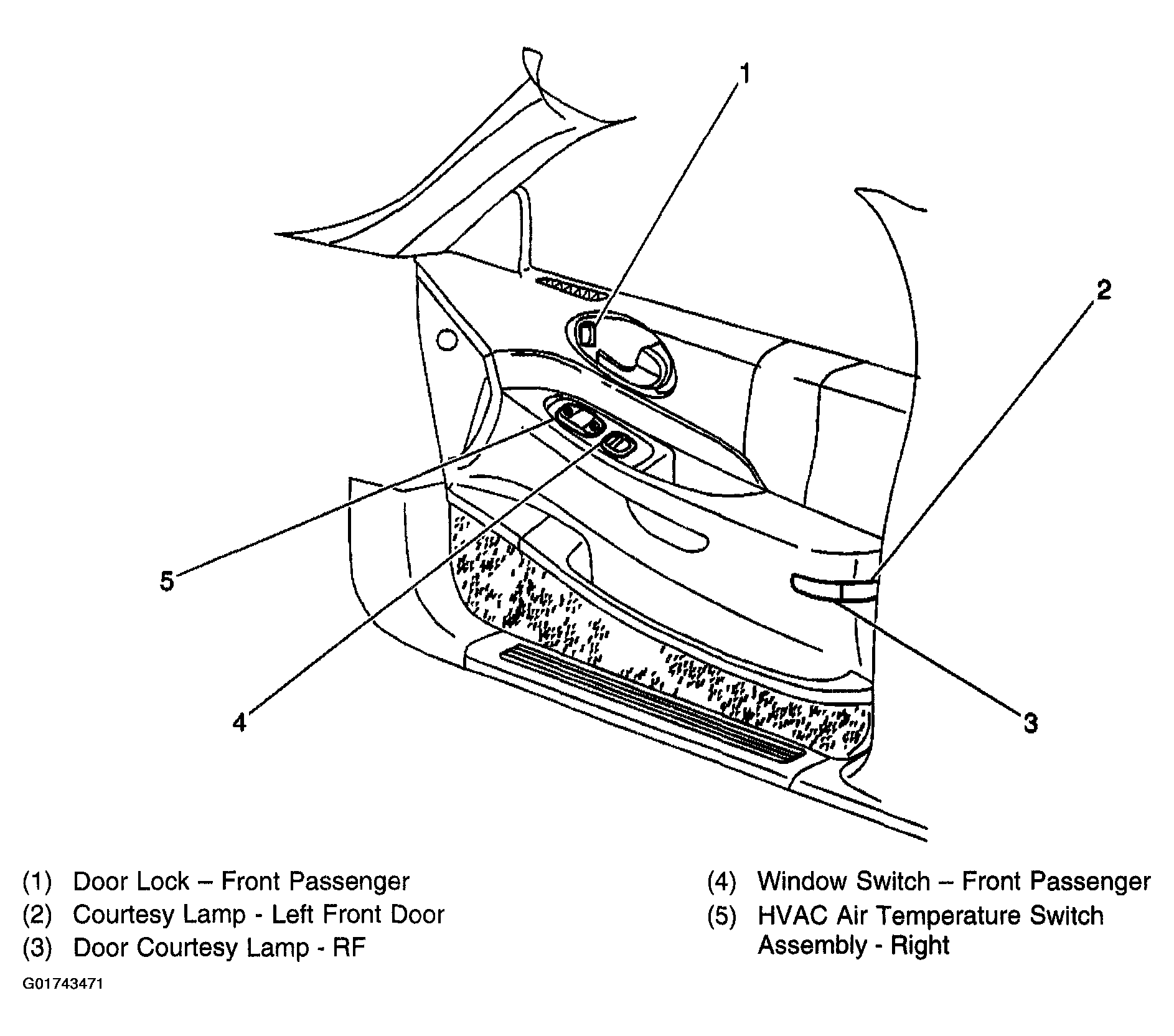

Fig 7: Right Front Door Trim Panel

G01743471

Courtesy of GENERAL MOTORS CORP.
