Door Control Module Schematics

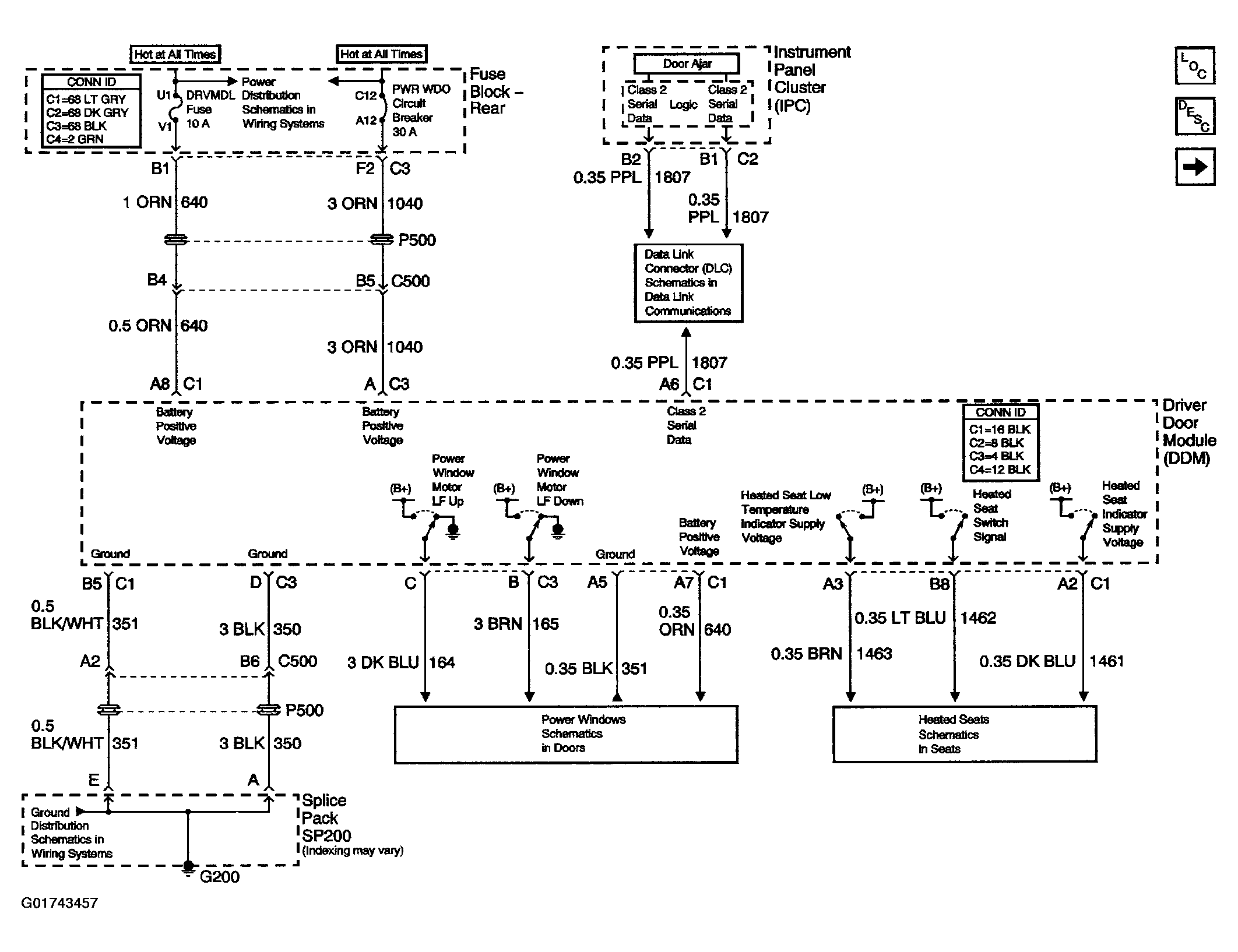

Fig 1: Driver Door Module (DDM) Power & Ground

Courtesy of GENERAL MOTORS CORP.

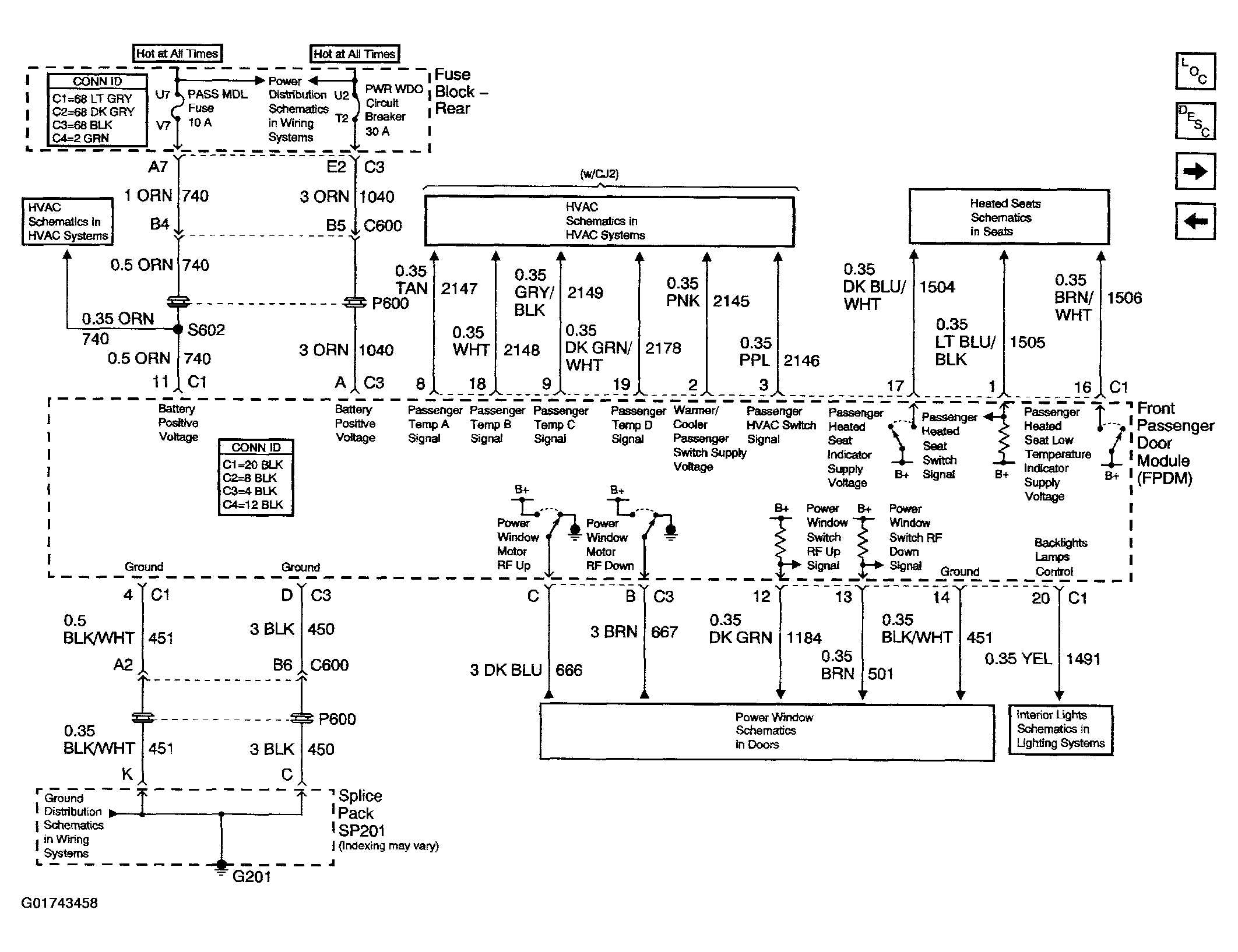

Fig 2: Front Passenger Door Module (FPDM) Power & Ground

Courtesy of GENERAL MOTORS CORP.

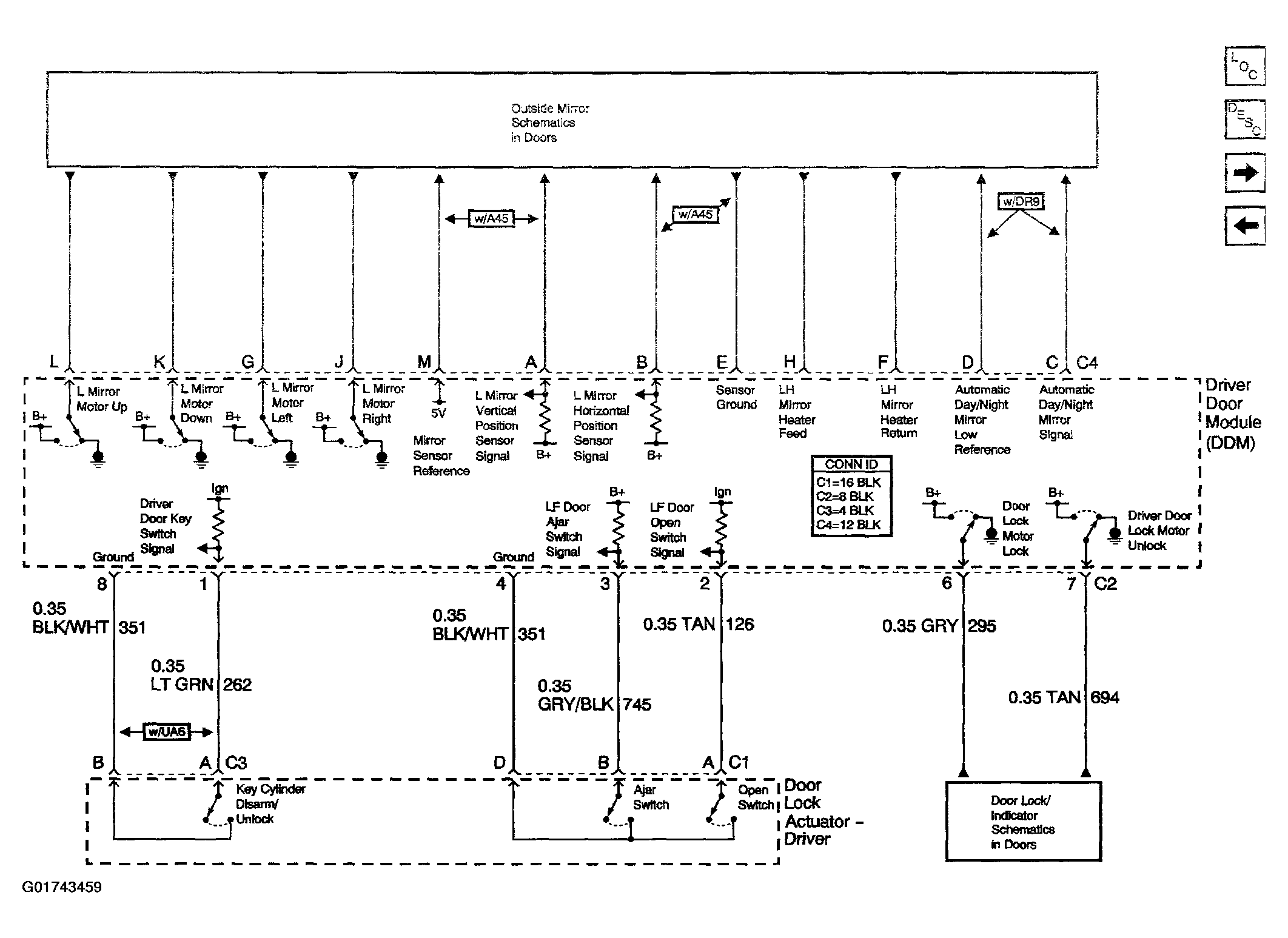

Fig 3: Driver Door Module (DDM) inputs/Outputs

Courtesy of GENERAL MOTORS CORP.

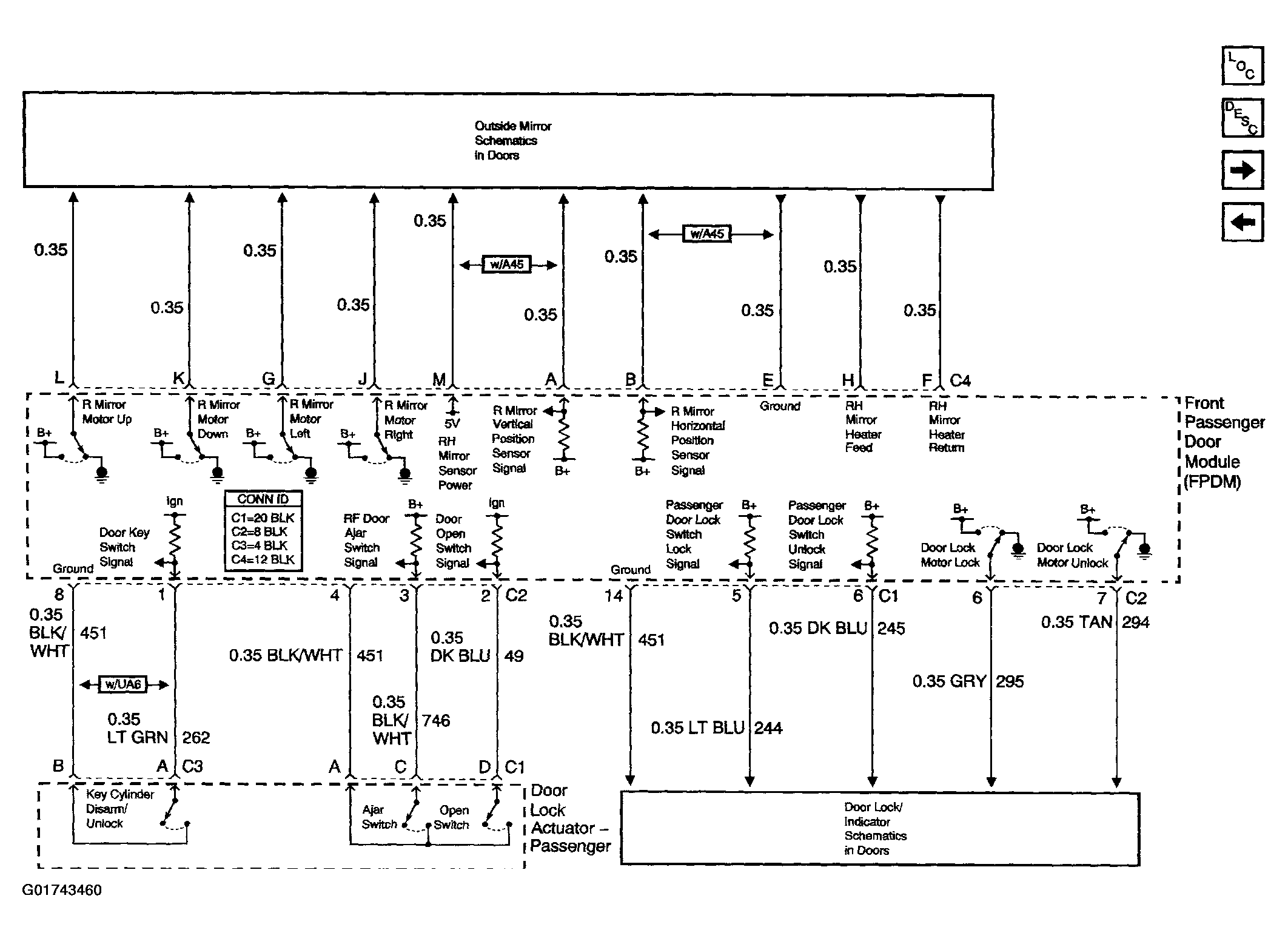

Fig 4: Front Passenger Door Module (FPDM) Inputs/Outputs

Courtesy of GENERAL MOTORS CORP.

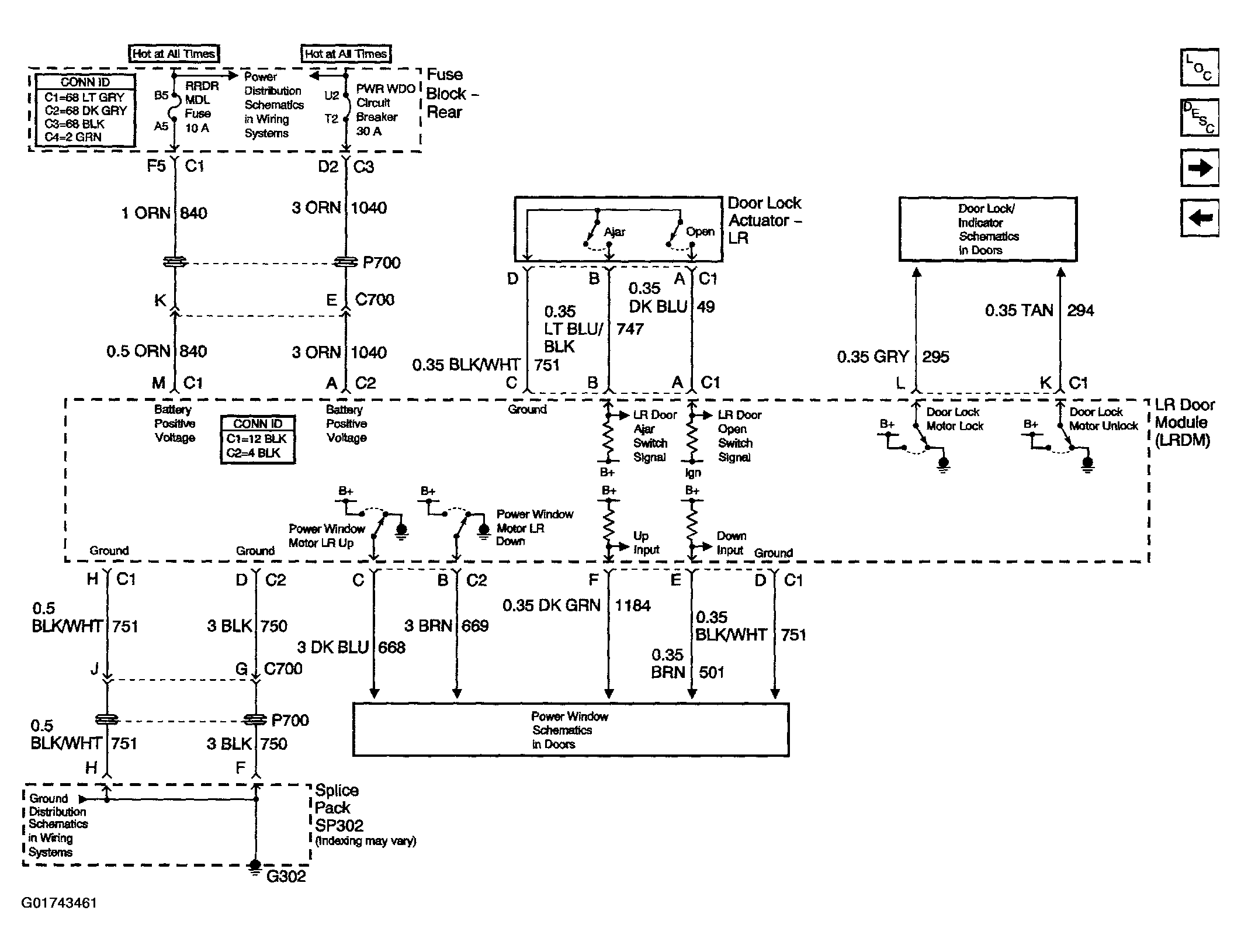

Fig 5: Left Rear Door Module (LRDM)

Courtesy of GENERAL MOTORS CORP.

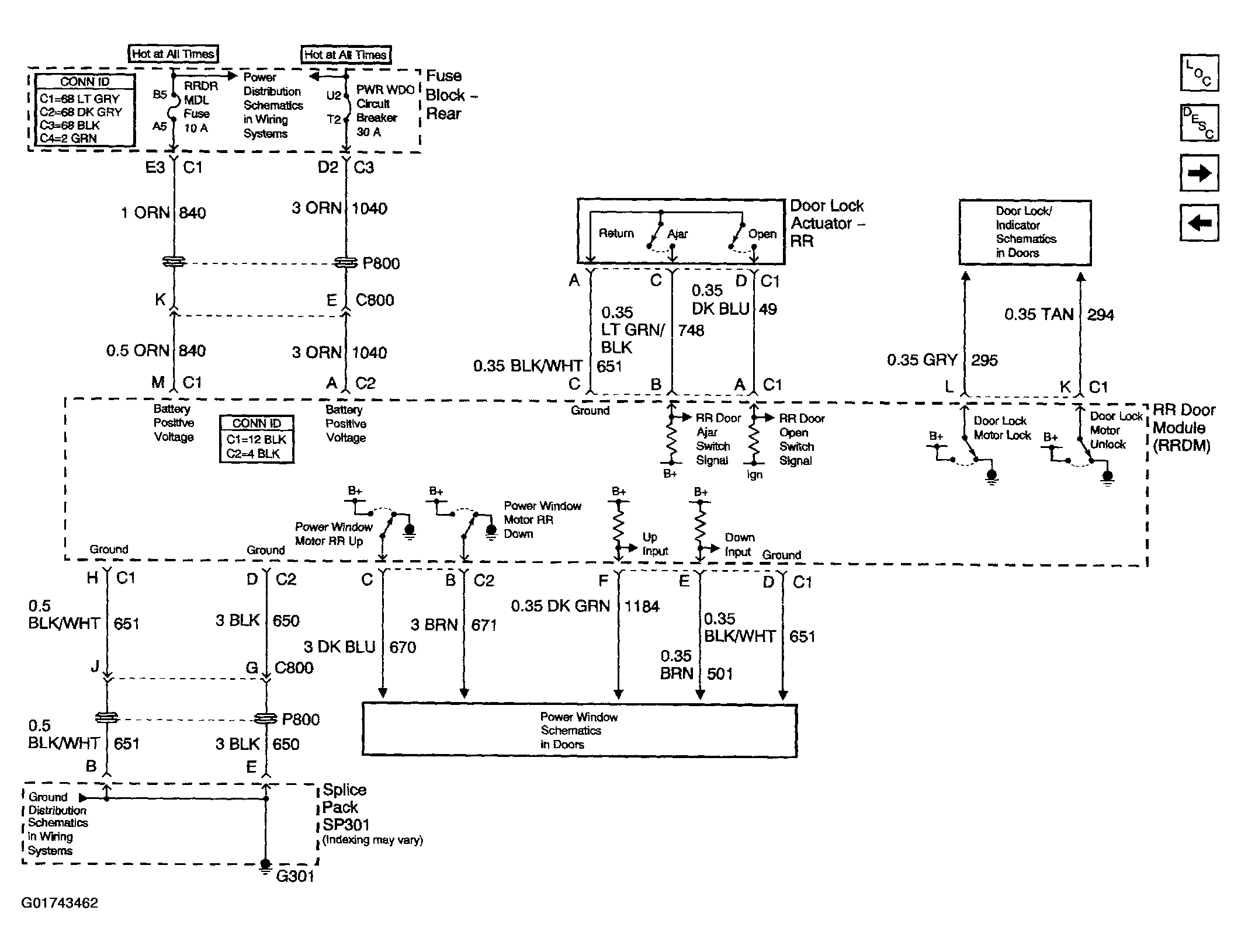

Fig 6: Right Rear Door Module (RRDM)

Courtesy of GENERAL MOTORS CORP.

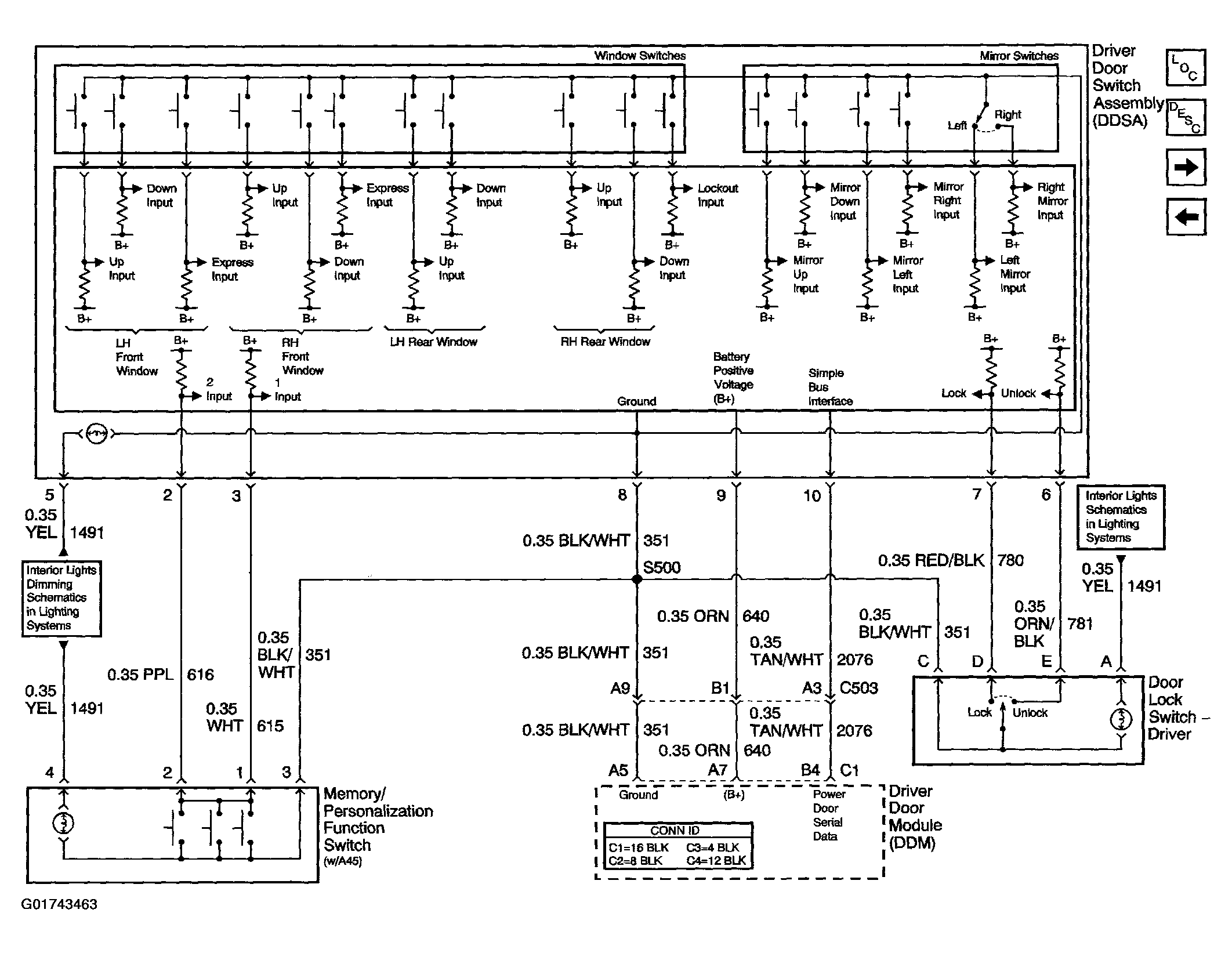

Fig 7: Driver Door Switch Assembly (DDSA)

Courtesy of GENERAL MOTORS CORP.

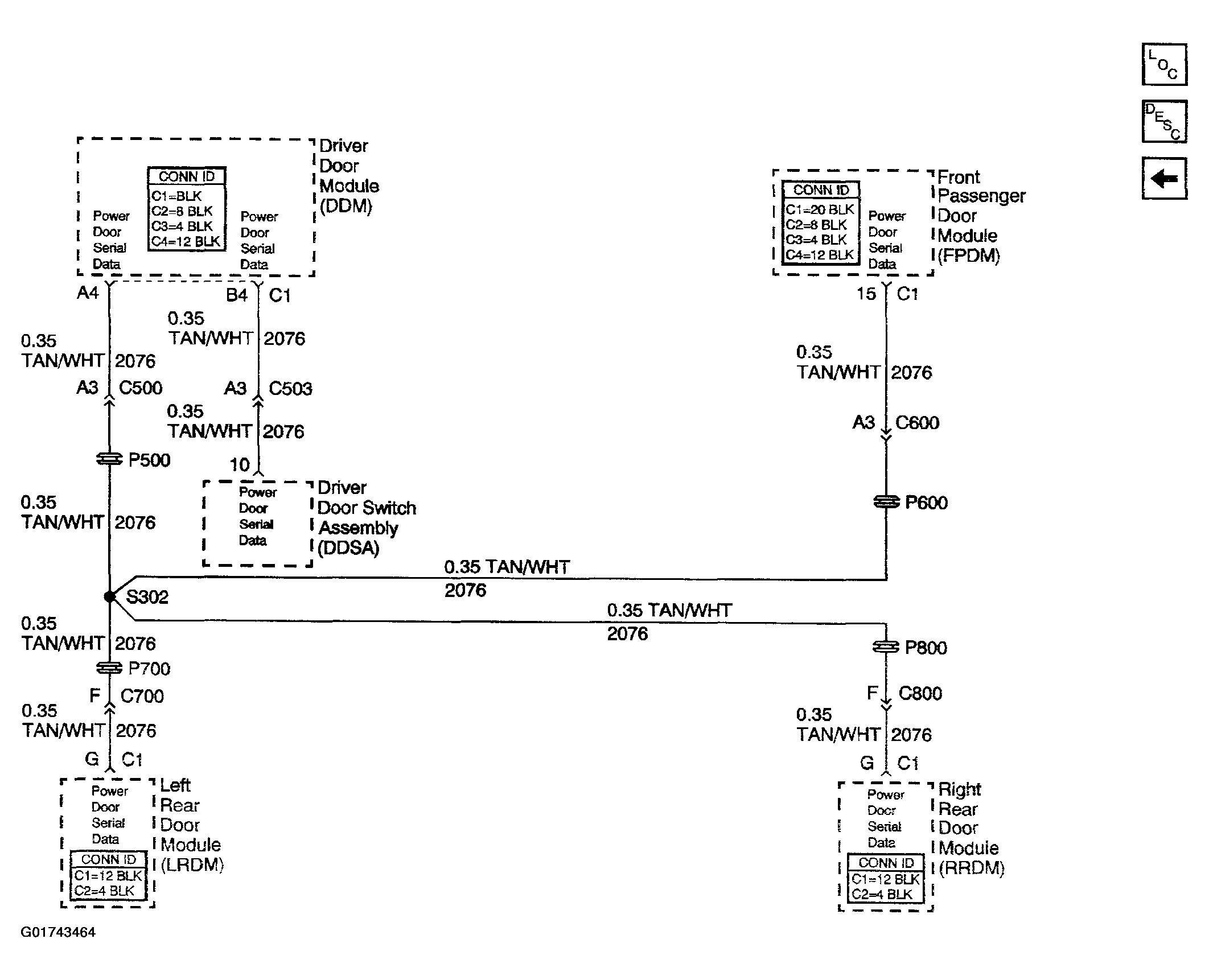

Fig 8: Power Door Serial Data

Courtesy of GENERAL MOTORS CORP.
