Stationary Windows Connector End Views

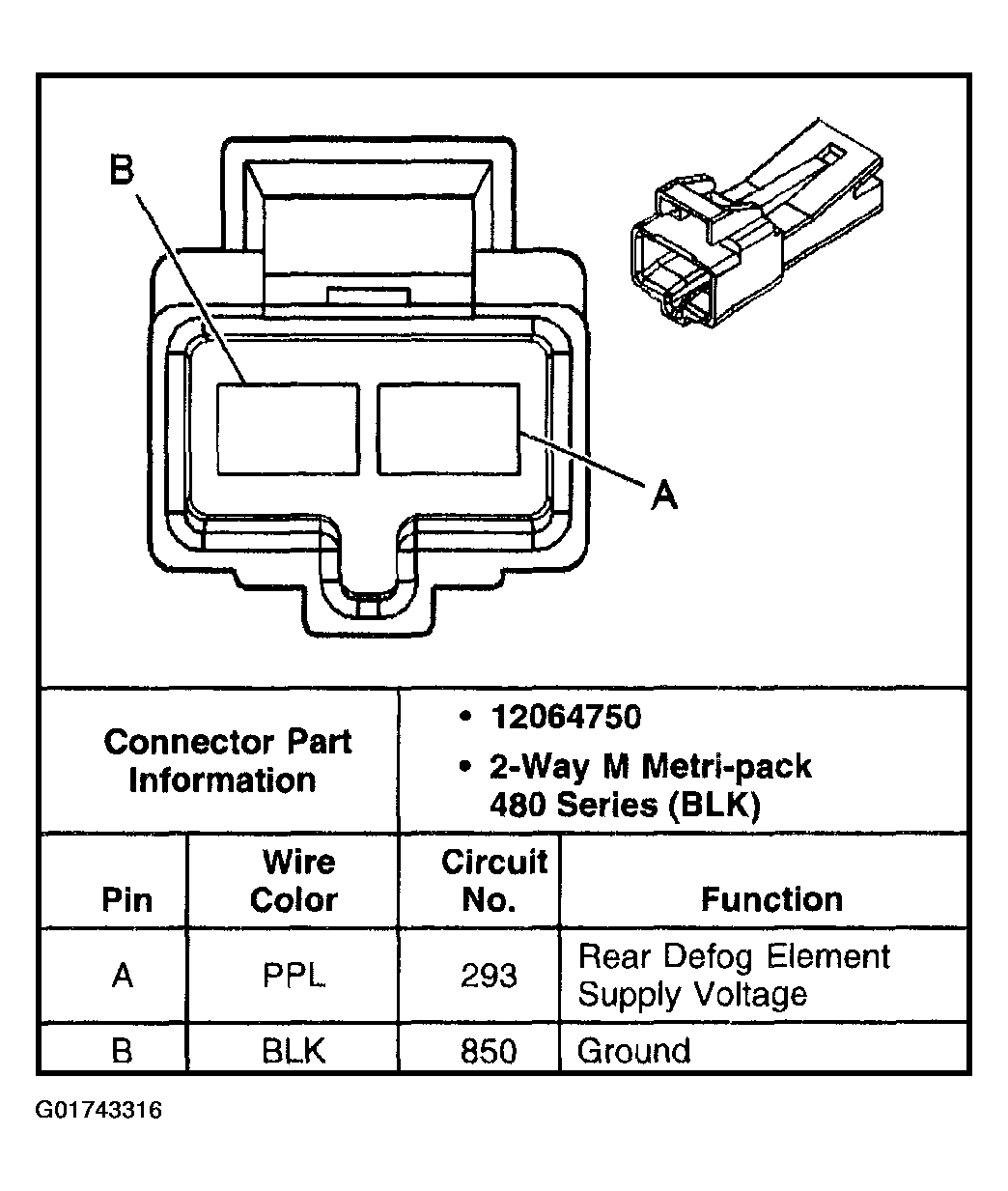

Fig 1: Rear Window Defogger Grid
G01743316Courtesy of GENERAL MOTORS CORP.

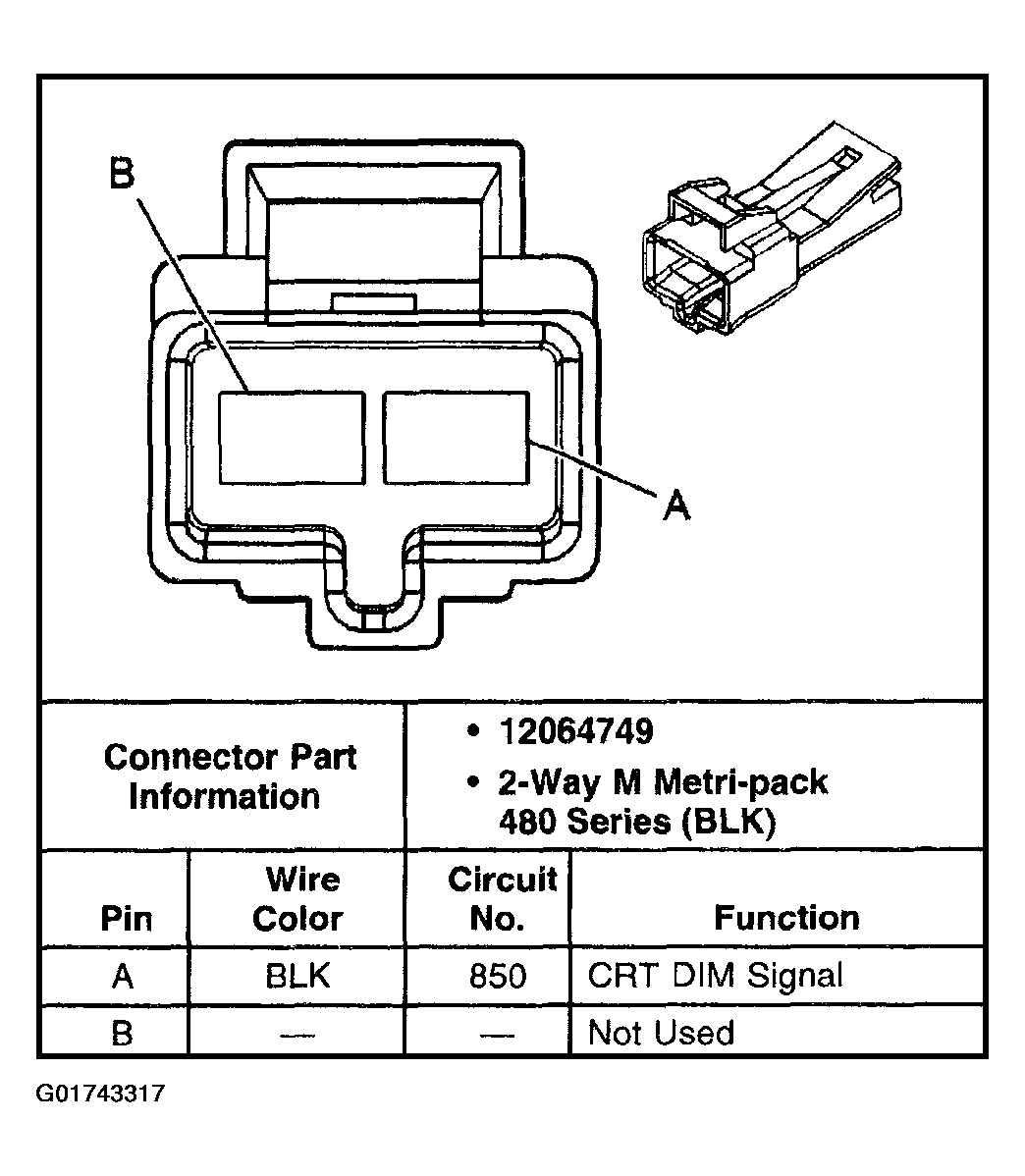

Fig 2: Rear Window Defogger Grid
G01743317Courtesy of GENERAL MOTORS CORP.

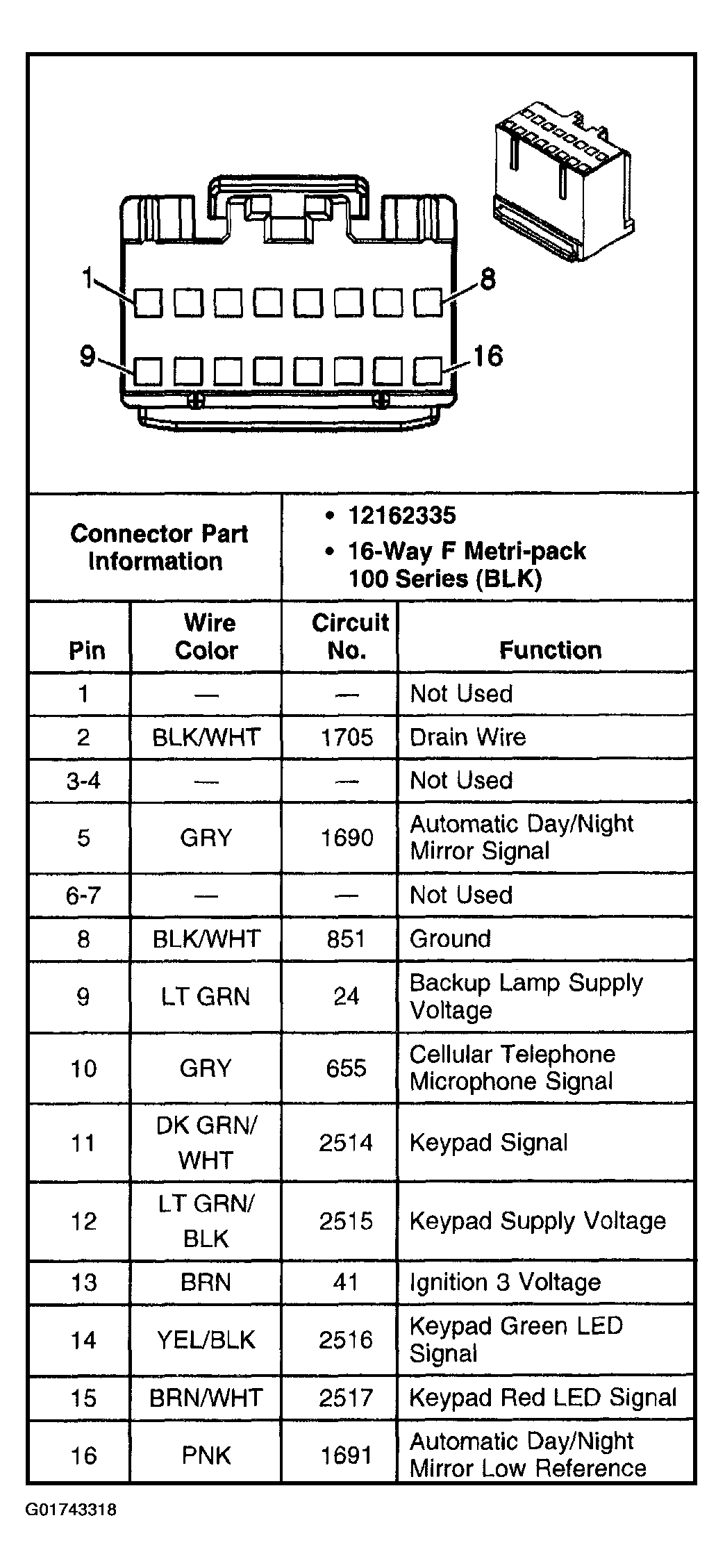

Fig 3: Inside Rear View Mirror w/DD7 Or DD8
G01743318Courtesy of GENERAL MOTORS CORP.
