Automatic Transmission Shift Lock Control Component Views

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

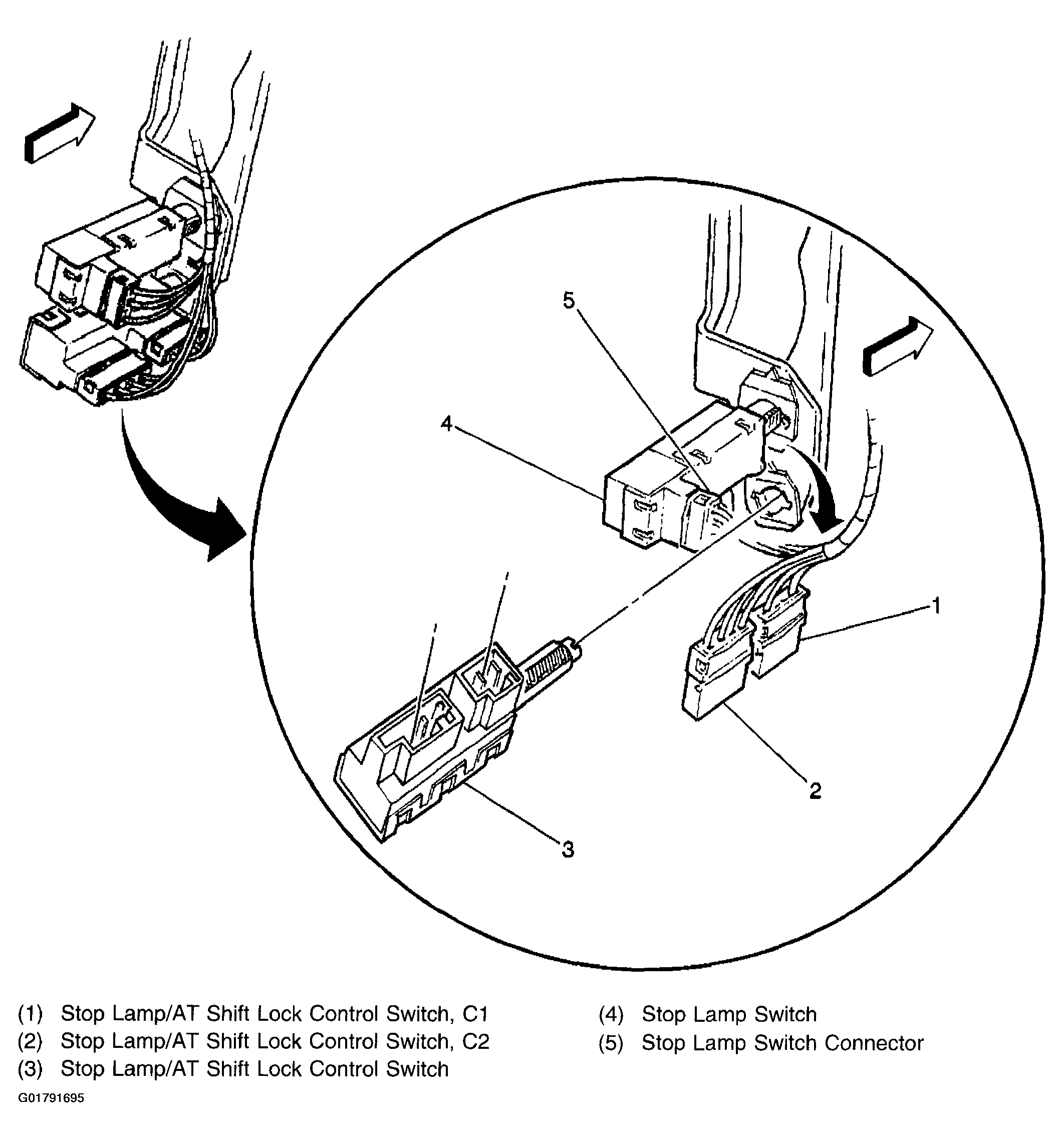

Fig 1: Identifying Brake Switches
G01791695Courtesy of GENERAL MOTORS CORP.
