Automatic Transmission Shift Lock Control Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

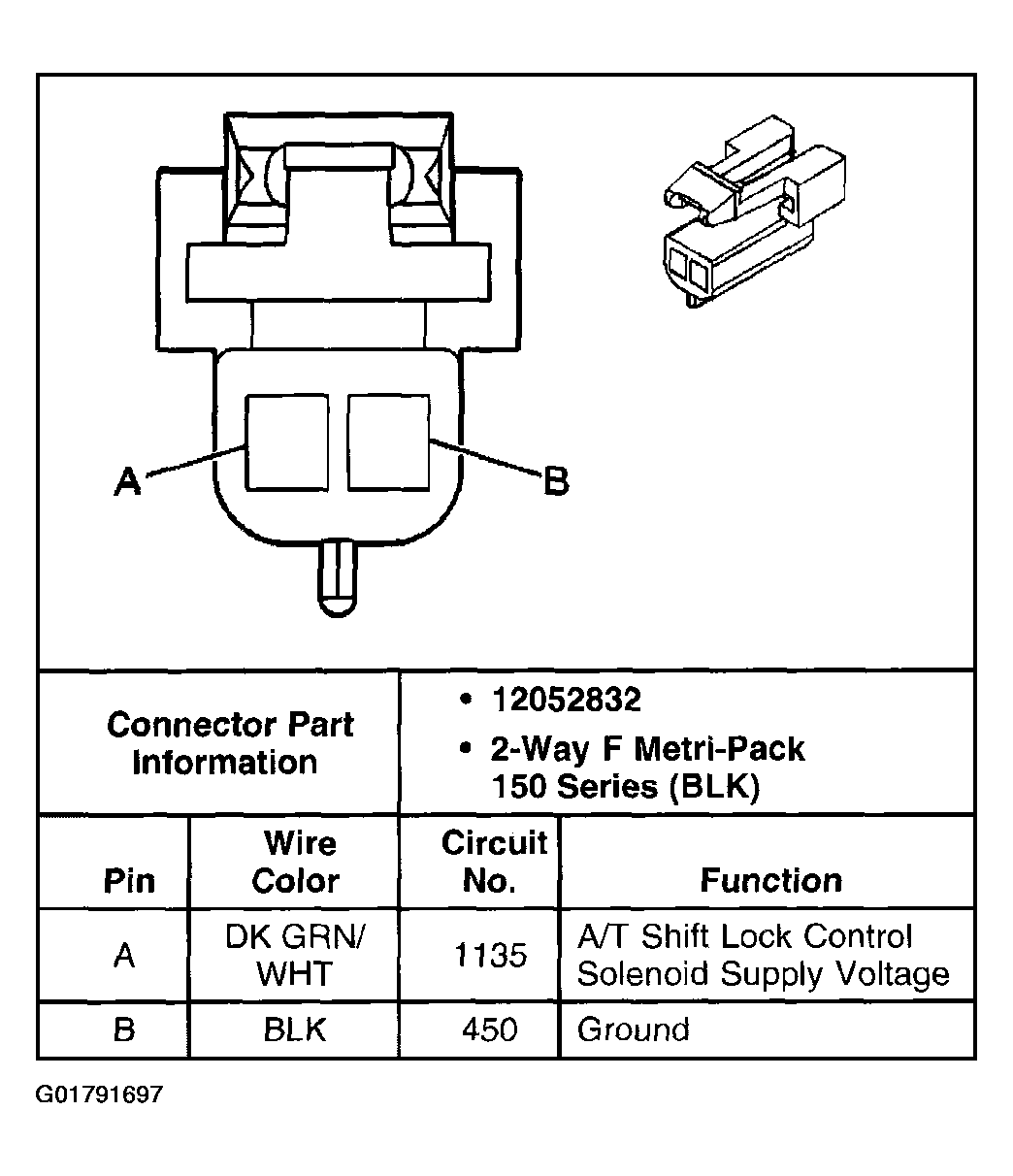

Fig 1: Identifying A/T Shift Lock Control Solenoid - Column Shift

Courtesy of GENERAL MOTORS CORP.

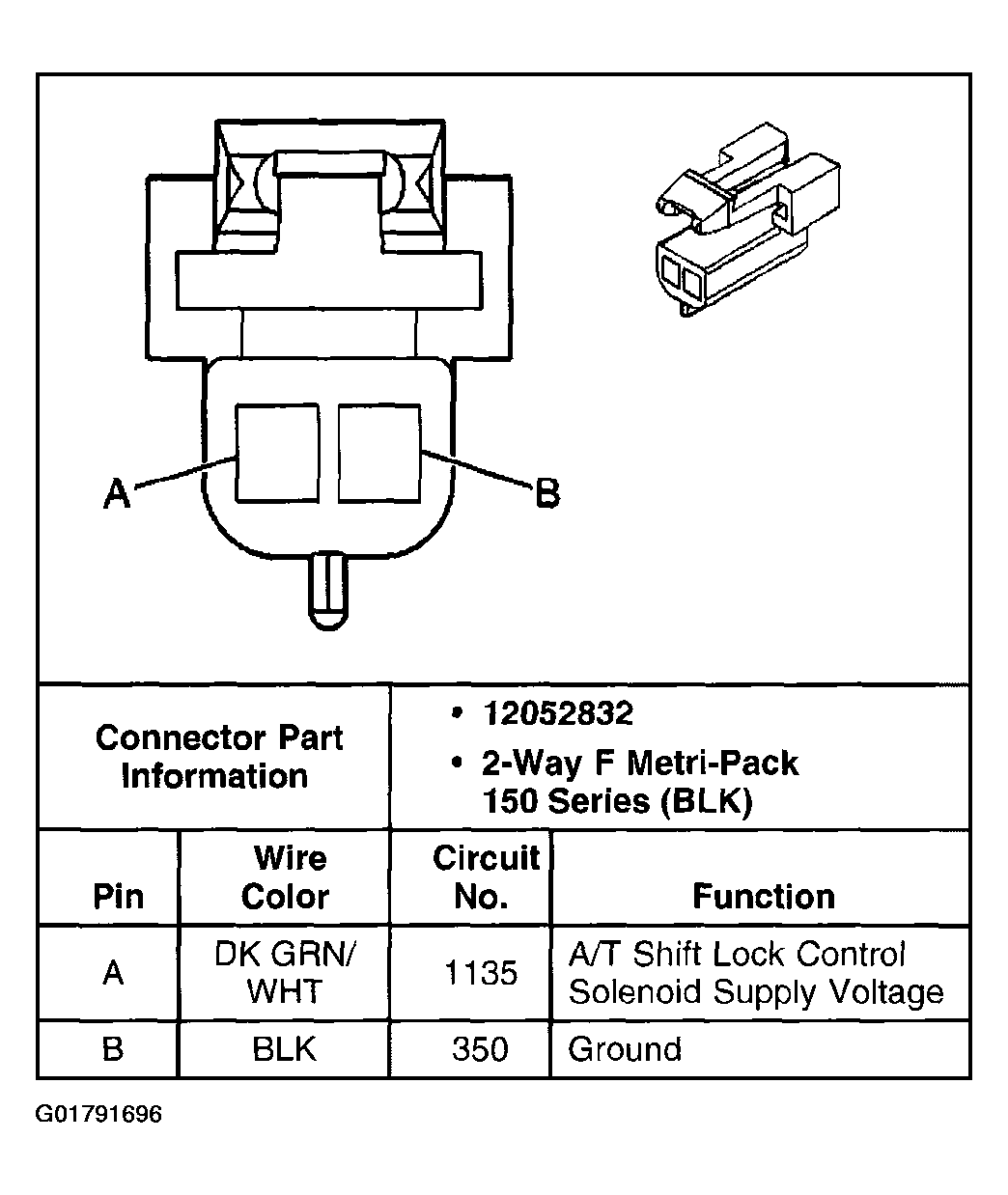

Fig 2: Identifying A/T Shift Lock Control Solenoid - Console Shift

Courtesy of GENERAL MOTORS CORP.
