Installation Procedure

  1. Install the child tether anchors to the vehicle.
  2. Install the child tether anchor fasteners.

    Tighten:

    Tighten the fastener to 30 N.m (22 ft lbs)

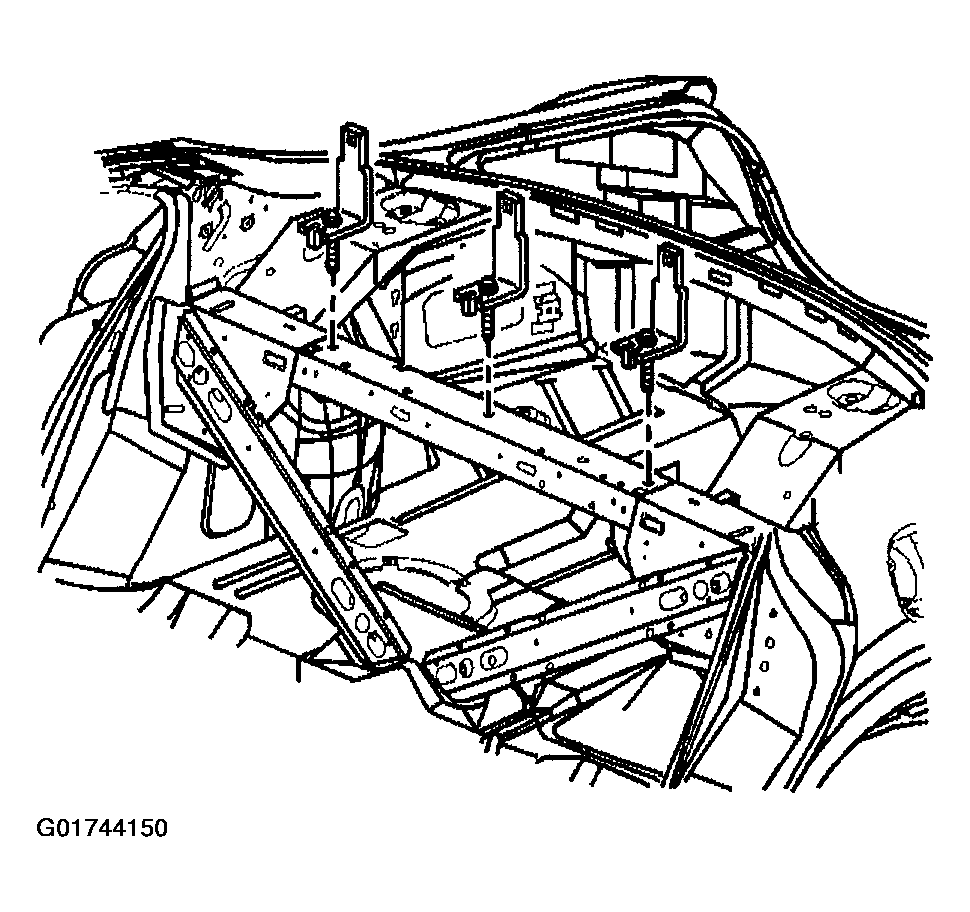

    Fig 1: Child Tether Anchor Fasteners
    G01744150Courtesy of GENERAL MOTORS CORP.
  3. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT-REAR WINDOW SHELF in EXTERIOR/INTERIOR TRIM .
