Installation Procedure

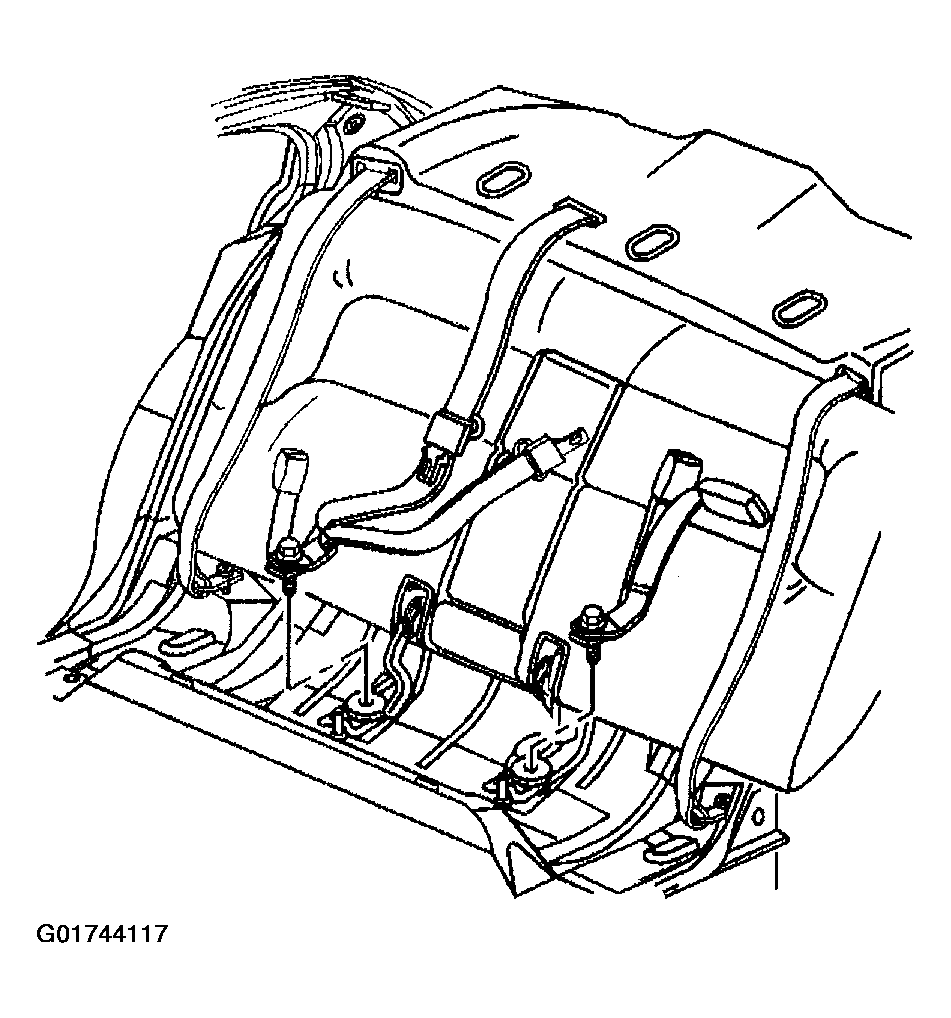

- Install the rear seat belt buckle anchor plate under the rear seat back hold-down.NOTE: Assure that the fastener threads and fastener hole are free of any sealer patch material.
- Install the rear seat center belt and RH rear seat buckle anchor fastener. Ensure the center belt anchor is facing rearward and the center buckle anchors are facing towards the rear.
Tighten:
Tighten the rear seat center belt and rear seat buckle anchor fasteners to 41 N.m (32 ft lbs).
- Ensure the seat belt buckles are stowed in the seat back pockets and install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in SEATS .
