Installation Procedure

  1. Install the rear seat belt retractor. Refer to Seat Belt Retractor Replacement-Rear
  2. Install the rear seat belt anchor fastener to the floor.

    Tighten:

    Tighten the anchor fastener to 41 N.m (30 ft lbs)

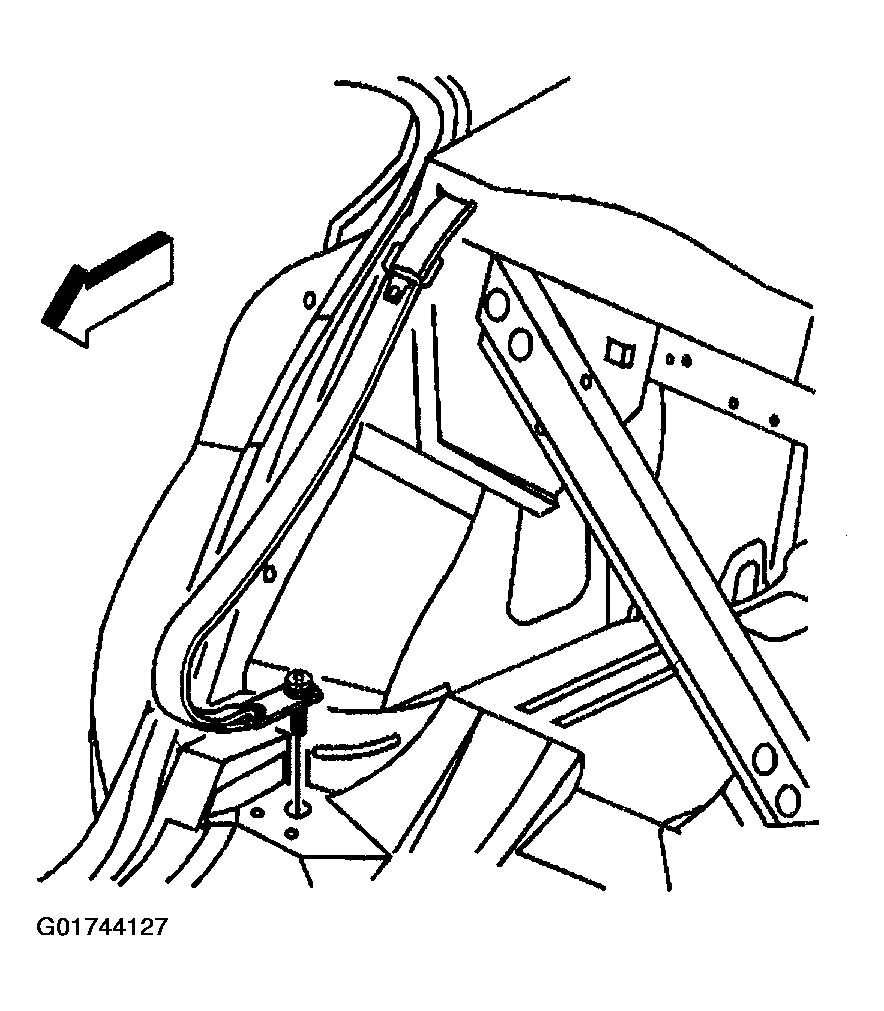

    Fig 1: Rear Seat Belt Anchor Fastener To Floor
    G01744127Courtesy of GENERAL MOTORS CORP.
  3. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in SEATS .
  4. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT-REAR WINDOW SHELF in Exterior/Interior Trim .
