Removal Procedure

  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in SEATS .
  2. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT-REAR WINDOW SHELF in Exterior/Interior Trim .
  3. Remove the rear seat belt retractor. Refer to Seat Belt Retractor Replacement-Rear .
  4. Remove the rear seat belt anchor fastener from the floor.

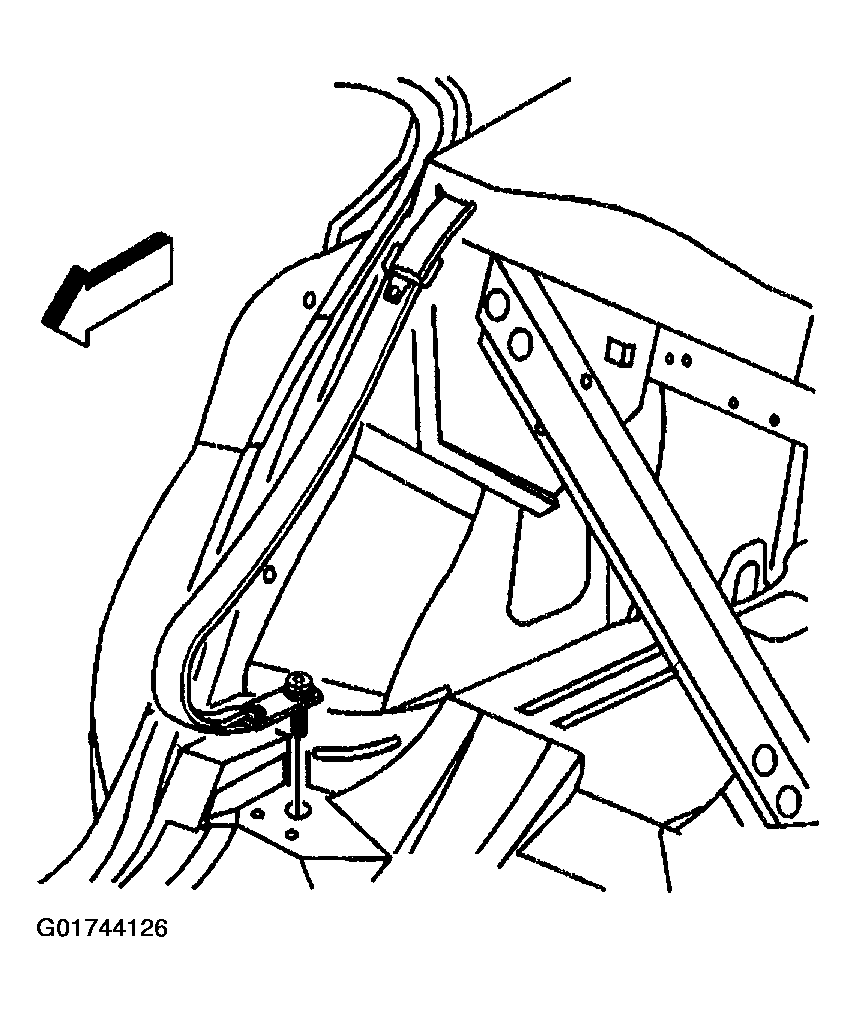

    Fig 1: Rear Seat Belt Anchor Fastener To Floor
    G01744126Courtesy of GENERAL MOTORS CORP.
