Installation Procedure

  1. Install the rear seat shoulder belt retractor.

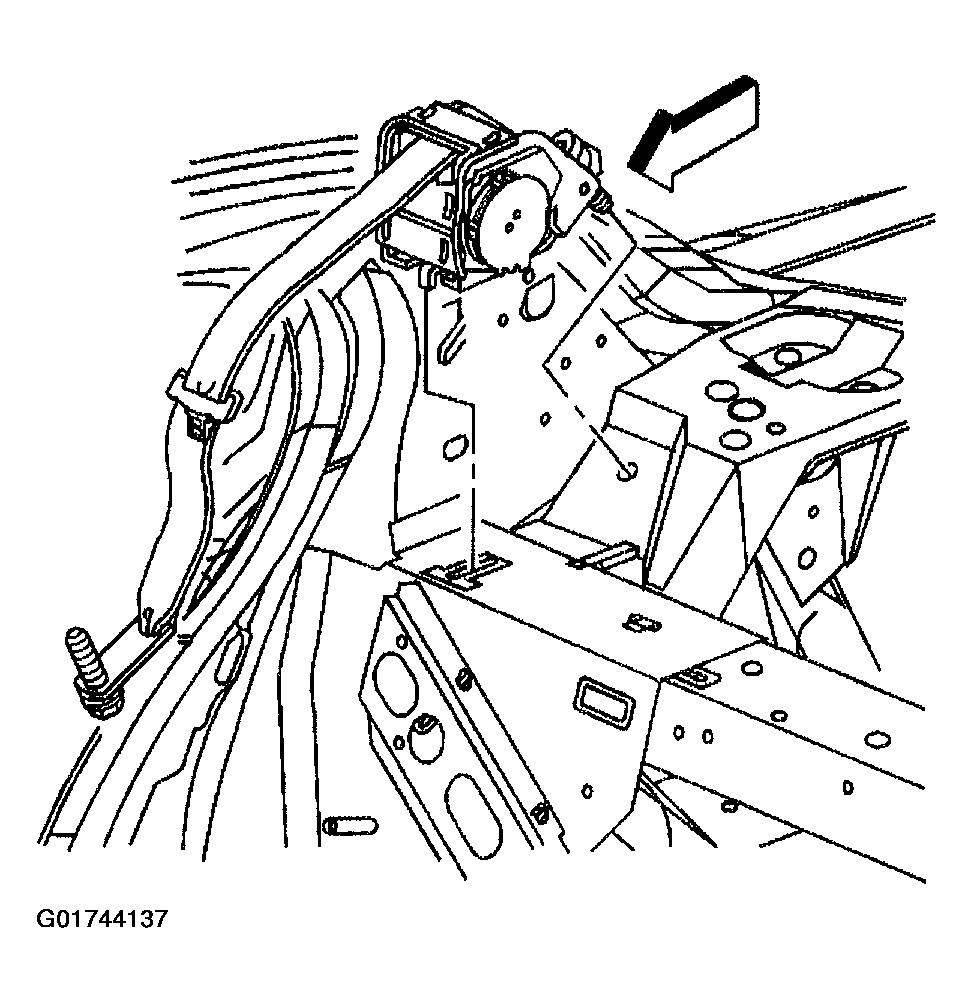

    Fig 1: Rear Seat Shoulder Belt Retractor
    G01744137Courtesy of GENERAL MOTORS CORP.
  2. Install the rear seat shoulder belt retractor fastener.

    Tighten:

    Tighten the rear seat shoulder belt retractor fastener to 41 N.m (30 ft lbs)

  3. Verify that the belt is not twisted.
  4. Align the anchor plate between the dimples in the floor pan with the plate facing forward.
  5. Install the anchor fastener.

    Tighten

    Tighten the rear seat outer lower fastener to 41 N.m (32 ft lbs)

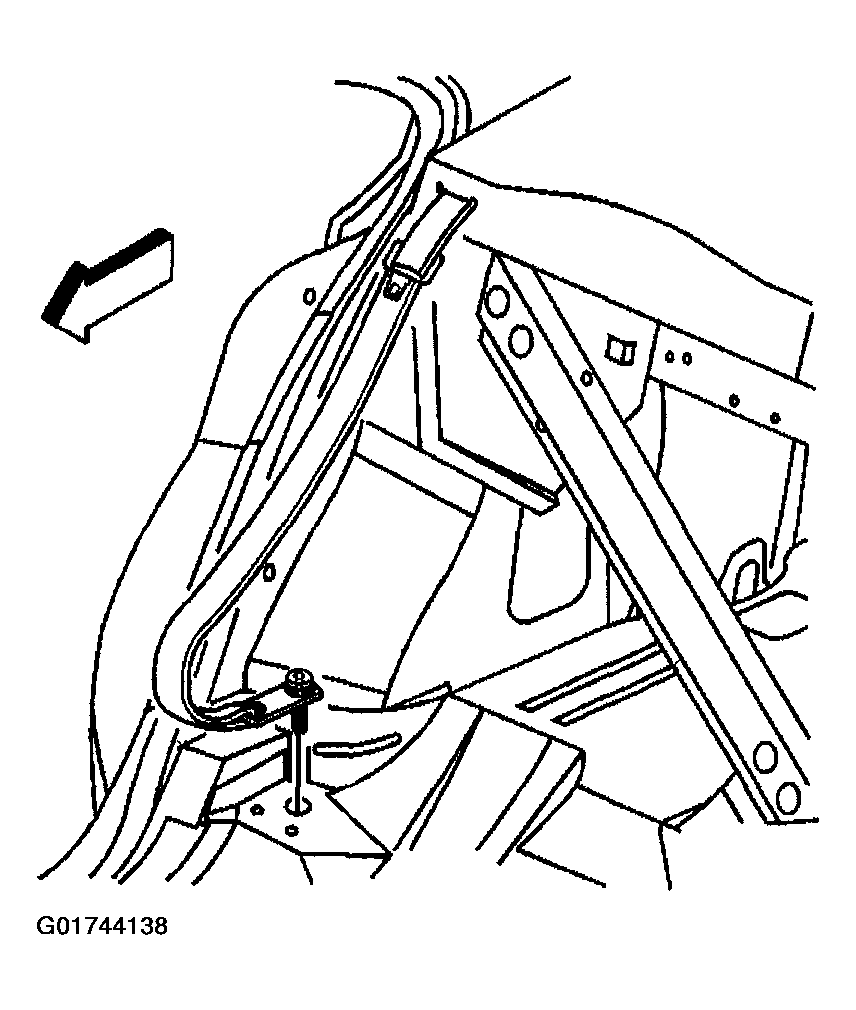

    Fig 2: Anchor Fasteners
    G01744138Courtesy of GENERAL MOTORS CORP.
  6. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT-REAR WINDOW SHELF in Exterior/Interior Trim .
  7. Install the rear seat back. Refer to SEAT BACK REPLACEMENT-REAR in Seats .
  8. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in SEATS .
