Removal Procedure

  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in SEATS .
  2. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT-REAR in Seats .
  3. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT-REAR WINDOW SHELF in Exterior/Interior Trim .
  4. Remove the rear seat back shoulder retractor.

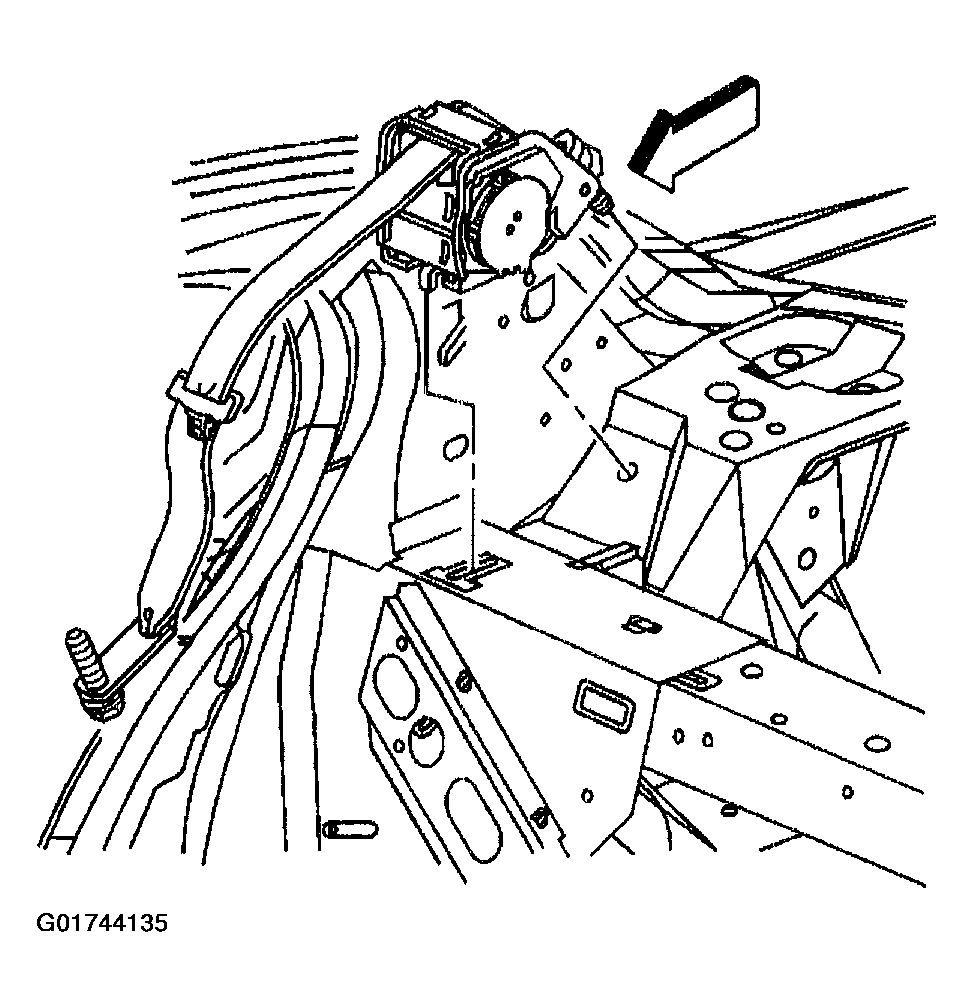

    Fig 1: Rear Seat Back Shoulder Retractor
    G01744135Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear seat shoulder belt anchor fastener.

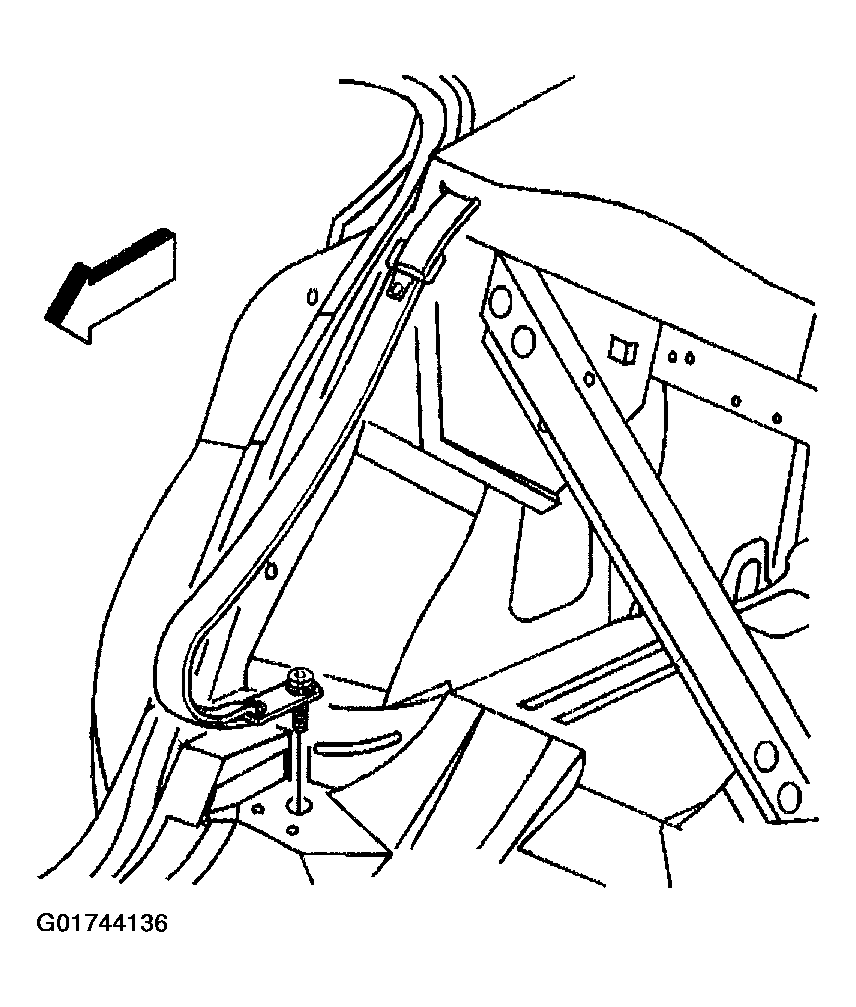

    Fig 2: Rear Seat Shoulder Belt Anchor Fastener
    G01744136Courtesy of GENERAL MOTORS CORP.
  6. Remove the rear seat shoulder belt and retractor.
