Automatic Level Control Suspension Connector End Views

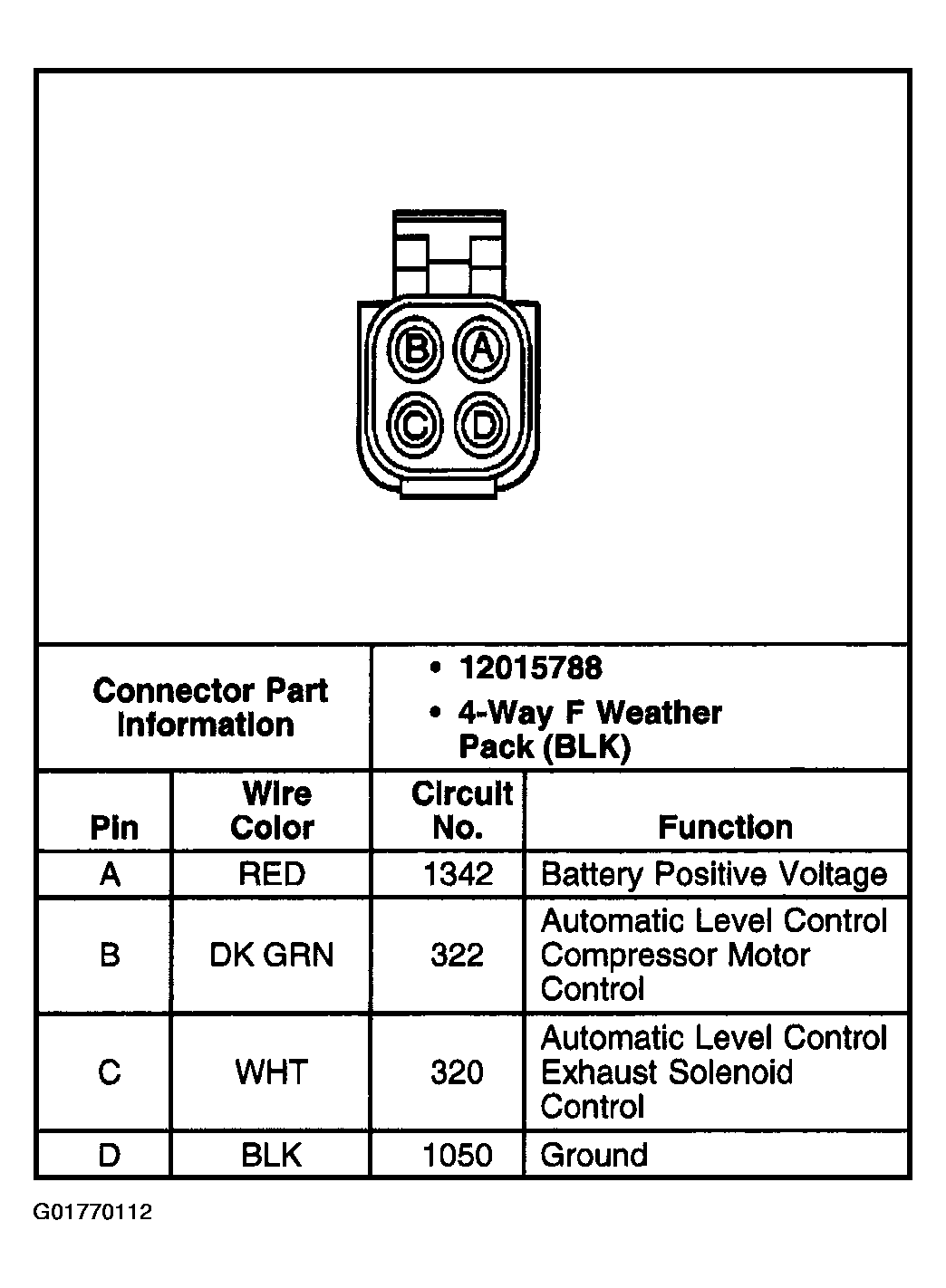

Fig 1: Automatic Level Control (ALC) Compressor
Courtesy of GENERAL MOTORS CORP.

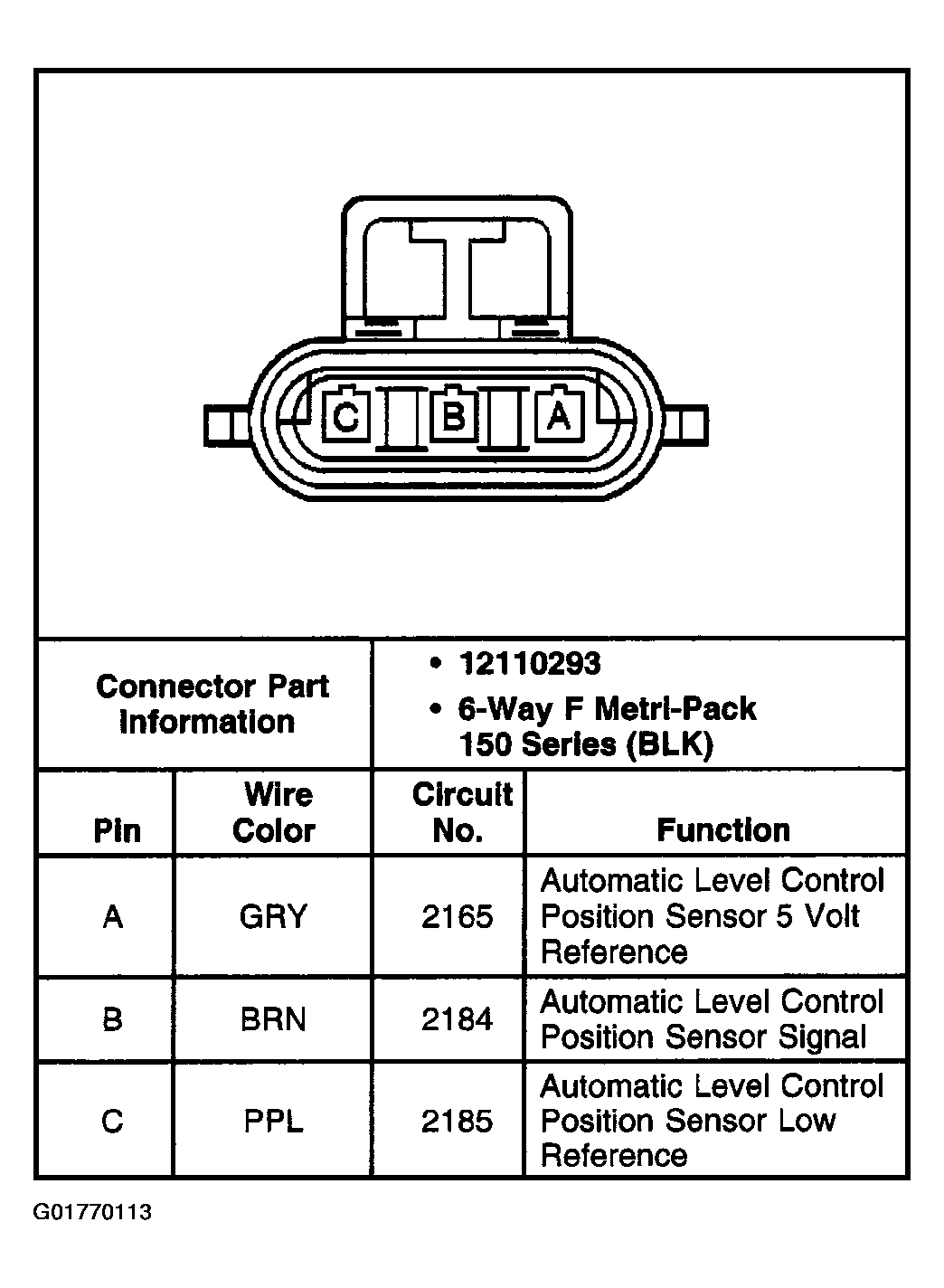

Fig 2: Automatic Level Control (ALC) Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
