Removal Procedure

  1. Raise the vehicle.
  2. Remove the wheel from the vehicle. Refer to TIRE & WHEEL REMOVAL & INSTALLATION in Tires and Wheels.
  3. Disconnect the height sensor connector.
  4. Disconnect the sensor link from the ball stud.
  5. Loosen the sensor mounting nut.

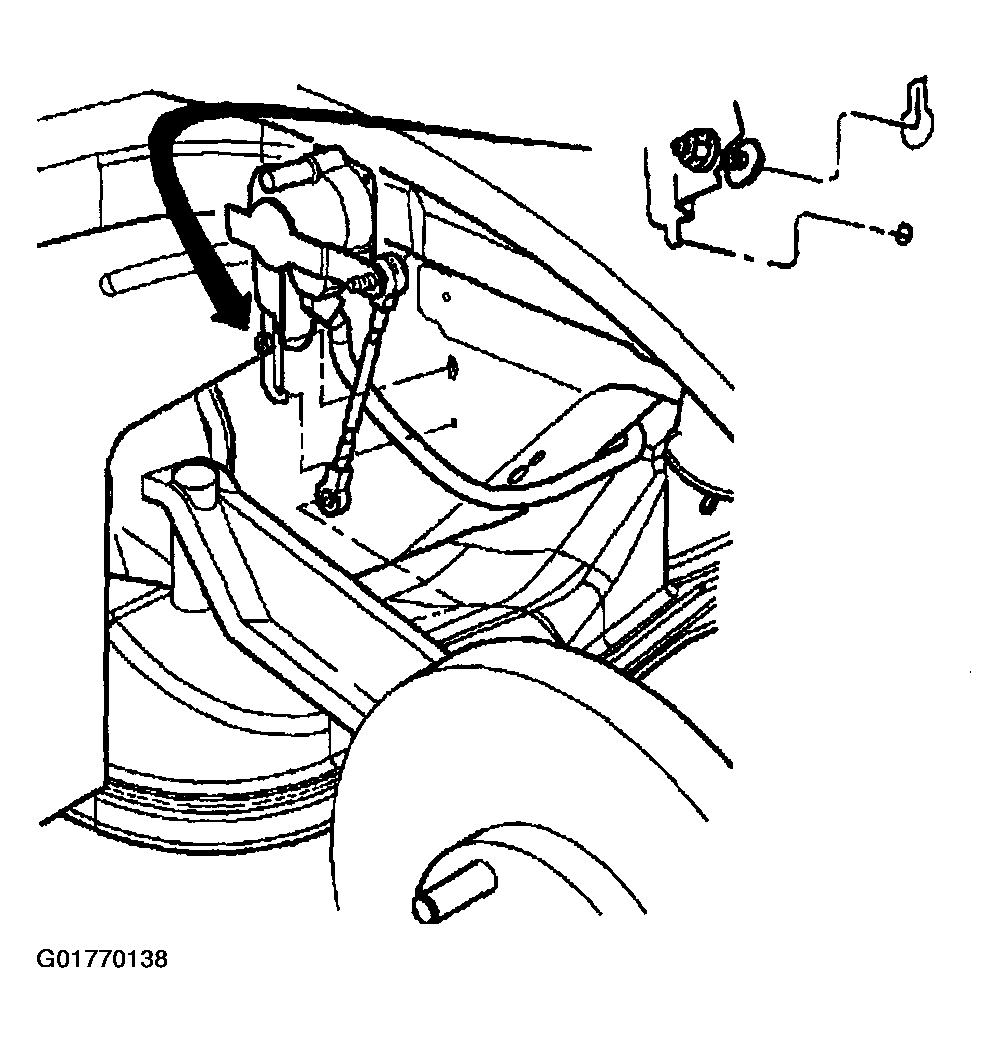

    6. Fig 1: Loosening Sensor Mounting Nut
    G01770138Courtesy of GENERAL MOTORS CORP.
  6. Disengage the anti-rotation tab and slide the sensor downward.
  7. Remove the sensor from the vehicle.
