Installation Procedure

  1. Install the automatic transmission shift lock control. Put the column in the NEUTRAL position.

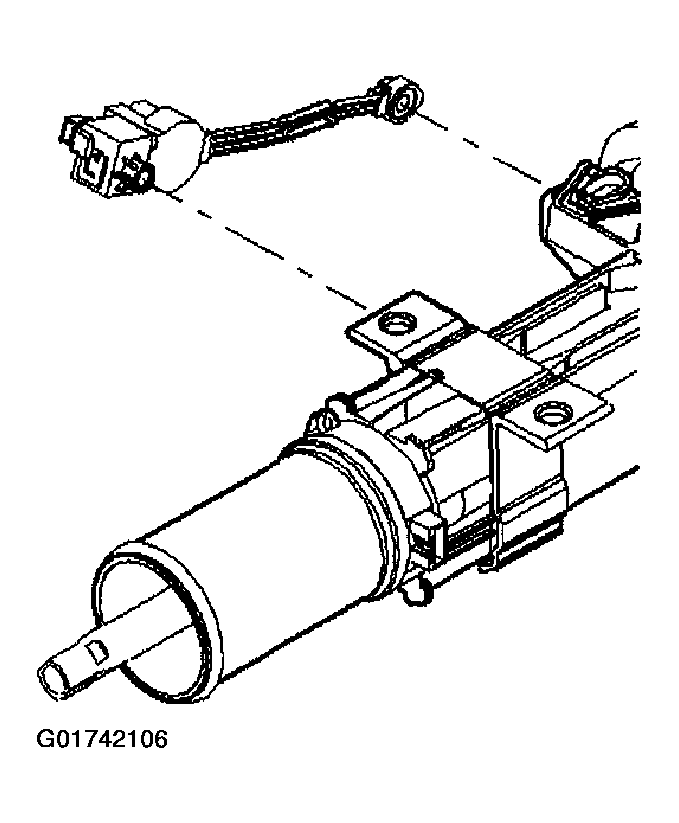

    Fig 1: Automatic Transmission Shift Lock Control
    G01742106Courtesy of GENERAL MOTORS CORP.
  2. Adjust the automatic transmission shift lock control.
    1. 2.1. Pull the tab (1) out on the block side (2) of the automatic transmission shift lock control.
    2. 2.2. Shift the column into the NEUTRAL position.
    3. 2.3. Press on the adjuster block (2) to compress the internal adjuster spring to disengage the adjuster teeth. Slide the adjuster block (2) as far away from the solenoid as possible.
    4. 2.4. Shift the column into the PARK position.
    5. 2.5. Lock in place by pushing the tab (1) back in.
      Fig 2: Adjusting The Automatic Transmission Shift Interlock Control
      G01742107Courtesy of GENERAL MOTORS CORP.
  3. Inspect the automatic transmission shift lock control.
  4. Reconnect the automatic transmission shift lock control connector.
    Fig 3: Reconnect The Automatic Transmission Shift Lock Control Connector
    G01742108Courtesy of GENERAL MOTORS CORP.
  5. Install the steering column trim covers.
  6. Install the knee bolster bracket. Refer to KNEE BOLSTER REPLACEMENT .
