Removal Procedure

  1. Remove the knee bolster bracket. Refer to KNEE BOLSTER REPLACEMENT .
  2. Remove the steering column trim covers.
  3. Disconnect the automatic transmission shift lock control connector.
    Fig 1: Automatic Transmission Shift Lock Control Connector
    G01742104Courtesy of GENERAL MOTORS CORP.
  4. Use a screwdriver to pry the automatic transmission shift lock control from the steering column support assembly.
  5. Remove the automatic transmission shift lock control from the steering column.

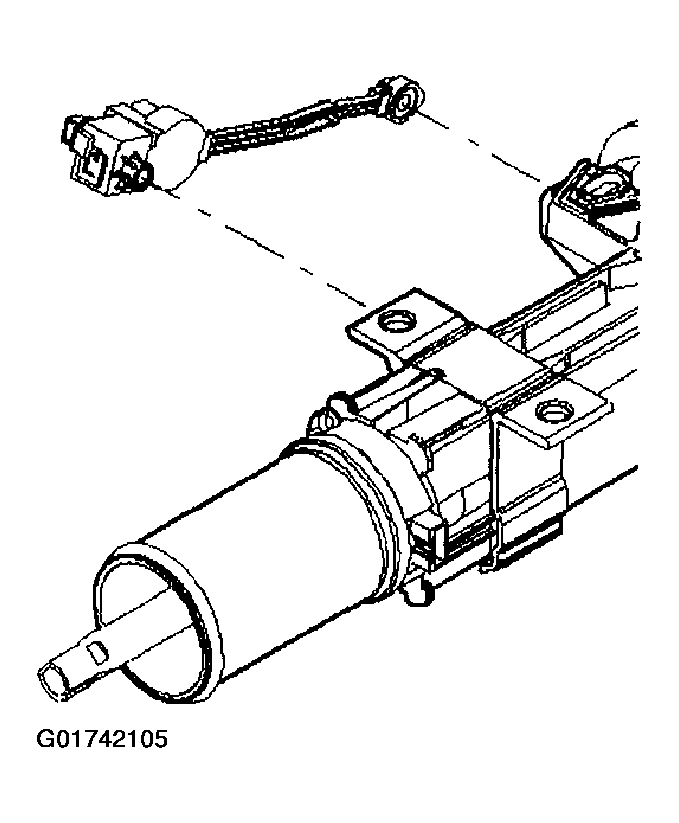

    Fig 2: Automatic Transmission Shift Lock Control
    G01742105Courtesy of GENERAL MOTORS CORP.
