Driver Door Module (DDM)

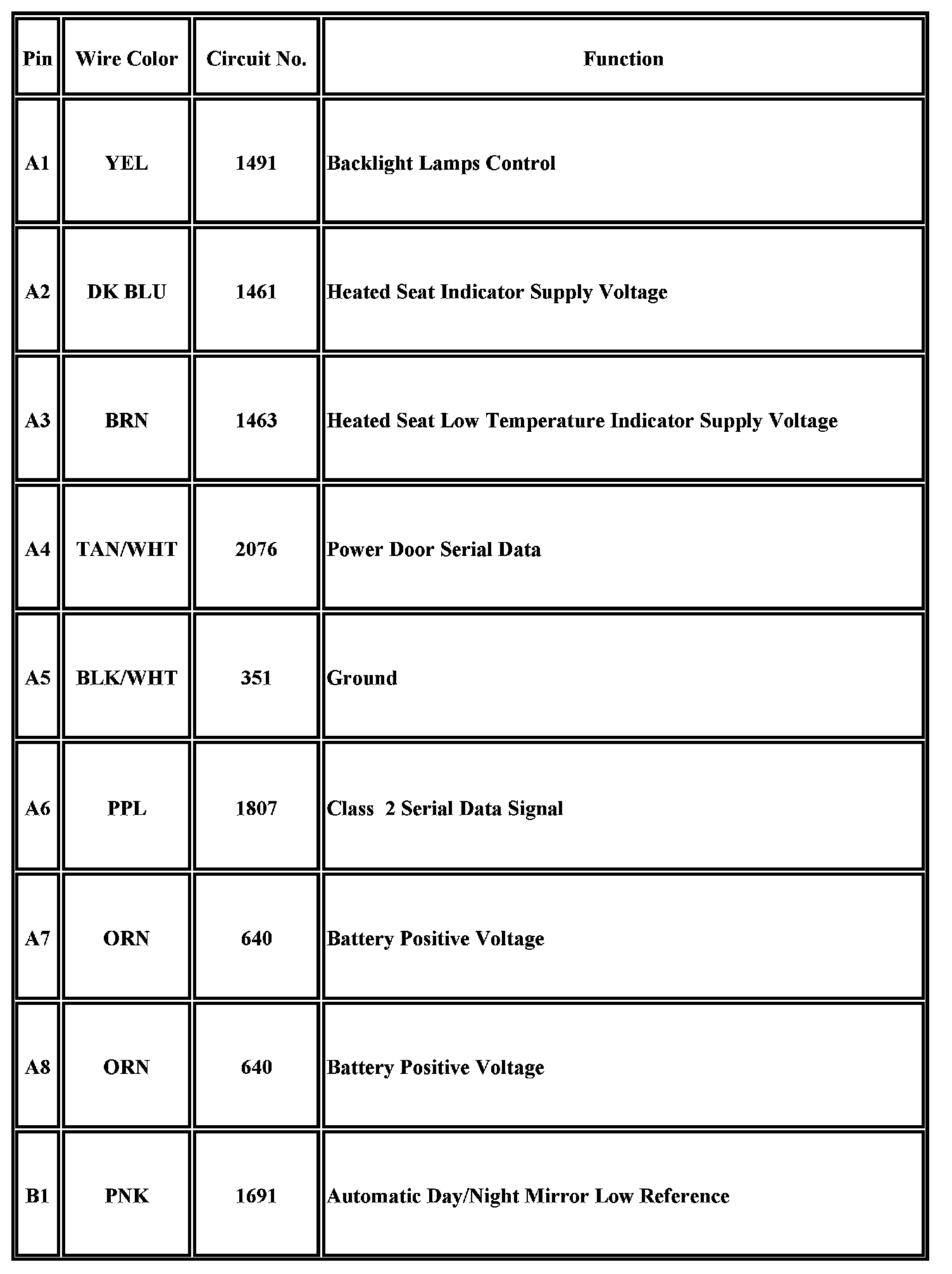

Driver Door Module (DDM) C1


















Driver Door Module (DDM) C2














Driver Door Module (DDM) C3














Driver Door Module (DDM) C4
