Control Assembly: Diagrams

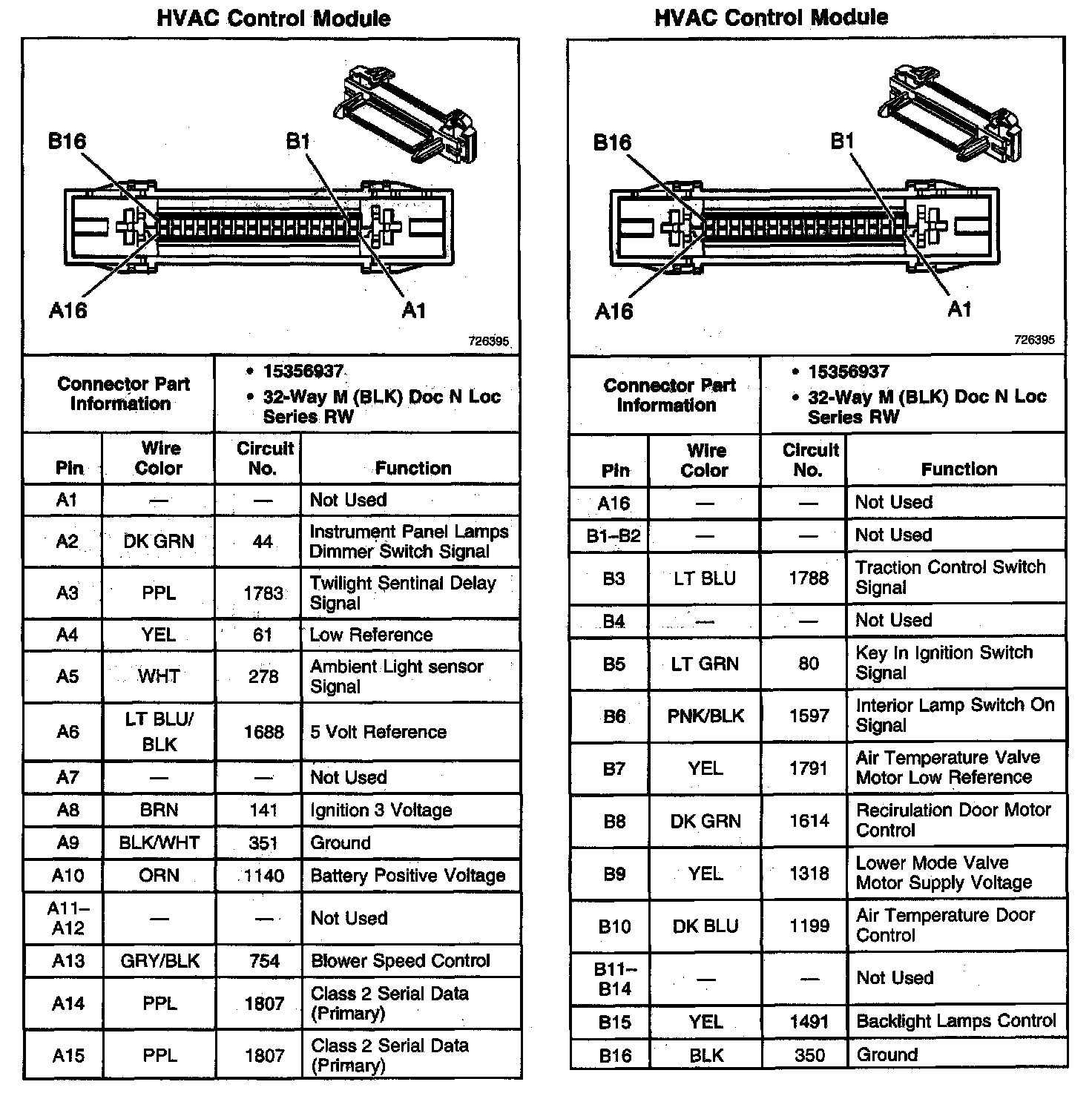

HVAC Control Module - HVAC Systems - Manual:

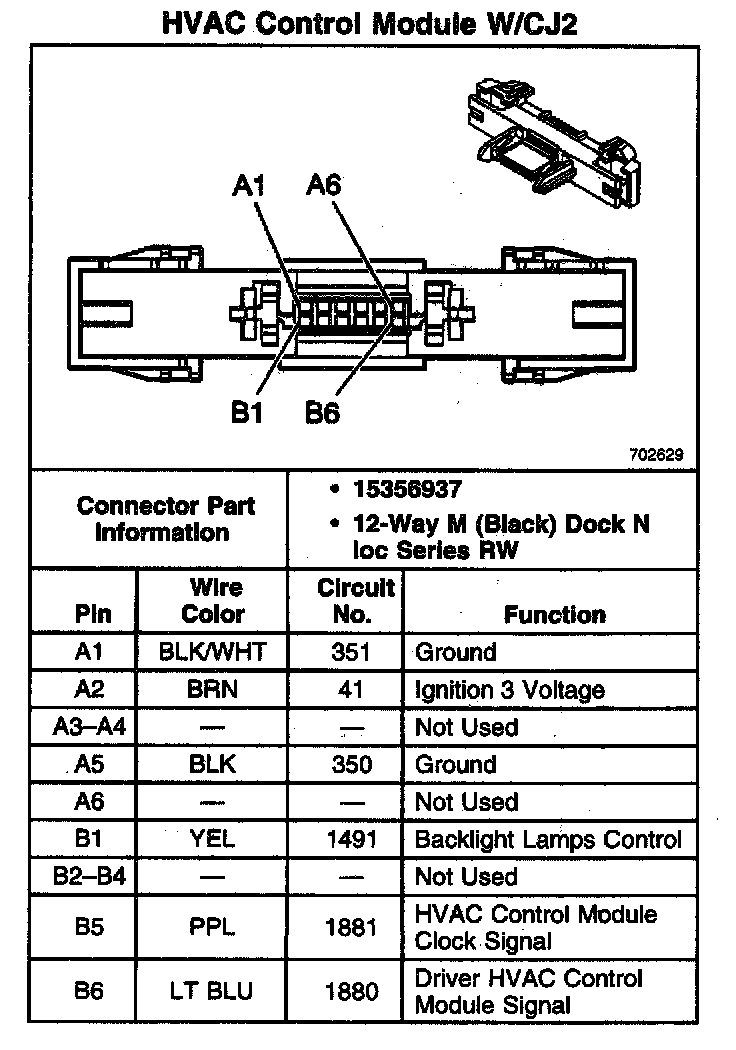

HVAC Control Module W/CJ2 - HVAC Systems - Automatic:

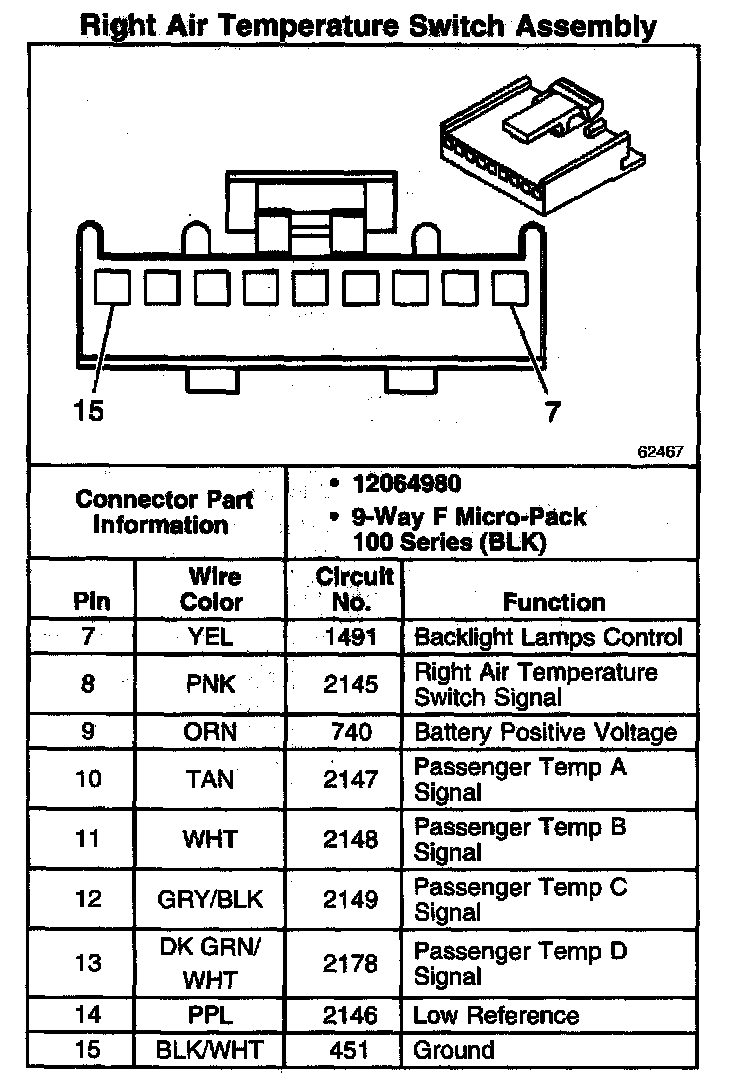

Right Air Temperature Switch Assembly - HVAC Systems - Automatic:

For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID. RPO Codes
