Power Door Systems Connector End Views

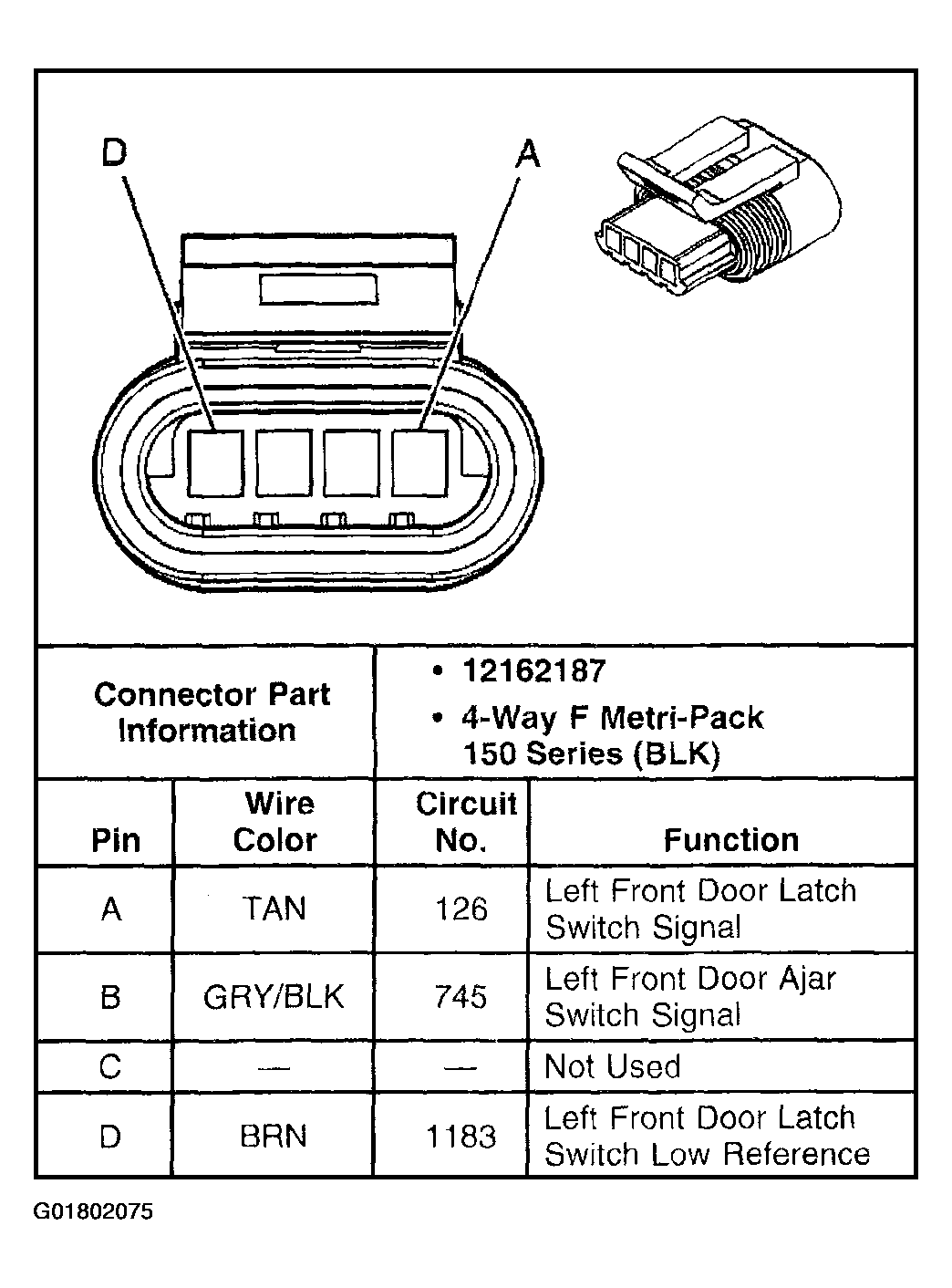

Fig 1: Identifying Driver-Side Door Lock Actuator Harness Connector C1 Terminals
G01802075Courtesy of GENERAL MOTORS CORP.

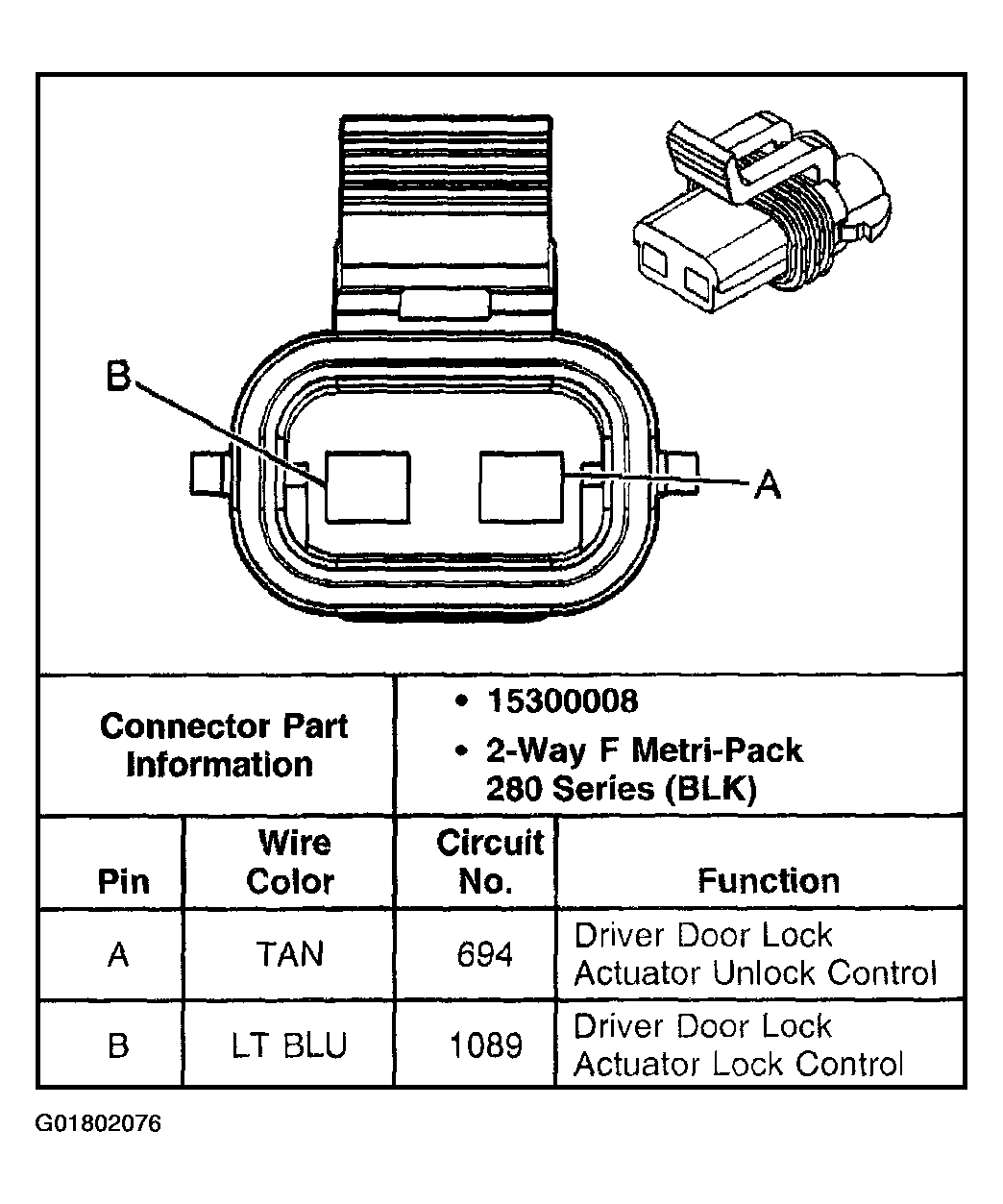

Fig 2: Identifying Driver-Side Door Lock Actuator Harness Connector C2 Terminals
G01802076Courtesy of GENERAL MOTORS CORP.

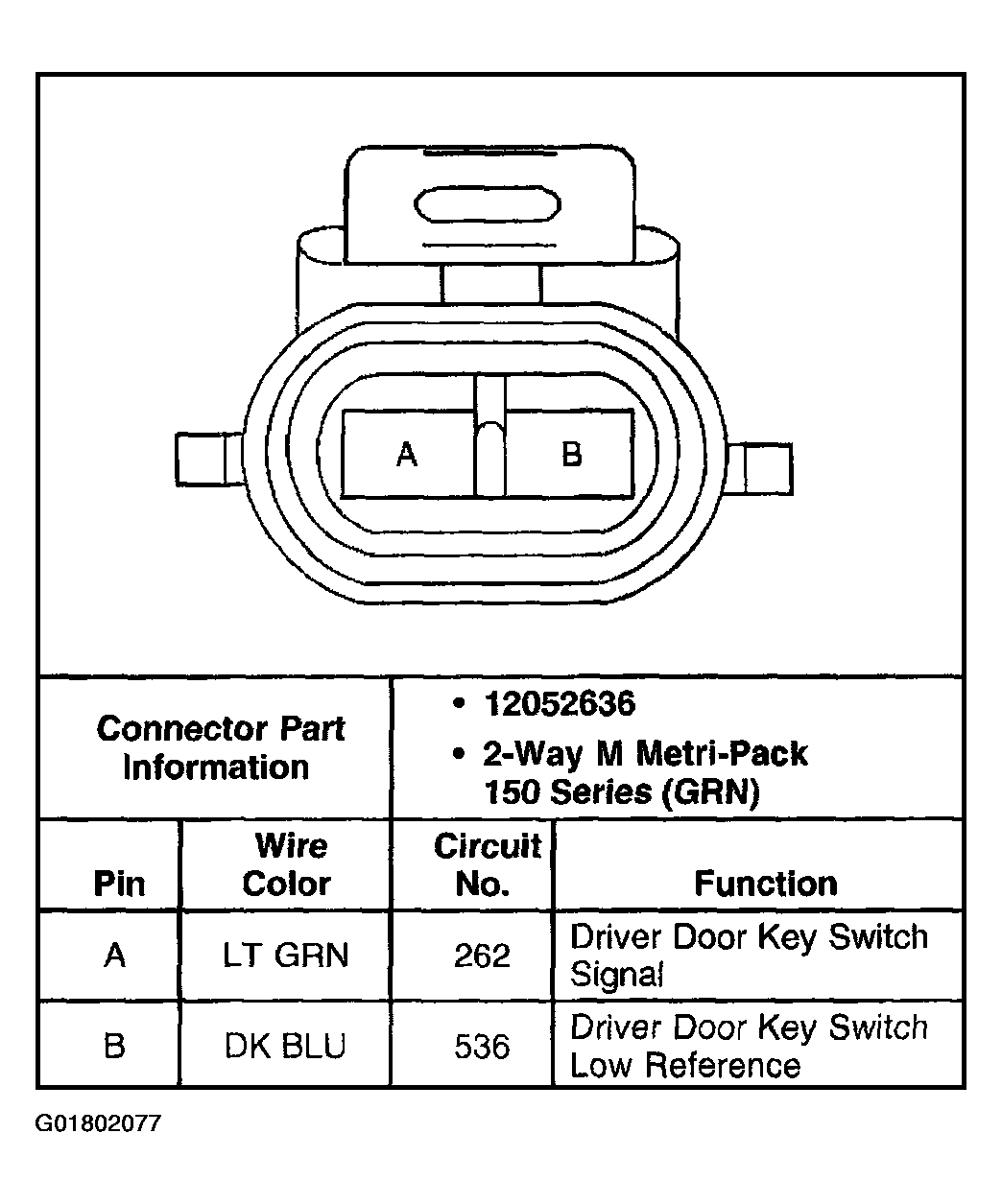

Fig 3: Identifying Driver-Side Door Lock Actuator Harness Connector C3 Terminals
G01802077Courtesy of GENERAL MOTORS CORP.

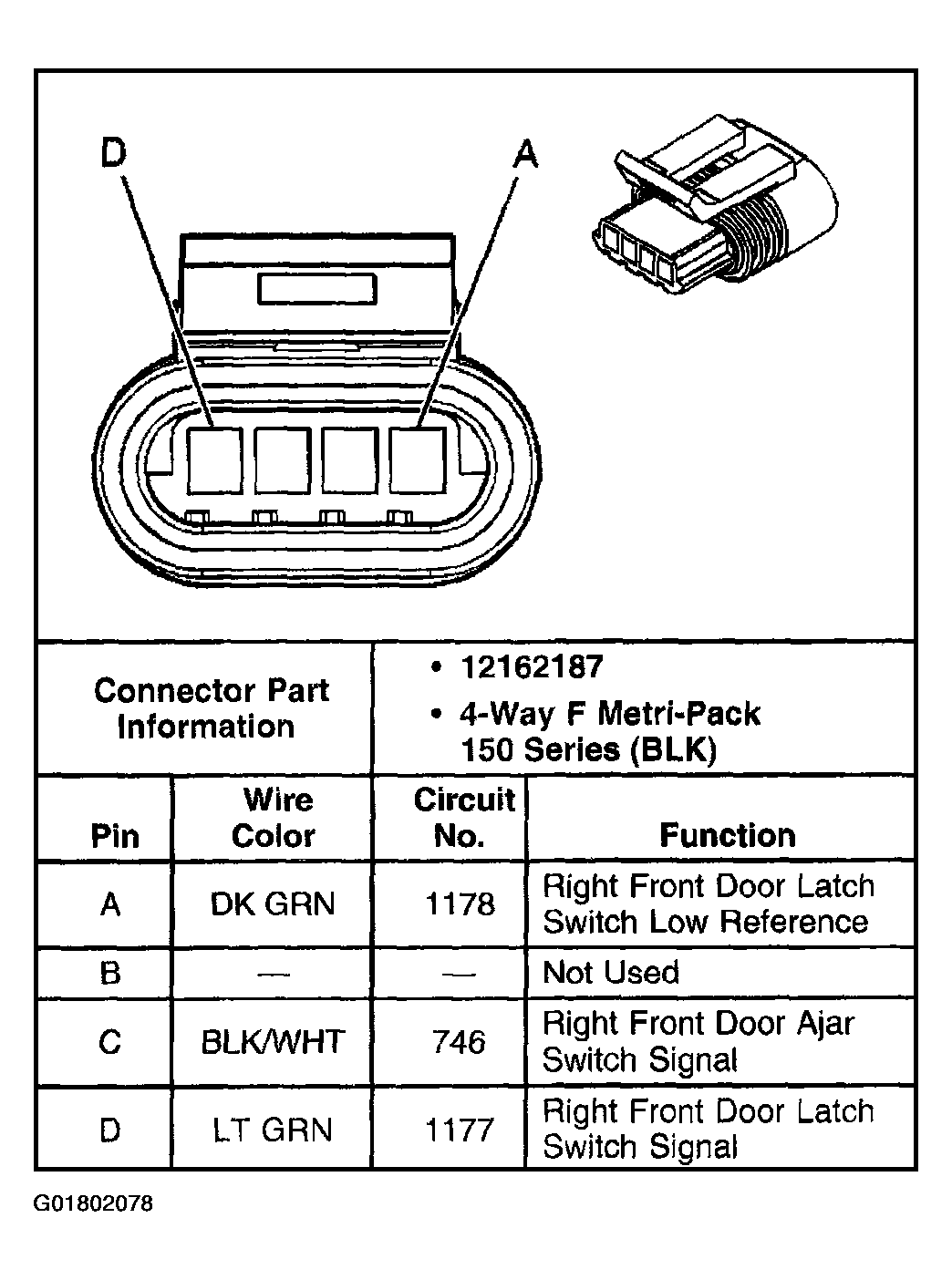

Fig 4: Identifying Front Passenger Door Lock Actuator Harness Connector C1 Terminals
G01802078Courtesy of GENERAL MOTORS CORP.

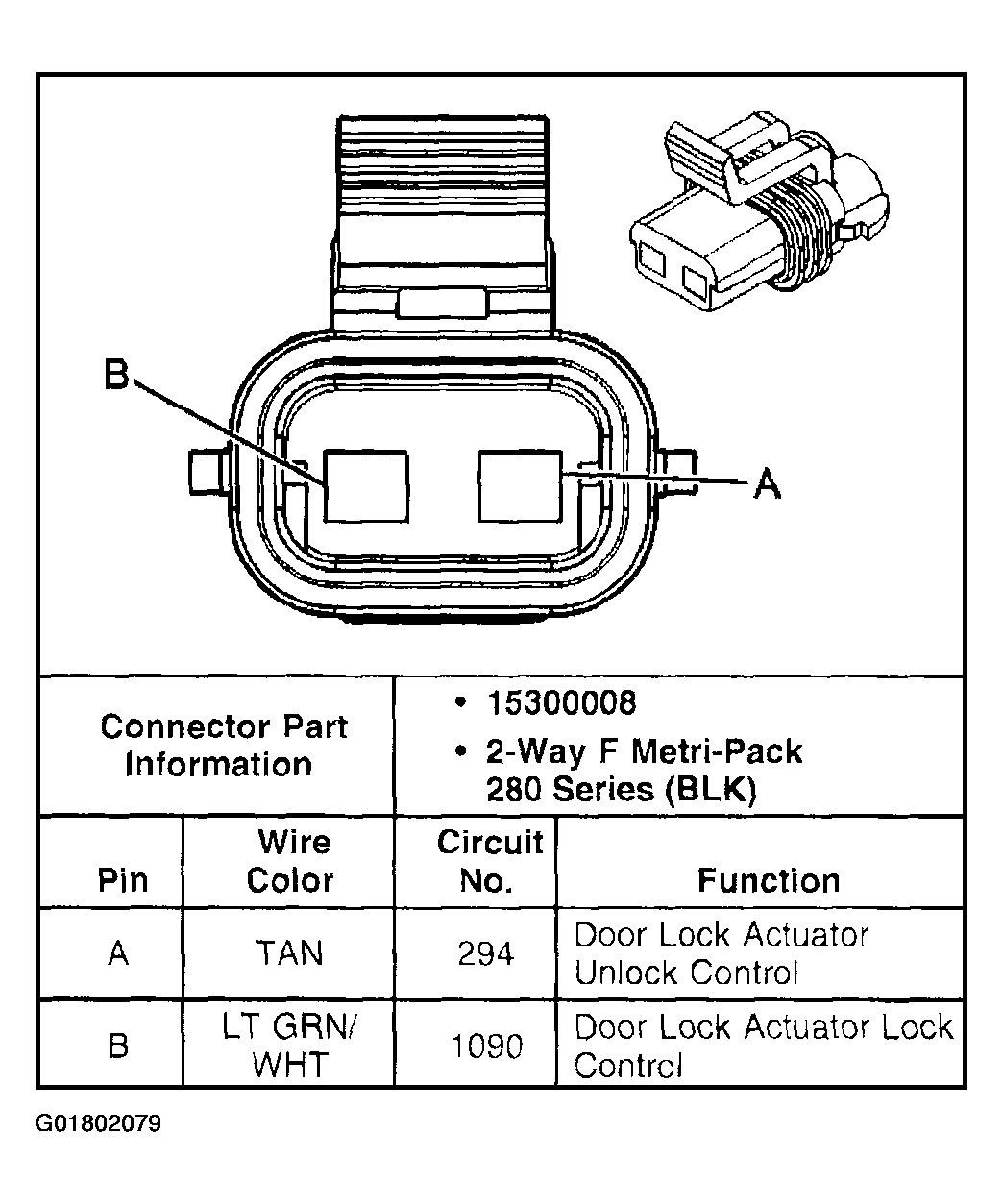

Fig 5: Identifying Front Passenger Door Lock Actuator Harness Connector C2 Terminals
G01802079Courtesy of GENERAL MOTORS CORP.

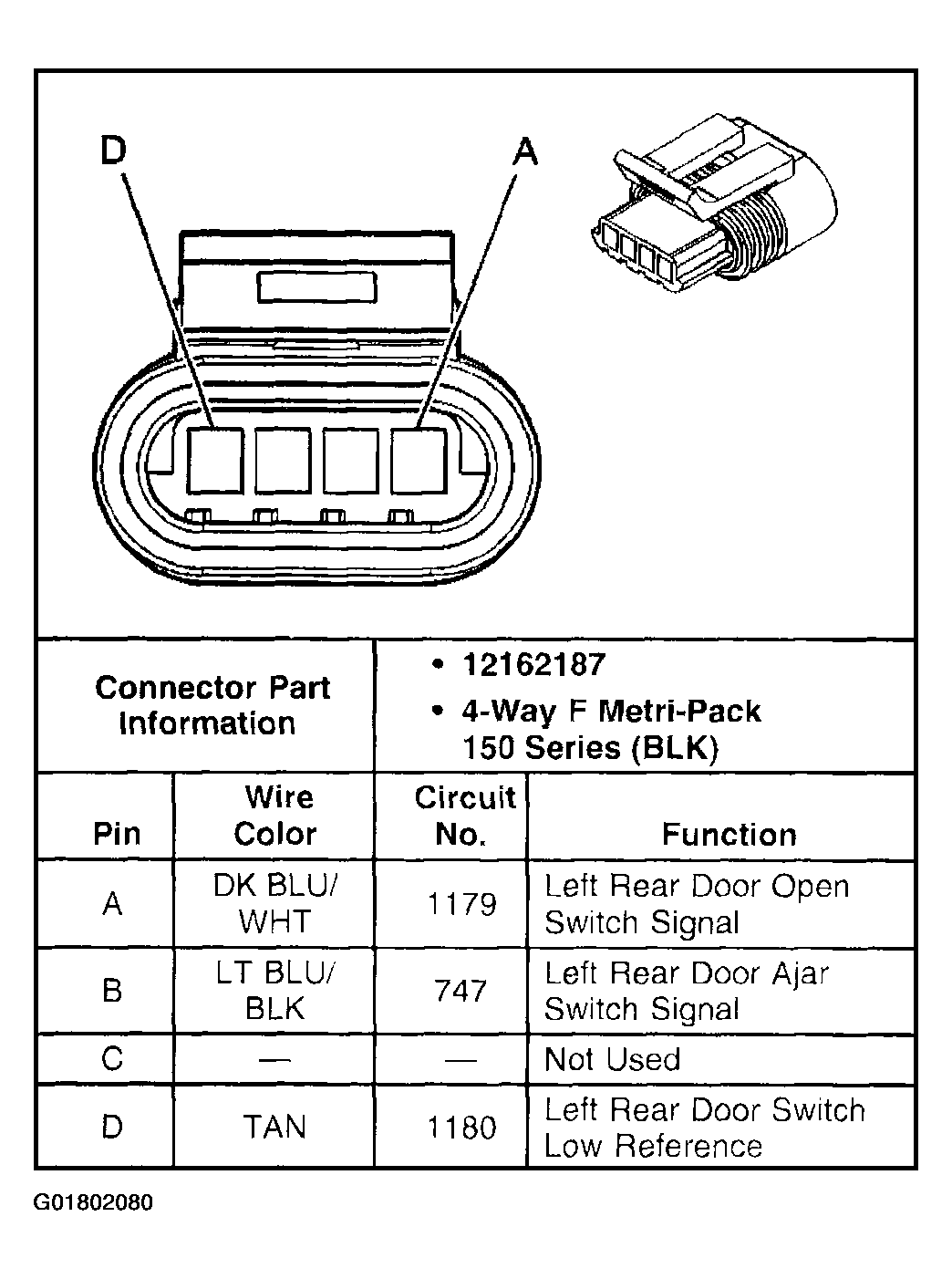

Fig 6: Identifying Left Rear Door Lock Actuator Harness Connector C1 Terminals
G01802080Courtesy of GENERAL MOTORS CORP.

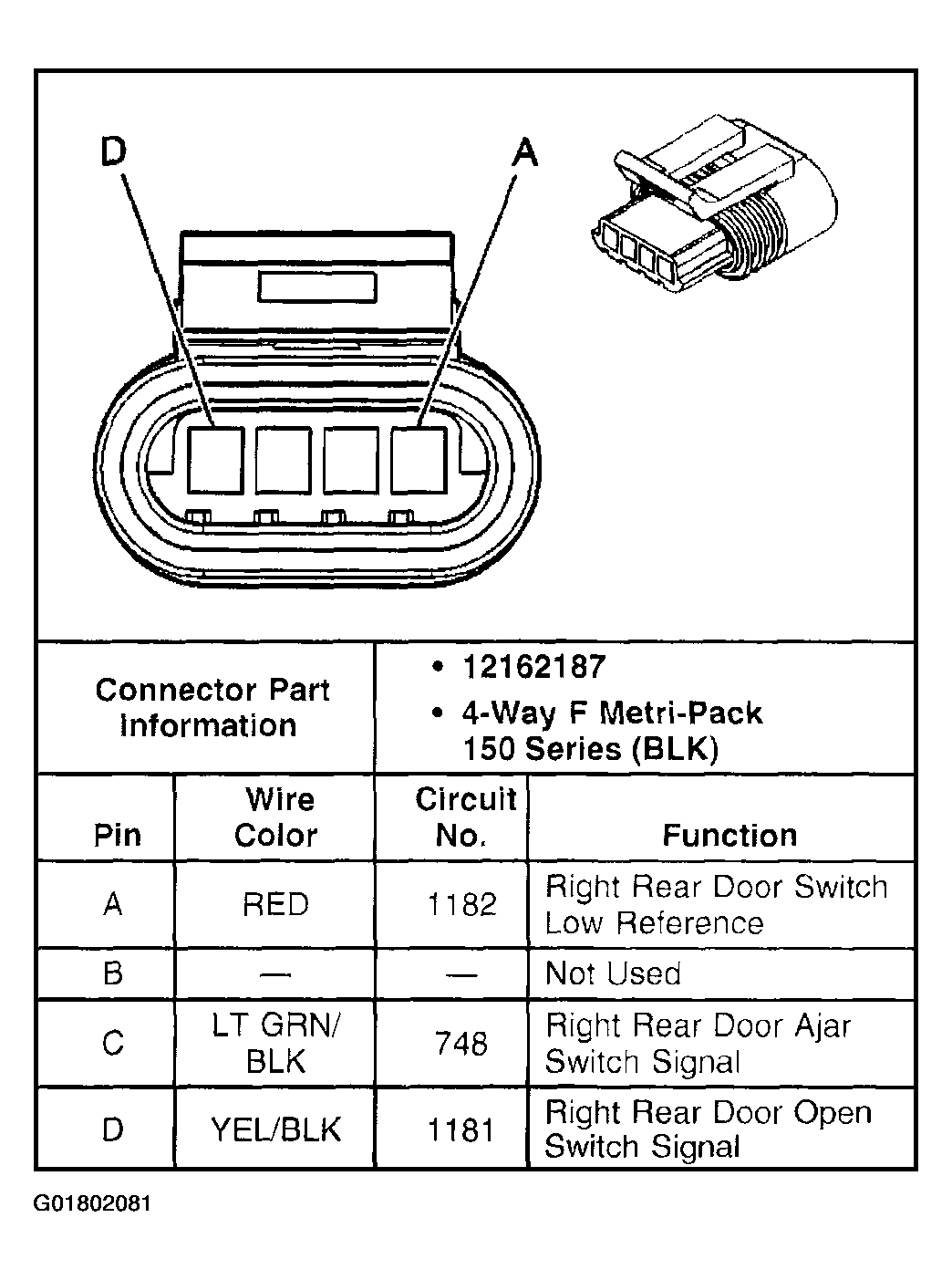

Fig 7: Identifying Right Rear Door Lock Actuator Harness Connector C1 Terminals
G01802081Courtesy of GENERAL MOTORS CORP.

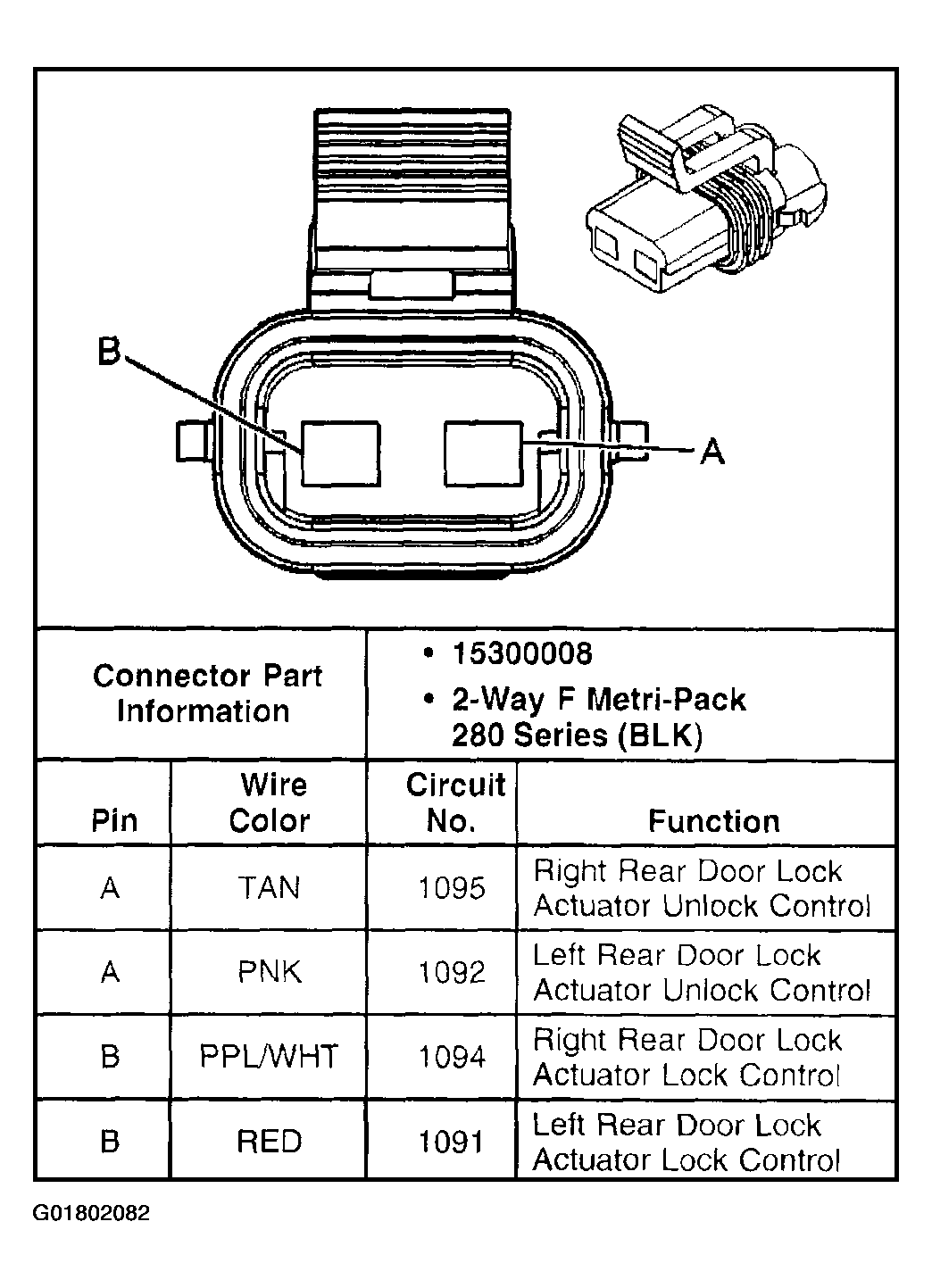

Fig 8: Identifying Left Rear & Right Rear Door Lock Actuator Harness Connector C2 Terminals
G01802082Courtesy of GENERAL MOTORS CORP.

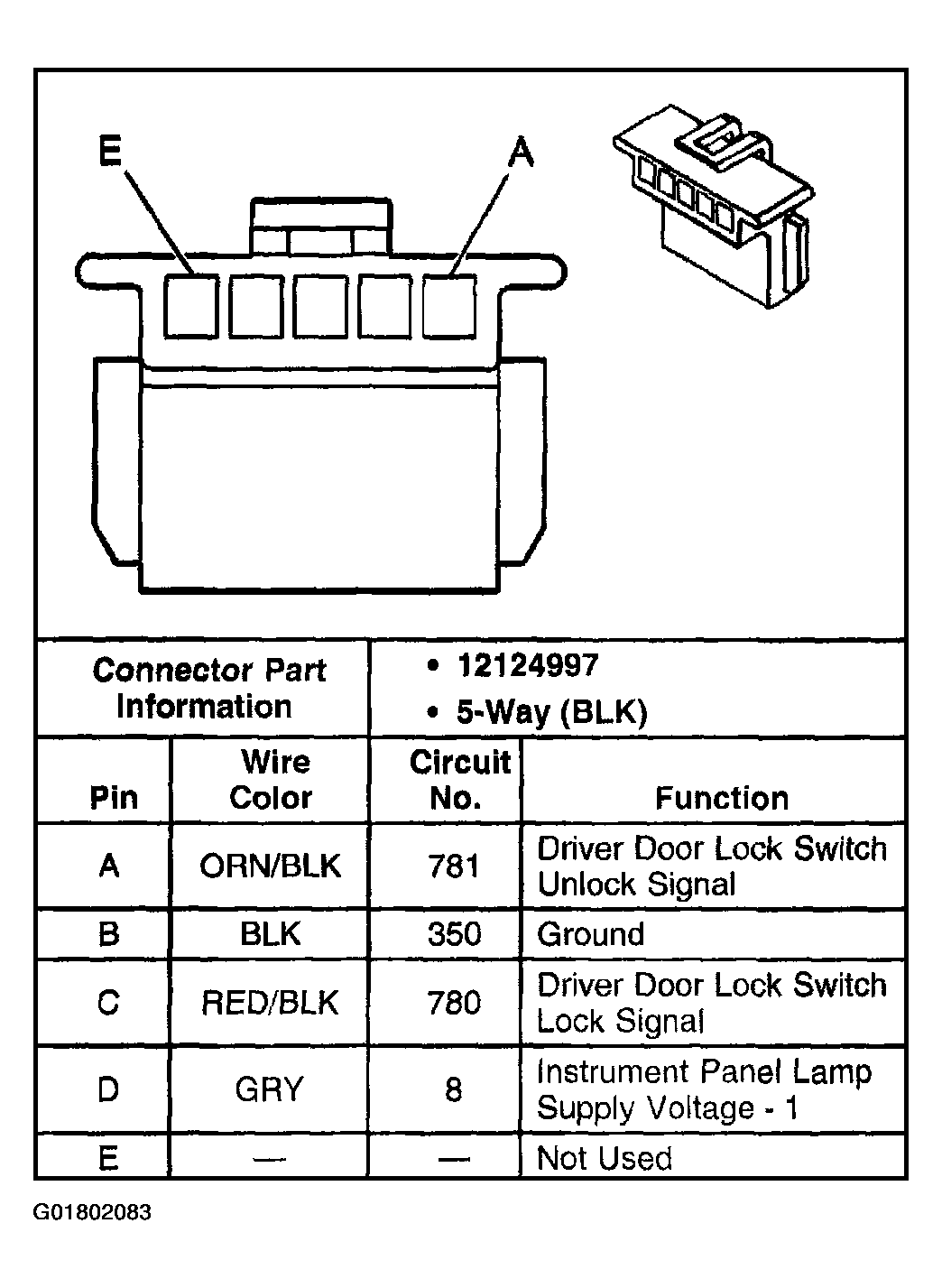

Fig 9: Identifying Driver-Side Door Lock Switch Harness Connector Terminals
G01802083Courtesy of GENERAL MOTORS CORP.

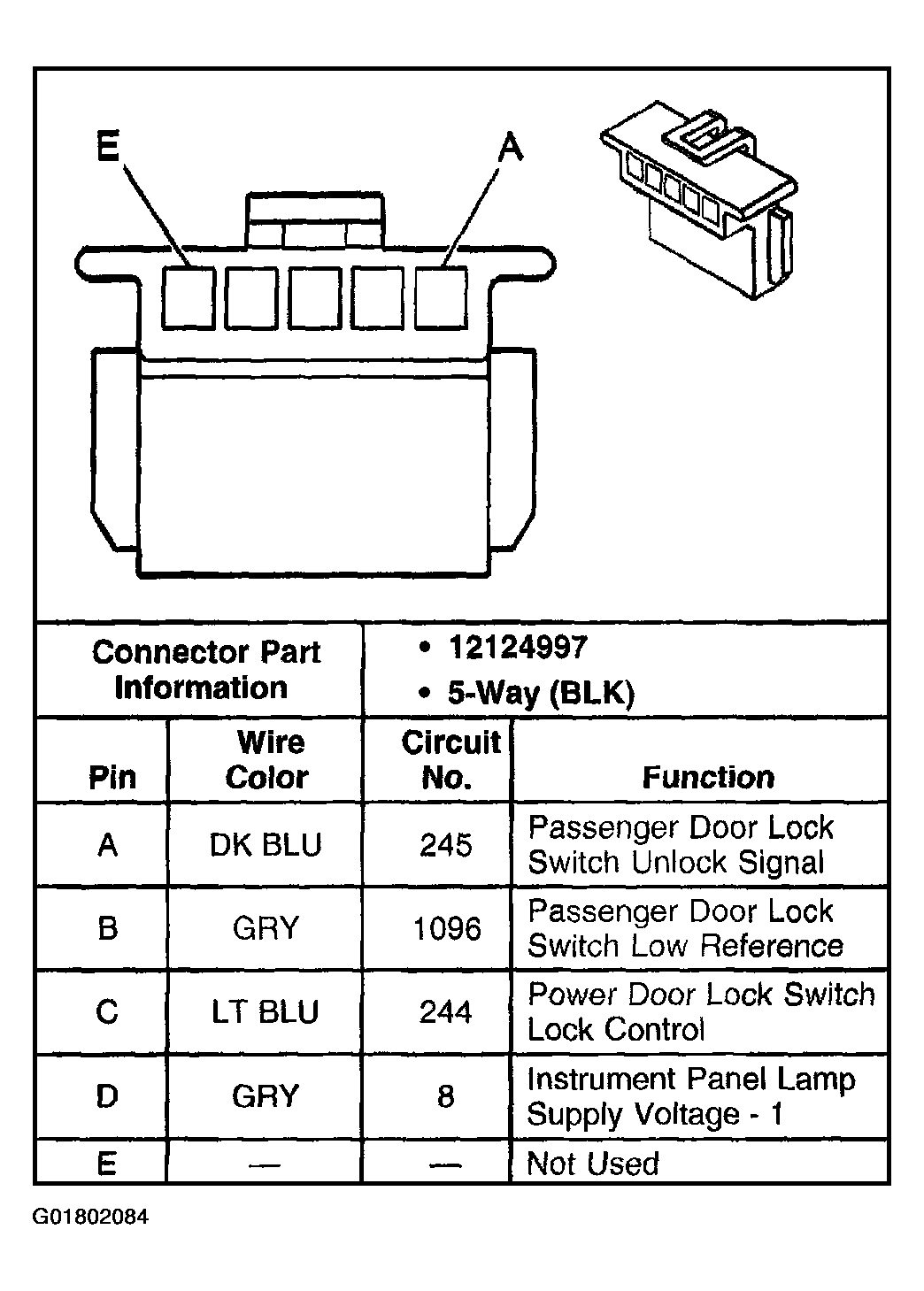

Fig 10: Identifying Front Passenger Door Lock Switch Harness Connector Terminals
G01802084Courtesy of GENERAL MOTORS CORP.

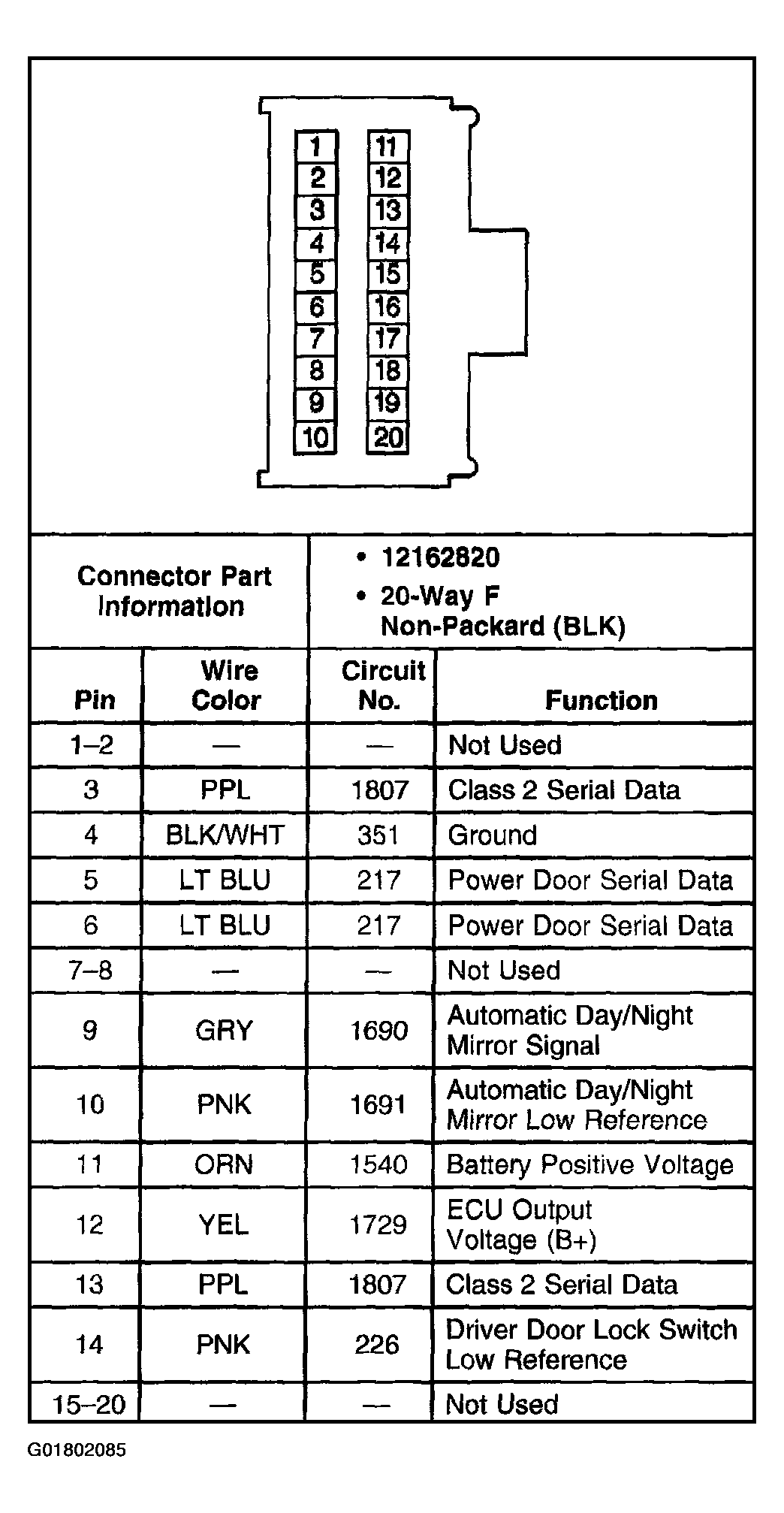

Fig 11: Identifying Driver Door Module (DDM) Harness Connector C1 Terminals
G01802085Courtesy of GENERAL MOTORS CORP.

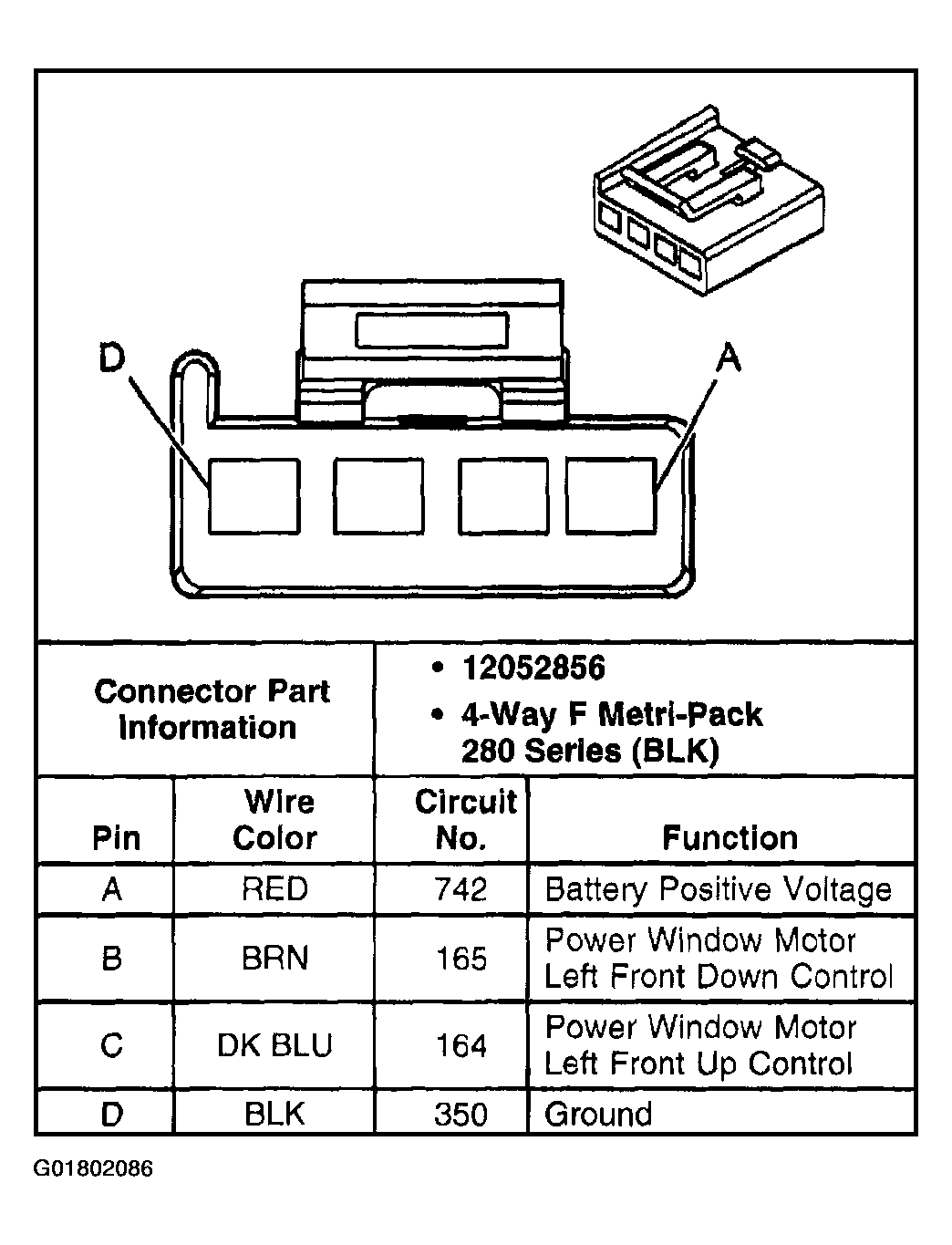

Fig 12: Identifying Driver Door Module (DDM) Harness Connector C2 Terminals
G01802086Courtesy of GENERAL MOTORS CORP.

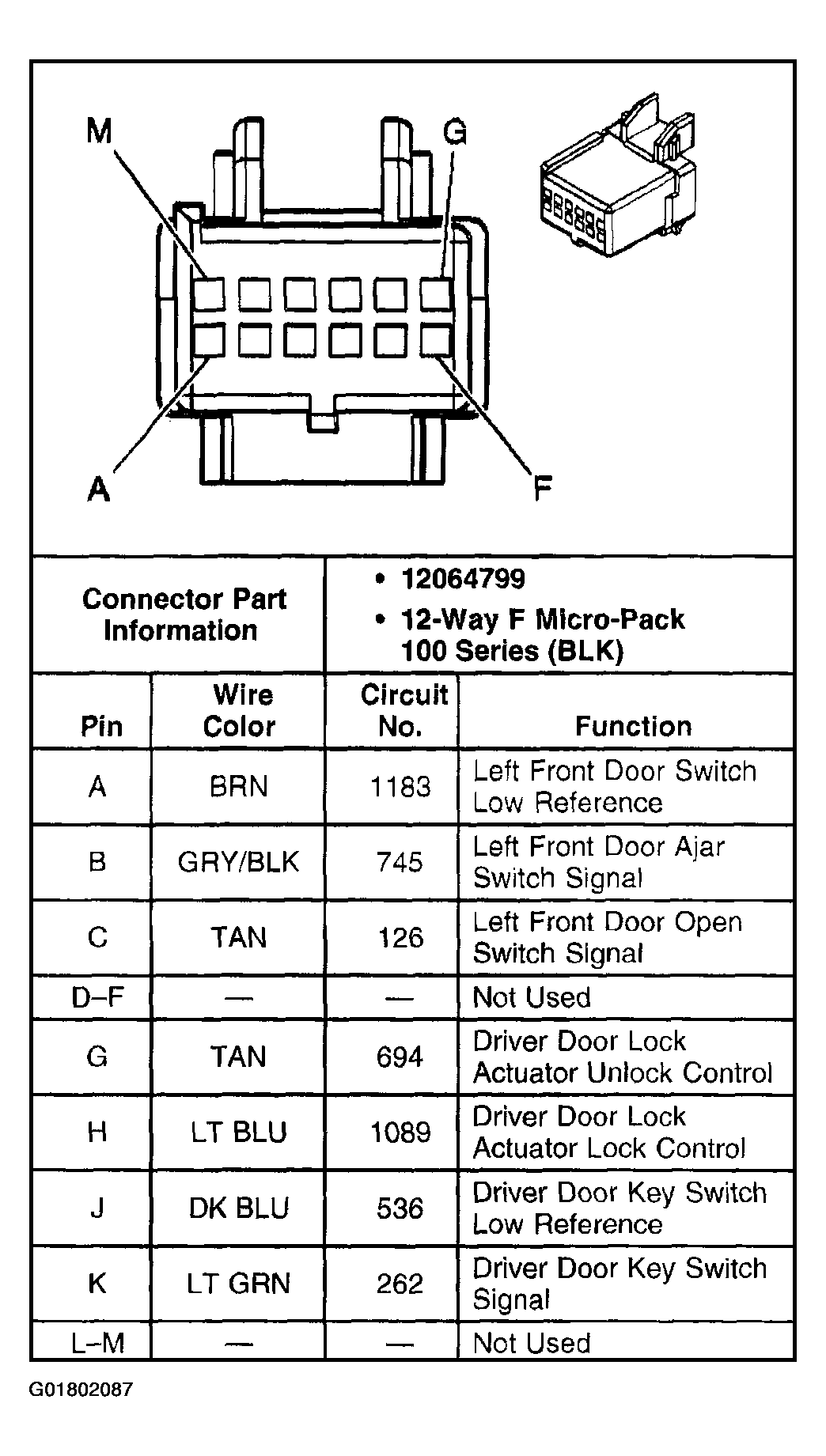

Fig 13: Identifying Driver Door Module (DDM) Harness Connector C3 Terminals
G01802087Courtesy of GENERAL MOTORS CORP.

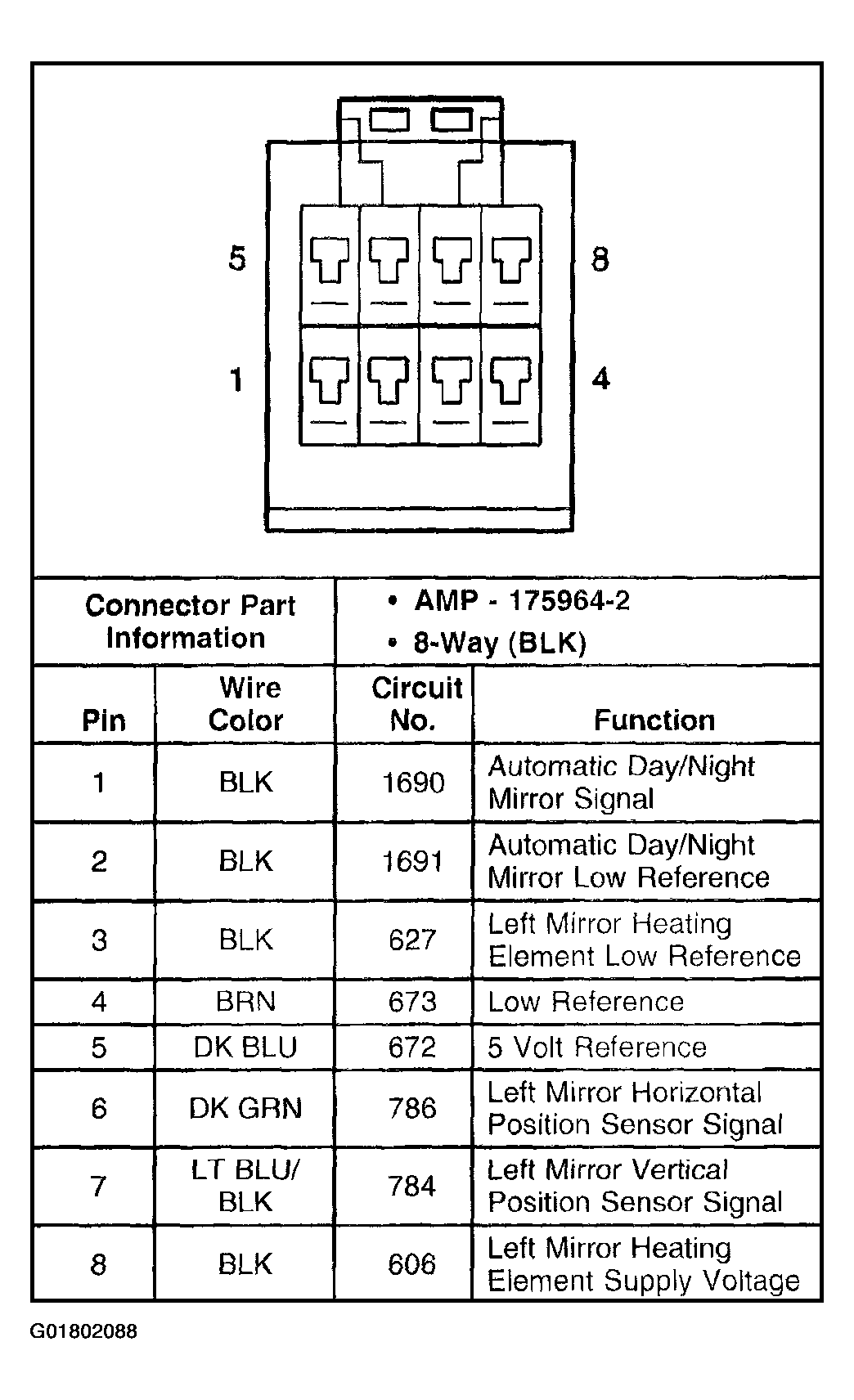

Fig 14: Identifying Driver Door Module (DDM) Harness Connector C4 Terminals
G01802088Courtesy of GENERAL MOTORS CORP.

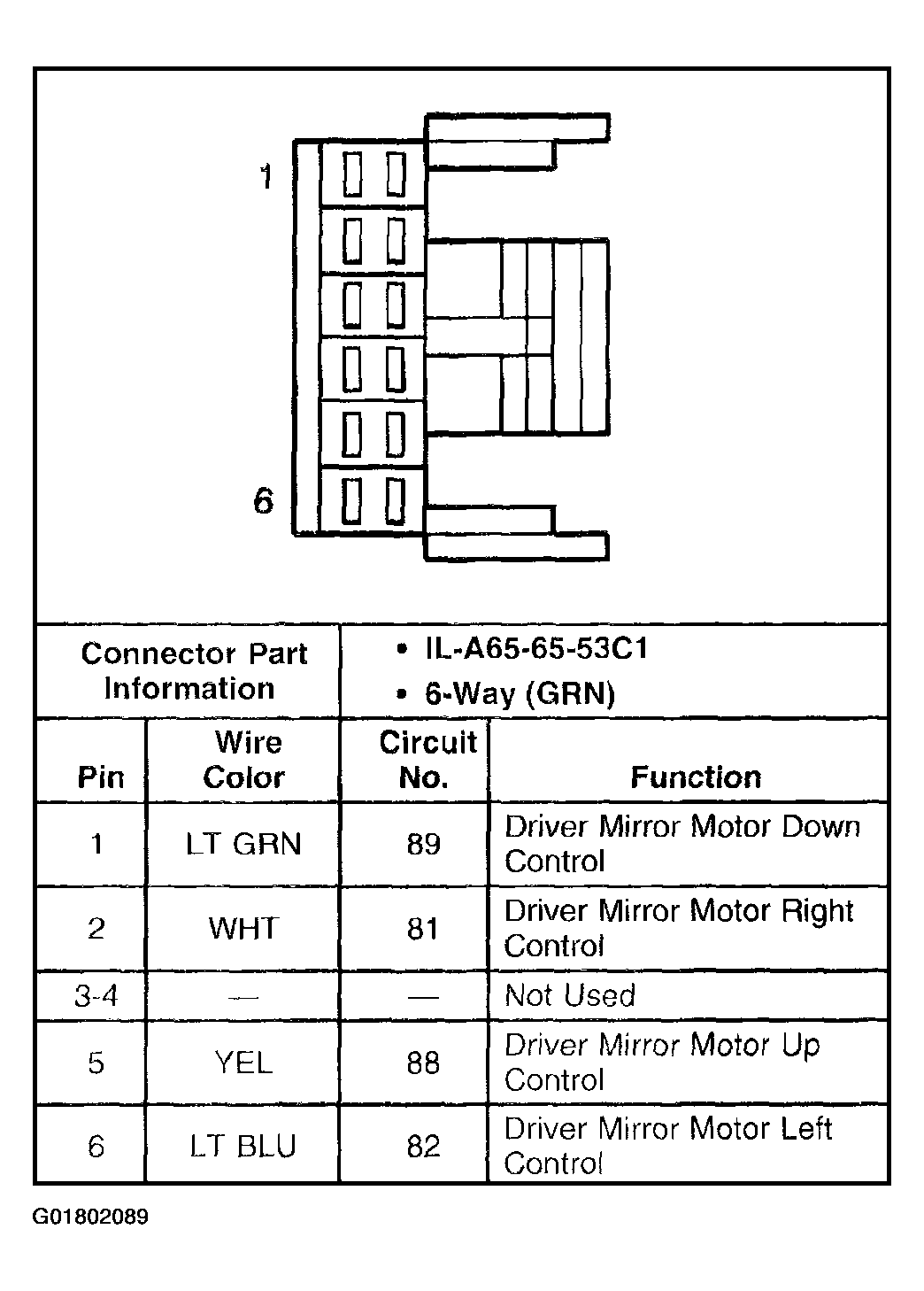

Fig 15: Identifying Driver Door Module (DDM) Harness Connector C5 Terminals
G01802089Courtesy of GENERAL MOTORS CORP.

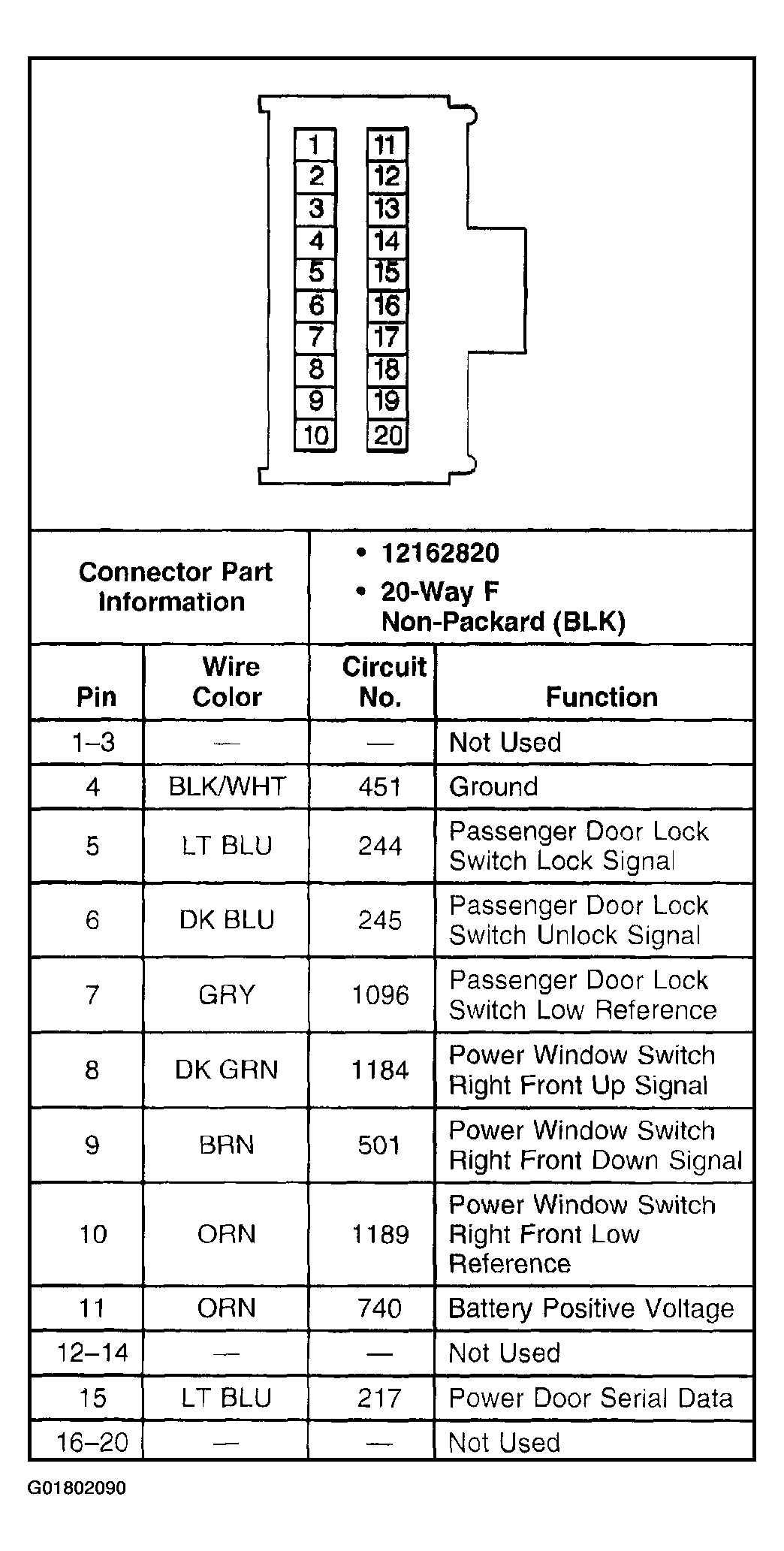

Fig 16: Identifying Passenger Door Module (PDM) Harness Connector C1 Terminals
G01802090Courtesy of GENERAL MOTORS CORP.

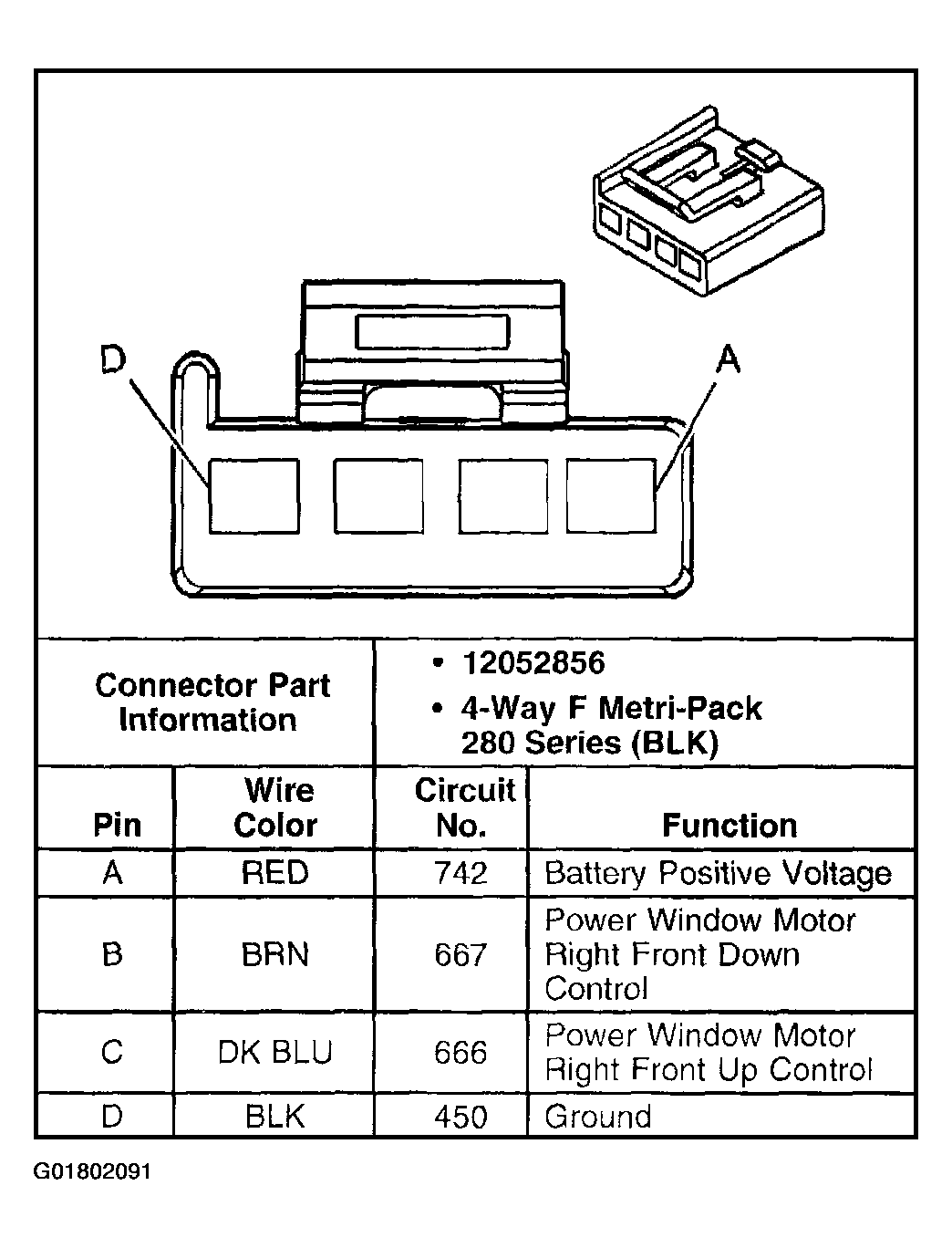

Fig 17: Identifying Passenger Door Module (PDM) Harness Connector C2 Terminals
G01802091Courtesy of GENERAL MOTORS CORP.

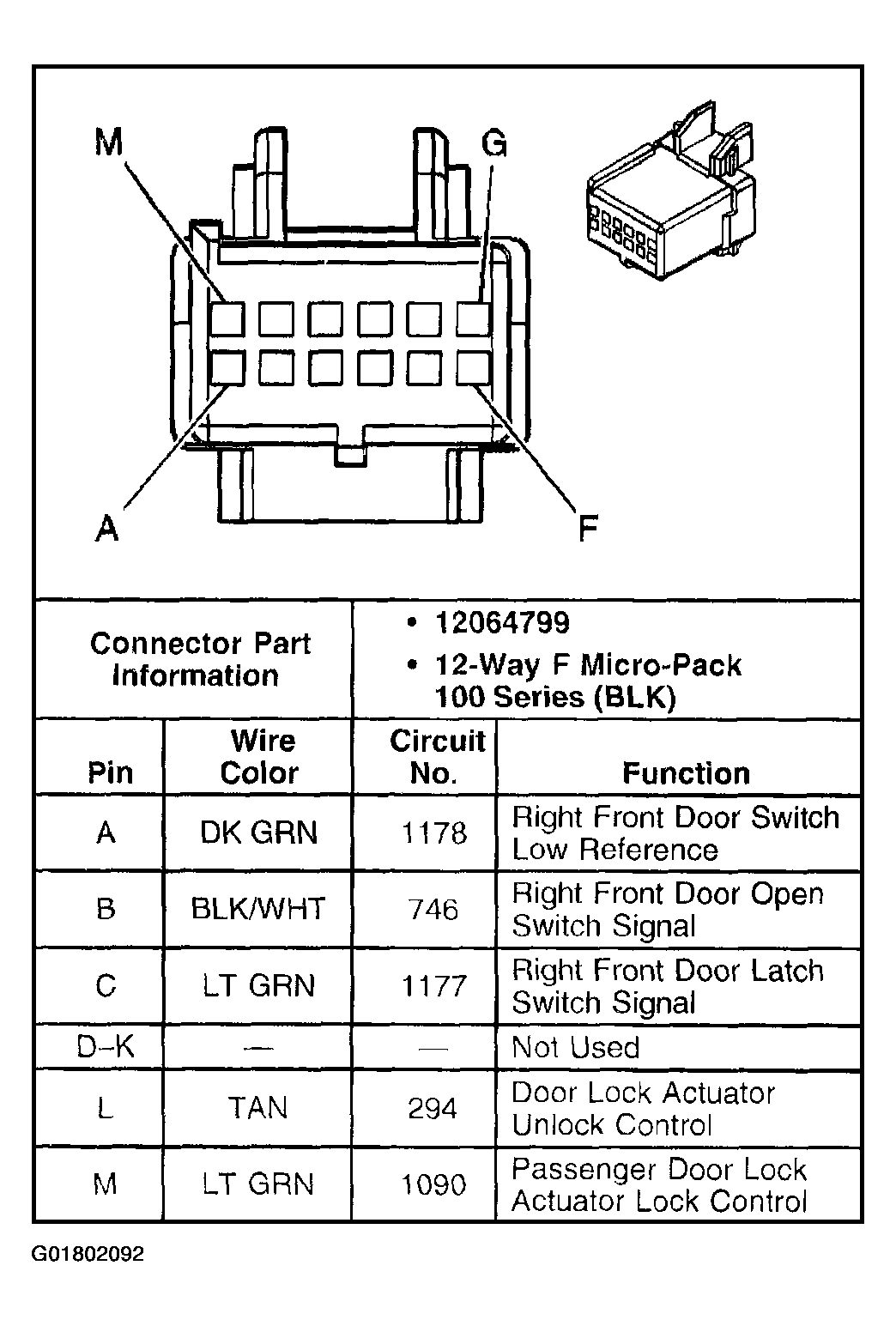

Fig 18: Identifying Passenger Door Module (PDM) Harness Connector C3 Terminals
G01802092Courtesy of GENERAL MOTORS CORP.

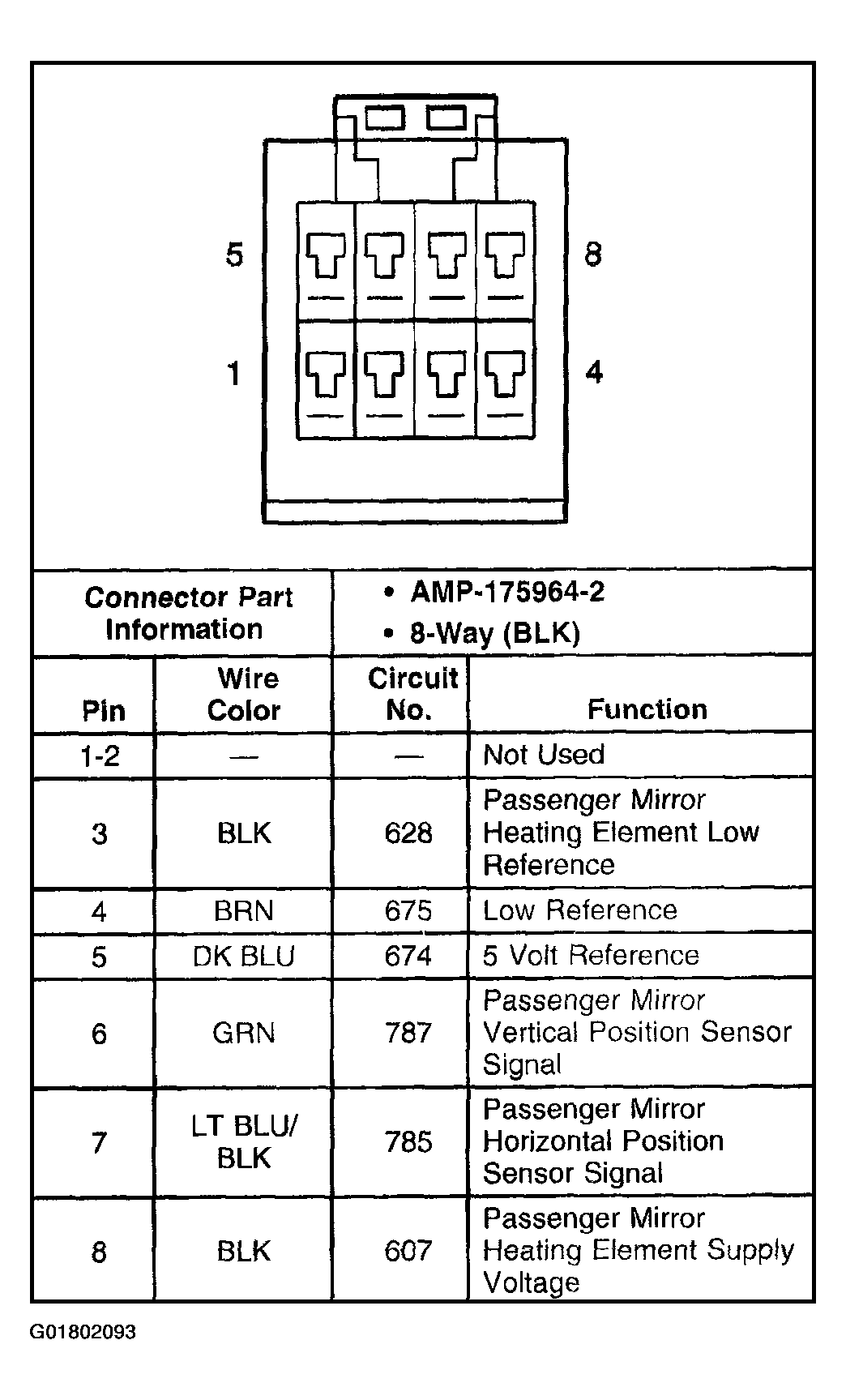

Fig 19: Identifying Passenger Door Module (PDM) Harness Connector C4 Terminals
G01802093Courtesy of GENERAL MOTORS CORP.

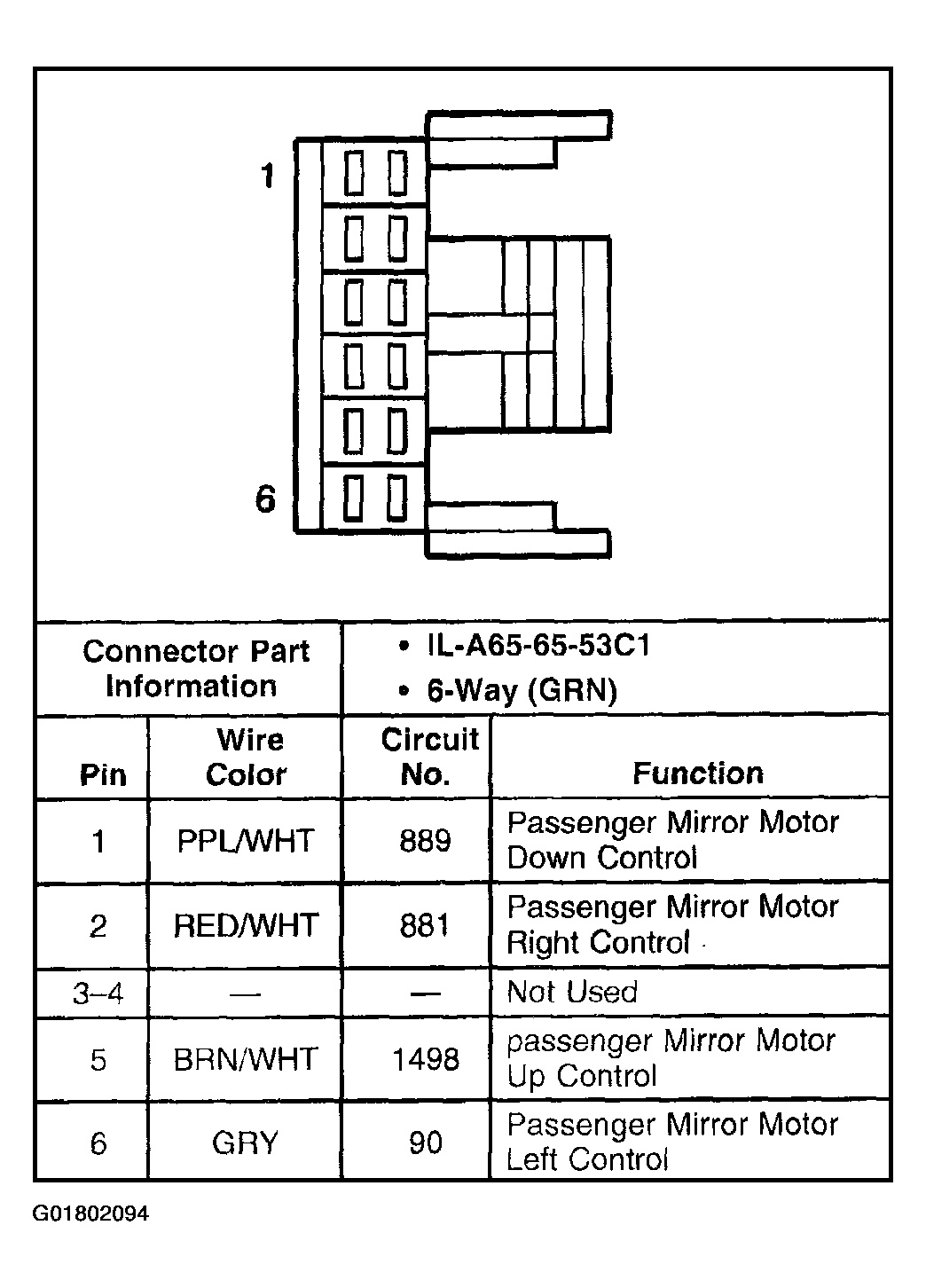

Fig 20: Identifying Passenger Door Module (PDM) Harness Connector C5 Terminals
G01802094Courtesy of GENERAL MOTORS CORP.

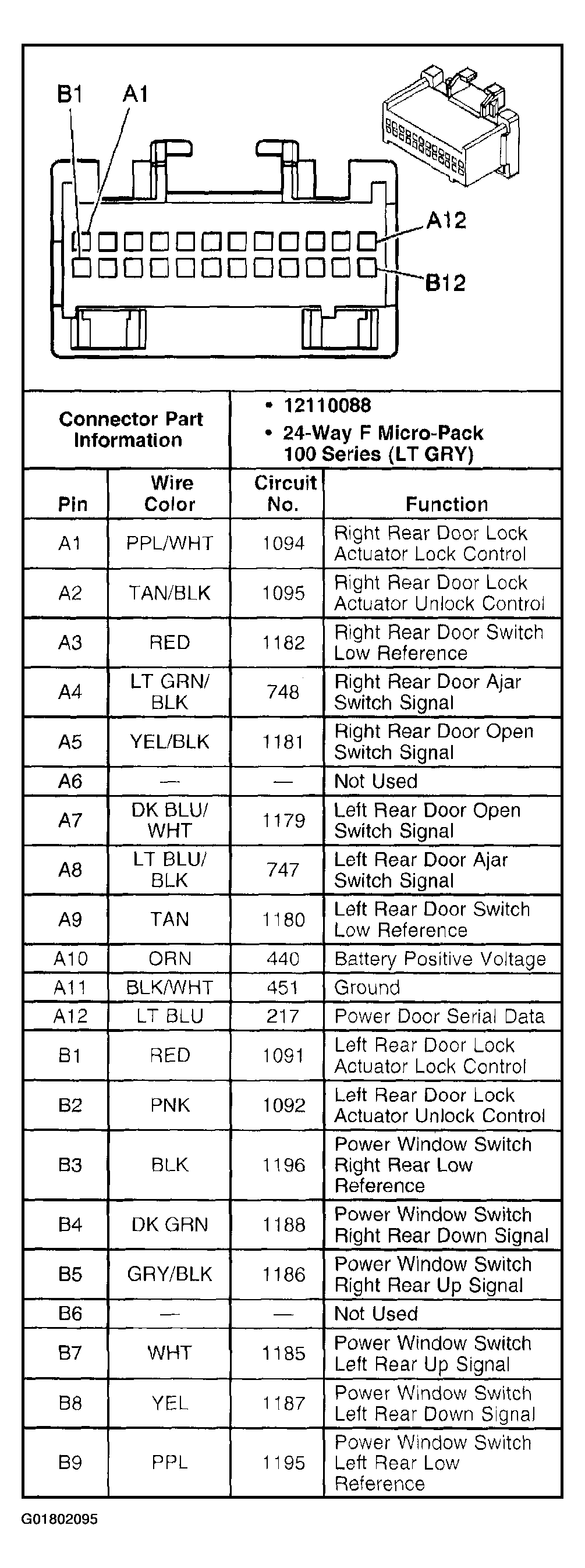

Fig 21: Identifying Rear Door Module (RDM) Harness Connector C1 Terminals (1 Of 2)
G01802095Courtesy of GENERAL MOTORS CORP.

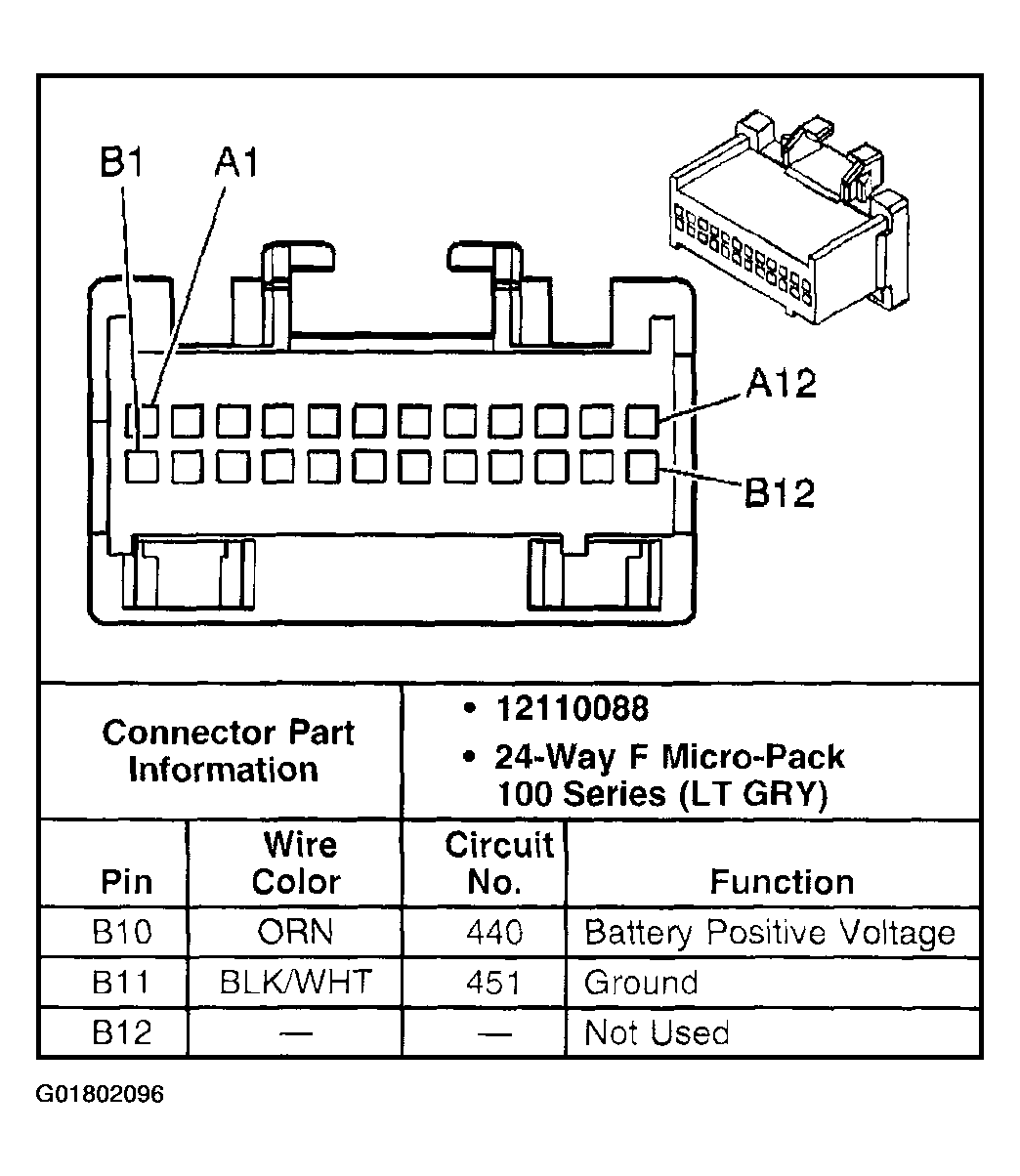

Fig 22: Identifying Rear Door Module (RDM) Harness Connector C1 Terminals (2 Of 2)
G01802096Courtesy of GENERAL MOTORS CORP.

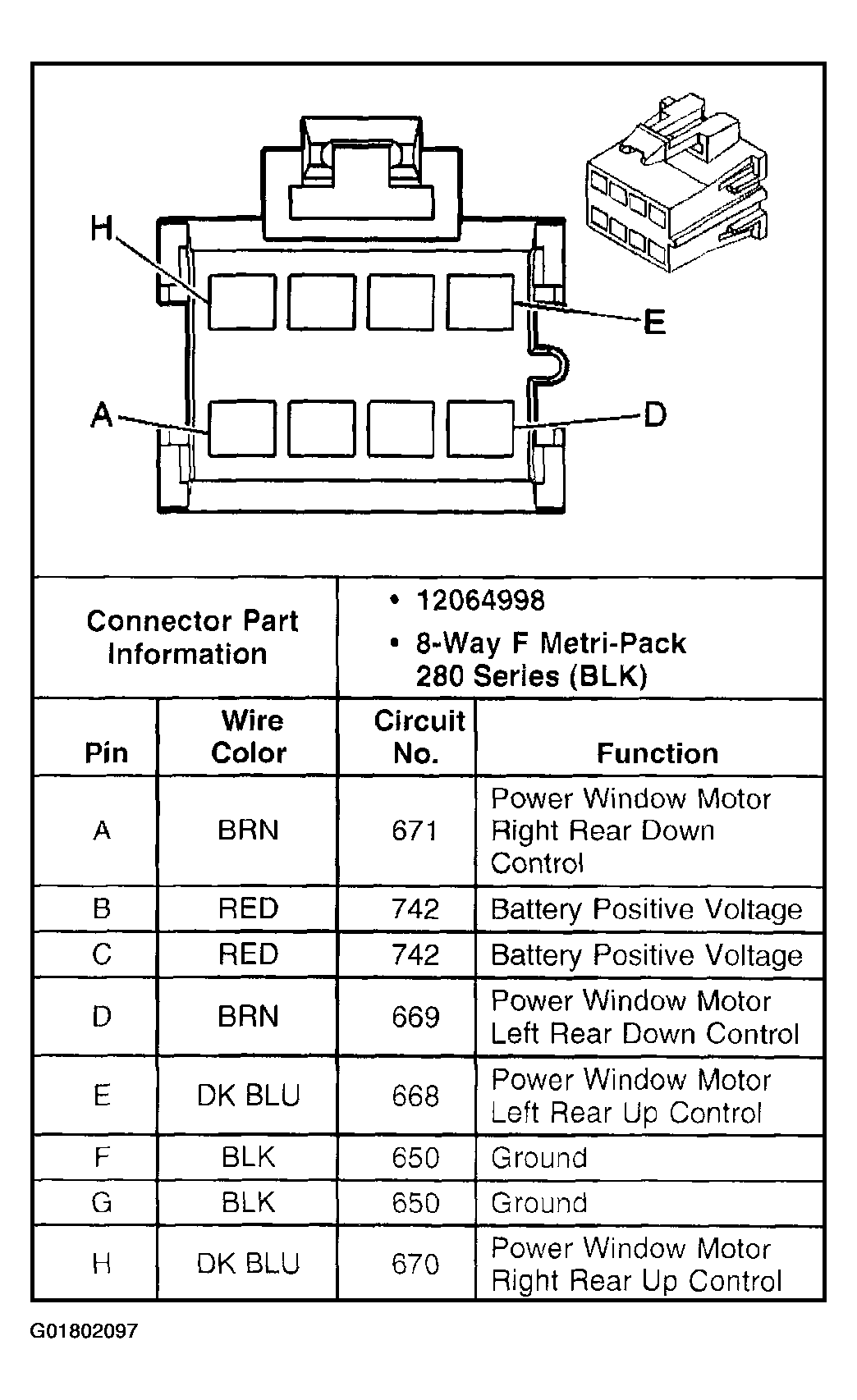

Fig 23: Identifying Rear Door Module (RDM) Harness Connector C2 Terminals
G01802097Courtesy of GENERAL MOTORS CORP.

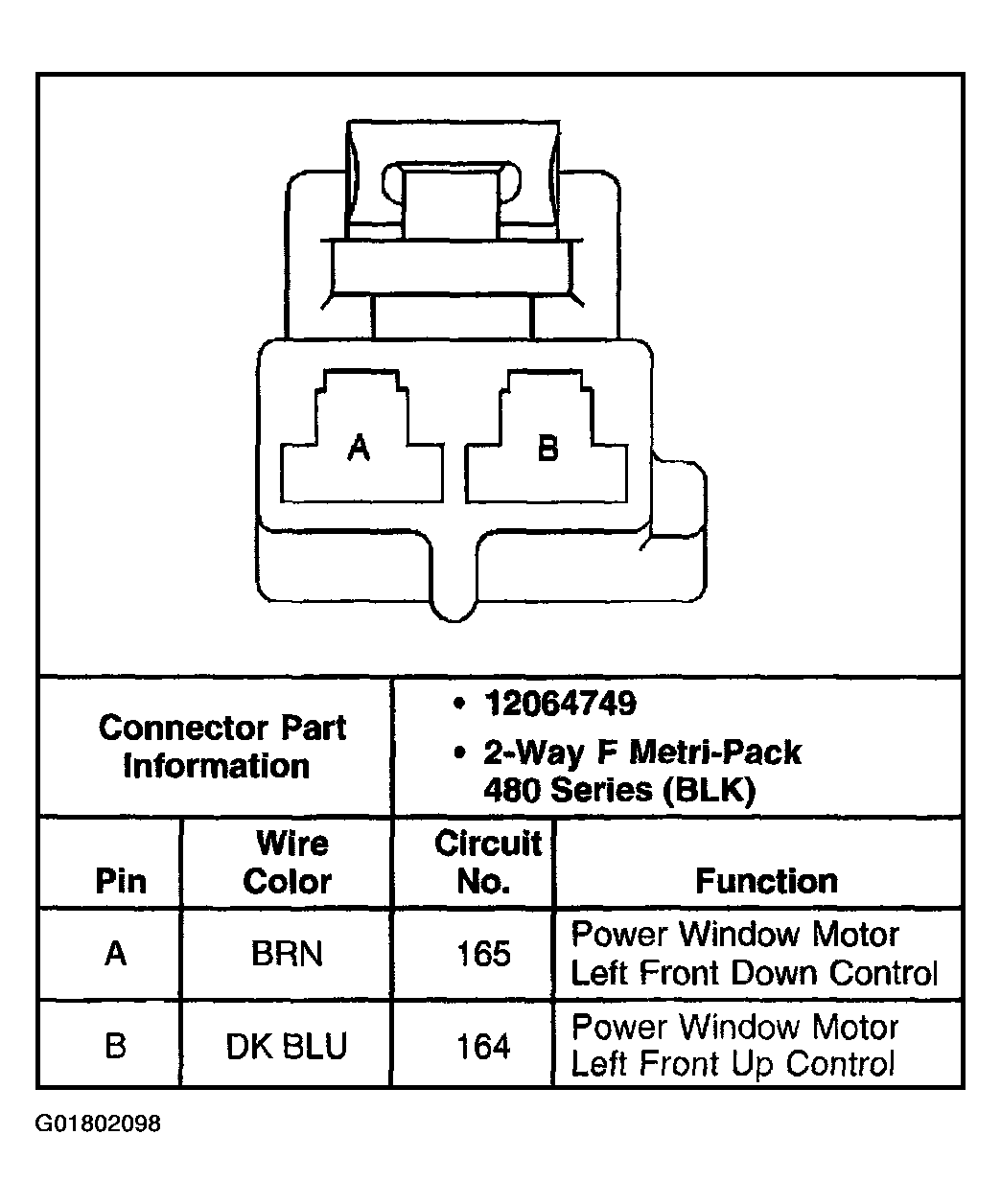

Fig 24: Identifying Driver-Side Window Motor Harness Connector Terminals
G01802098Courtesy of GENERAL MOTORS CORP.

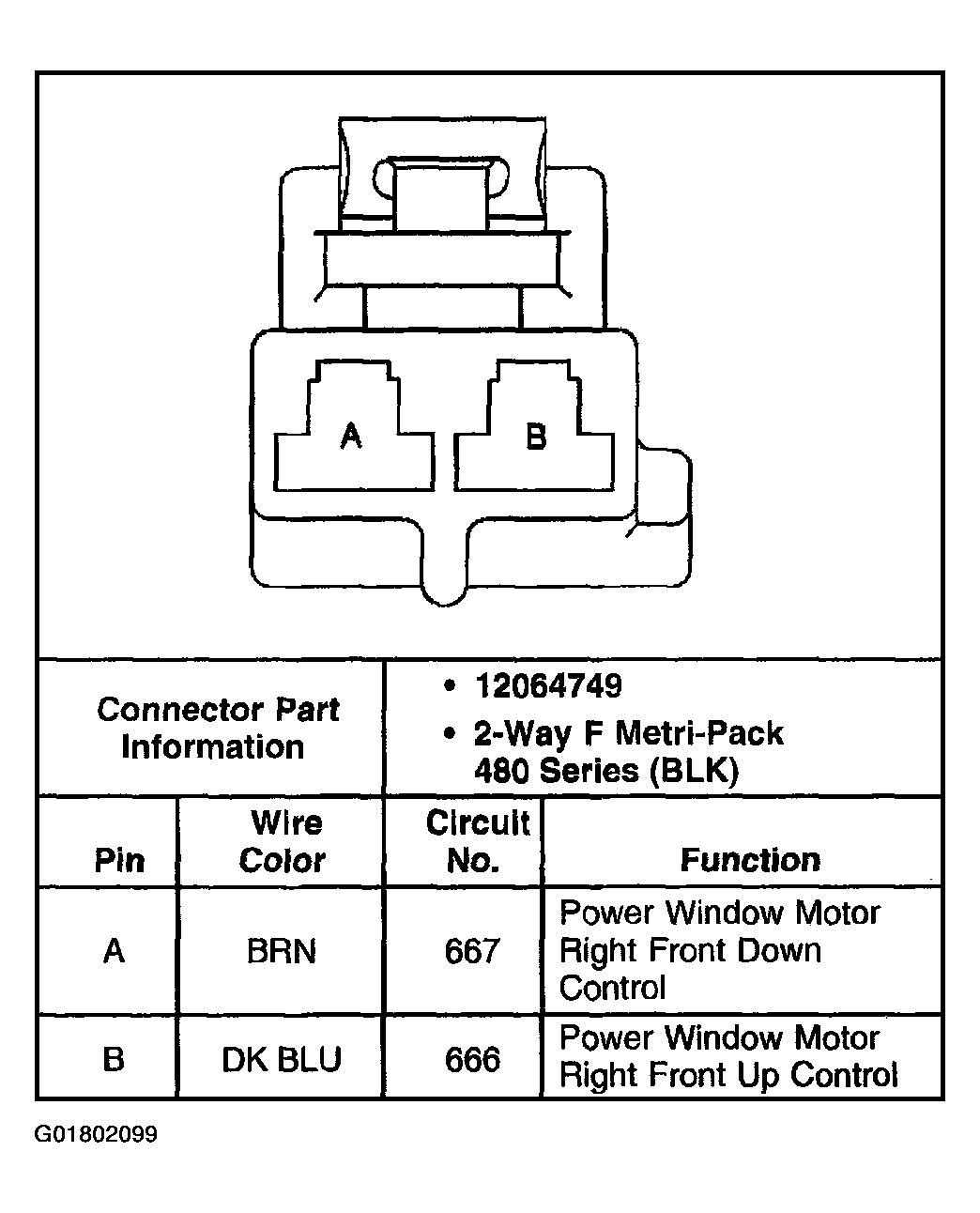

Fig 25: Identifying Front Passenger-Side Window Motor Harness Connector Terminals
G01802099Courtesy of GENERAL MOTORS CORP.

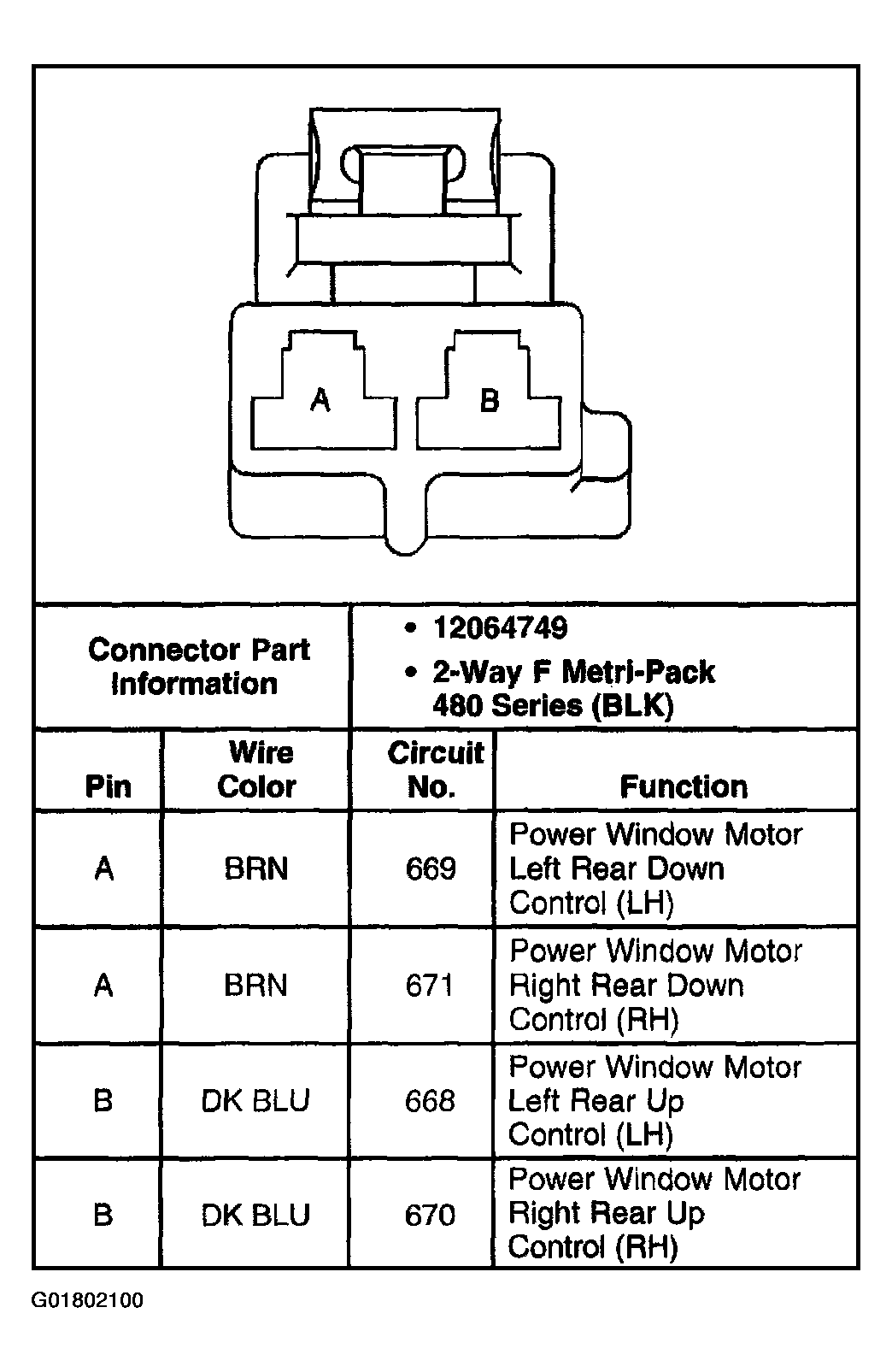

Fig 26: Identifying Left Rear & Right Rear Window Motor Harness Connector Terminals
G01802100Courtesy of GENERAL MOTORS CORP.

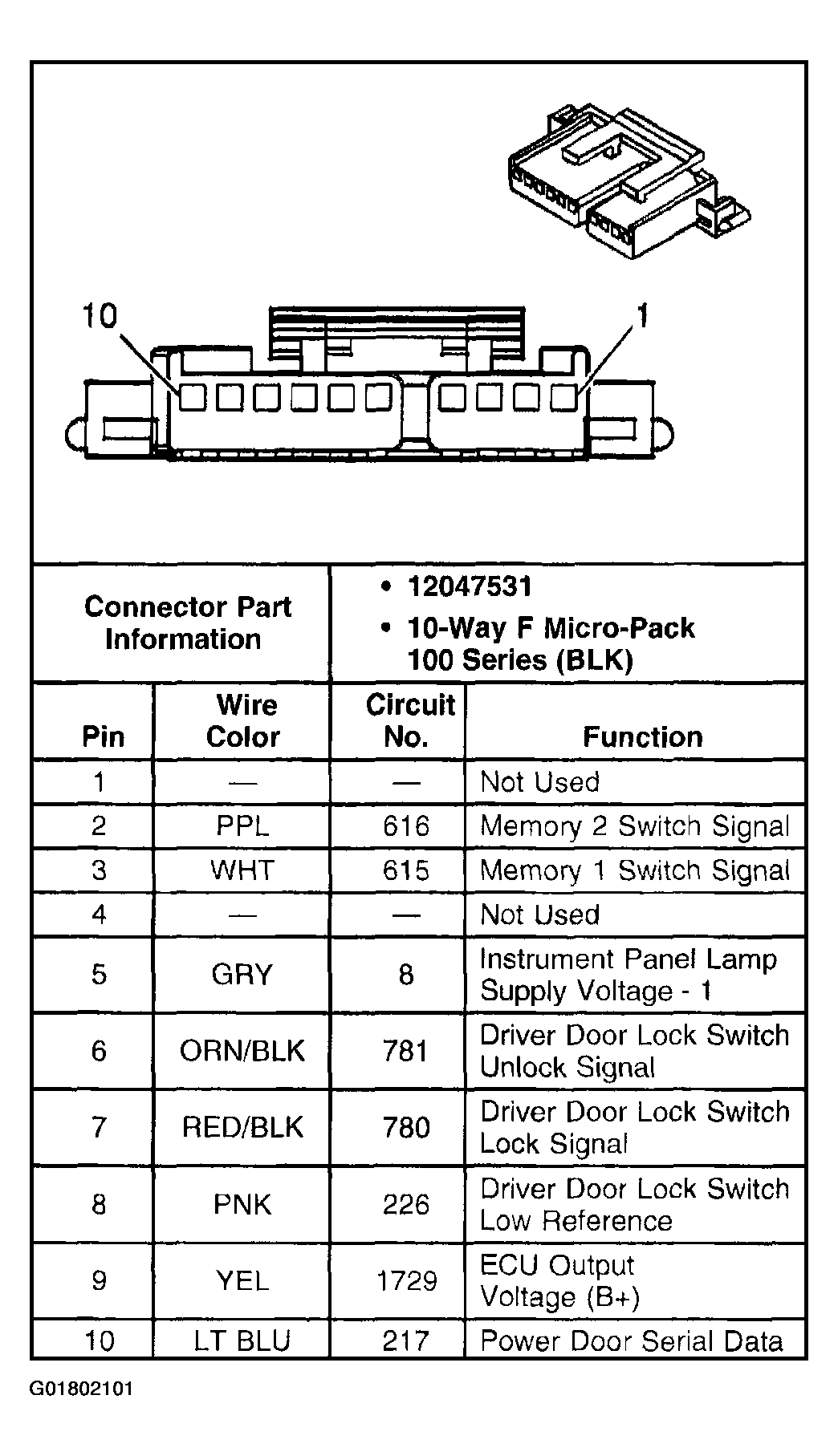

Fig 27: Identifying Driver-Side Window Switch Harness Connector Terminals
G01802101Courtesy of GENERAL MOTORS CORP.

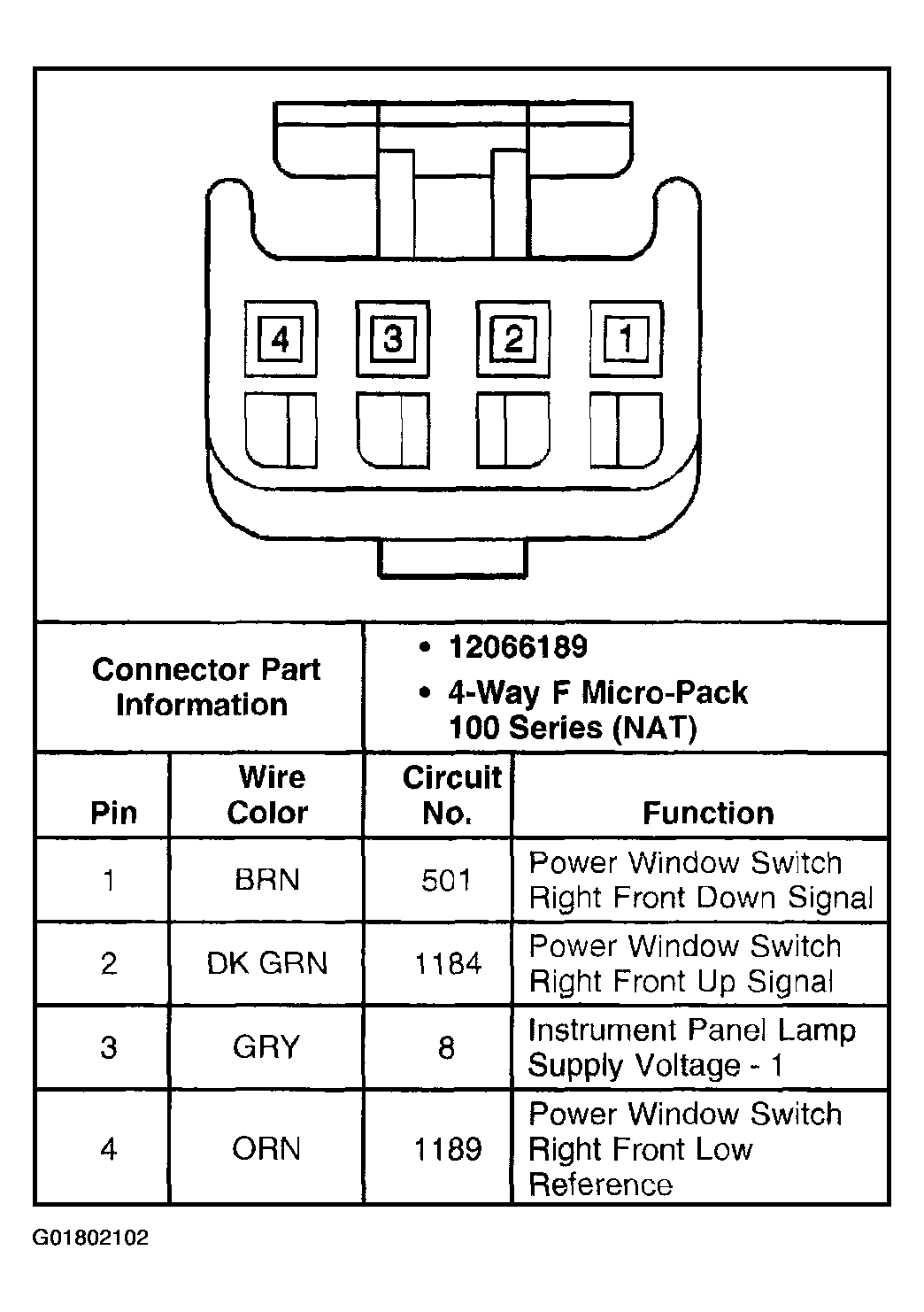

Fig 28: Identifying Front Passenger-Side Window Switch Harness Connector Terminals
G01802102Courtesy of GENERAL MOTORS CORP.

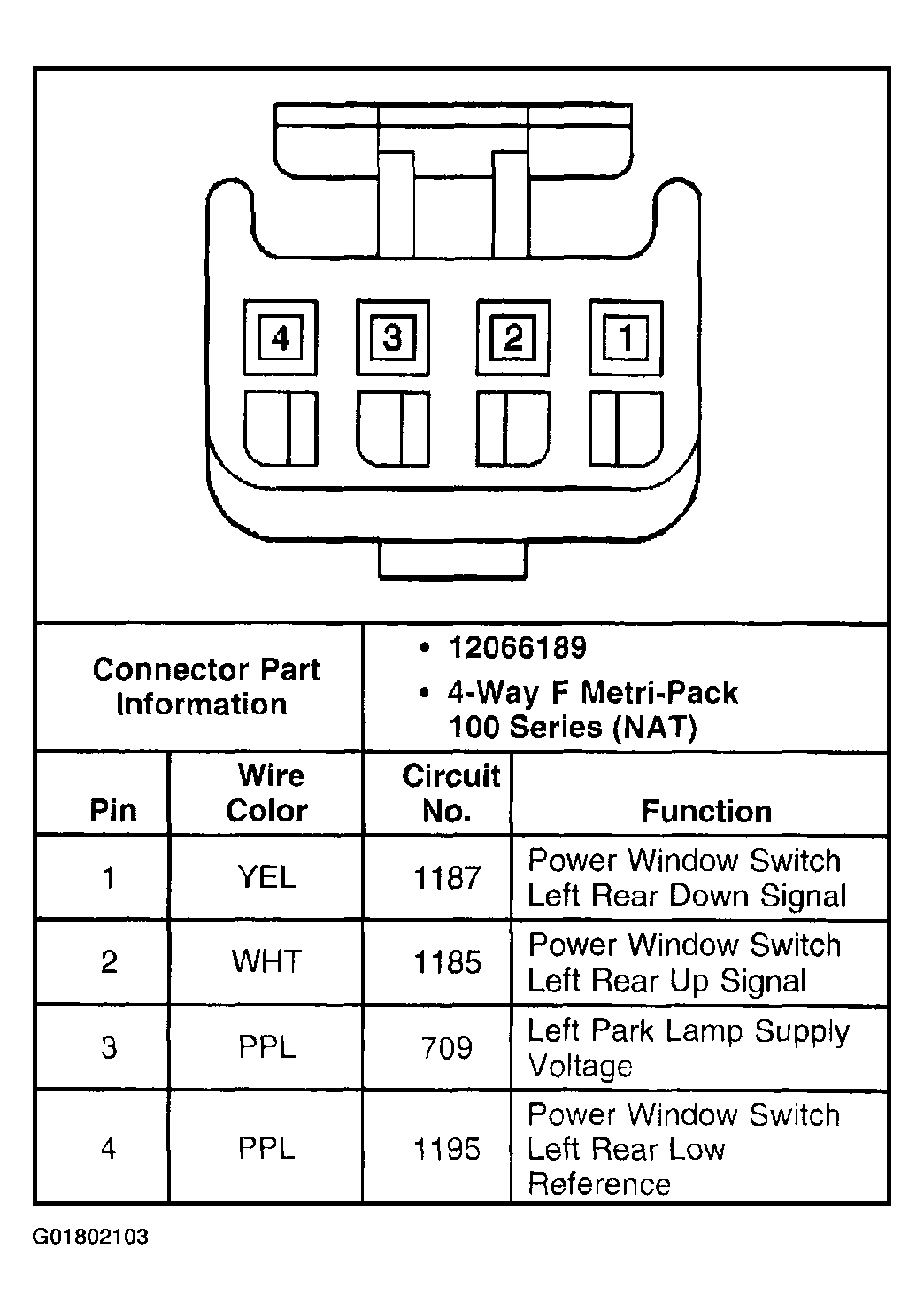

Fig 29: Identifying Left Rear Window Switch Harness Connector Terminals
G01802103Courtesy of GENERAL MOTORS CORP.

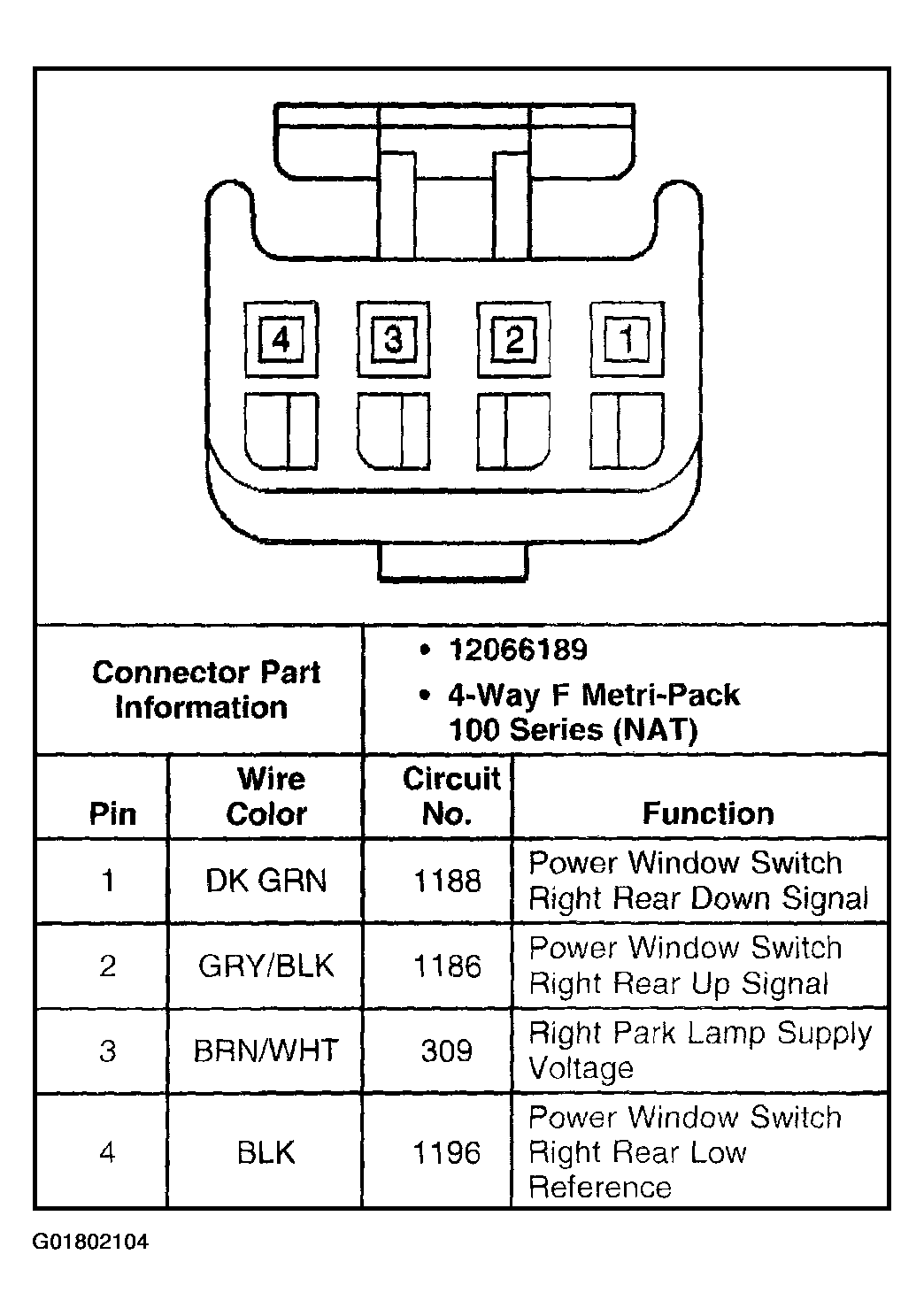

Fig 30: Identifying Right Rear Window Switch Harness Connector Terminals
G01802104Courtesy of GENERAL MOTORS CORP.
