Removal Procedure

Important:  Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

1. Open the hood.
2. Remove the windshield wiper arms.
3. Remove the air inlet grille.
4. Remove the door sealing weatherstrip from the upper pinch weld flange.
5. Remove the windshield reveal molding. Refer to Urethane Adhesive Installation Of Stationary Windows .
   CAUTION: If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.
6. Cover to protect the following parts from broken glass:
   1. 6.1. Upper dash pad
   2. 6.2. Defroster outlets and A/C outlets
   3. 6.3. Seats and carpeting
7. Remove the inside rearview mirror. Refer to Rearview Mirror Replacement (DD7)  or Rearview Mirror Replacement (UE1)  .
8. Remove the rain sensor, if equipped. Refer to WINDSHIELD OUTSIDE MOISTURE SENSOR REPLACEMENT .
9. Remove the windshield garnish moldings.
10. Remove the instrument panel upper trim pad. Refer to TRIM PAD REPLACEMENT - IP UPPER .

    Important:  The windshield reveal molding (1) is a one piece molding and fills the cavities between the body and windshield (2).

11. If the windshield reveal molding (1) is stretched or damaged it can not be reused.
12. Remove the windshield reveal molding (1).
    1. 12.1. Grasp the lower comer of the windshield reveal molding (1) by hand and slowly pull the reveal molding away from the windshield.
    2. 12.2. If the windshield reveal molding (1) will not release, use a utility knife in order to cut around the windshield in order to remove the windshield reveal molding.

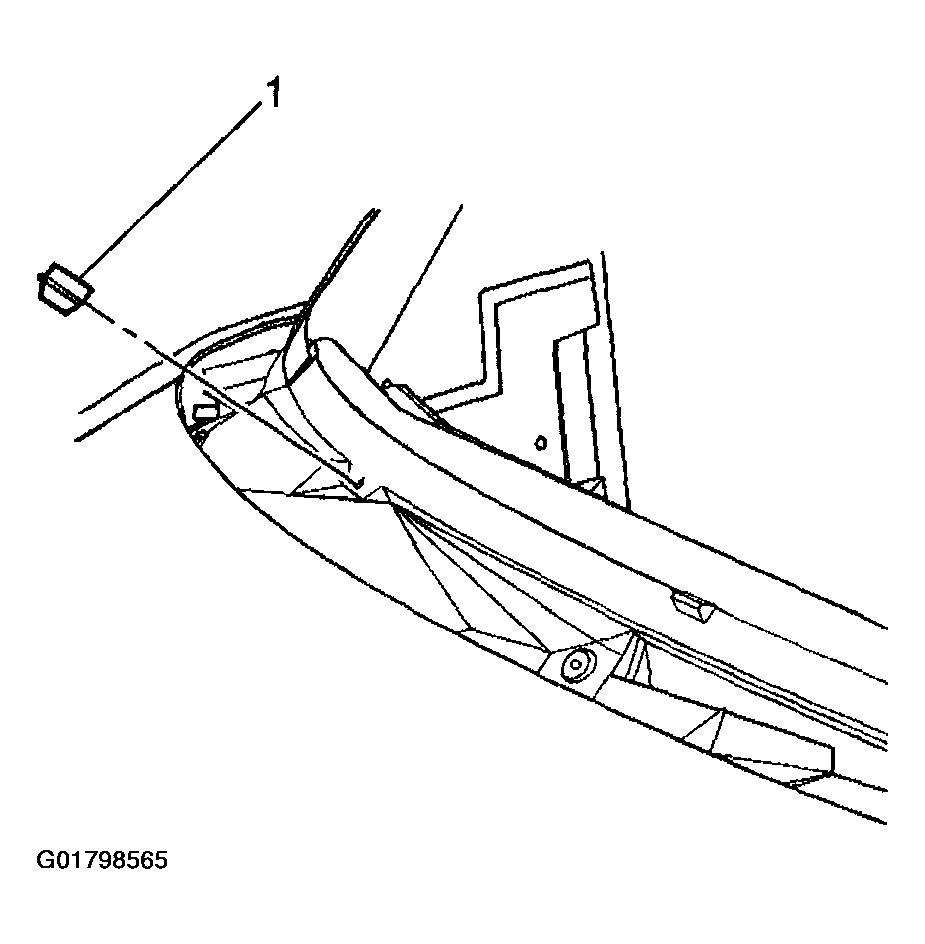

    Fig 1: Removing Windshield Reveal Molding

    Courtesy of GENERAL MOTORS CORP.
13. Remove the lower windshield supports (1) from the cowl panel, if equipped.
    Fig 2: Lower Windshield Supports

    Courtesy of GENERAL MOTORS CORP.

    Important:  Keep the cutting edge of the tool against the windshield.

14. This will allow the urethane adhesive to be separated from the windshield.
    • Leave a base of urethane on the pinch weld flange.
    • The only suitable lubrication is clear water.
    • Use J 24402-A  and J 39032  or equivalent in order to remove the window.

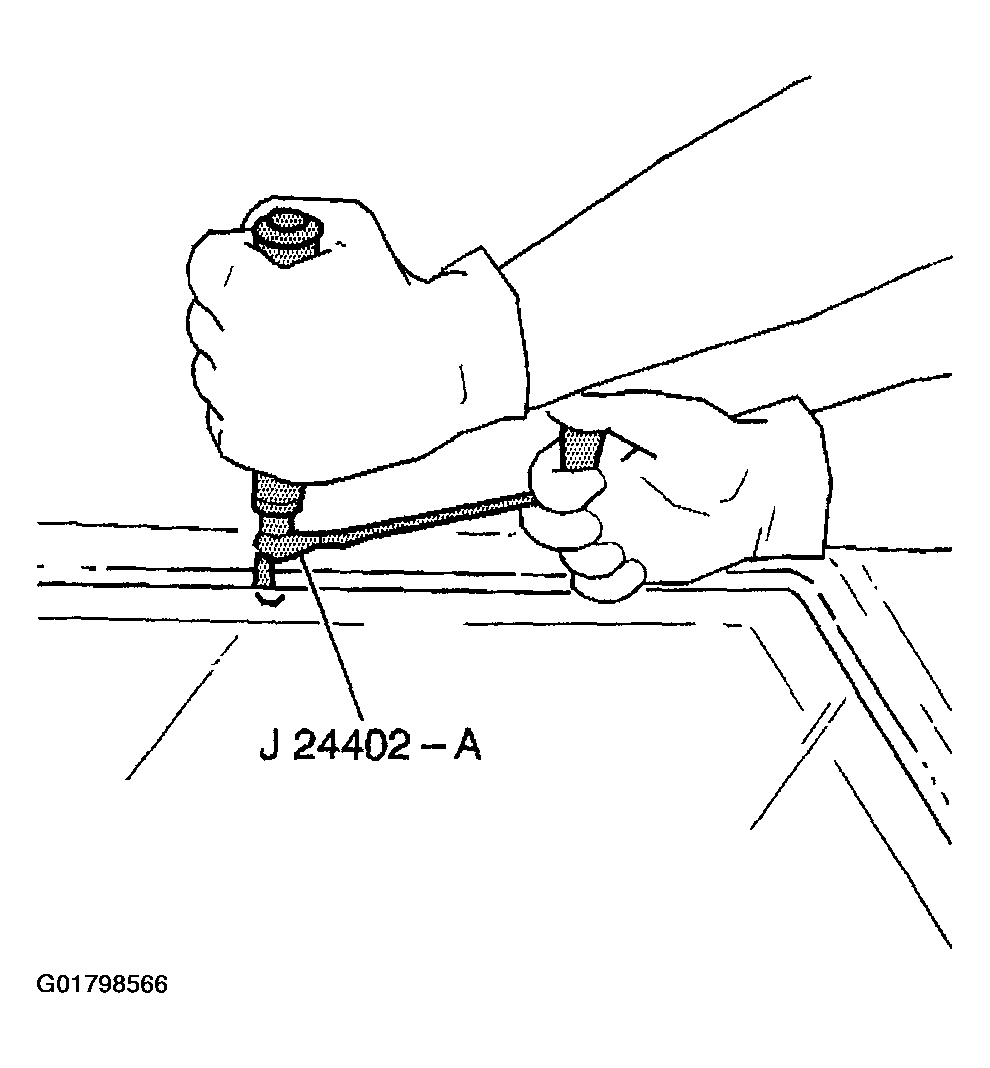

    Fig 3: Removing Window

    Courtesy of GENERAL MOTORS CORP.
15. With the aid of an assistant remove the windshield from the vehicle.

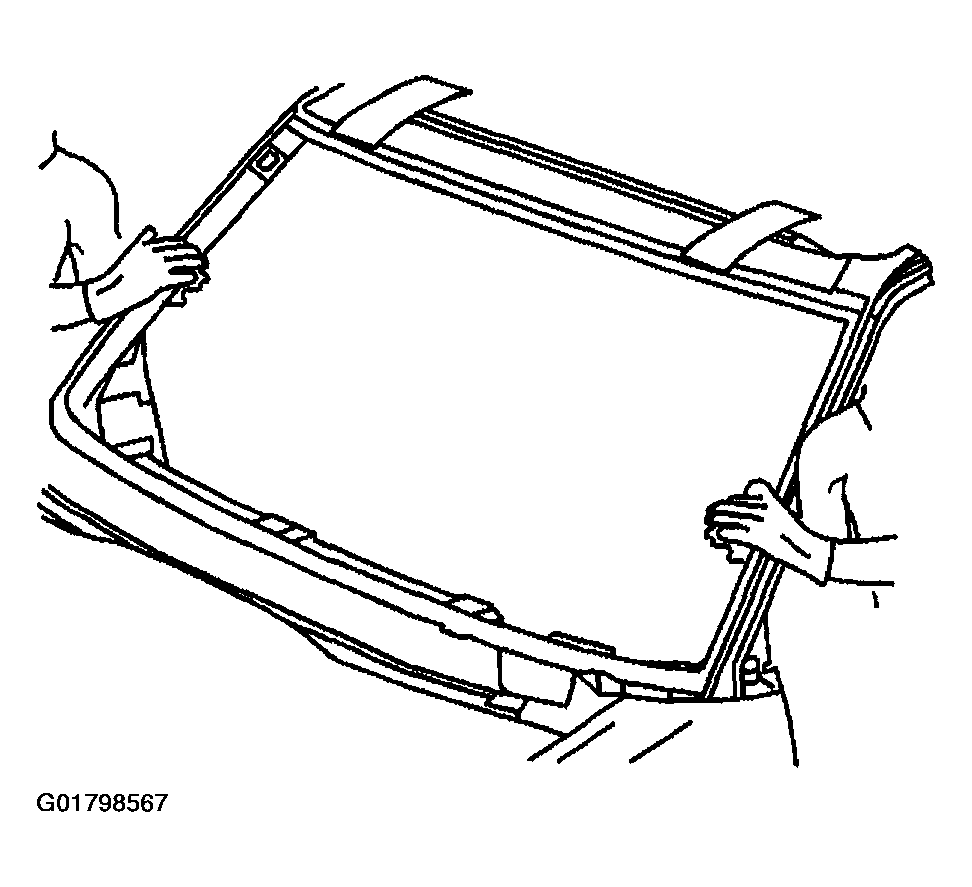

    Fig 4: Removing Windshield From Vehicle

    Courtesy of GENERAL MOTORS CORP.
