ABS Connector End Views

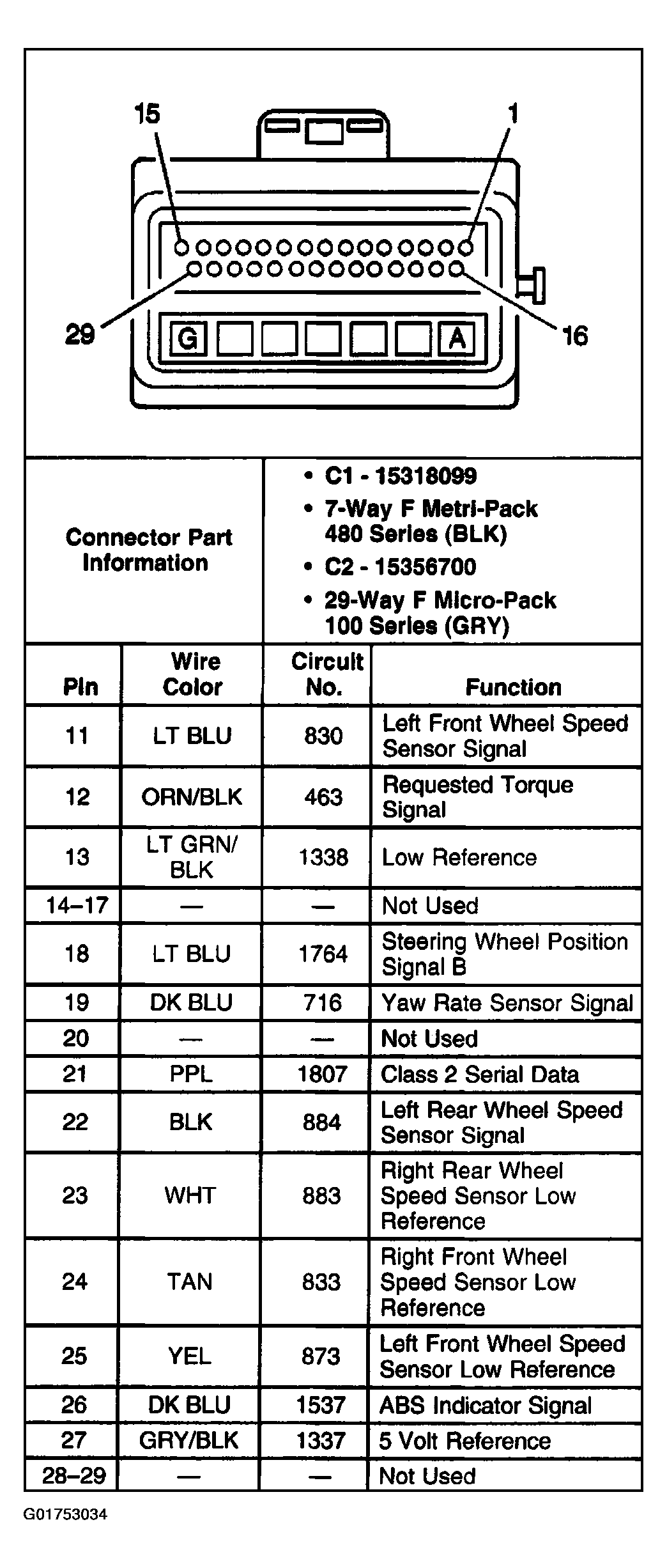

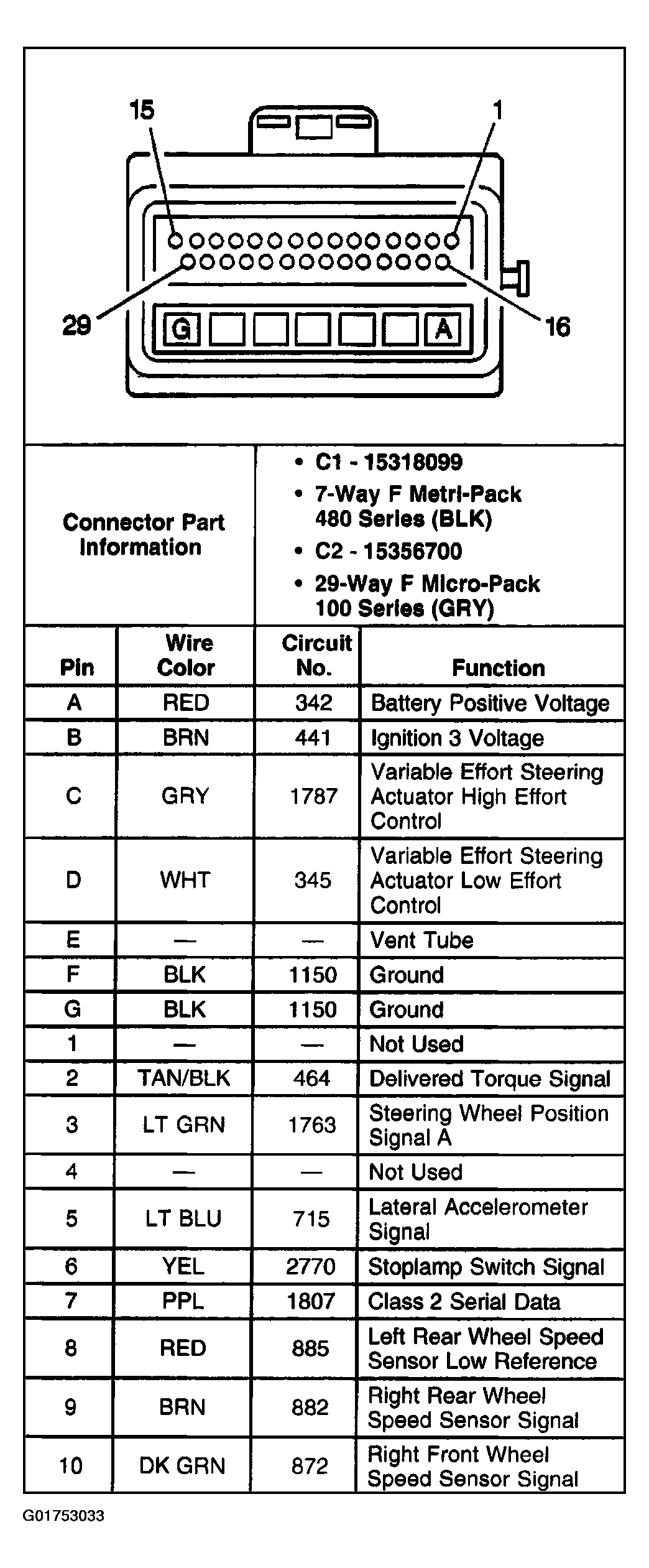

Fig 1: Identifying EBCM Harness Connector (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying EBCM Harness Connector (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

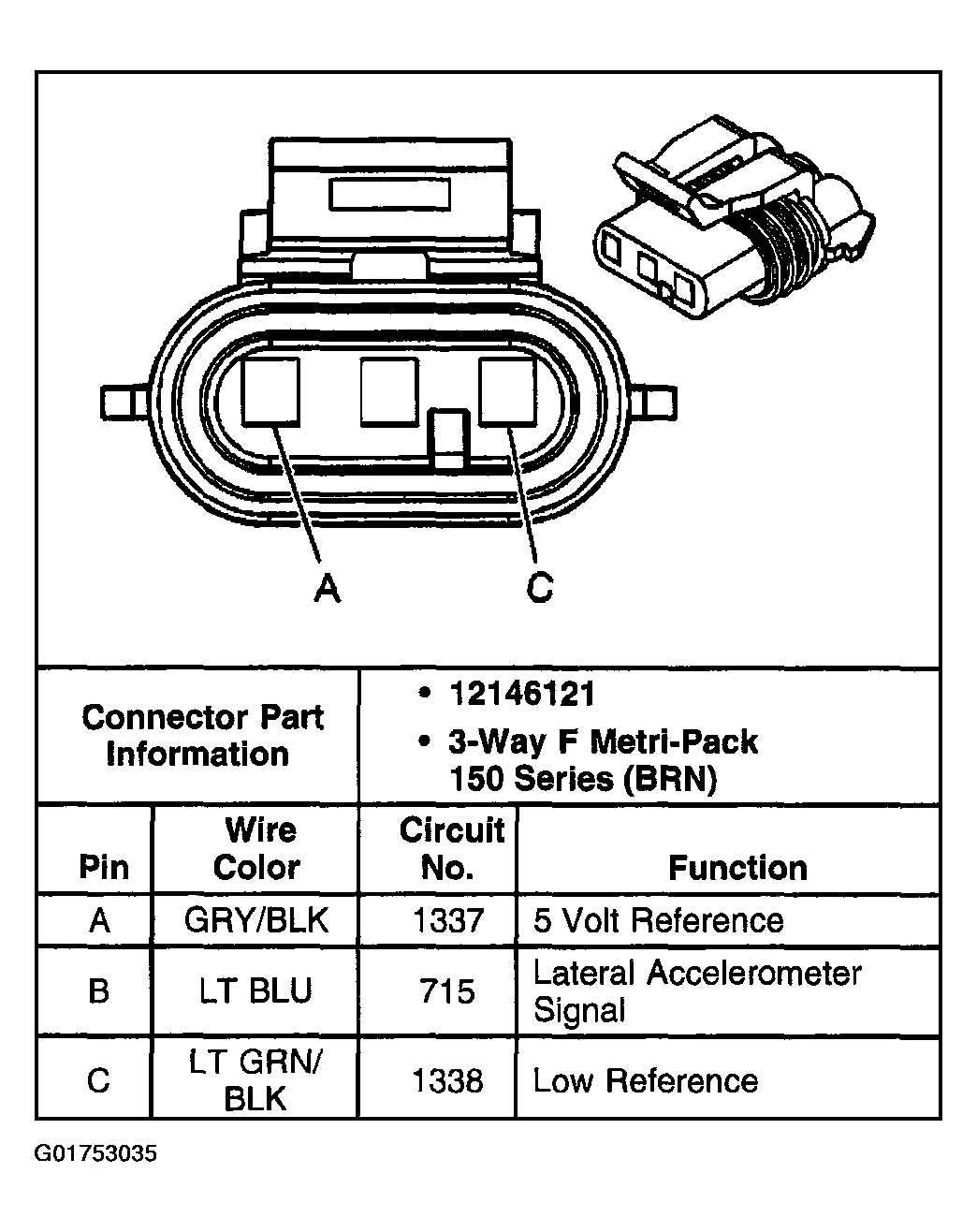

Fig 3: Identifying Lateral Accelerometer Sensor Harness Connector

Courtesy of GENERAL MOTORS CORP.

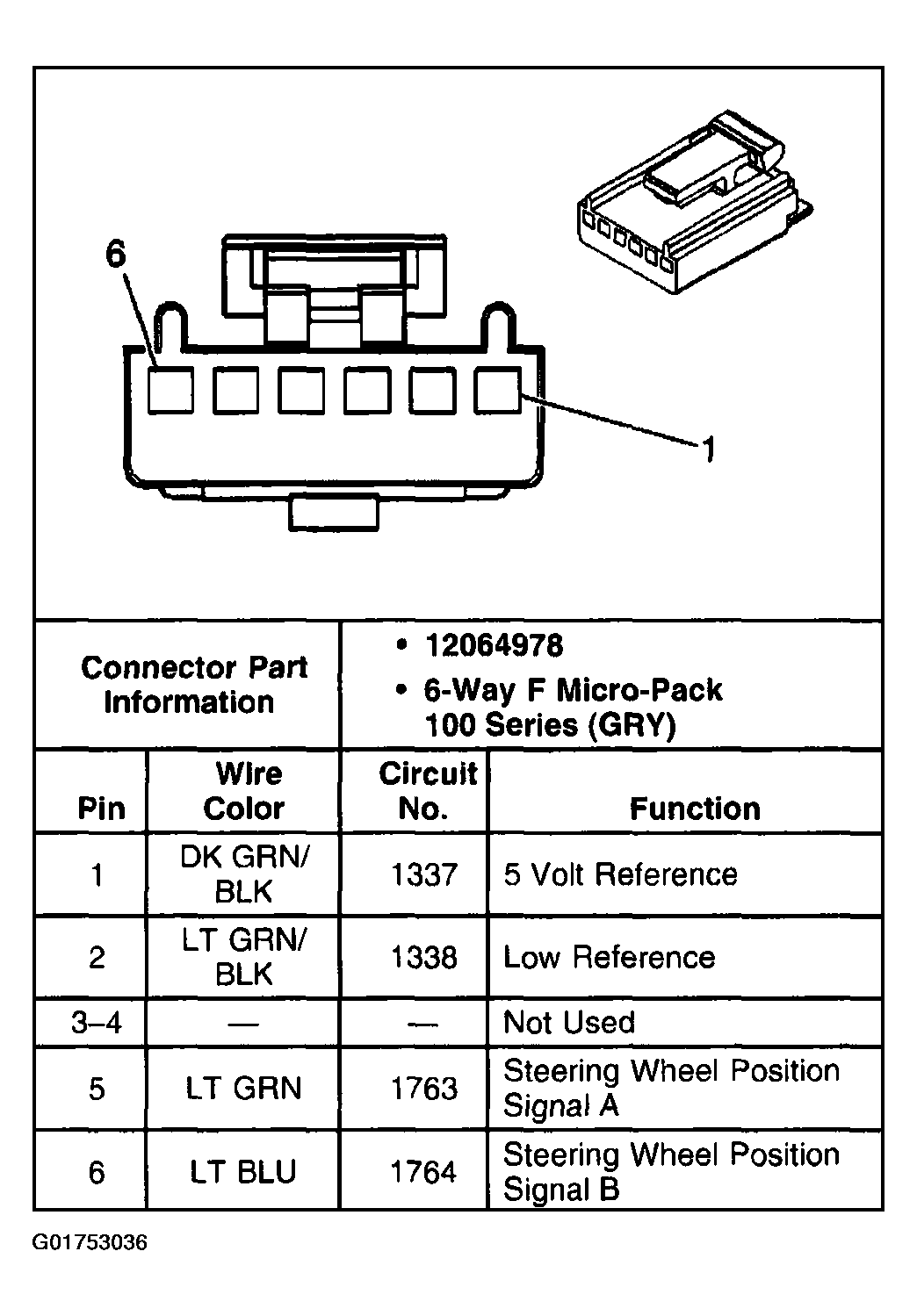

Fig 4: Identifying Steering Wheel Position Sensor Harness Connector

Courtesy of GENERAL MOTORS CORP.

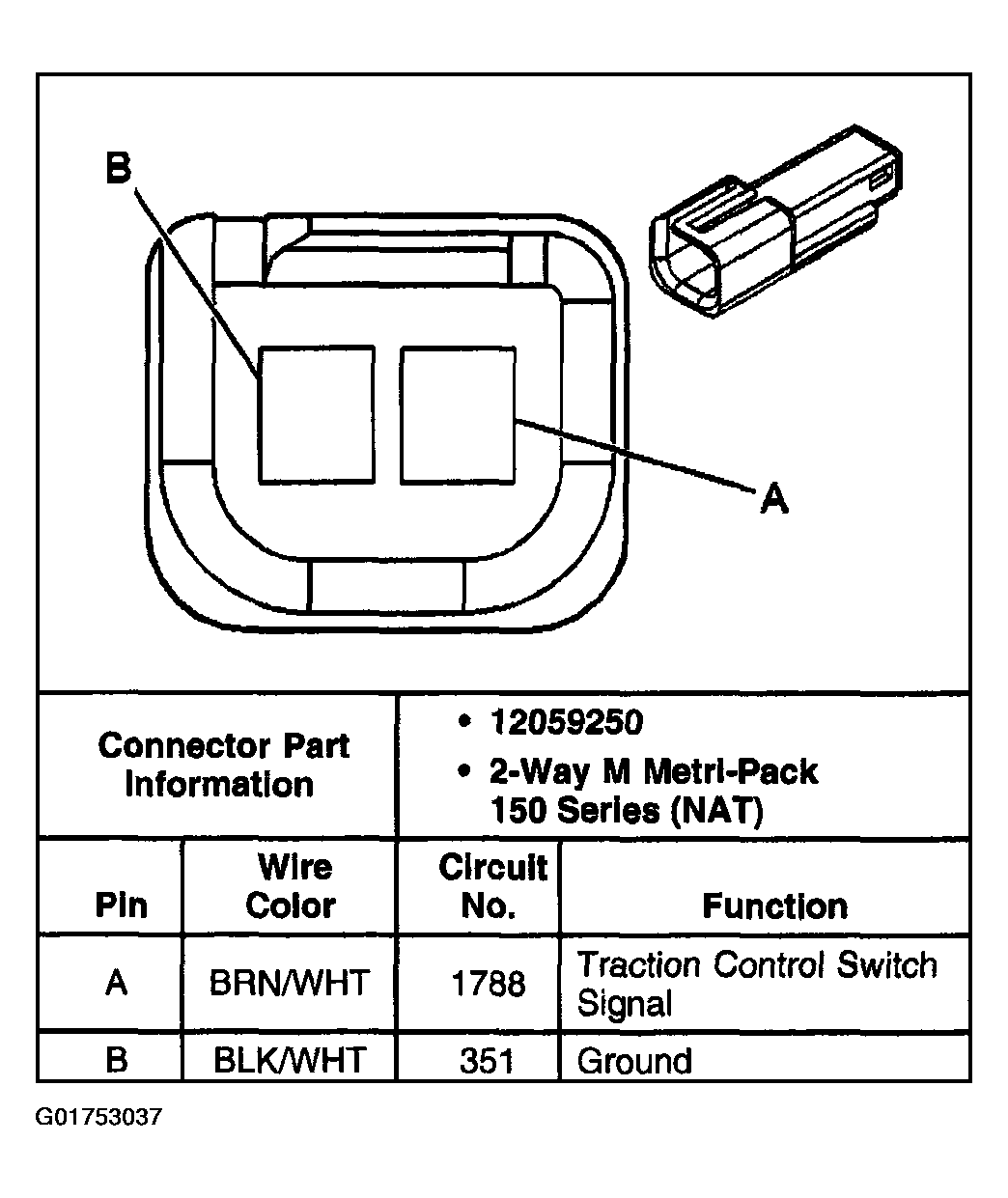

Fig 5: Identifying Traction Control Switch Harness Connector

Courtesy of GENERAL MOTORS CORP.

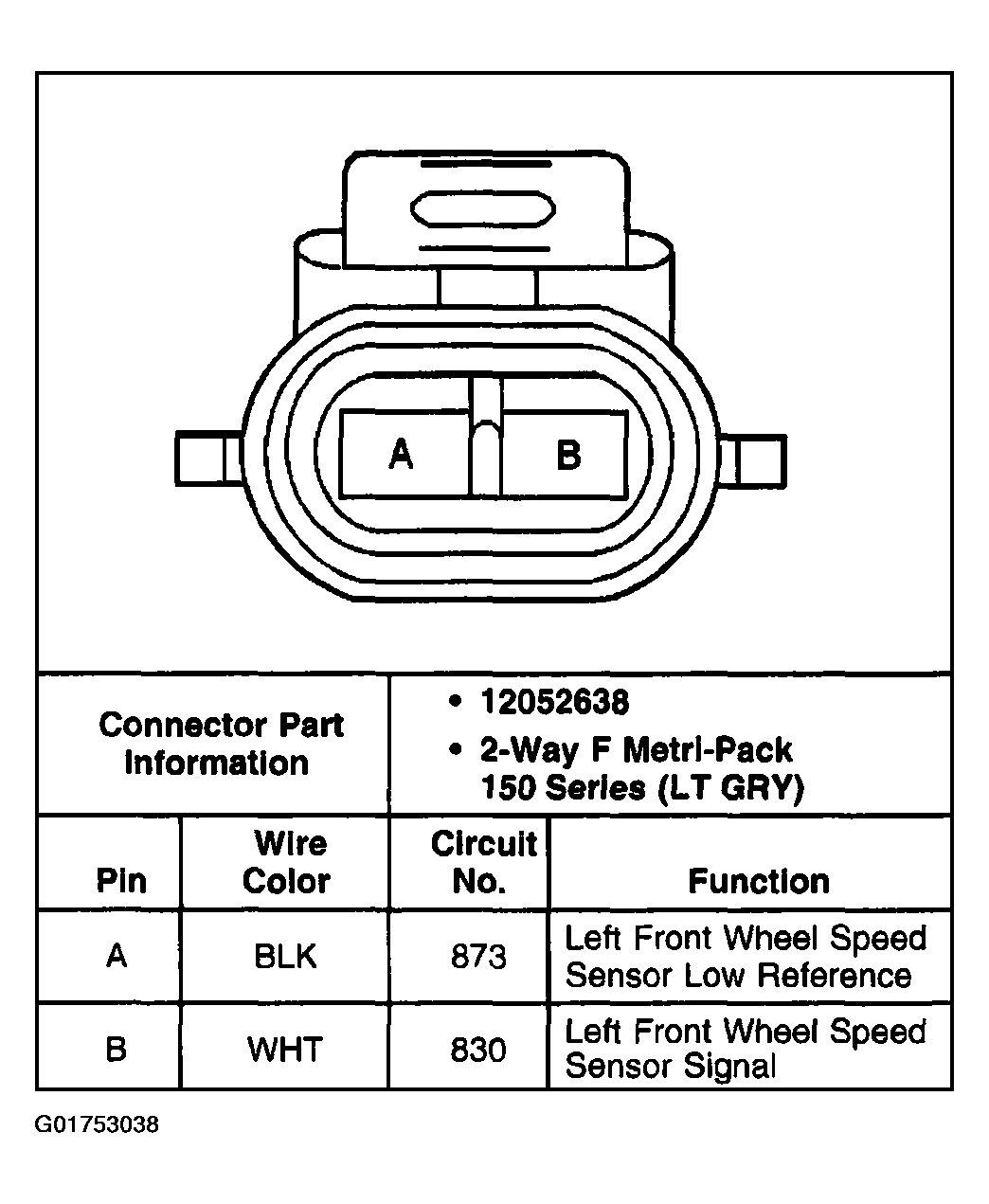

Fig 6: Identifying Left Front Wheel Speed Sensor Harness Connector

Courtesy of GENERAL MOTORS CORP.

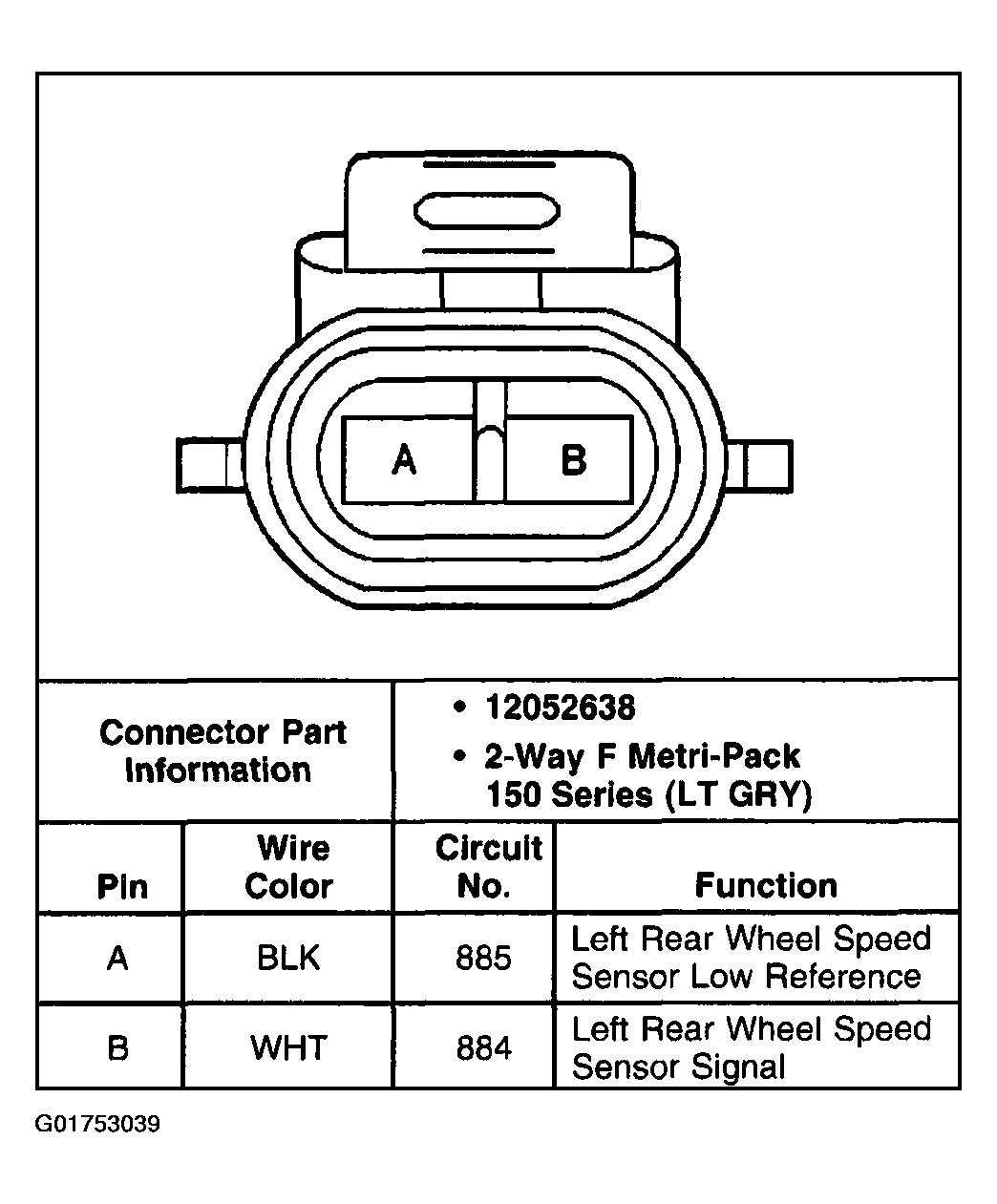

Fig 7: Identifying Left Rear Wheel Speed Sensor Harness Connector

Courtesy of GENERAL MOTORS CORP.

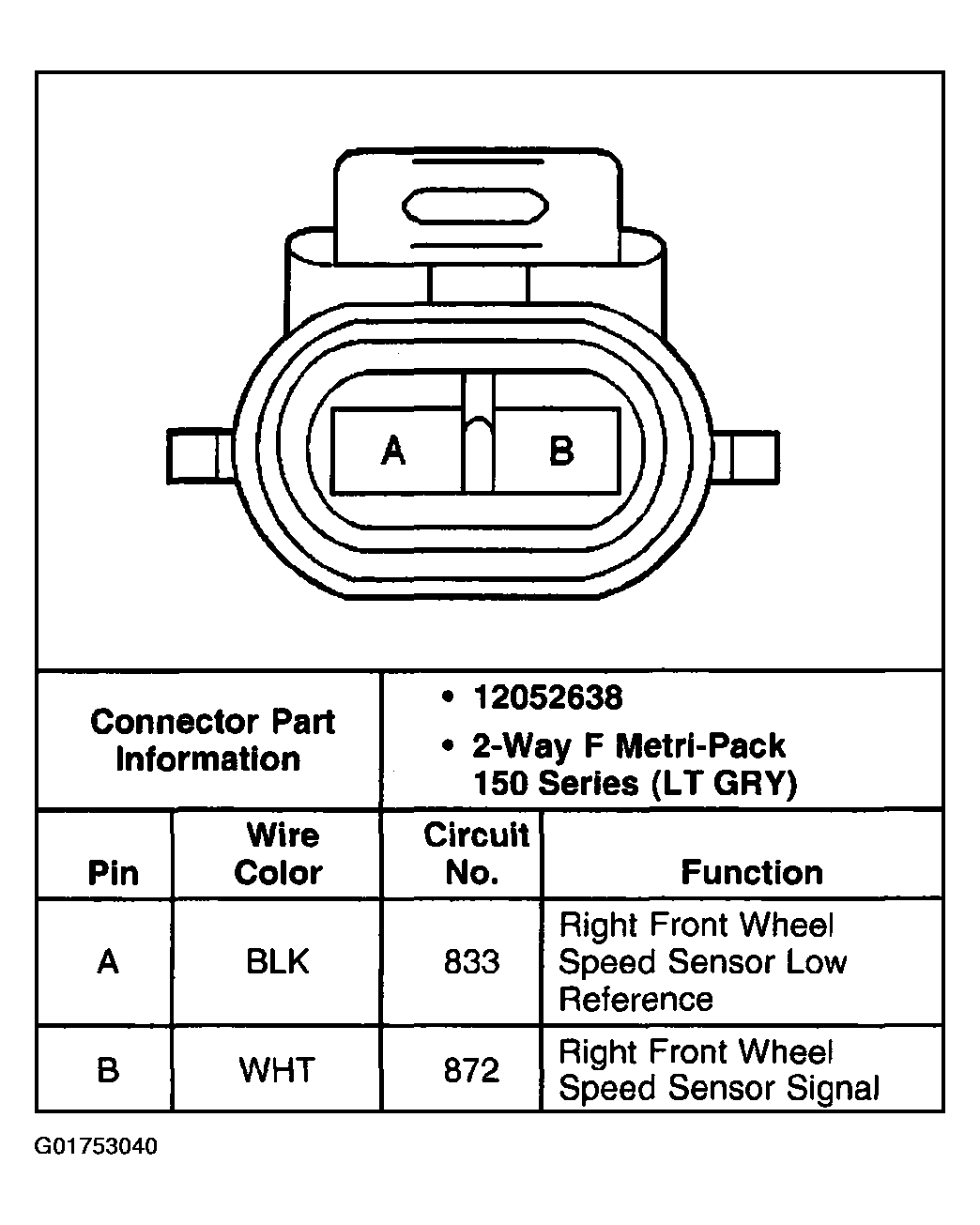

Fig 8: Identifying Right Front Wheel Speed Sensor Harness Connector

Courtesy of GENERAL MOTORS CORP.

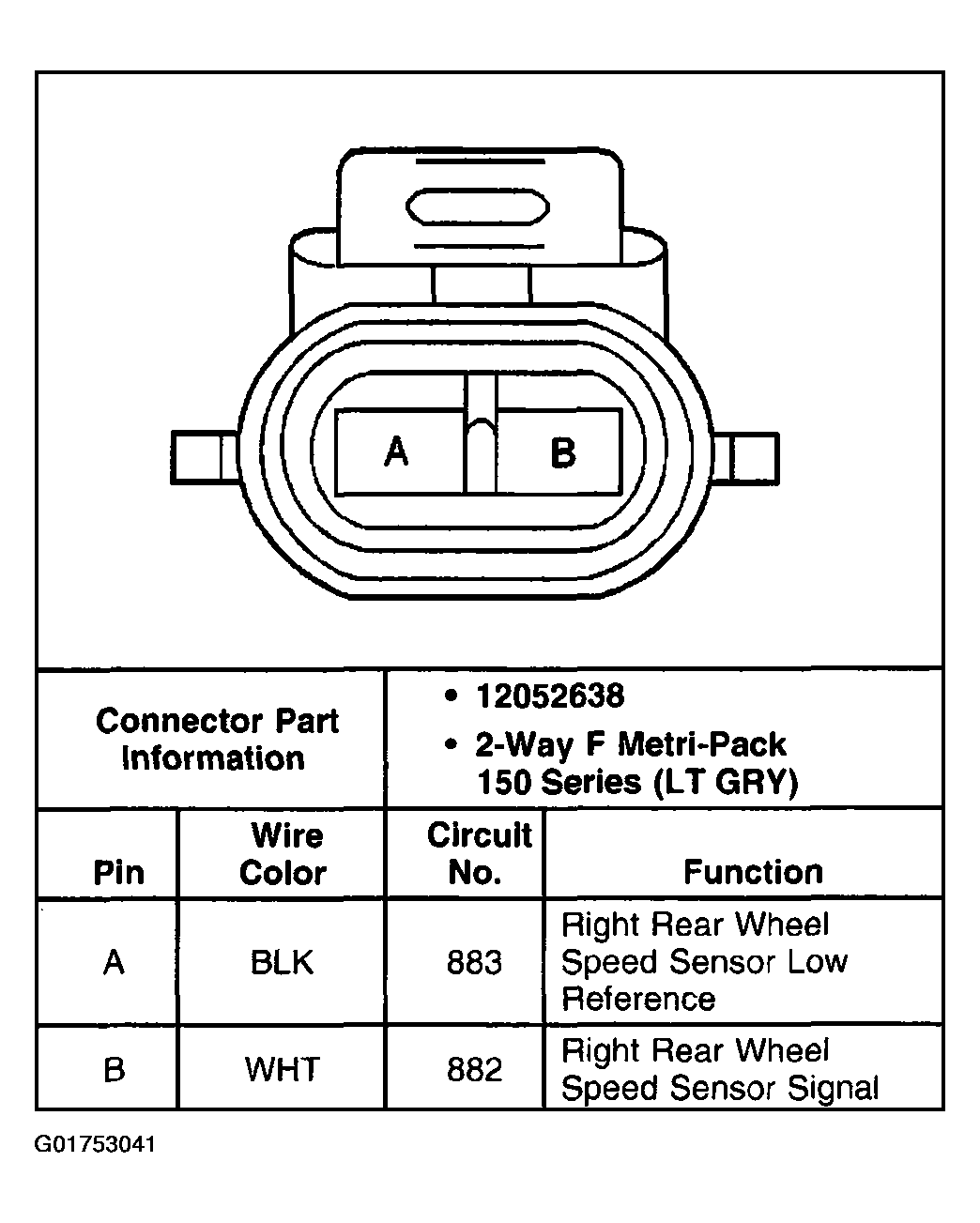

Fig 9: Identifying Right Rear Wheel Speed Sensor Harness Connector

Courtesy of GENERAL MOTORS CORP.

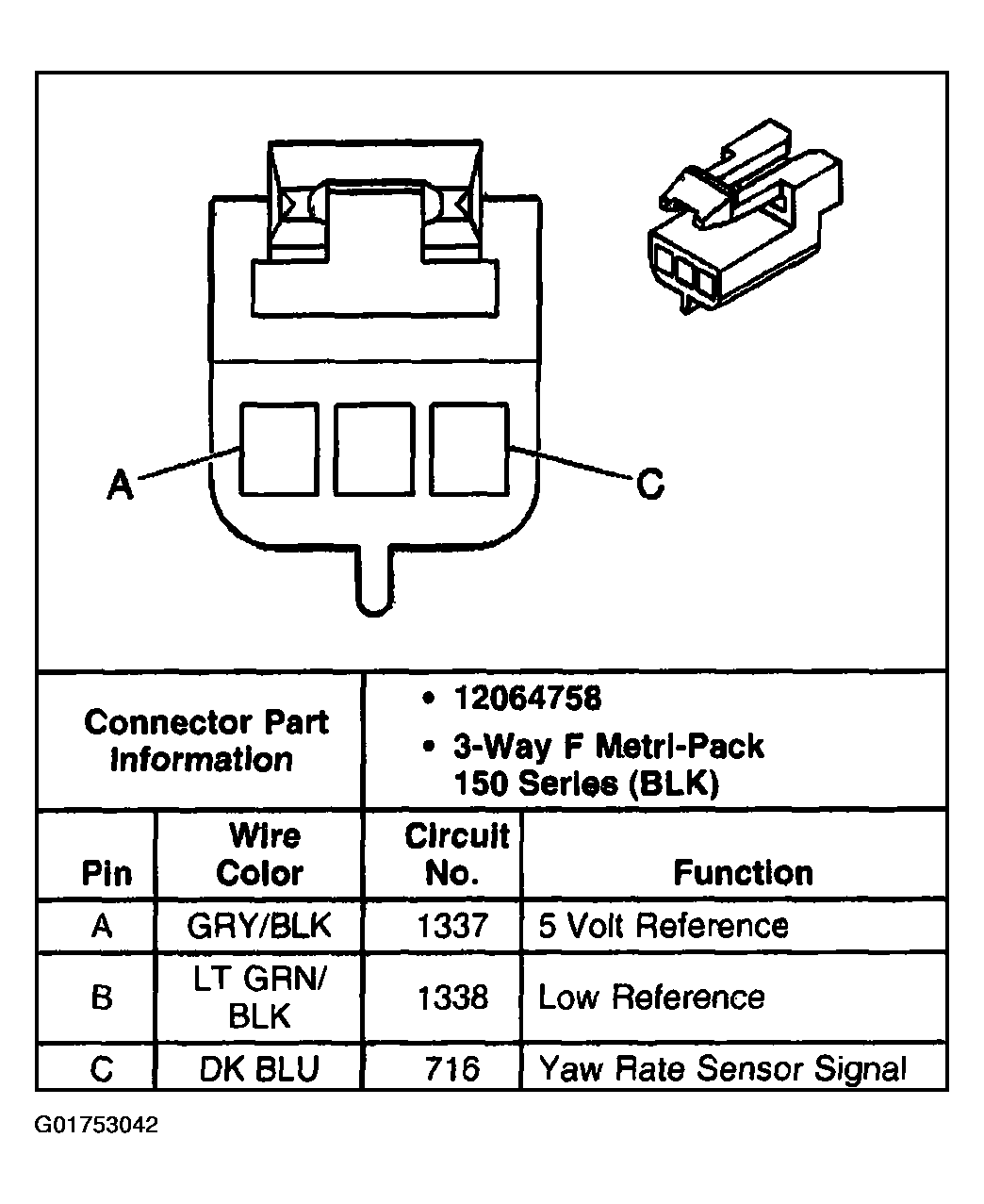

Fig 10: Identifying Yaw Rate Sensor Harness Connector

Courtesy of GENERAL MOTORS CORP.
