Removal Procedure

  1. Turn OFF the ignition.
  2. Remove the rear seat cushion.
  3. Disconnect the lateral accelerometer sensor electrical connector (2).
  4. Remove the 2 lateral accelerometer sensor mounting screws (1).
  5. Remove the lateral accelerometer sensor (3).

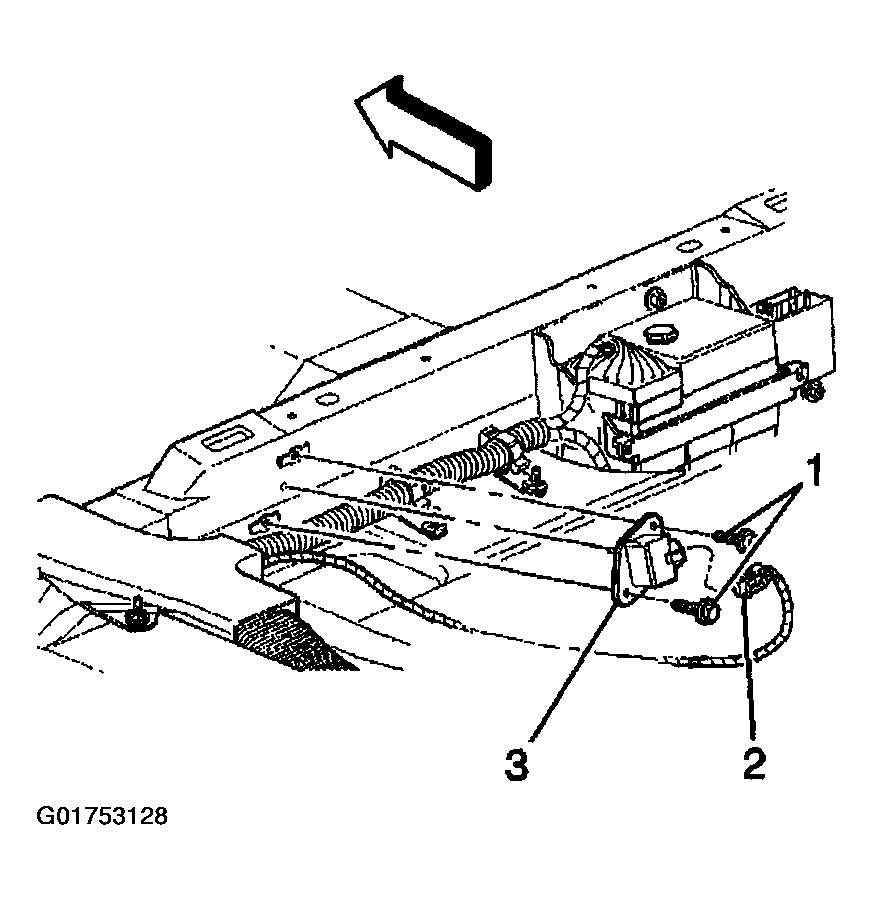

    Fig 1: Locating Lateral Accelerometer Sensor
    G01753128Courtesy of GENERAL MOTORS CORP.
