Removal Procedure

  1. Remove the rear shelf trim panel.
  2. Remove the fasteners from the child tether anchors.
  3. Remove the child tether anchors from the vehicle.

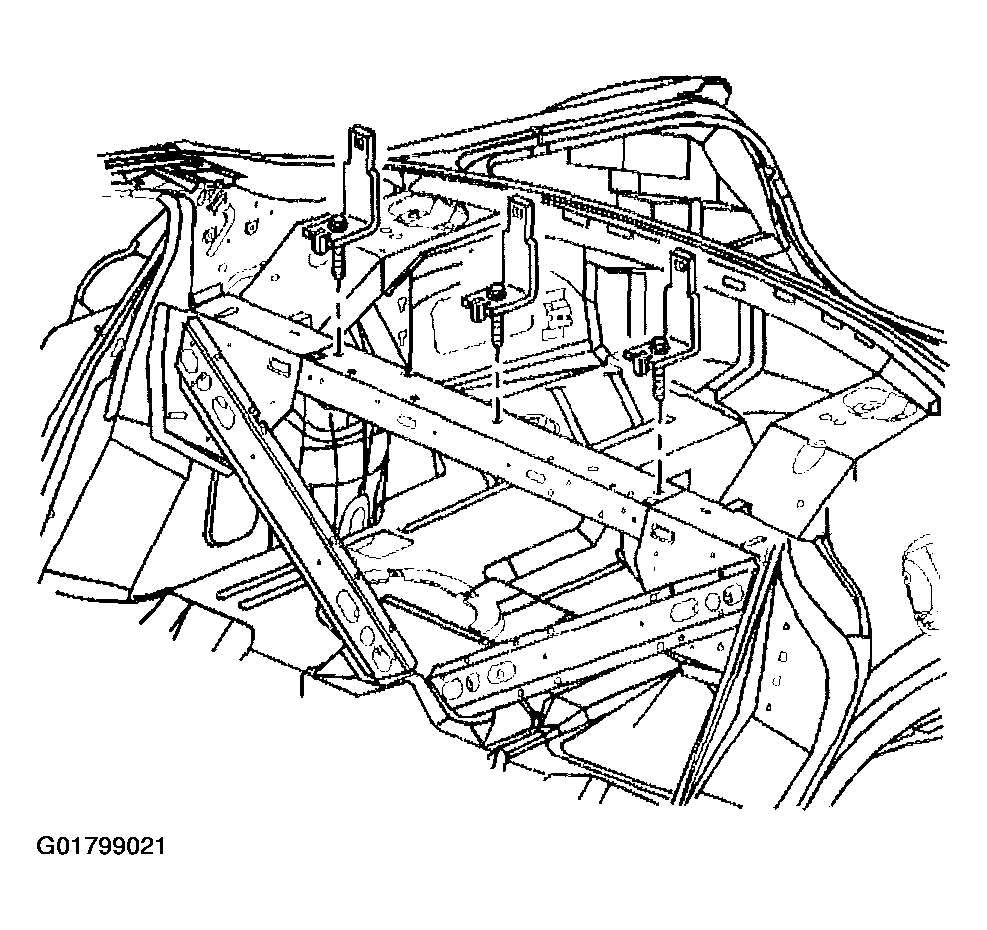

    Fig 1: Child Tether Anchors
    G01799021Courtesy of GENERAL MOTORS CORP.
