A/T Related Connector End Views
Automatic Transmission Related Connector End Views

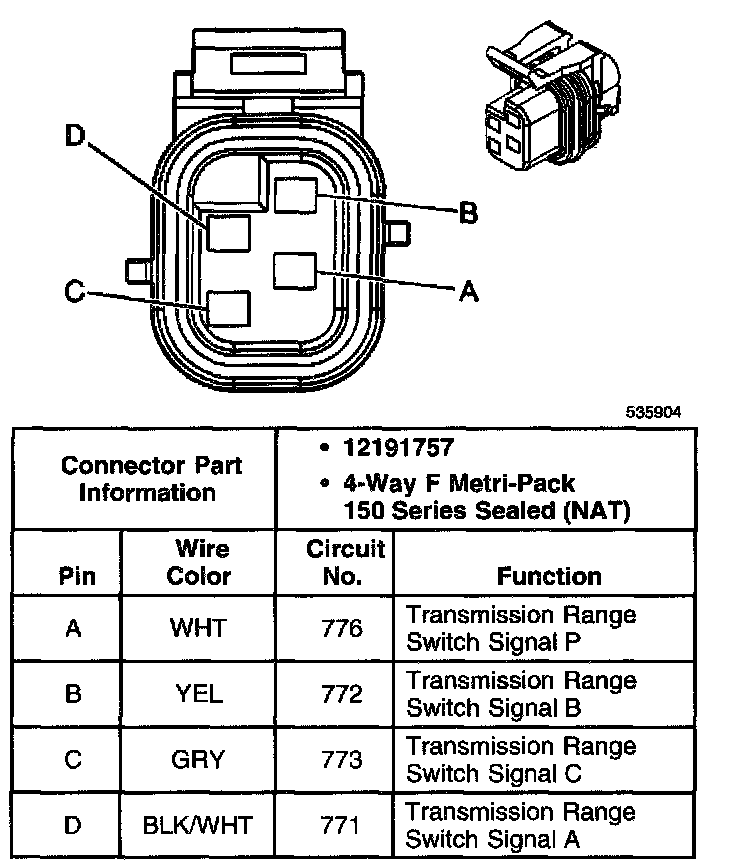

Transmission Range Switch C1 Connector, Wiring Harness Side

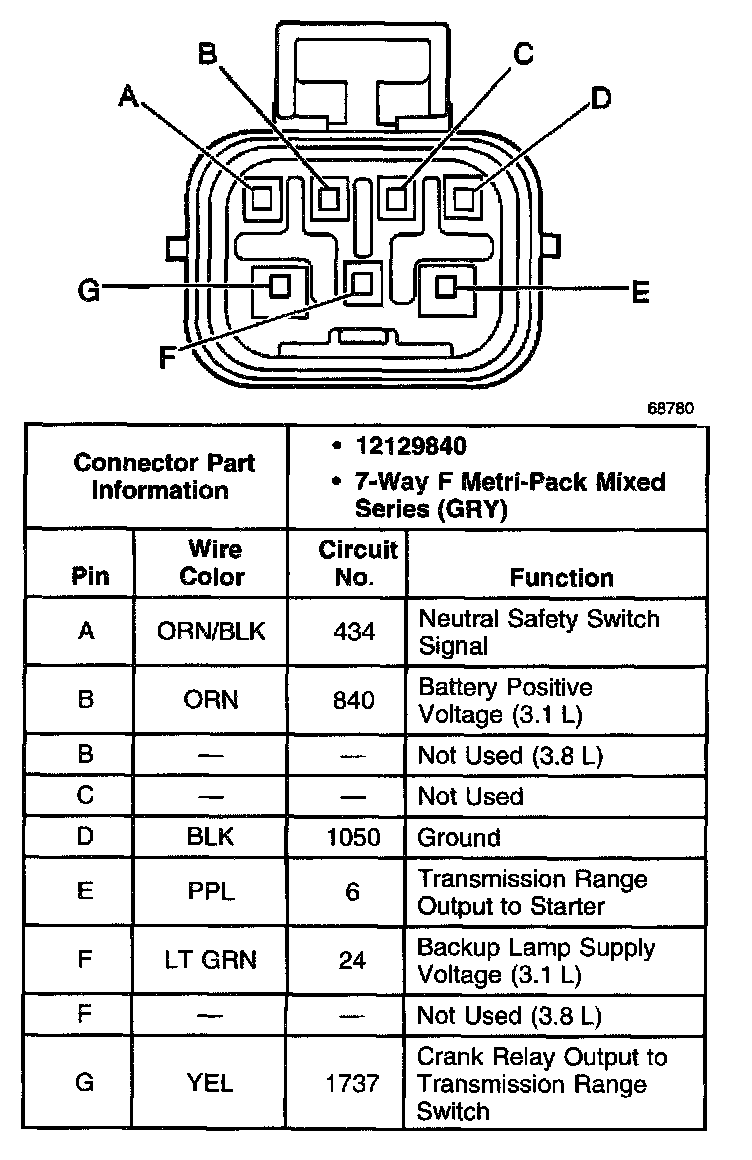

Transmission Range Switch C2 Connector, Wiring Harness Side
Stop Lamp (Shift Interlock/TCC) Switch Connector Wiring Harness Side
Vehicle Speed Sensor Connector, Wiring Harness Side
