Automatic Transmission/Transaxle

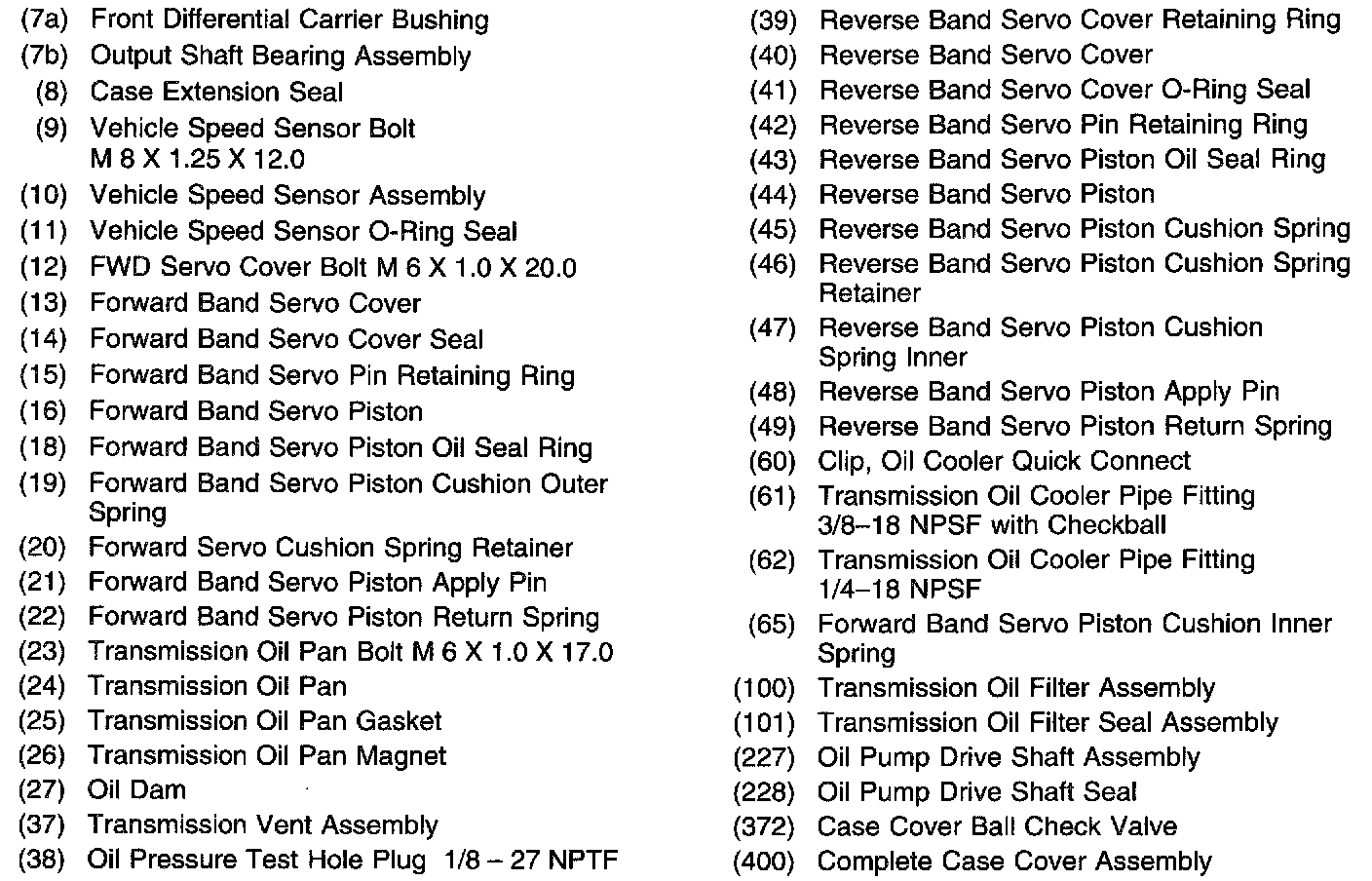

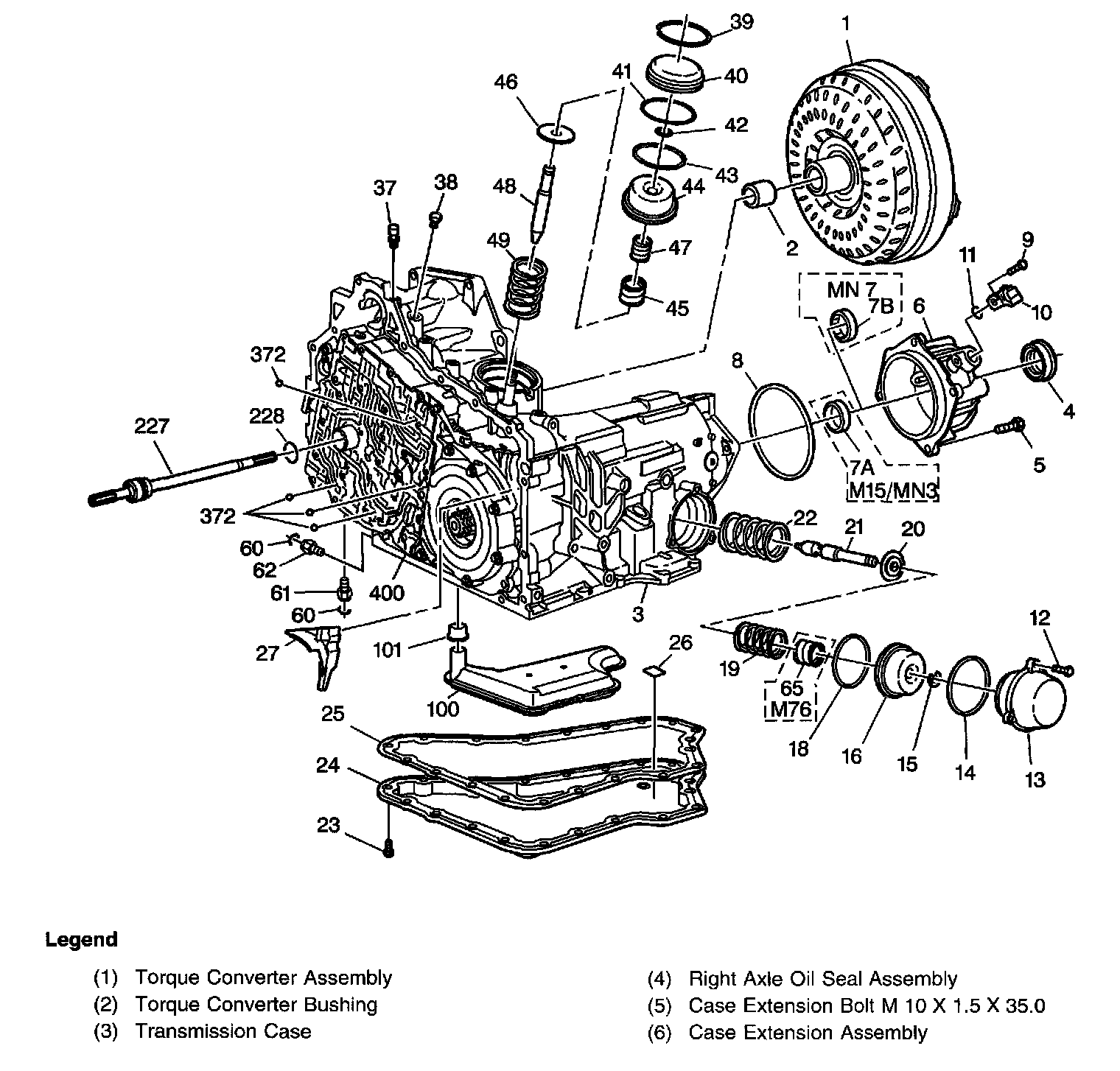

Case and Associated Parts (1 of 4)








Case and Associated Parts (2 of 4)

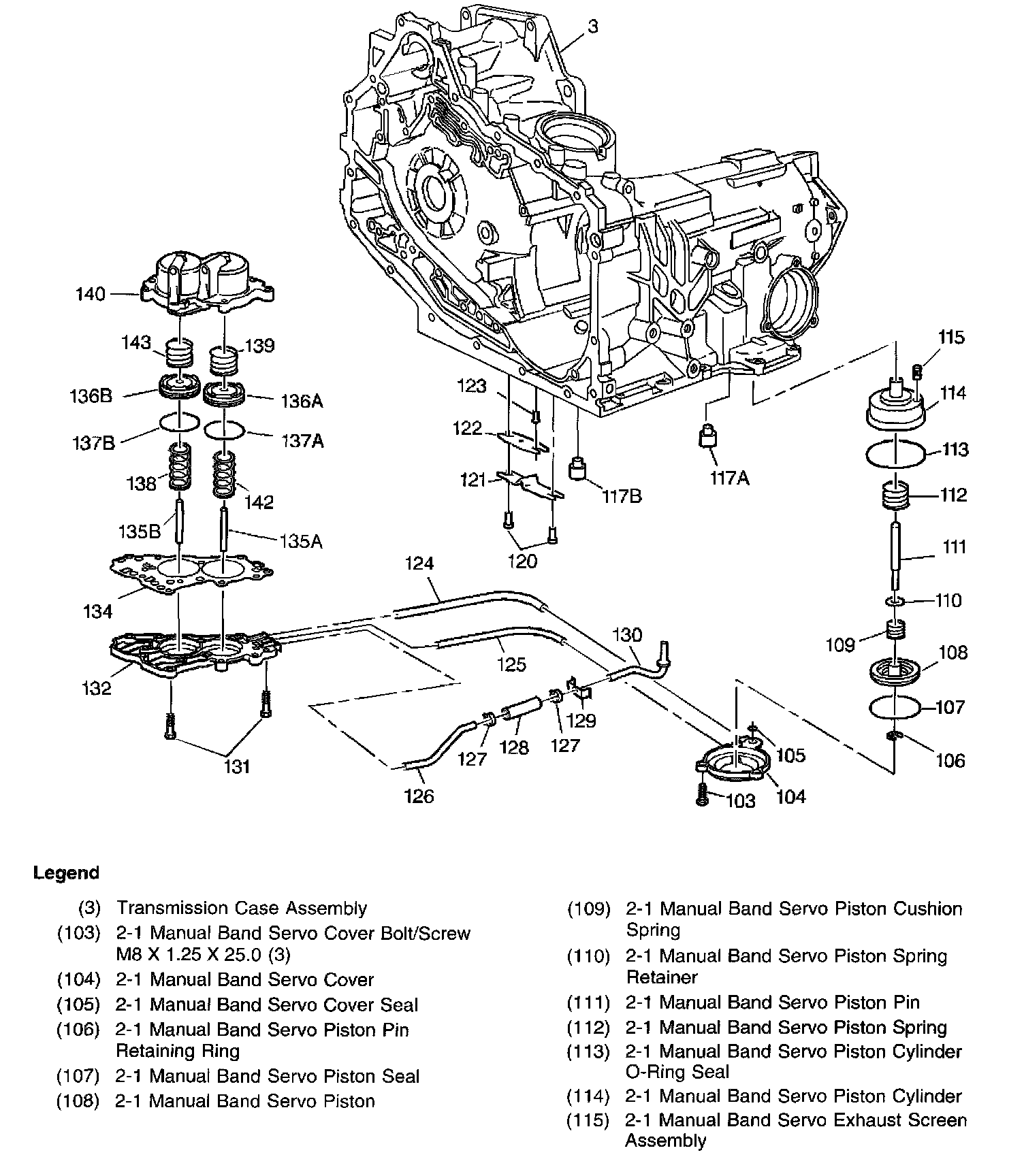

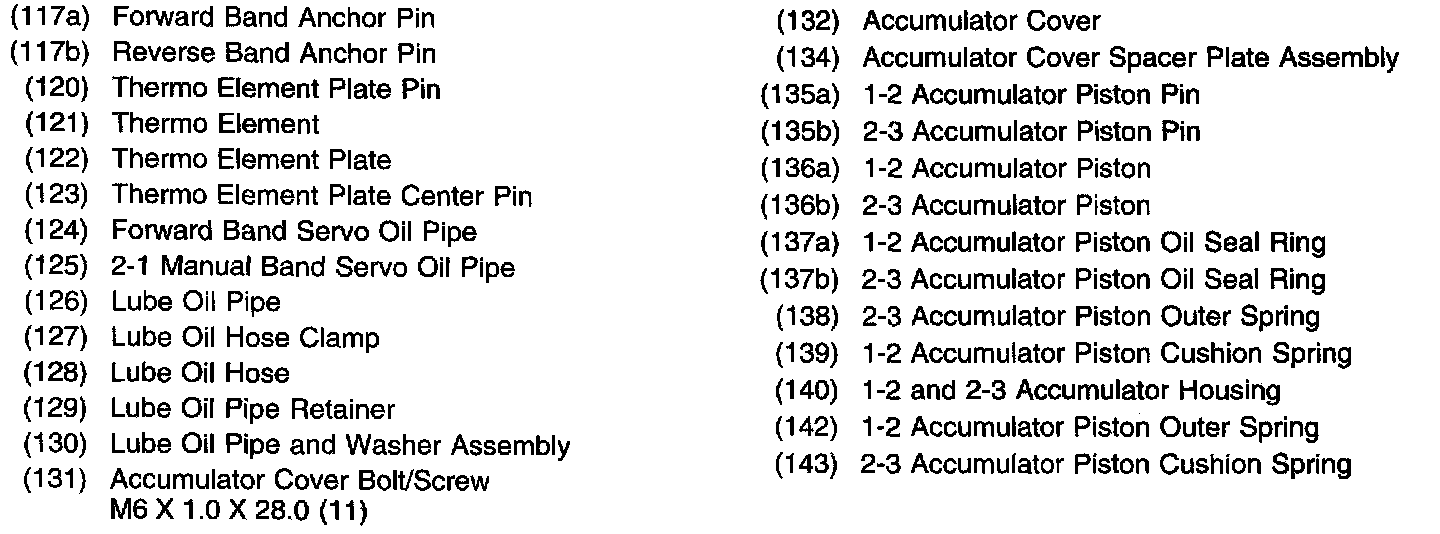

Case and Associated Parts (3 of 4)








Case and Associated Parts (4 of 4)

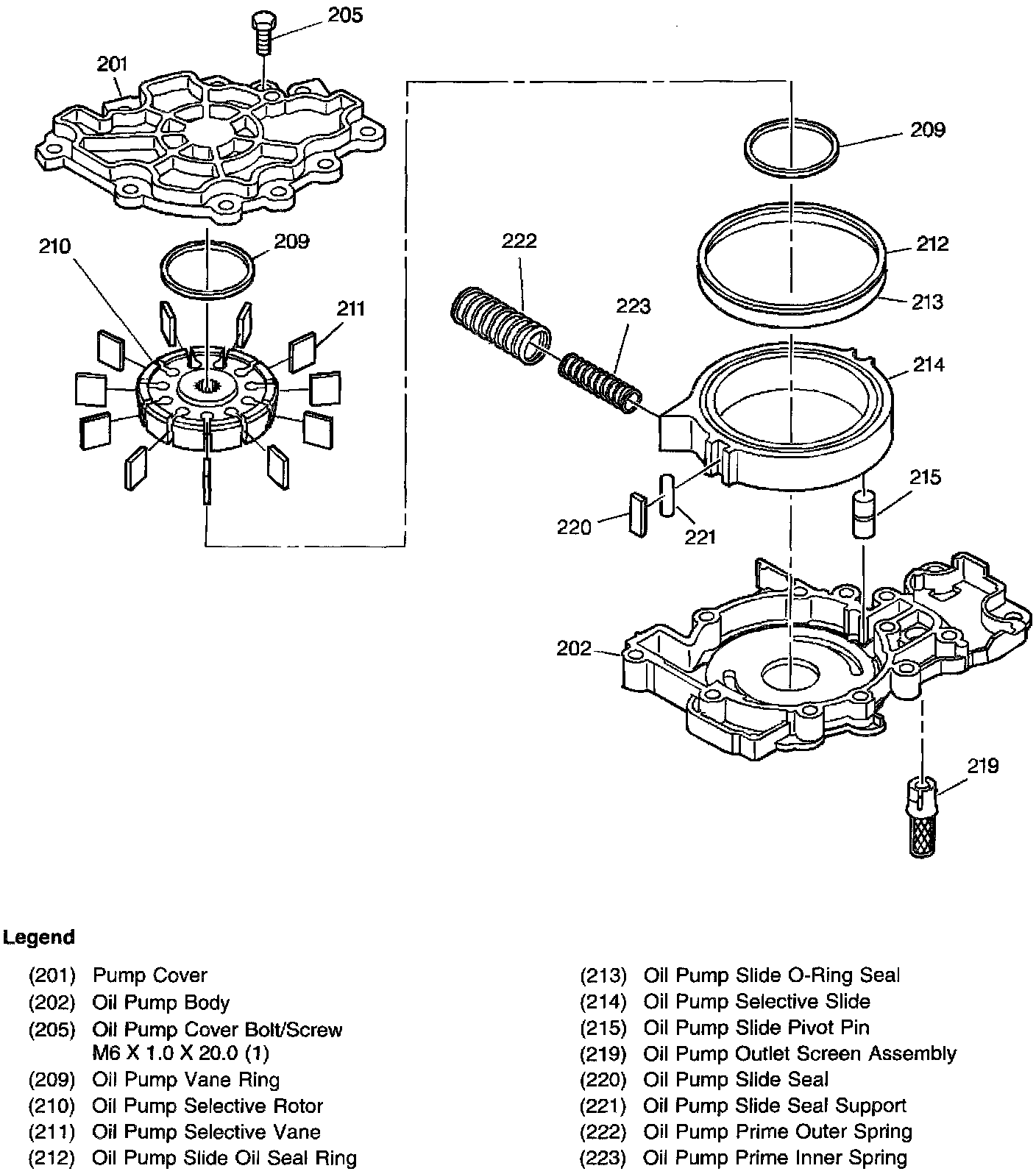

Oil Pump Assembly

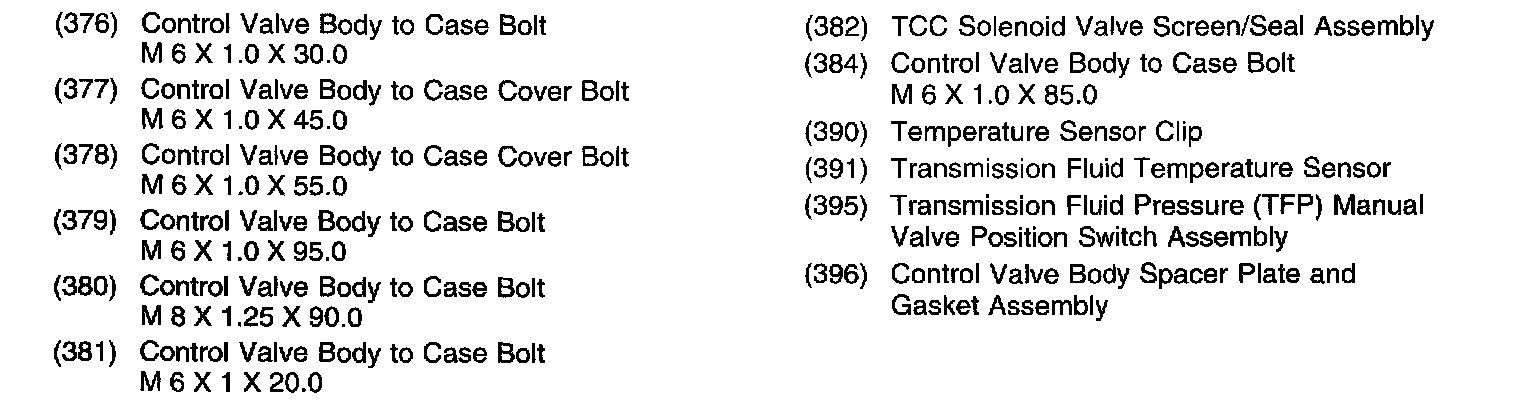

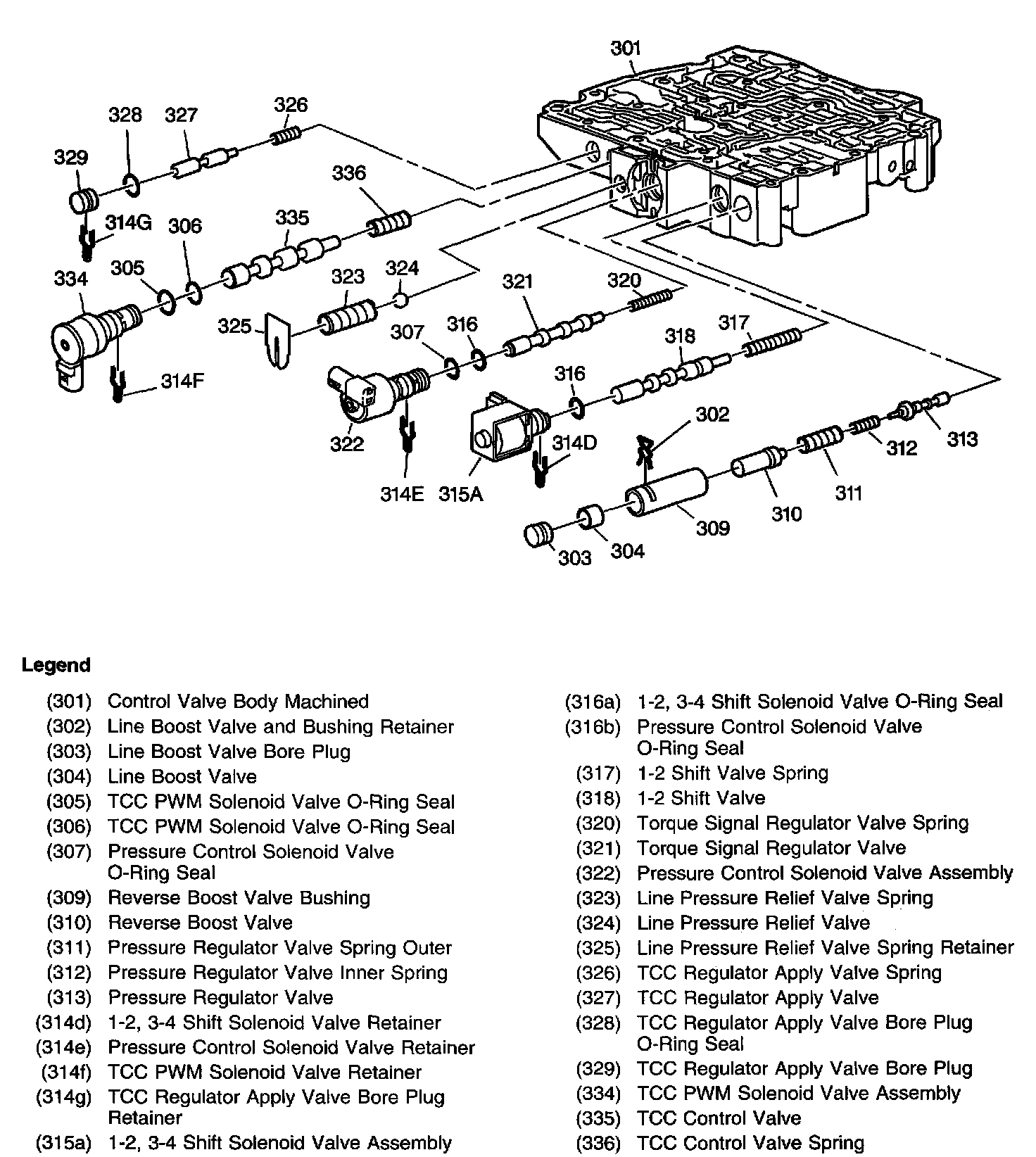

Control Valve Body Assembly (1 of 2)

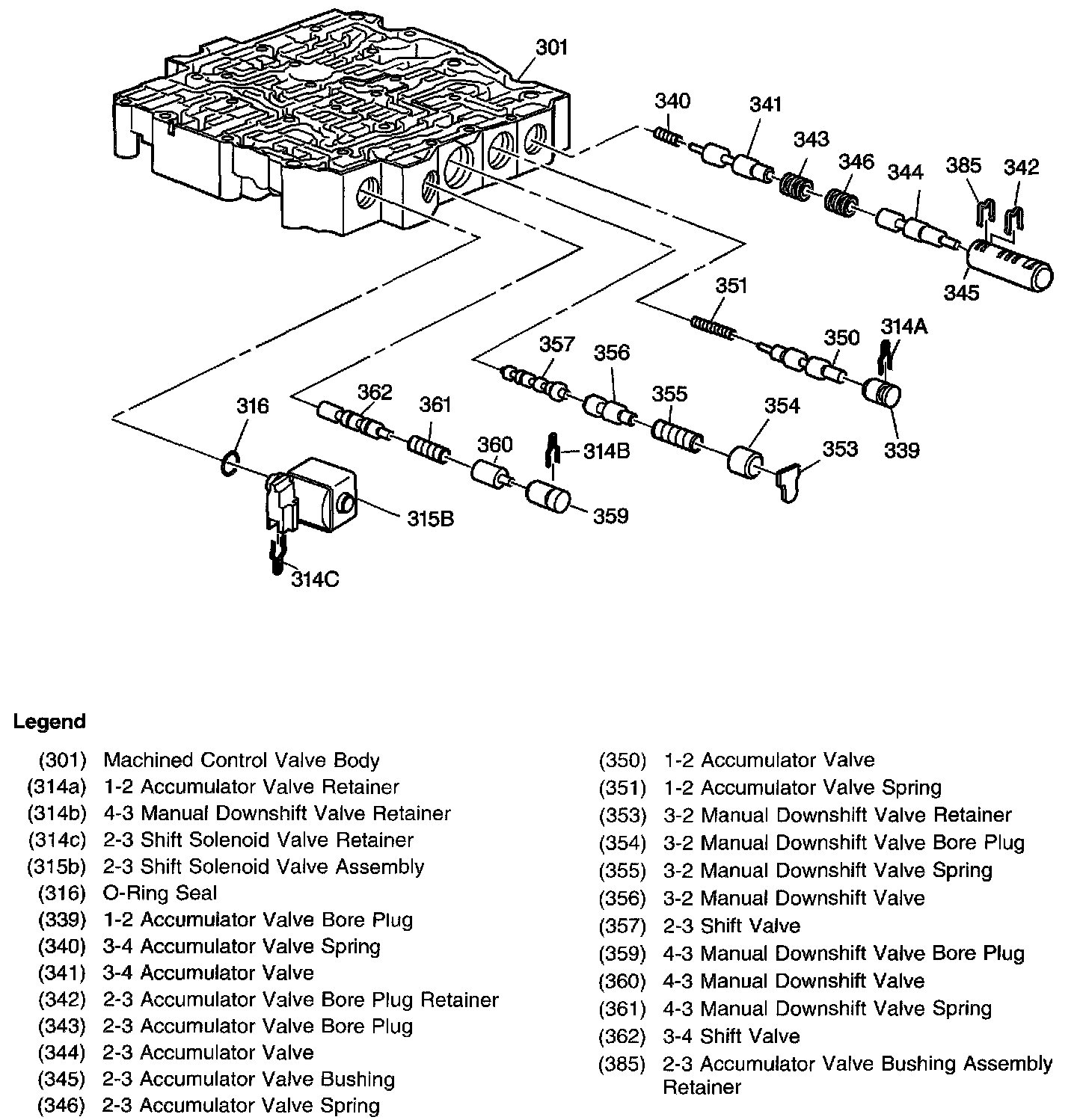

Control Valve Body Assembly (2 of 2)

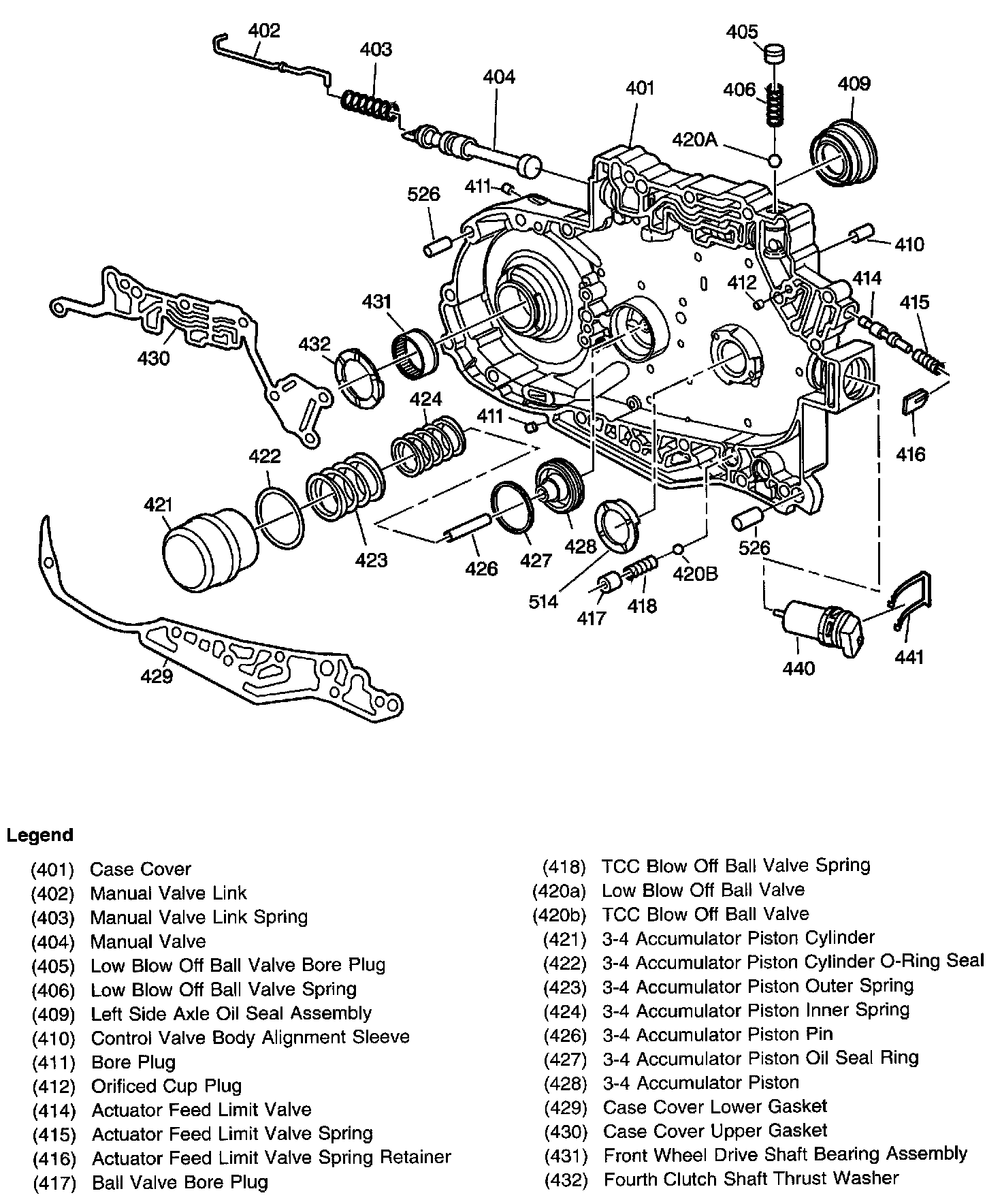

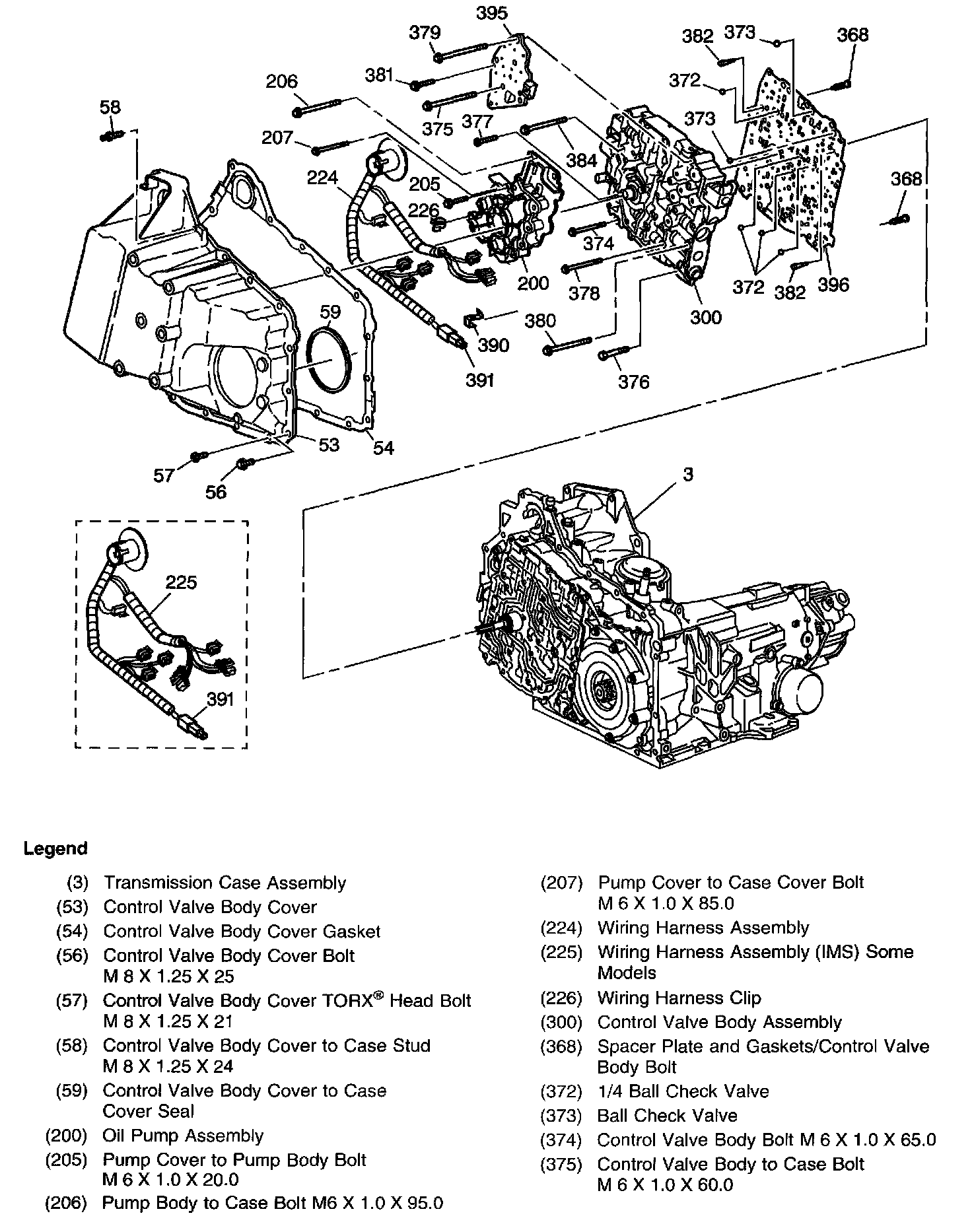

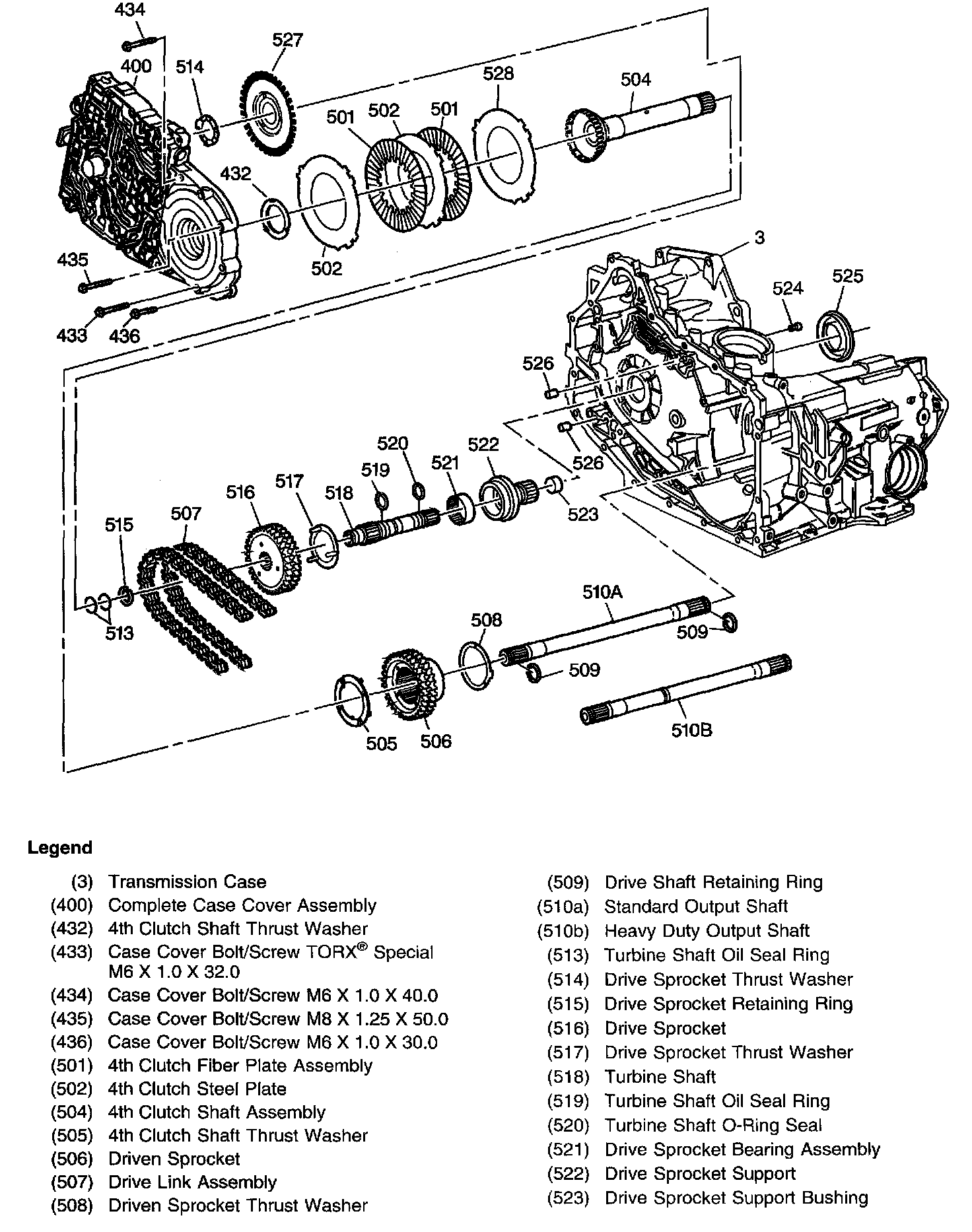

Case Cover Assembly

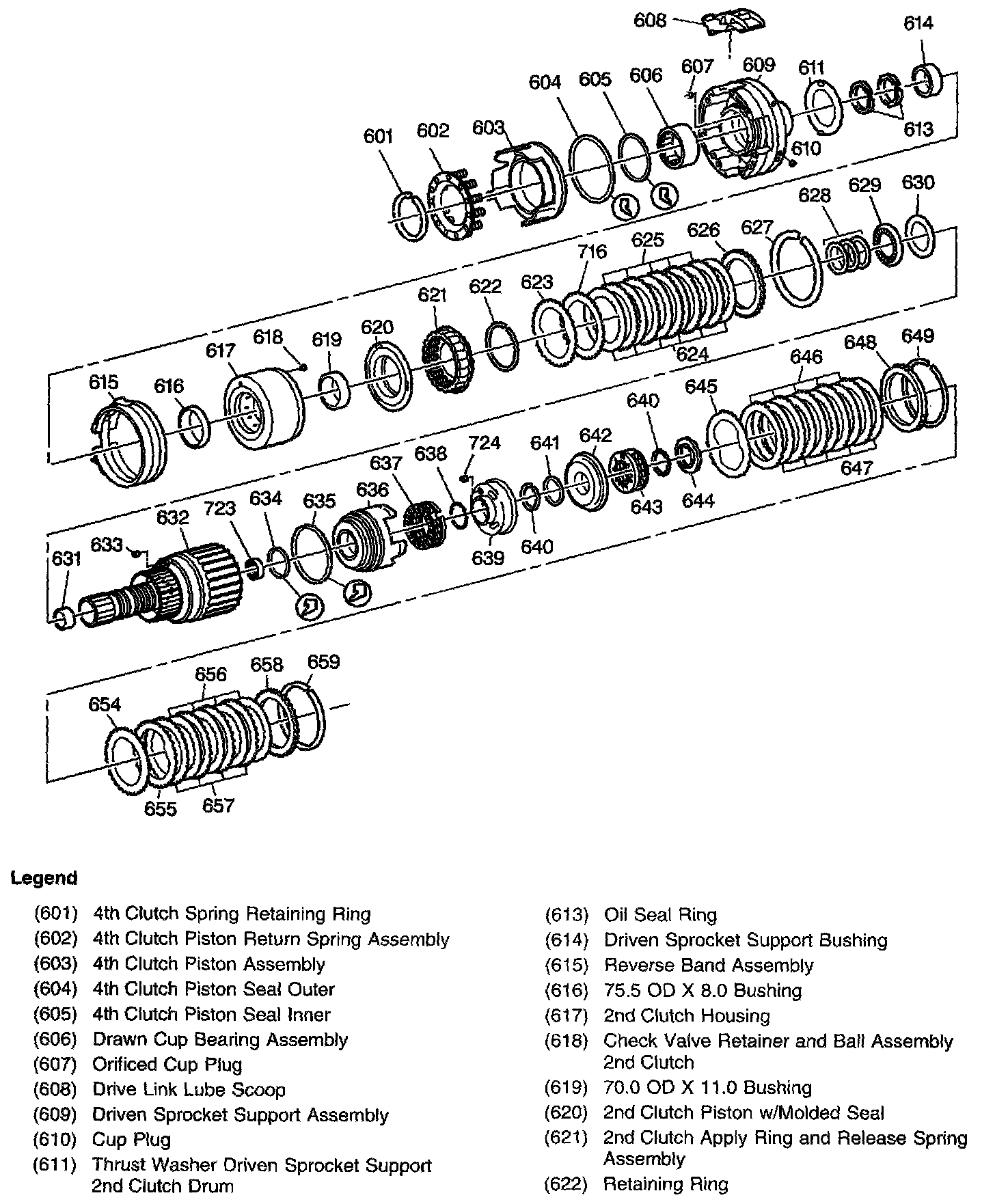

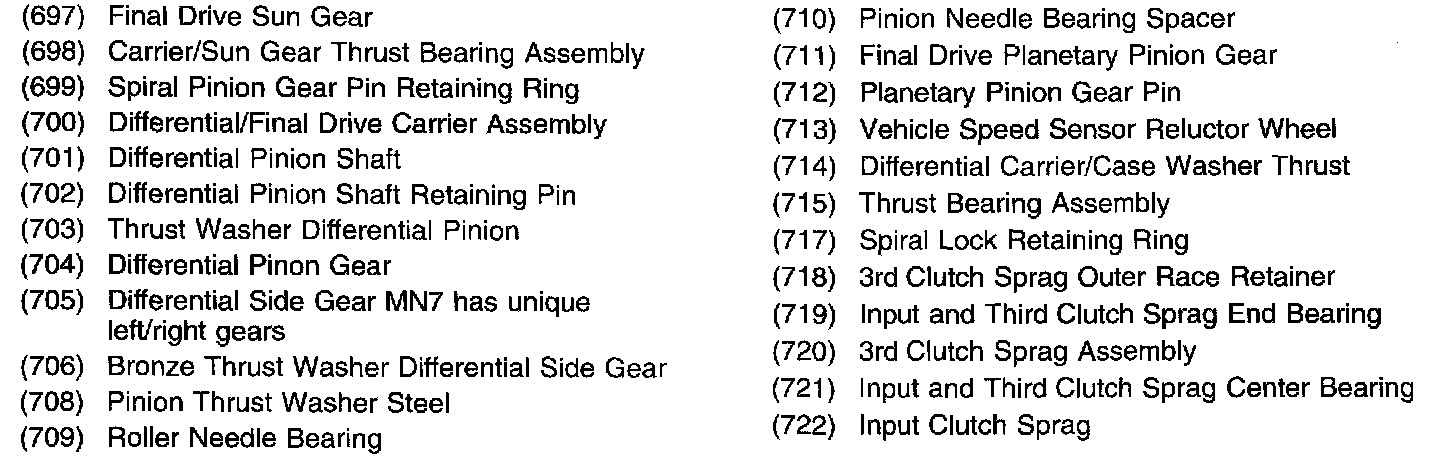

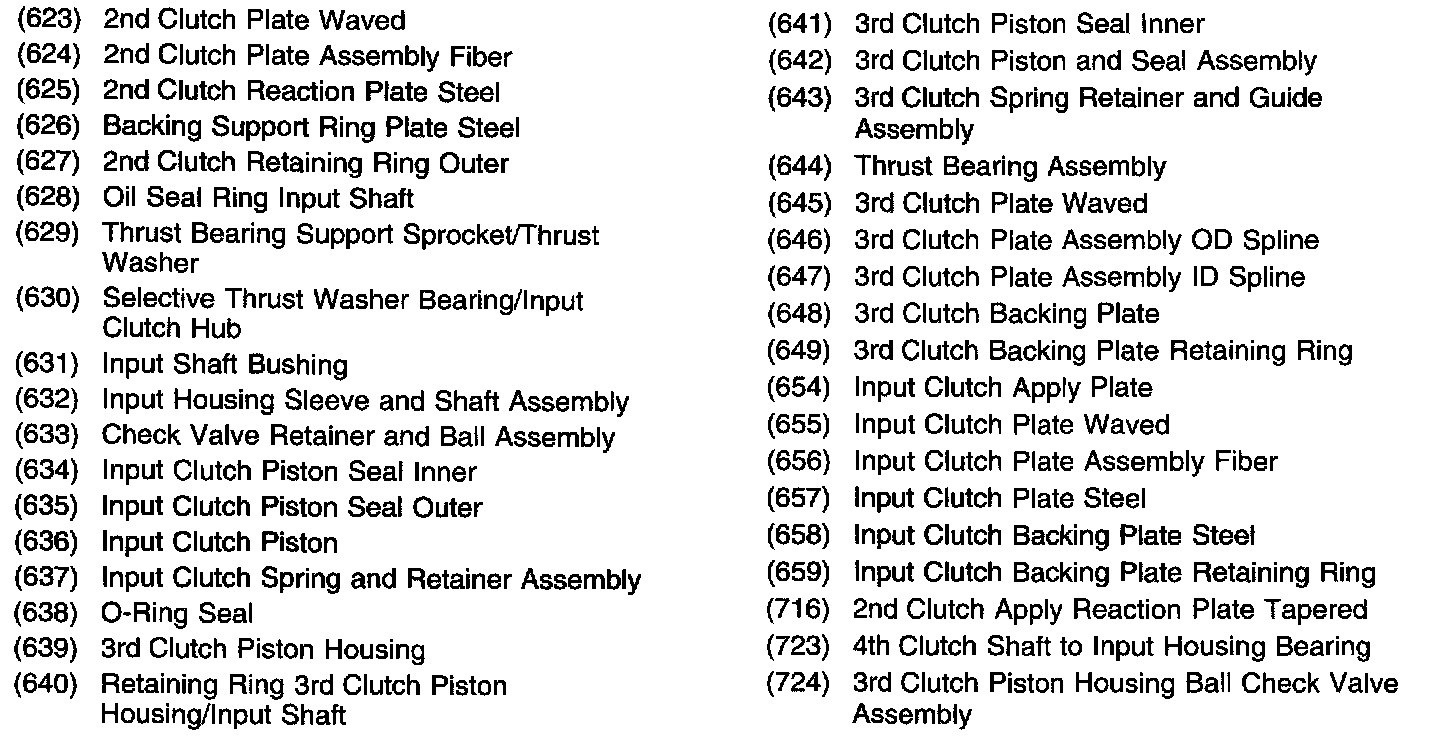

Internal Components (1 of 2)

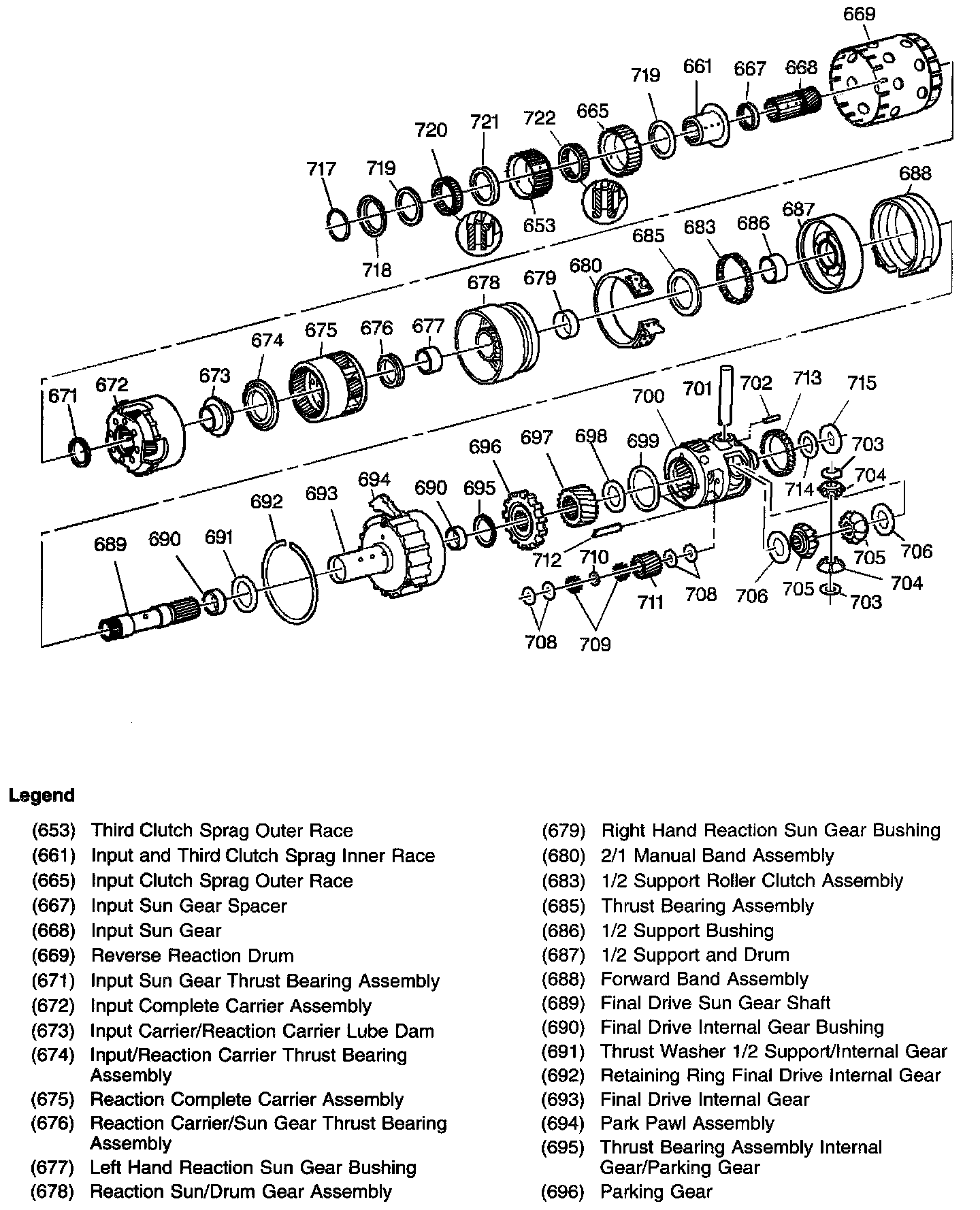

Internal Components (2 of 2)

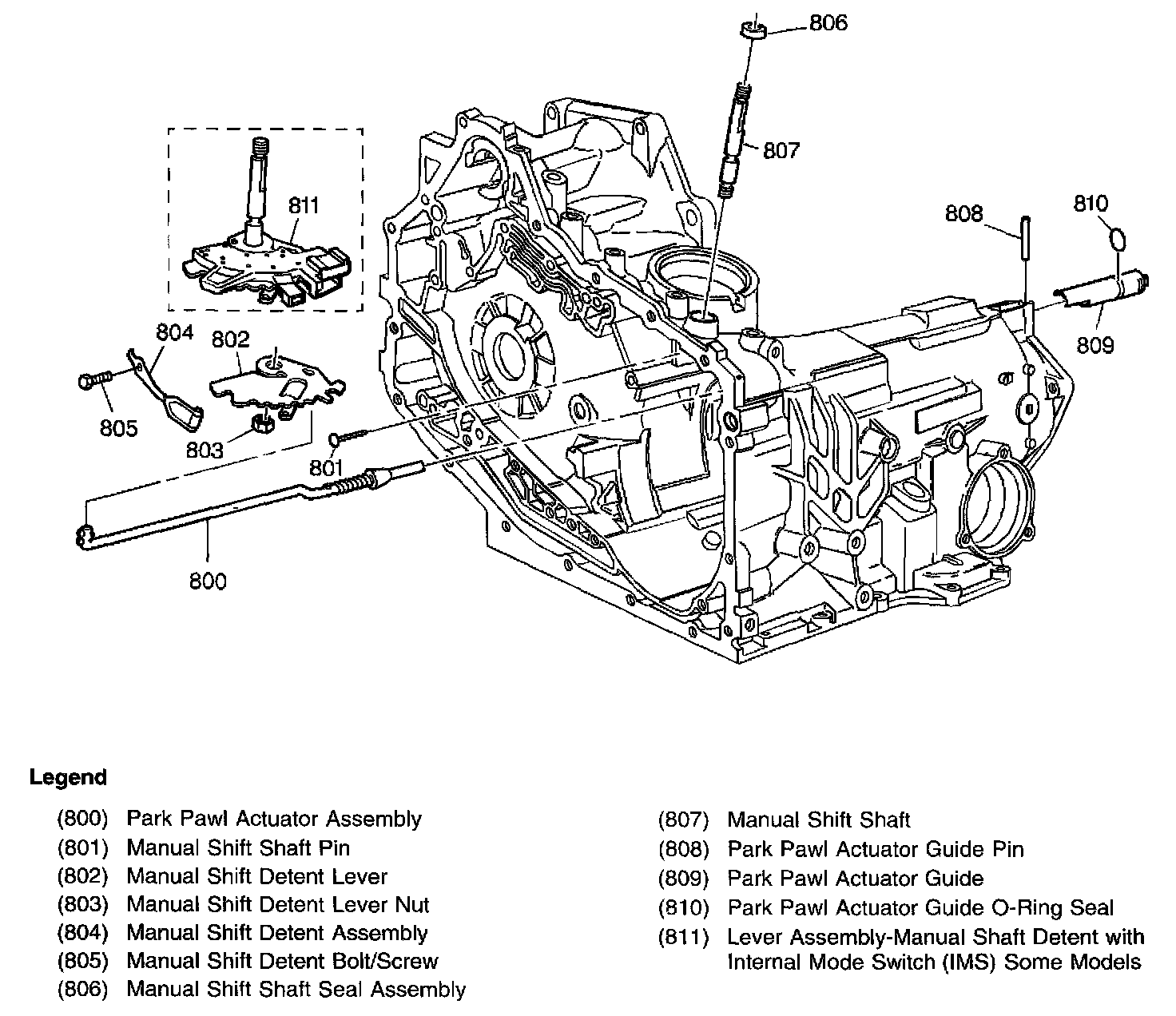

Manual Shaft and Parking System Assembly
