Body Control Module Connector End View (BCM) C3

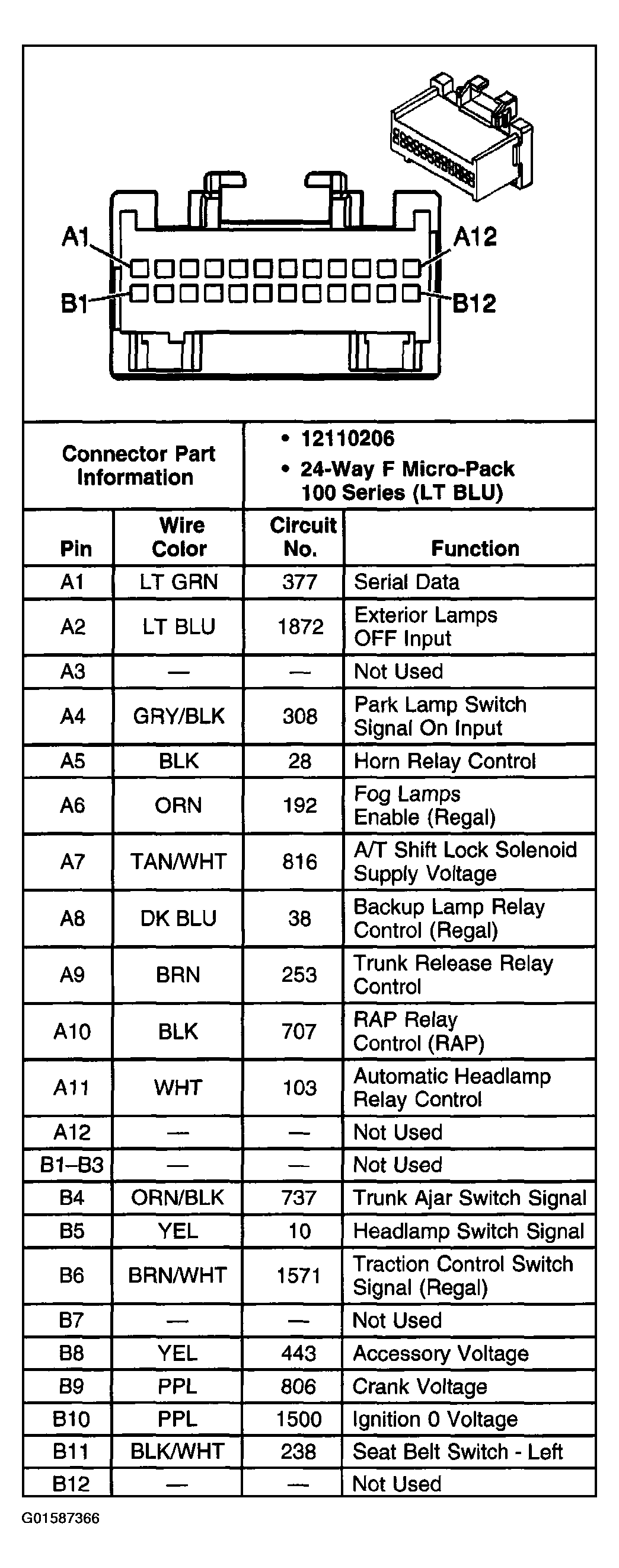

Fig 1: Body Control Module Connector End View (BCM) C3
G01587366Courtesy of GENERAL MOTORS CORP.
