Cruise Control Inoperative/Malfunctioning
>>
Symptom Testing
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Symptom Testing

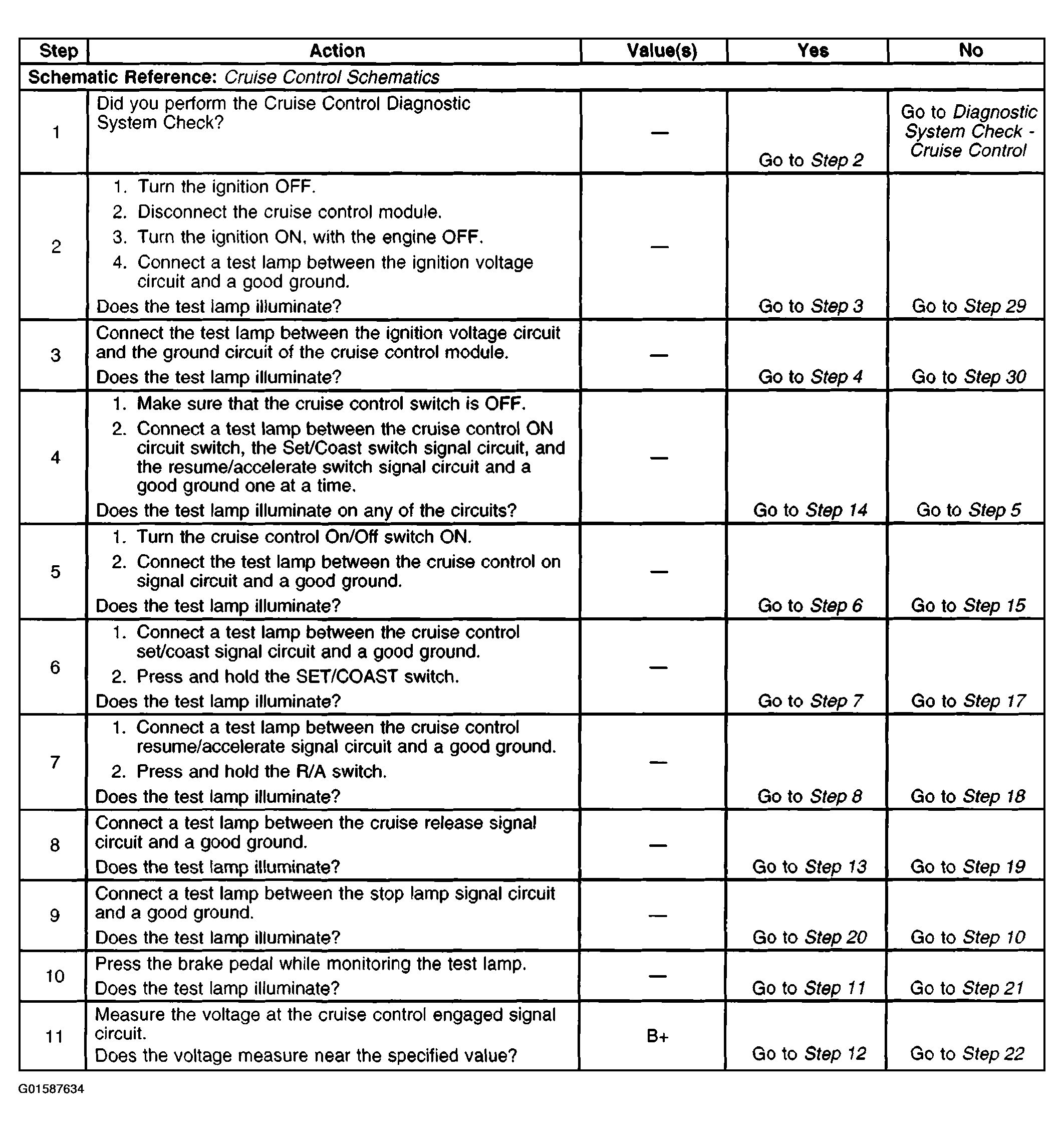

Fig 1: Diagnostic System Check - Cruise Control Inoperative/Malfunctioning (Steps 1-11)
Courtesy of GENERAL MOTORS CORP.

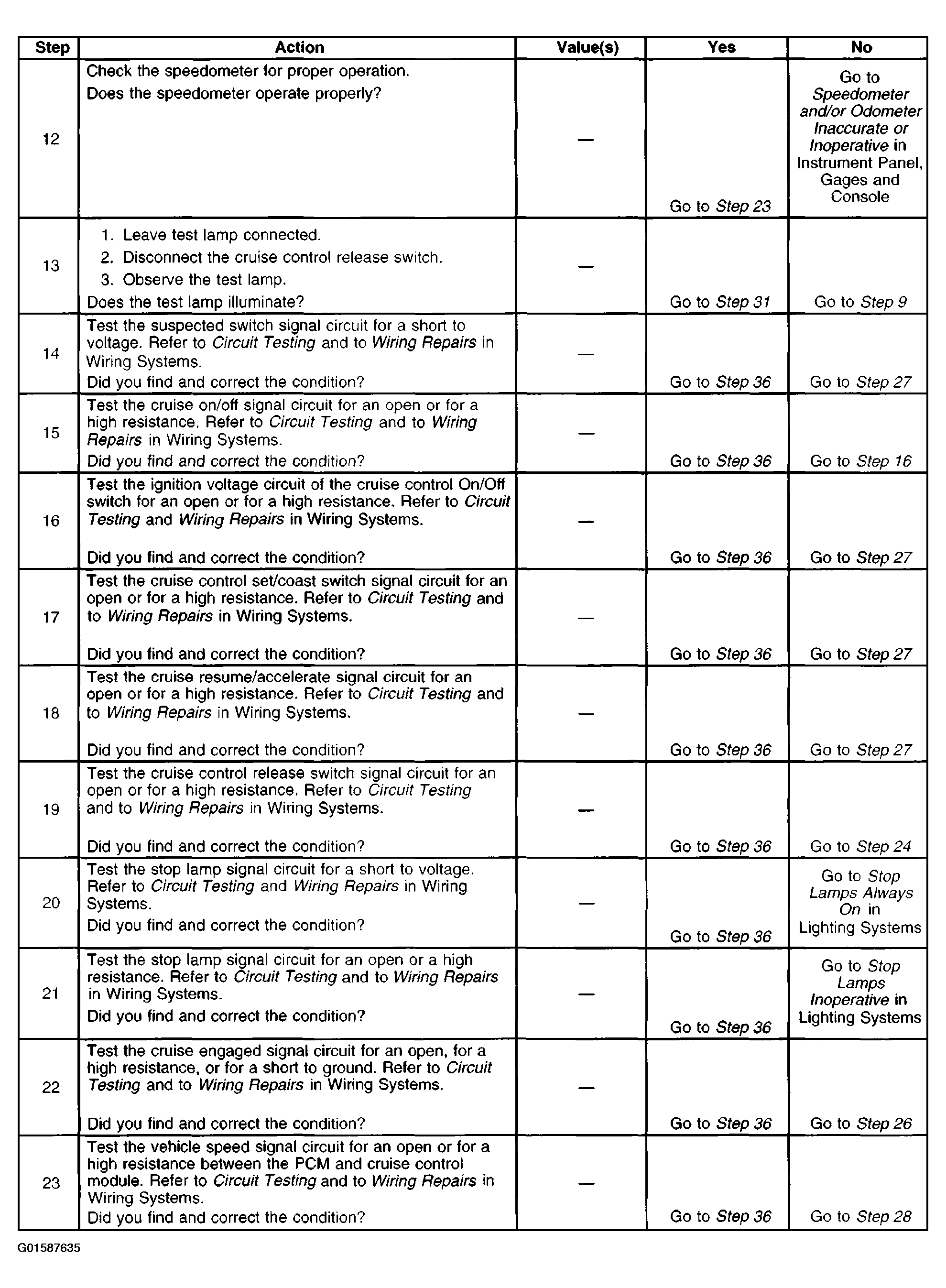

Fig 2: Diagnostic System Check - Cruise Control Inoperative/Malfunctioning (Steps 12-23)
Courtesy of GENERAL MOTORS CORP.

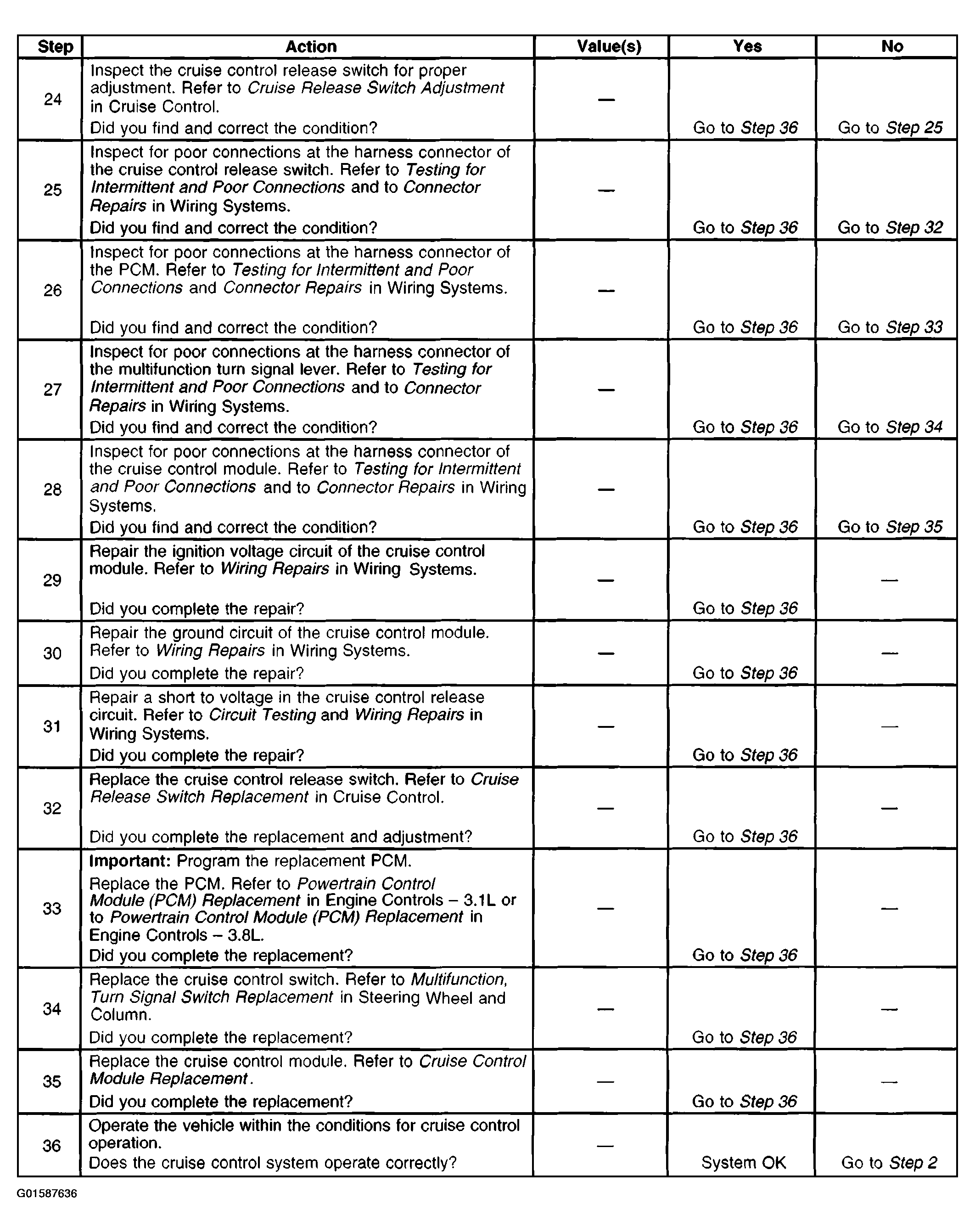

Fig 3: Diagnostic System Check - Cruise Control Inoperative/Malfunctioning (Steps 24-36)
Courtesy of GENERAL MOTORS CORP.
