Entertainment Connector End Views

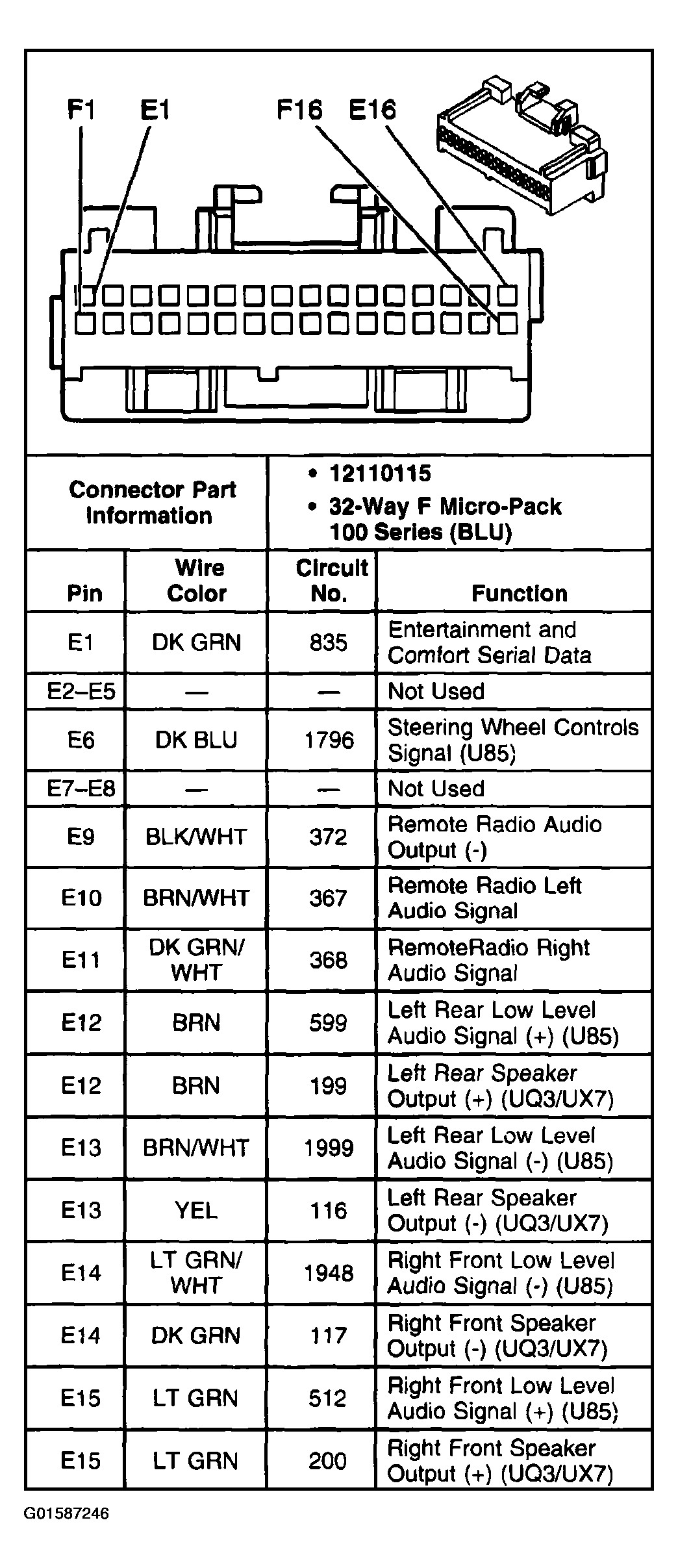

Fig 1: Radio Connector End View (1 Of 2)
G01587246Courtesy of GENERAL MOTORS CORP.

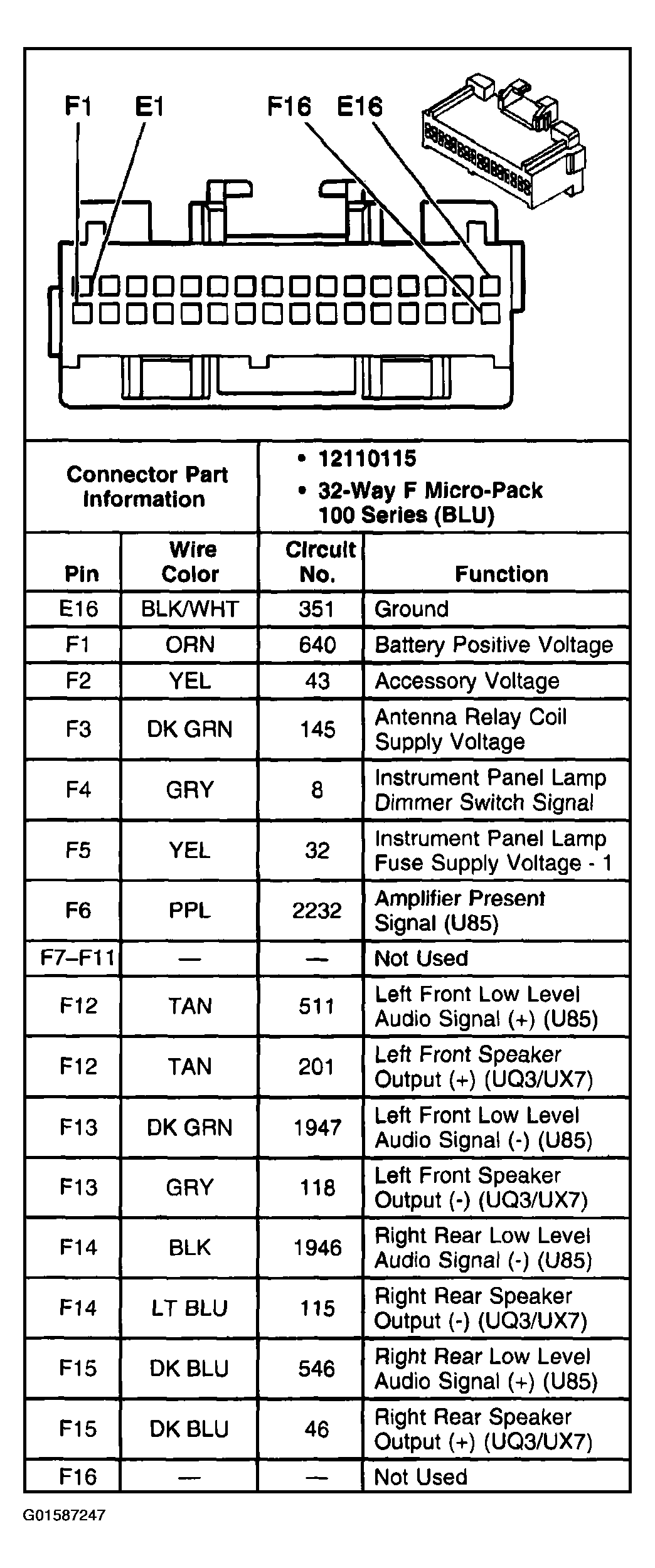

Fig 2: Radio Connector End View(1 Of 2)
G01587247Courtesy of GENERAL MOTORS CORP.

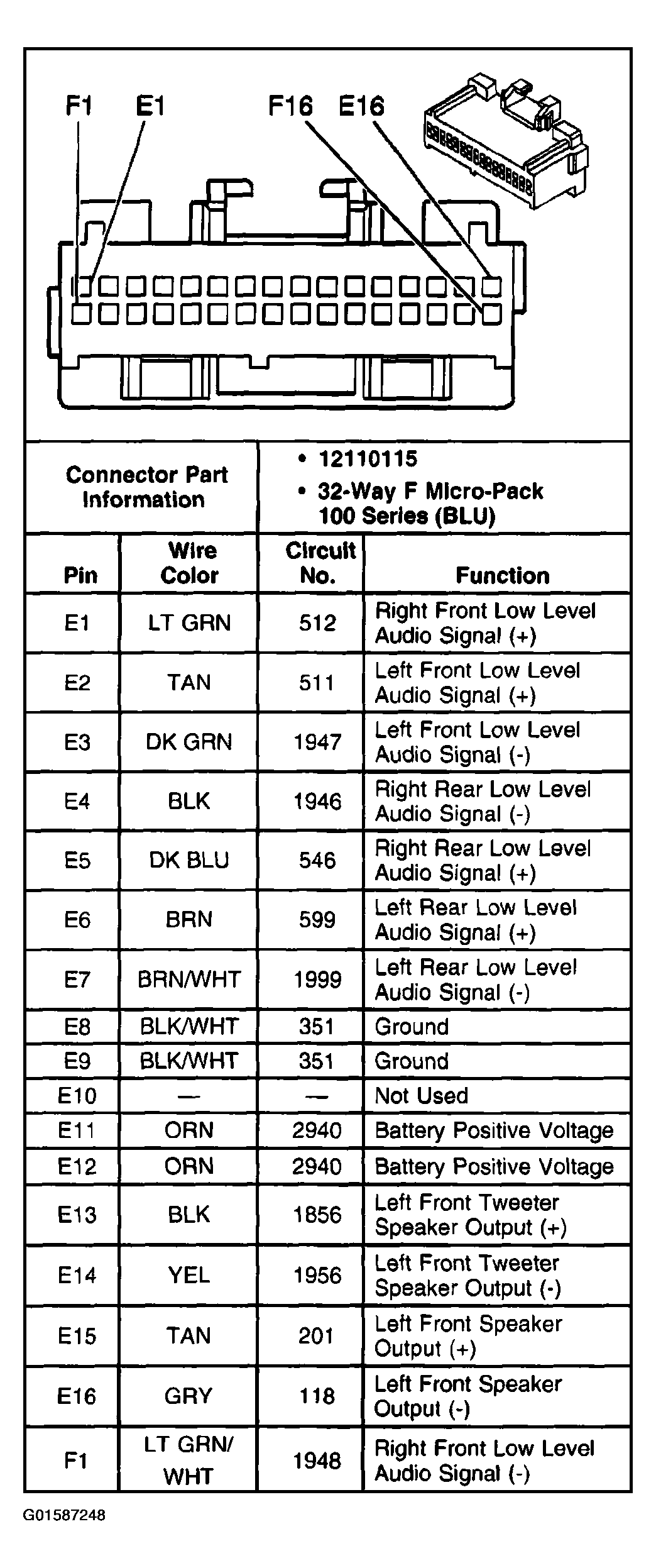

Fig 3: Audio Amplifier (U85) Connector End View (1 Of 2)
G01587248Courtesy of GENERAL MOTORS CORP.

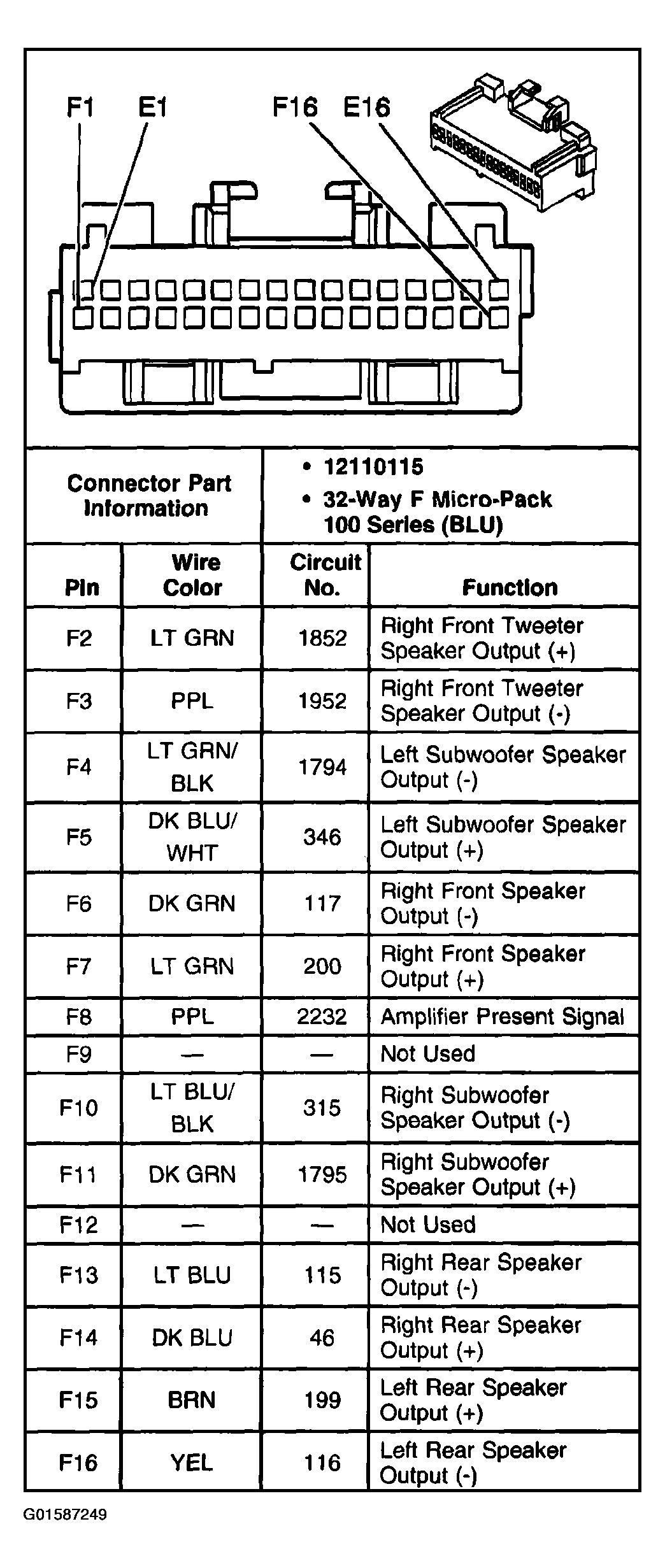

Fig 4: Audio Amplifier (U85) Connector End View (2 Of 2)
G01587249Courtesy of GENERAL MOTORS CORP.

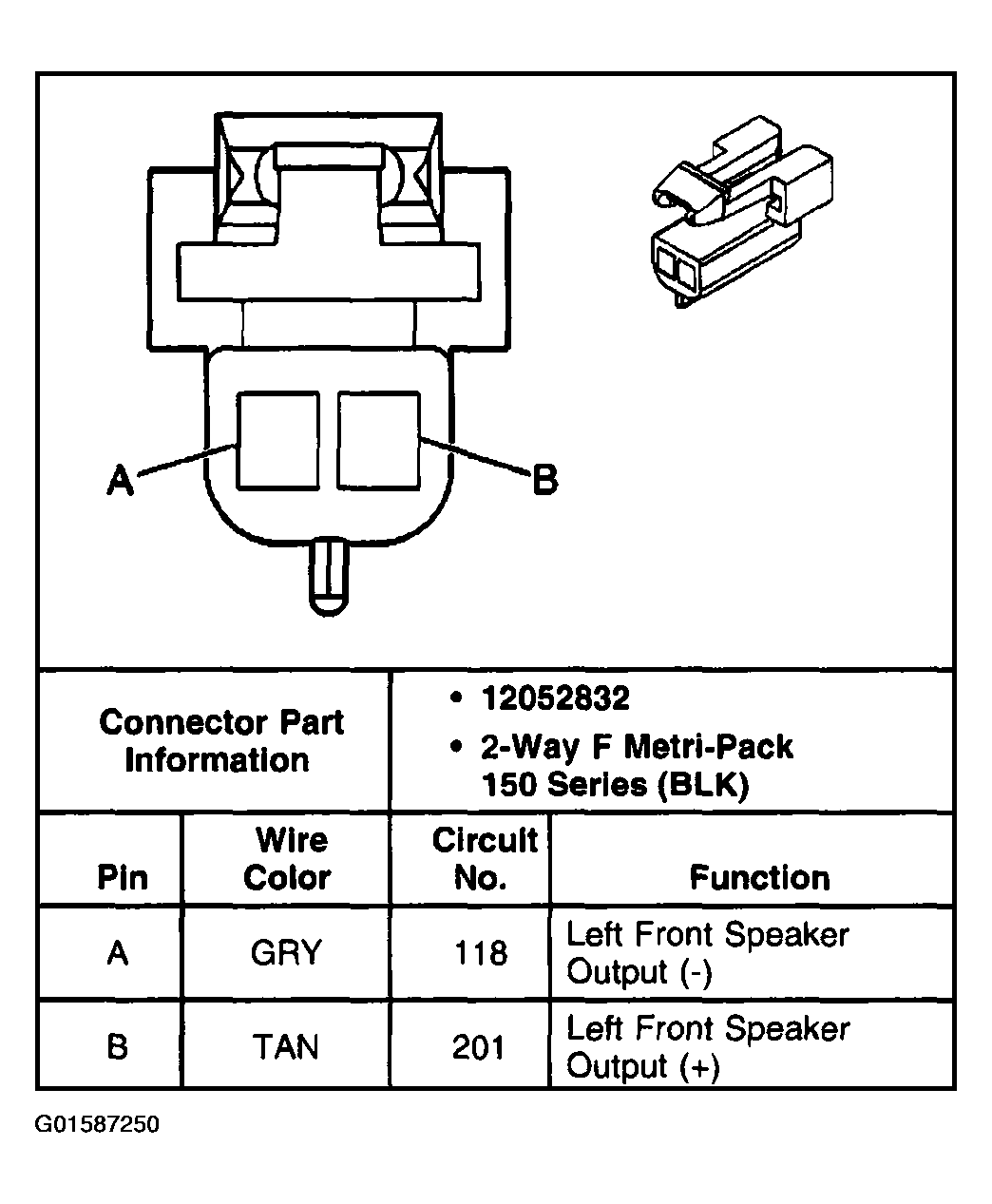

Fig 5: Speaker - LF Door Midrange Connector End View
G01587250Courtesy of GENERAL MOTORS CORP.
Fig 6: Speaker - LR (U85) Connector End View
G01587251Courtesy of GENERAL MOTORS CORP.
Fig 7: Speaker - LF Door Tweeter (U85) Connector End View
G01587252Courtesy of GENERAL MOTORS CORP.
Fig 8: Speaker - LR (UQ3/UX7) Connector End View
G01587253Courtesy of GENERAL MOTORS CORP.
Fig 9: Speaker - RF Door Midrange Connector End View
G01587254Courtesy of GENERAL MOTORS CORP.
Fig 10: Speaker - RR (U85) Connector End View
G01587255Courtesy of GENERAL MOTORS CORP.
Fig 11: Speaker - RF Door Tweeter (U85) Connector End View
G01587256Courtesy of GENERAL MOTORS CORP.

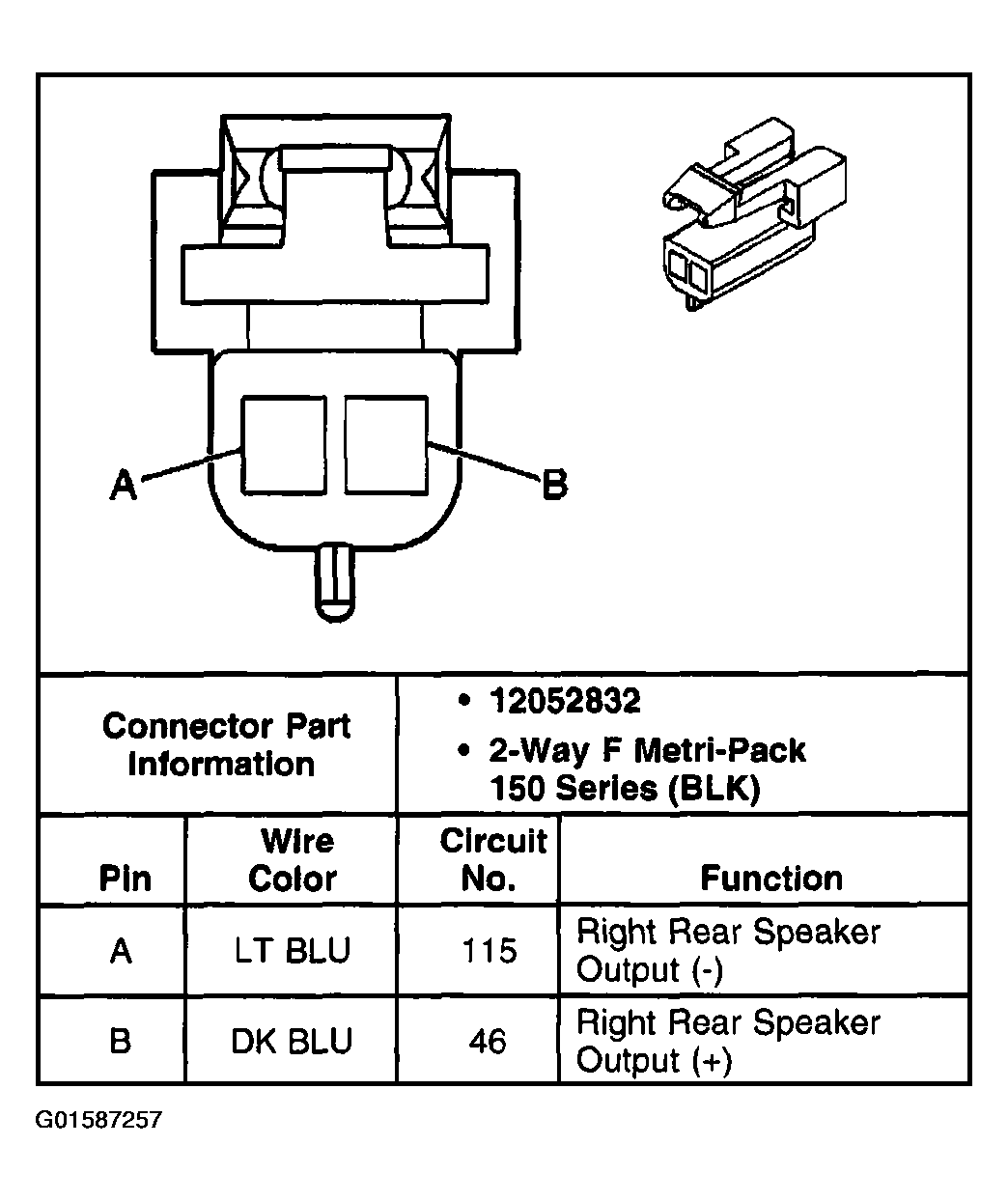

Fig 12: Speaker - RR (UQ3/UX7) Connector End View
G01587257Courtesy of GENERAL MOTORS CORP.
