Removal Procedure

  1. Open the rear door.
  2. Using J 36604, remove the rear door hinge spring from the rear door hinge.
  3. Remove the door hinge spring from the vehicle.

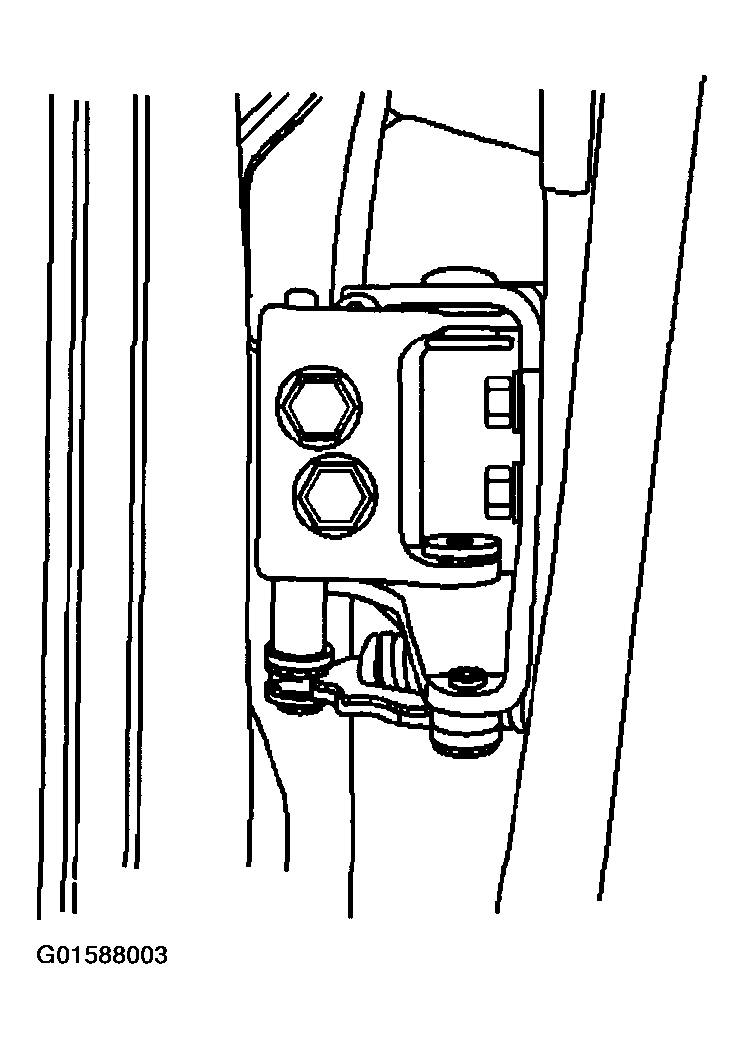

    4. Fig 1: Removing Rear Door Hinge Spring
    G01588003Courtesy of GENERAL MOTORS CORP.
