Door Lock/Indicator Schematics

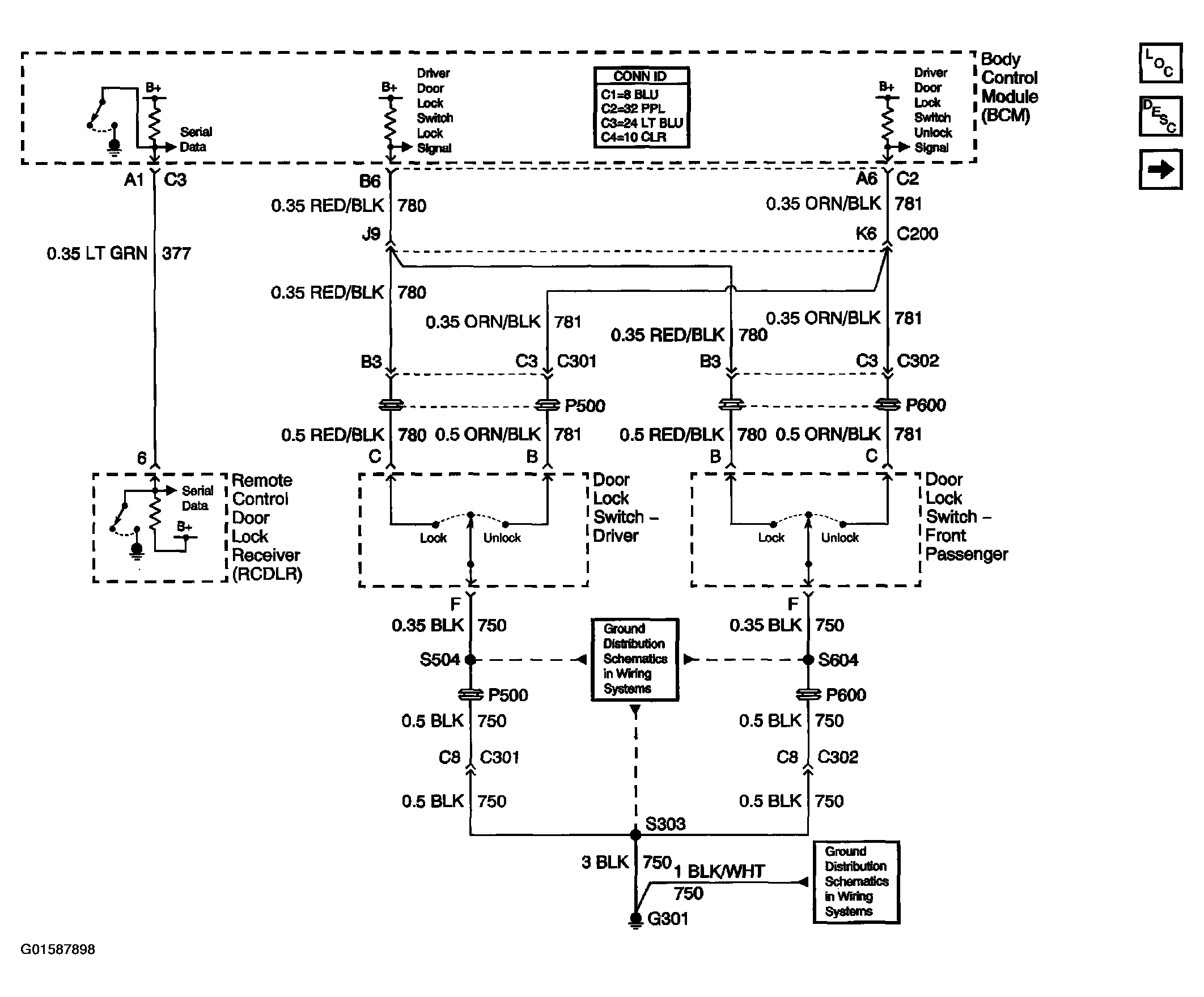

Fig 1: Door Switches Diagram
G01587898Courtesy of GENERAL MOTORS CORP.

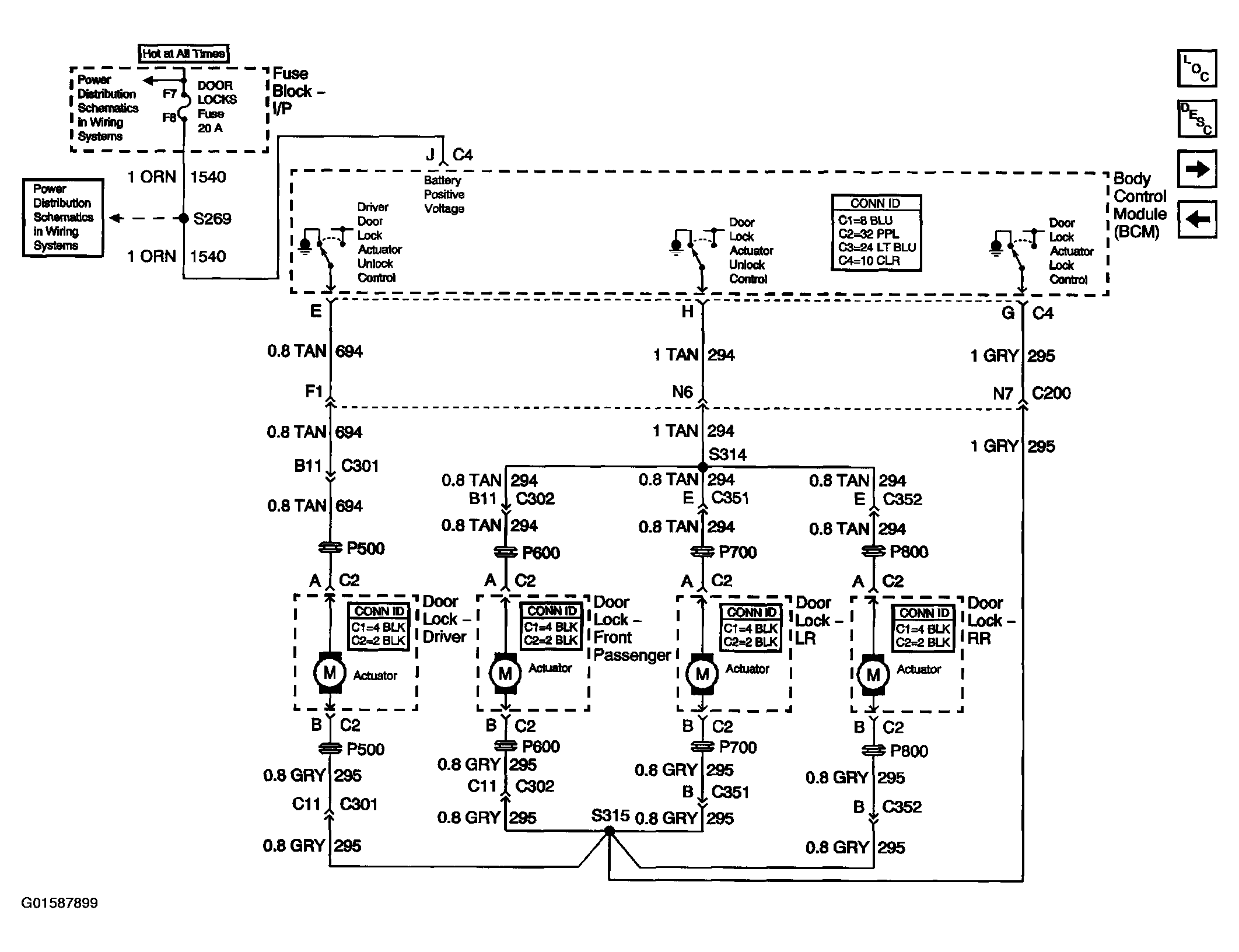

Fig 2: Door Actuators Diagram
G01587899Courtesy of GENERAL MOTORS CORP.

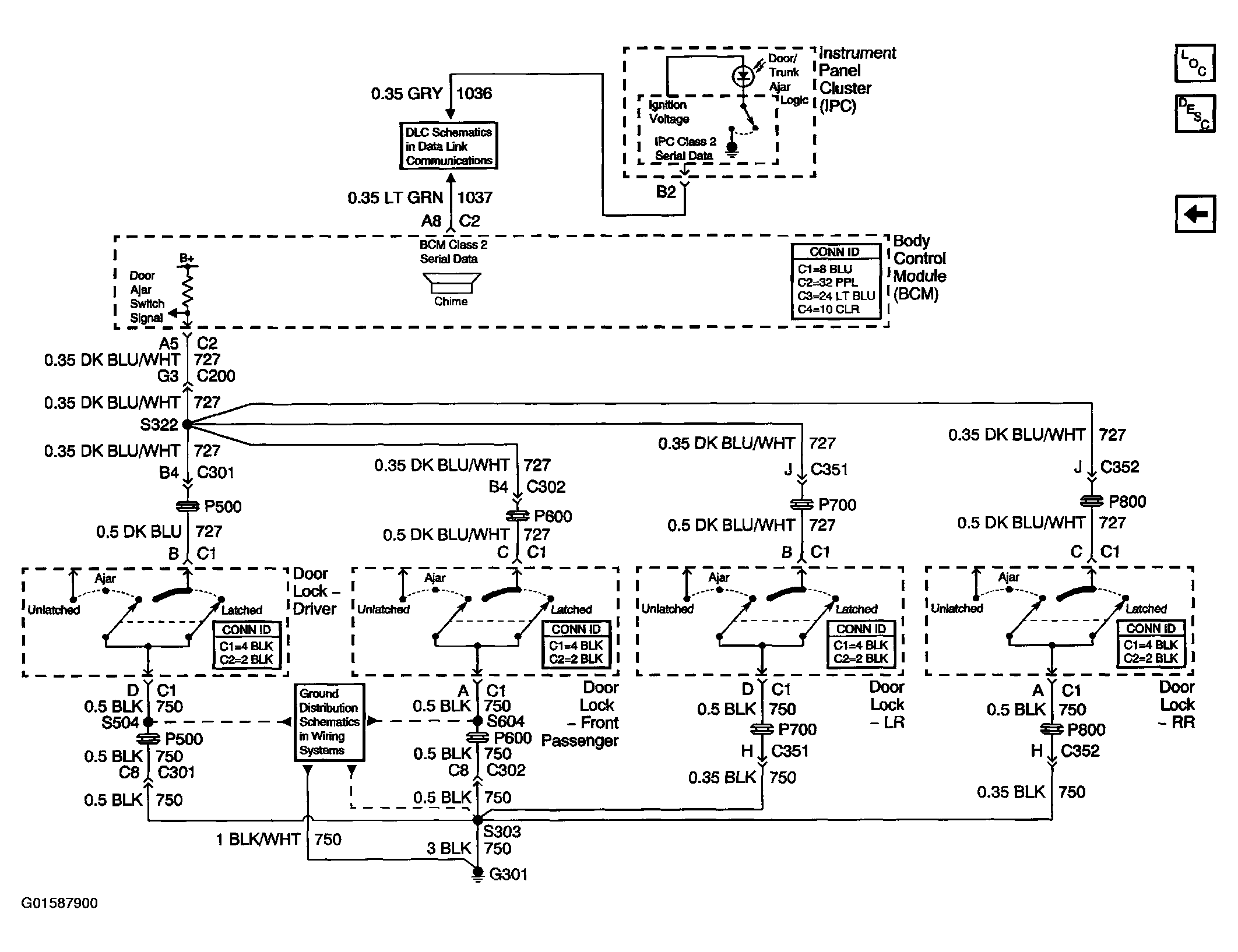

Fig 3: Door Ajar Indicator Diagram
G01587900Courtesy of GENERAL MOTORS CORP.
